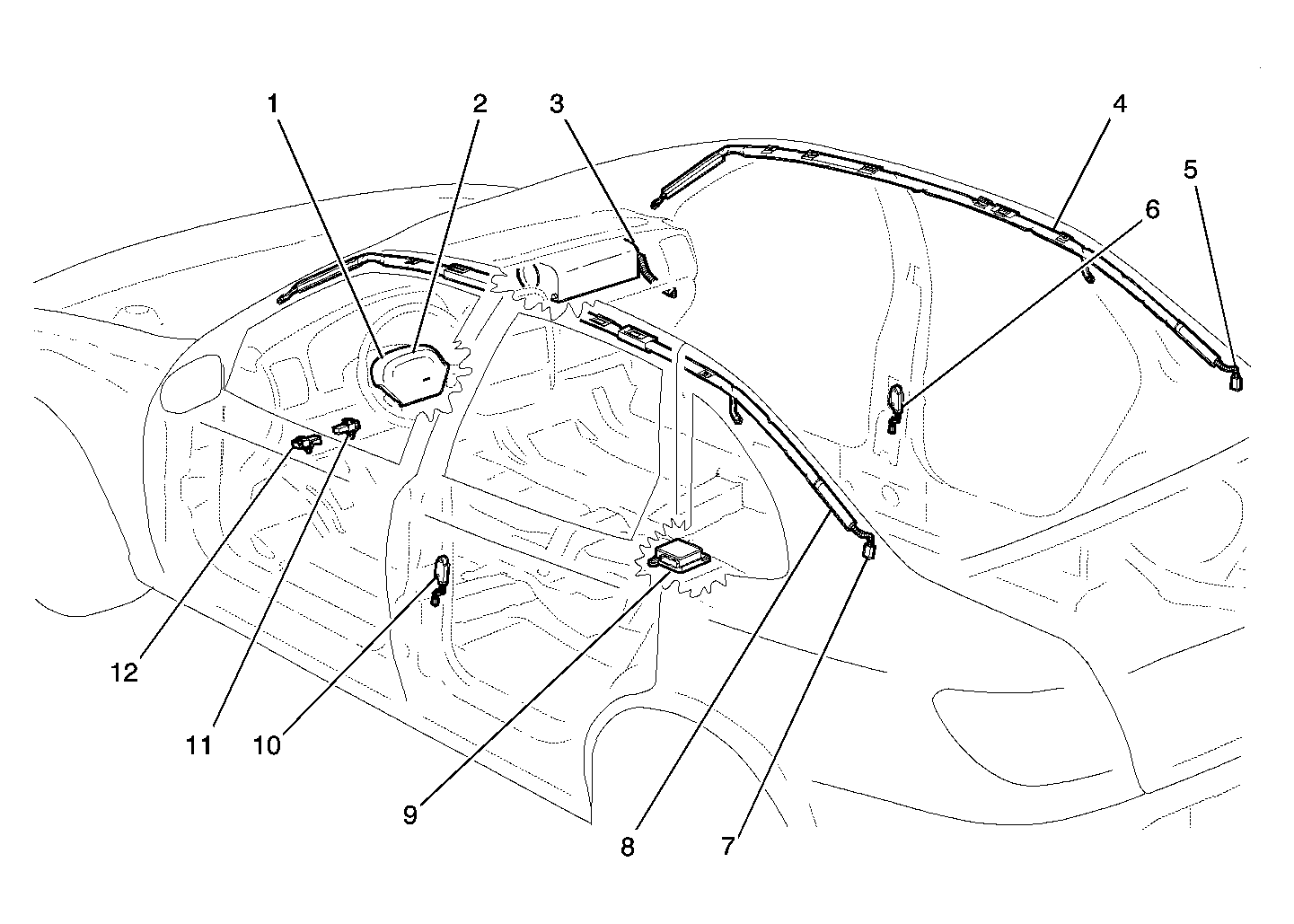

SIR Component Views
WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module Coil (under steering wheel) |
| 2 | Inflatable Restraint Steering Wheel Module |
| 3 | Inflatable Restraint I/P Module |
| 4 | Inflatable Restraint Side Impact Module- Right |
| 5 | Inflatable Restraint Side Impact Module- Right Connector |
| 6 | Inflatable Restraint Side Impact Sensor (SIS)- Right |
| 7 | Inflatable Restraint Side Impact Module- Left Connector |
| 8 | Inflatable Restraint Side Impact Module- Left |
| 9 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 10 | Inflatable Restraint Side Impact Sensor (SIS)- Left |
| 11 | C215 |
| 12 | Inflatable Restraint Steering Wheel Module Coil C2 |
