Disassembled Views

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

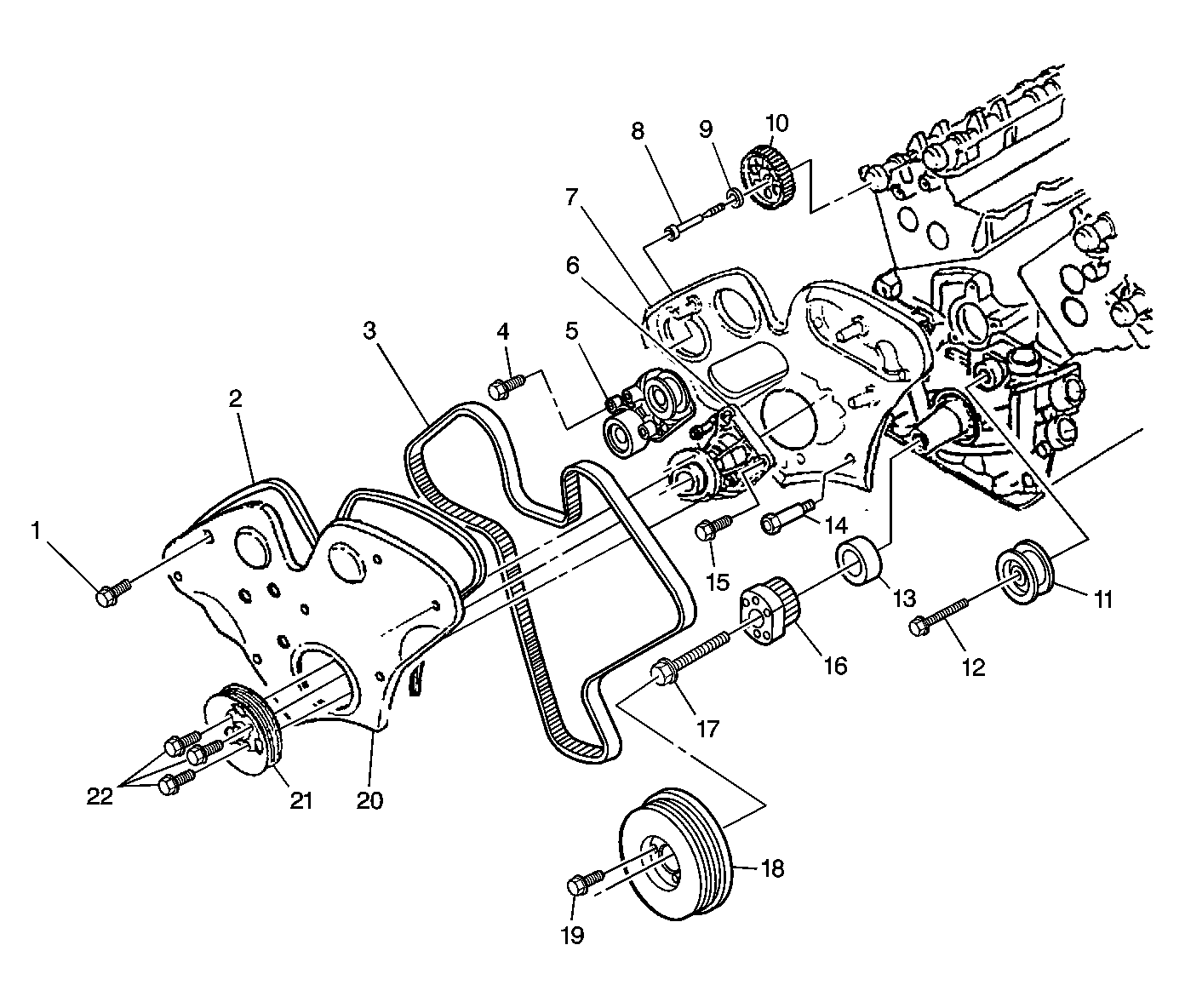

Fig 1: Exploded View Of Front Engine Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Timing Belt Front Cover Bolt
2	Timing Belt Front Cover Seal
3	Timing Belt
4	Timing Belt Tensioner Bracket Bolt
5	Timing Belt Tensioner Bracket, Includes 1-2 Idler Pulley and Tensioner
6	Water Pump
7	Timing Belt Rear Cover
8	Camshaft Sprocket Bolt
9	Camshaft Sprocket Washer
10	Camshaft Sprocket
11	3-4 Timing Belt Idler
12	3-4 Timing Belt Idler Bolt
13	Oil Pump Collar
14	Timing Belt Rear Cover Bolt
15	Water Pump Bolt
16	Crankshaft Pulley
17	Crankshaft Pulley Bolt
18	Crankshaft Balancer
19	Crankshaft Balancer Bolt
20	Timing Belt Front Cover
21	Water Pump Pulley
22	Water Pump Pulley Bolts

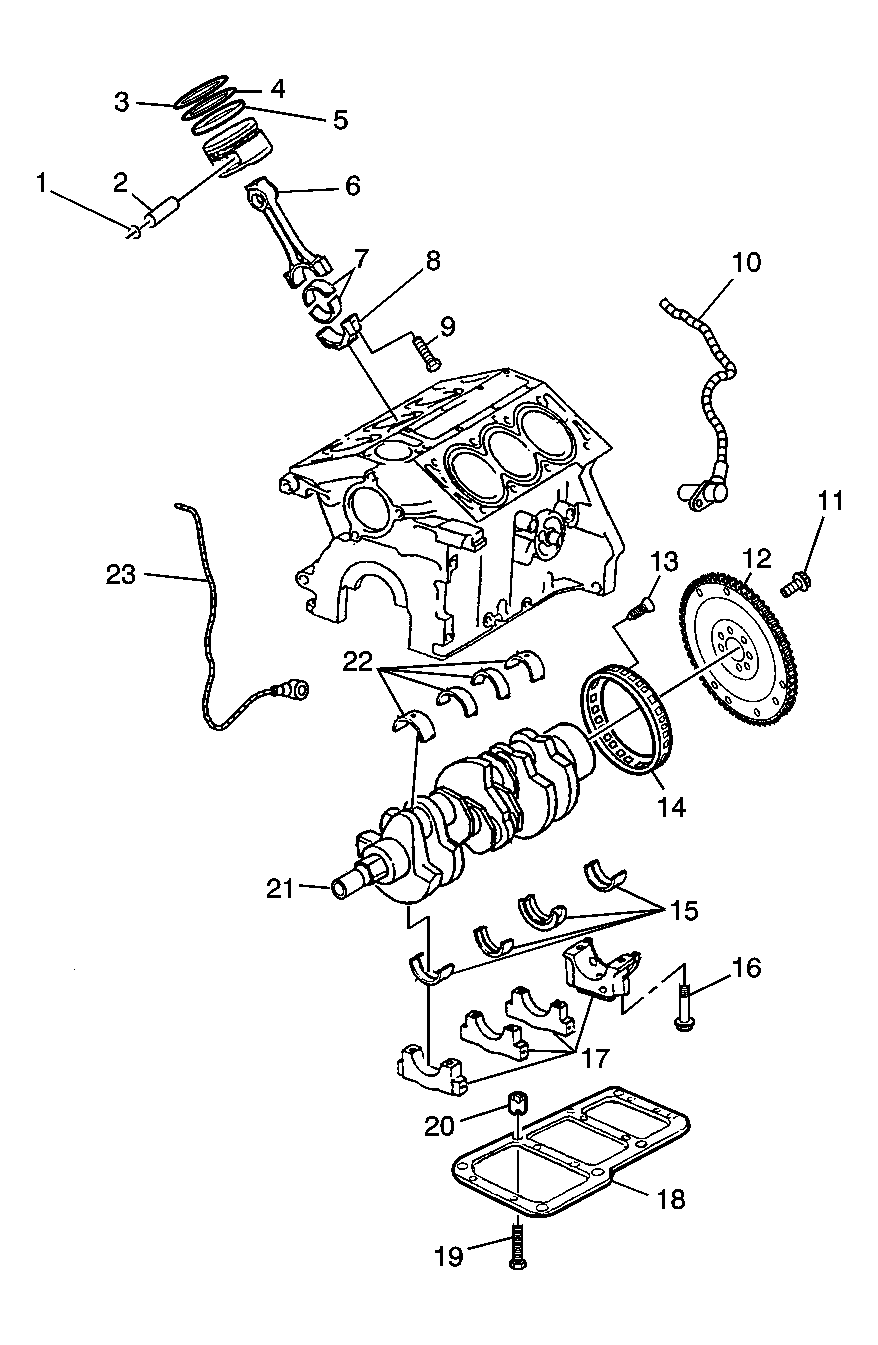

Fig 2: Exploded View Of Crankshaft/Pistons

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Piston Pin Retaining Clip
2	Piston Pin
3	Upper Compression Ring
4	Lower Compression Ring
5	Oil Control Rings
6	Connecting Rod
7	Connecting Rod Bearing
8	Connecting Rod Cap
9	Connecting Rod Bolt
10	Crankshaft Sensor
11	Flywheel Bolt
12	Flywheel
13	Crankshaft Sensor Reluctor Ring Bolt
14	Crankshaft Sensor Reluctor Ring
15	Crankshaft Lower Main Bearings
16	Crankshaft Main Bearing Cap Bolt
17	Crankshaft Main Bearing Caps
18	Crankshaft Bearing Bridge
19	Crankshaft Bearing Bridge Bolt
20	Crankshaft Bearing Bridge Adjusting Sleeve
21	Crankshaft
22	Crankshaft Upper Main Bearings
23	Left Knock Sensor

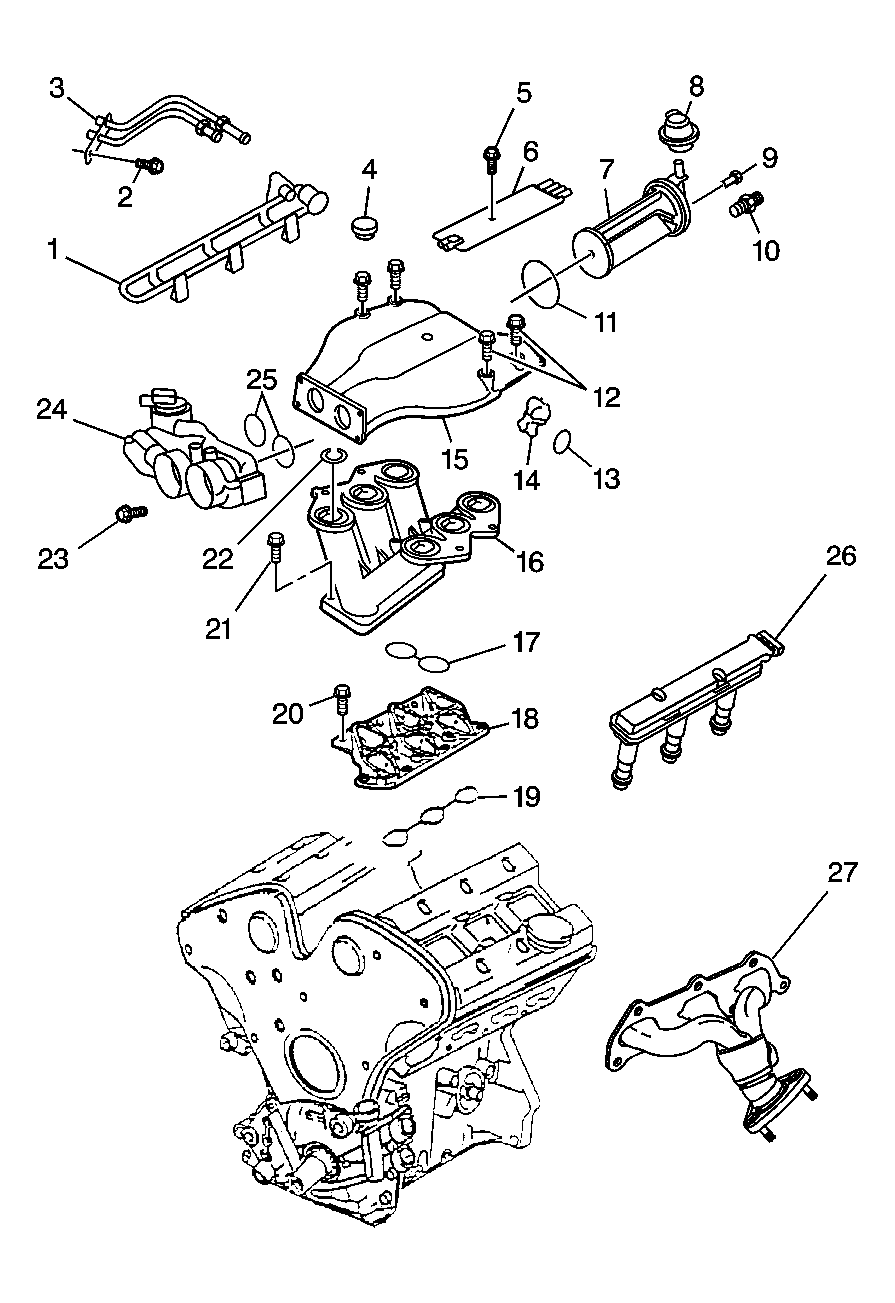

Fig 3: Exploded View Of Intake & Exhaust Manifolds

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injection Rail
2	Fuel Injection Fuel Feed and Return Bolt
3	Fuel Injector Fuel Feed and Return
4	Intake Plenum Bolt Cap
5	PCV Vent Tube Adapter Bolt
6	PCV Vent Tube Adapter
7	Intake Manifold Tuning Valve
8	Intake Manifold Tuning Valve Actuator
9	Intake Manifold Tuning Valve Bolt
10	Intake Manifold Tuning Valve Solenoid Valve Hose
11	Intake Manifold Tuning Valve O-ring
12	Intake Manifold Plenum Bolt
13	PCV Vent Tube Adapter O-ring
14	Idle Air Valve
15	Intake Plenum
16	Intake Manifold
17	Intake Manifold Gasket
18	Intake Manifold Flange
19	Intake Manifold Flange Gasket
20	Intake Manifold Flange Bolt
21	Intake Manifold Bolt
22	Intake Plenum O-ring
23	Throttle Body Bolt
24	Throttle Body
25	Throttle Body O-ring
26	Ignition Coil Cassette
27	Left Exhaust Manifold

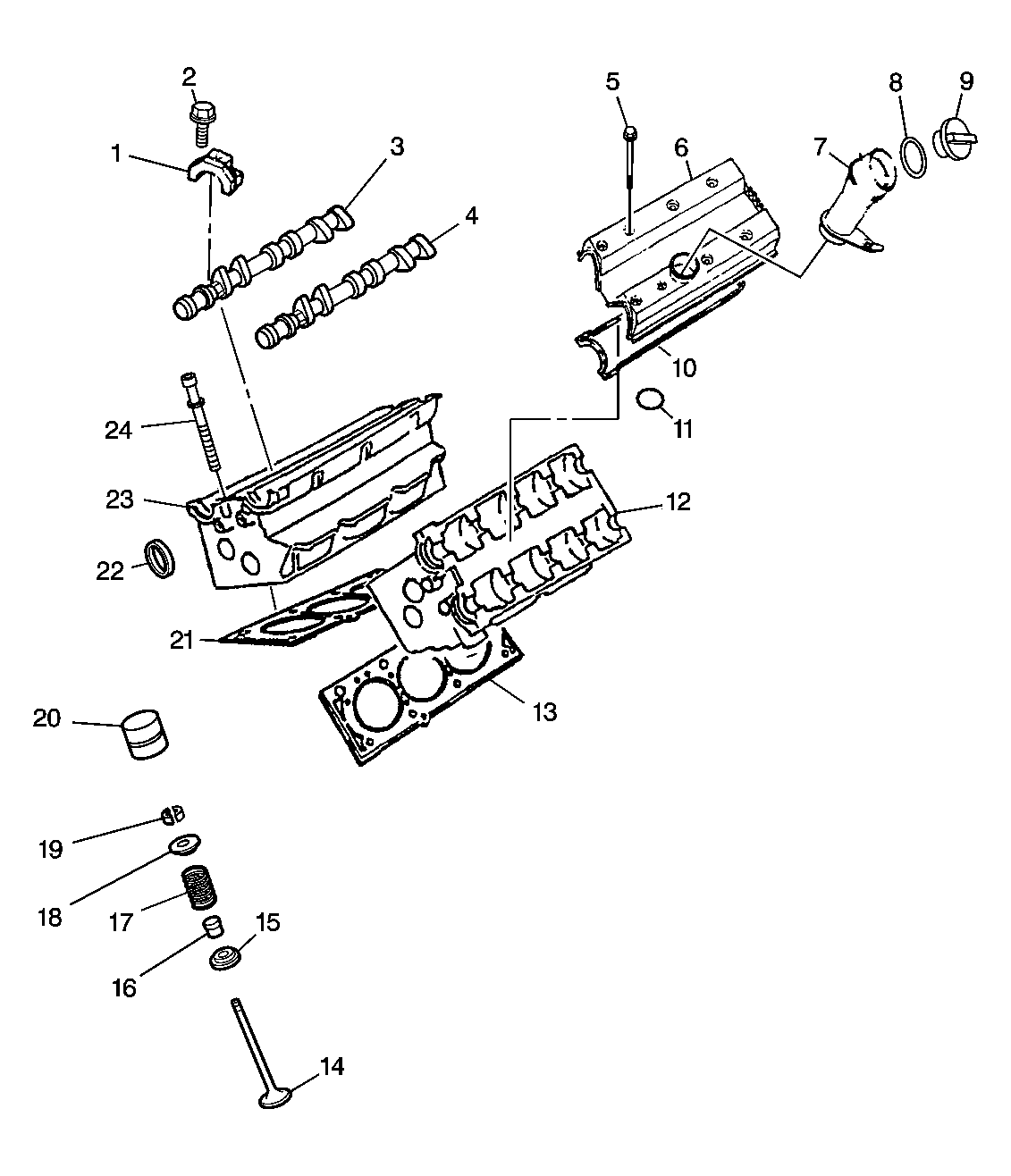

Fig 4: Exploded View Of Cylinder Heads

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Bearing Cap
2	Camshaft Bearing Cap Bolt
3	Exhaust Camshaft
4	Intake Camshaft
5	Camshaft Cover Bolt
6	Camshaft Cover
7	Oil Fill Tube
8	Oil Fill Cap O-ring
9	Oil Fill Cap
10	Camshaft Cover Gasket
11	Camshaft Cover O-ring
12	Left Cylinder Head
13	Left Cylinder Head Gasket
14	Valve
15	Valve Spring Seat
16	Valve Seal
17	Valve Spring
18	Valve Spring Cap
19	Valve Spring Retaining Keys
20	Valve Lifter
21	Right Cylinder Head Gasket
22	Camshaft Seal
23	Right Cylinder Head
24	Cylinder Head Bolt

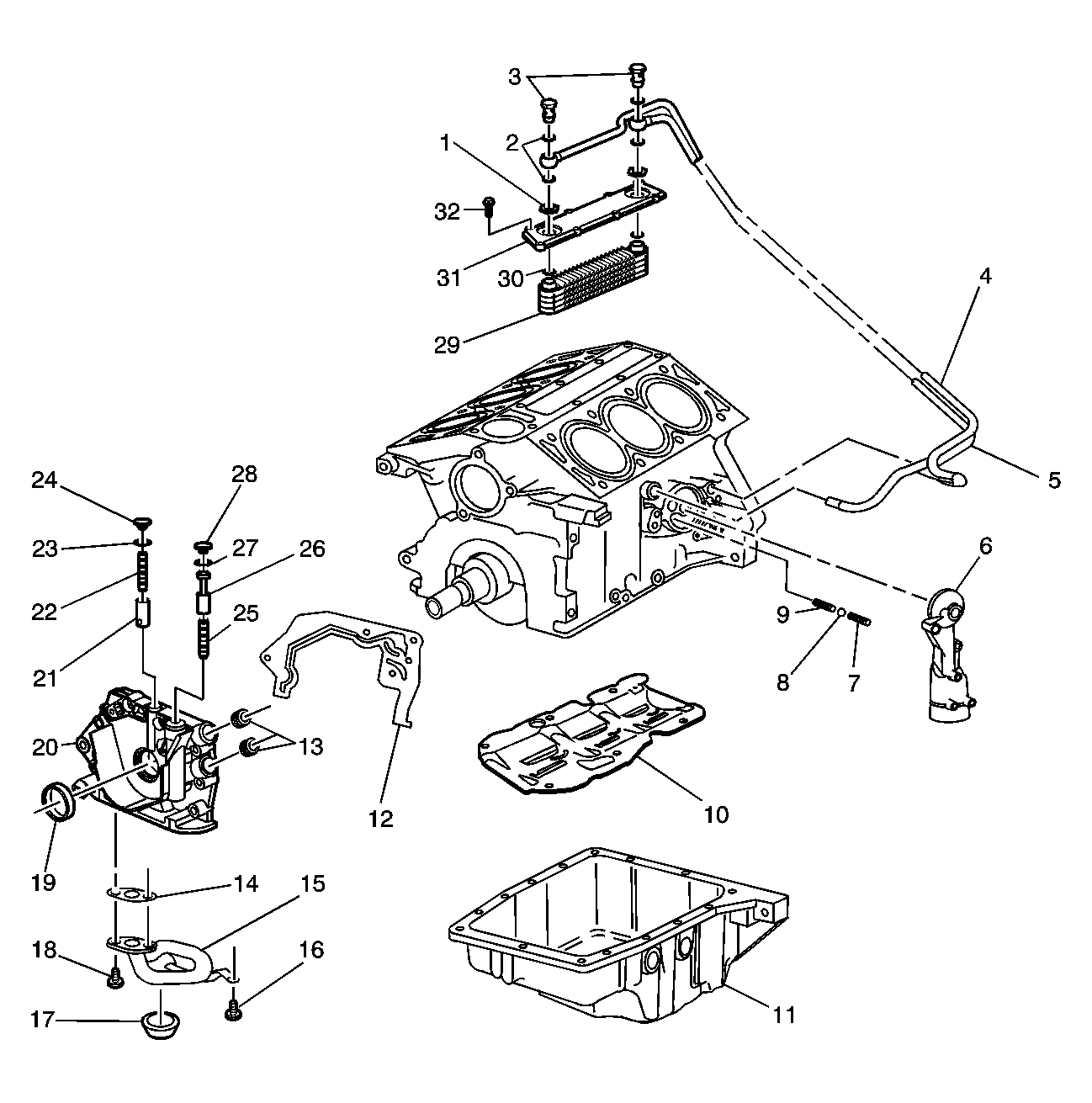

Fig 5: Exploded View Of Oil Pan & Delivery Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Oil Cooler Inlet/Outlet Nuts
2	Oil Cooler Pipe Seals
3	Oil Cooler Line Banjo Fittings
4	Oil Cooler Inlet Pipe
5	Oil Cooler Outlet Pipe
6	Oil Filter Adapter
7	Oil Filter Bypass Valve
8	Oil Filter Bypass Check Ball
9	Oil Filter Bypass Spring
10	Oil Pan Baffle
11	Oil Pan
12	Oil Pump Gasket
13	Oil Pump Pipe Plug
14	Oil Intake Pipe O-ring
15	Oil Intake Pipe
16	Oil Intake Pipe Bolt
17	Oil Pump Inlet Screen
18	Oil Intake Pipe Bolt
19	Oil Pump Collar
20	Oil Pump
21	Oil Pressure Relief Valve
22	Oil Pressure Relief Valve Spring
23	Oil Pressure Relief Valve Seal
24	Oil Pressure Relief Valve Plug
25	Oil Pressure Regulator Valve Spring
26	Oil Pressure Regulator Valve
27	Oil Pressure Regulator Valve Seal
28	Oil Pressure Regulator Valve Plug
29	Oil Cooler
30	Oil Cooler Inlet/Outlet Seals
31	Oil Cooler Cover
32	Oil Cooler Cover Bolt
