Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages and Console.

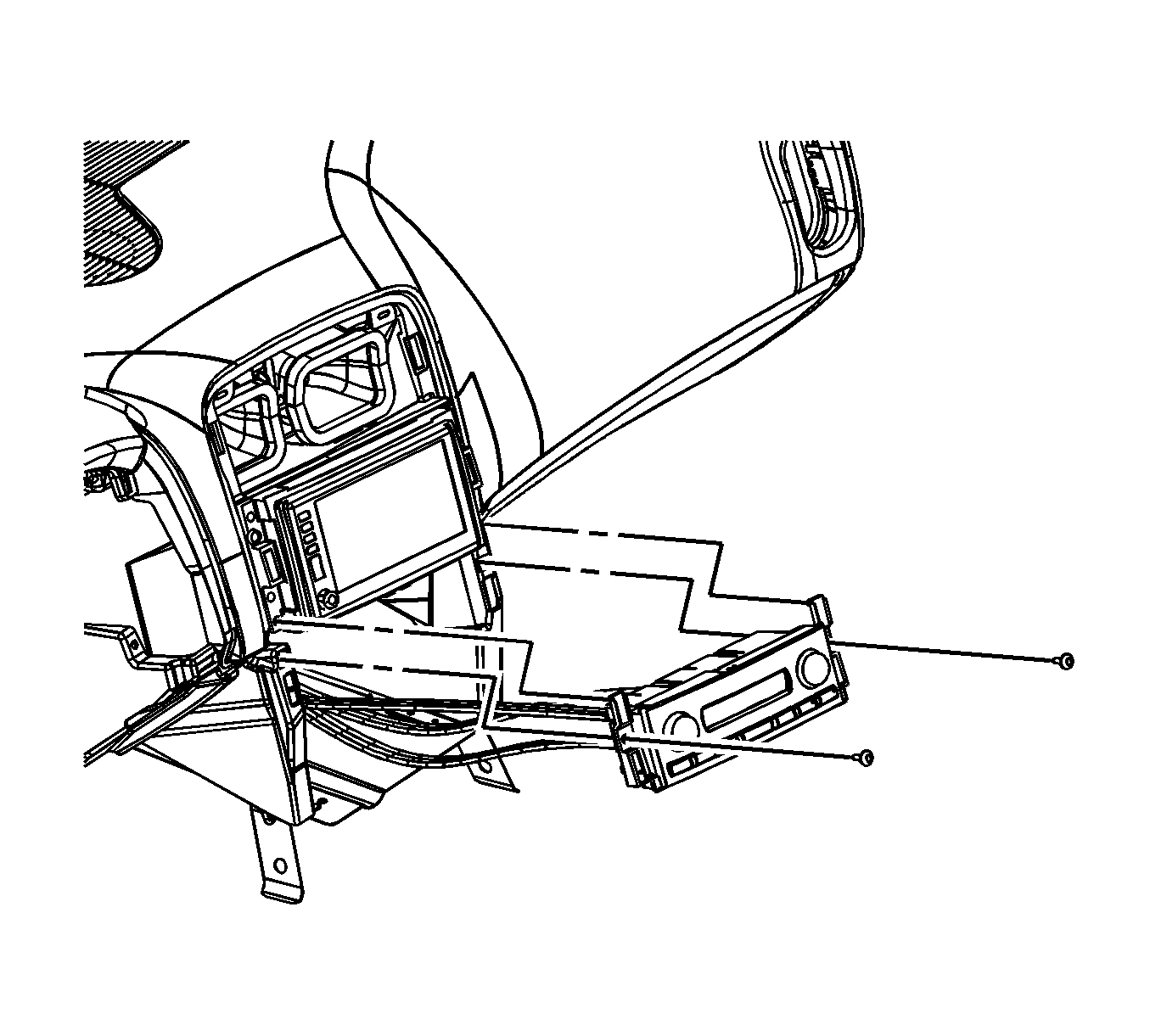

    2. Fig 1: HVAC Control Module & Retaining Screws
    GM1488652Courtesy of GENERAL MOTORS CORP.
  2. Remove the HVAC control module retaining screws.
  3. Remove the HVAC control module.

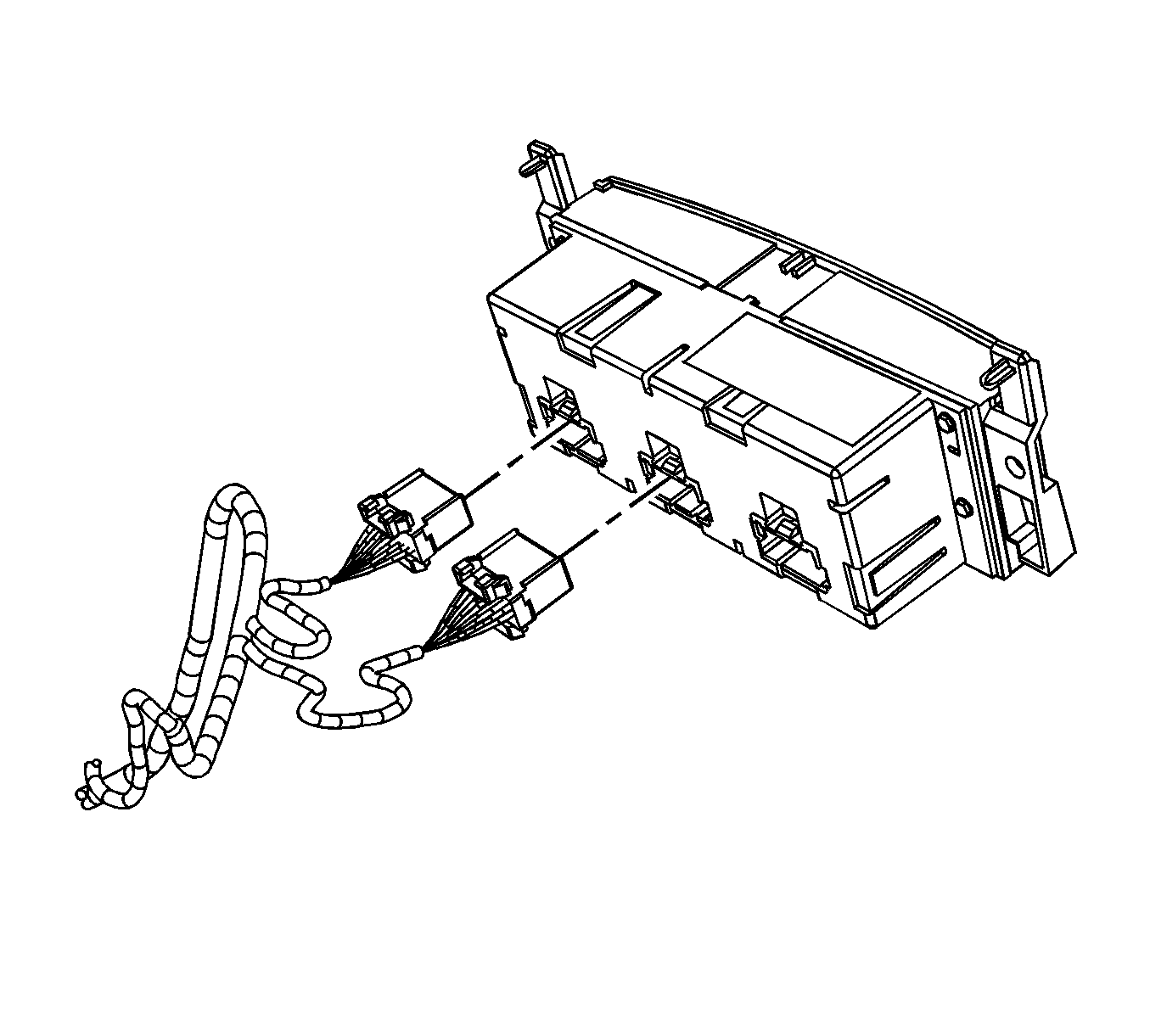

    4. Fig 2: HVAC Control Module Electrical Connections
    GM1488655Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the HVAC control module electrical connections.
