Sun Load Sensor Replacement

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

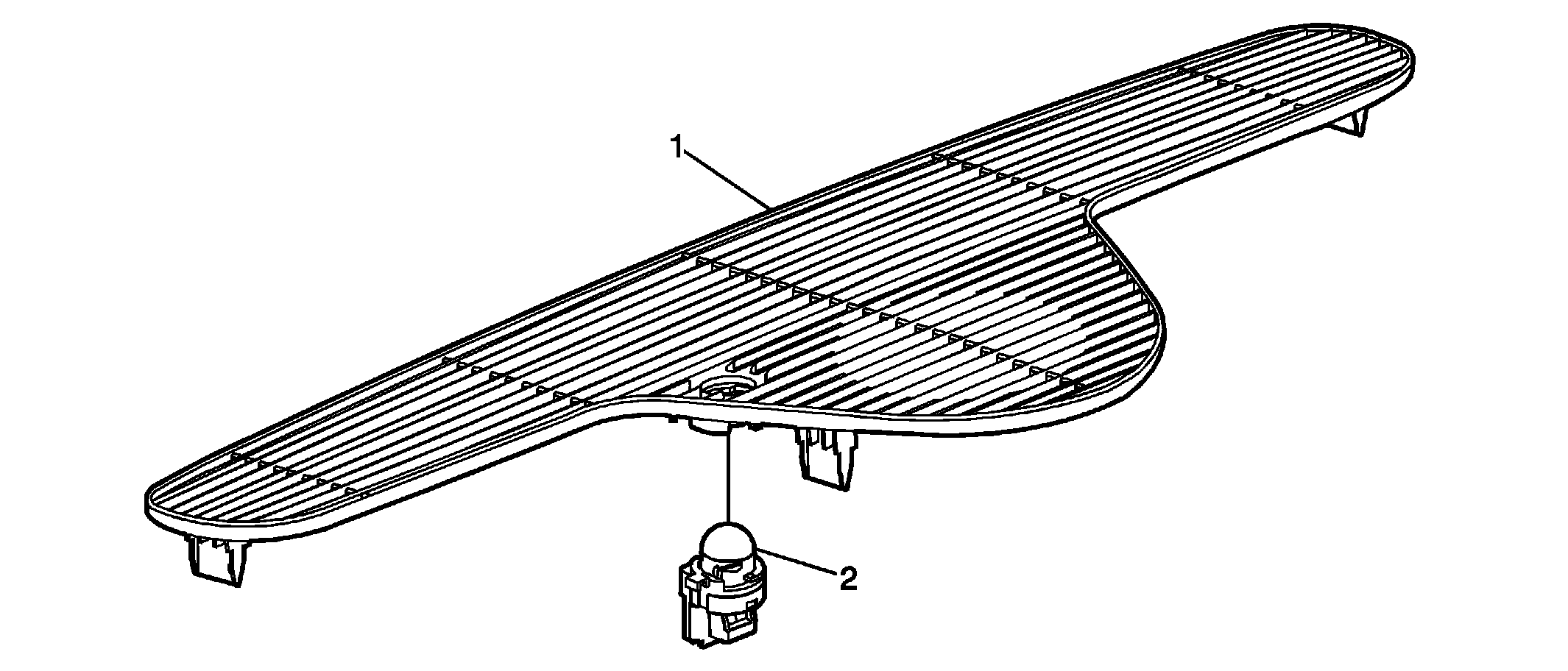

Fig 1: Defroster Grille Assembly & Sunload Sensor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Grille Assembly, Defroster Refer to Defroster Grille Replacement .
2	Sensor Assembly, Sunload
