SIR Component Views

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head Up Display (HUD) (UV6)
2	Driver Information Center (DIC) Switch
3	Sunload Sensor Assembly
4	Hazard Switch
5	Radio
6	HVAC Control Module
7	Inflatable Restraint I/P Module Disable Switch
8	I/P Compartment Lamp
9	Heated Seat Switch - Passenger
10	Suspension Control Switch
11	Inflatable Restraint I/P Module Disable Switch LED
12	Auxiliary Power Outlet
13	Traction Control Switch
14	Cigar Lighter
15	Heated Seat Switch - Driver
16	Footwell Courtesy Lamp - Left
17	Ignition Mode Switch
18	Air Temperature Sensor - Inside
19	Inflatable Restraint Steering Wheel Module
20	Rear Compartment Lid Release Switch - Interior
21	Fuel Door Release Switch
22	I/P Dimmer Switch
23	Folding Top Control Switch (CM7)
24	Head Up Display (HUD) Switch (UV6)
25	Instrument Panel Cluster (IPC)

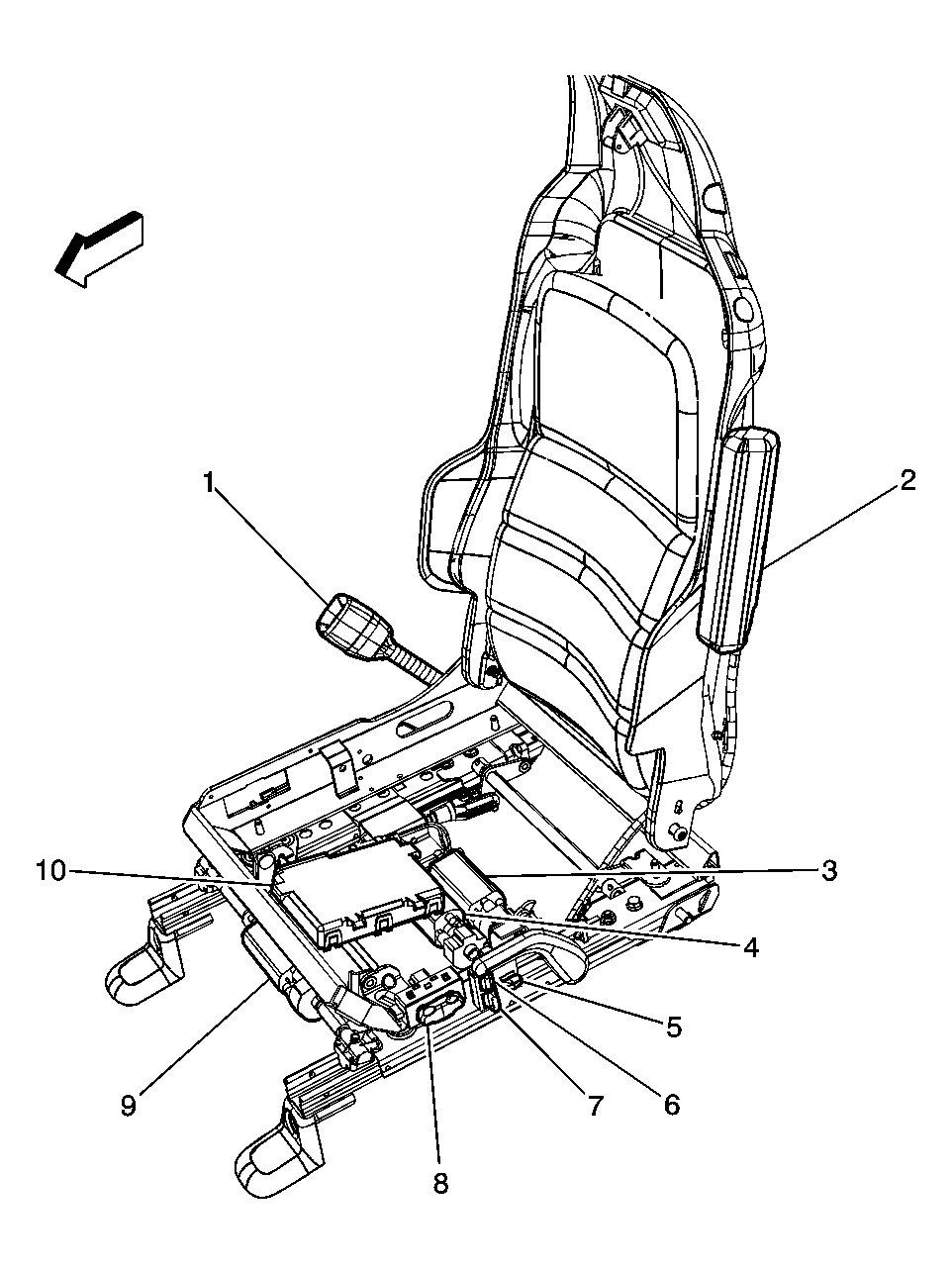

Fig 2: Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Left
2	Inflatable Restraint Side Impact Module - Left
3	Seat Rear Vertical Motor - Driver
4	Seat Front Vertical Motor - Driver
5	Seat Bolster Switch - Driver
6	Lumbar Switch - Driver
7	Lumbar Switch - Driver
8	Seat Adjuster Switch - Driver
9	Seat Horizontal Motor - Driver
10	Memory Seat Module - Driver

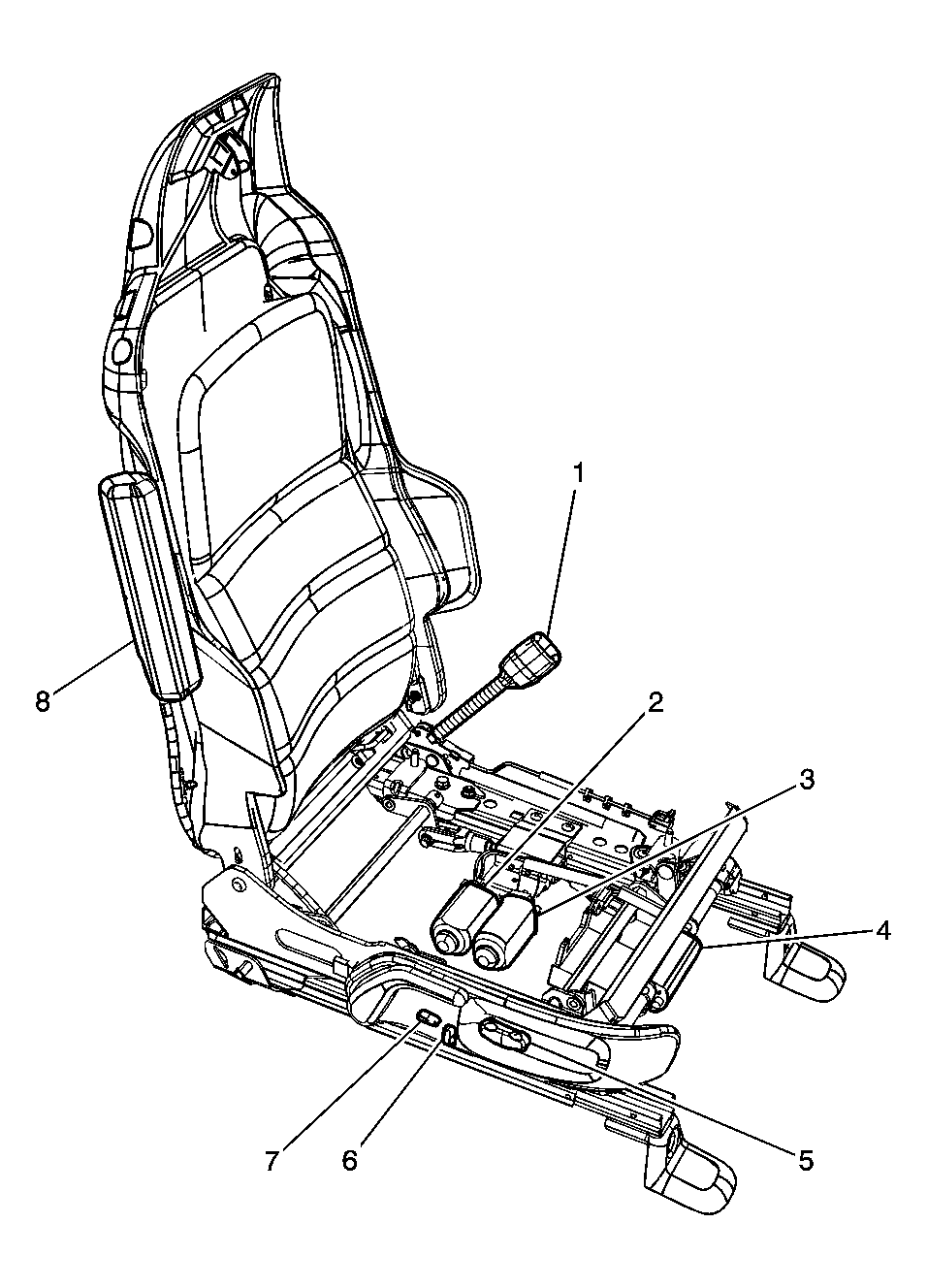

Fig 3: Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Right
2	Seat Rear Vertical Motor - Passenger (AG2)
3	Seat Front Vertical Motor - Passenger(AG2)
4	Seat Horizontal Motor - Passenger (AG2)
5	Seat Adjuster Switch - Passenger (AG2)
6	Lumbar Switch - Passenger
7	Lumbar Switch - Passenger
8	Inflatable Restraint Side Impact Module - Right

Fig 4: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Driver Exterior
2	Door Lock Indicator - Driver
3	S579
4	S559
5	Memory Seat Switch
6	Door Lock Switch - Driver
7	Speaker - LF Door Tweeter
8	Outside Rearview Mirror - Driver C1
9	S539
10	Outside Rearview Mirror - Driver C2
11	C503
12	C501
13	Speaker - Bose
14	Driver Door Module (DDM)
15	Driver Door Switch Assembly (DDSA)
16	Door Handle Switch - Driver Interior
17	C555
18	Inflatable Restraint Side Impact Sensor - Left

Fig 5: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger C2
2	Outside Rearview Mirror - Passenger C2
3	Speaker - RF Door Tweeter
4	Door Lock Switch - Passenger
5	S680
6	Door Handle Switch - Passenger Interior
7	S660
8	Door Lock Indicator - Passenger
9	Door Handle Switch - Passenger Exterior
10	Inflatable Restraint Side Impact Sensor - Right
11	C666
12	Window Switch - Front Passenger
13	Front Passenger Door Module (FPDM)
14	Speaker - Bose
15	C600
16	C602
17	S640

Fig 6: Behind the Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Yaw and Lateral Accelerometer Sensor

Fig 7: Front of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left
