Inflatable Restraint Instrument Panel (I/P) Module Disable Switch LED Replacement

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

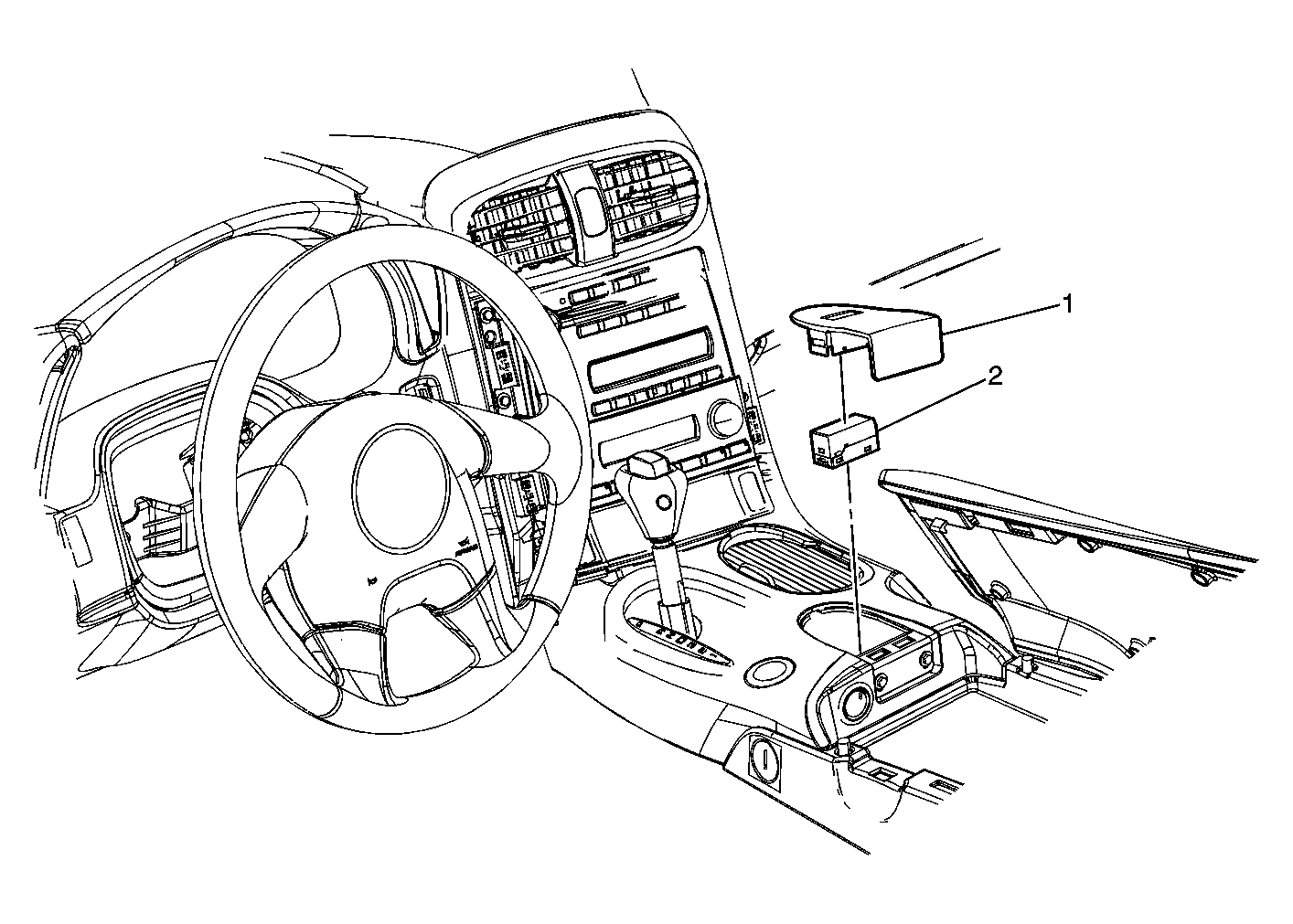

Fig 1: Inflatable Restraint Instrument Panel Module Disable Switch LED

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Plate Assembly - Floor Console Trim Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages, and Console.
2	Inflatable Restraint - Instrument Module Switch LED
