Inflatable Restraint Instrument Panel (I/P) Module Disable Switch Replacement

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

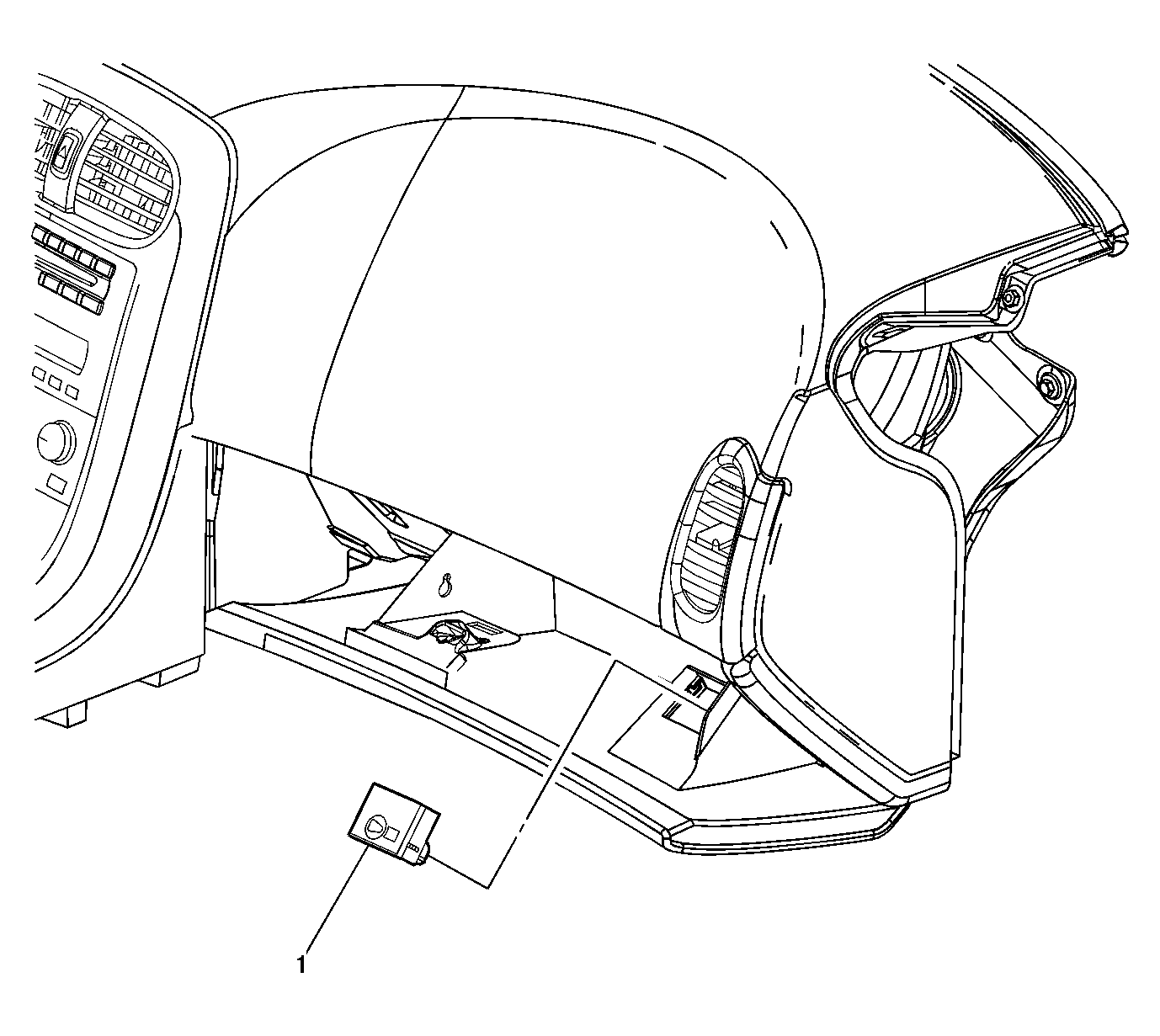

Fig 1: Inflatable Restraint Instrument Panel Module Disable Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Switch Assembly - Inflatable Restraint IP Module Tip: Use a flat-bladed tool in order to release the switch from the instrument panel (I/P) compartment. Disconnect the electrical connection.
