Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

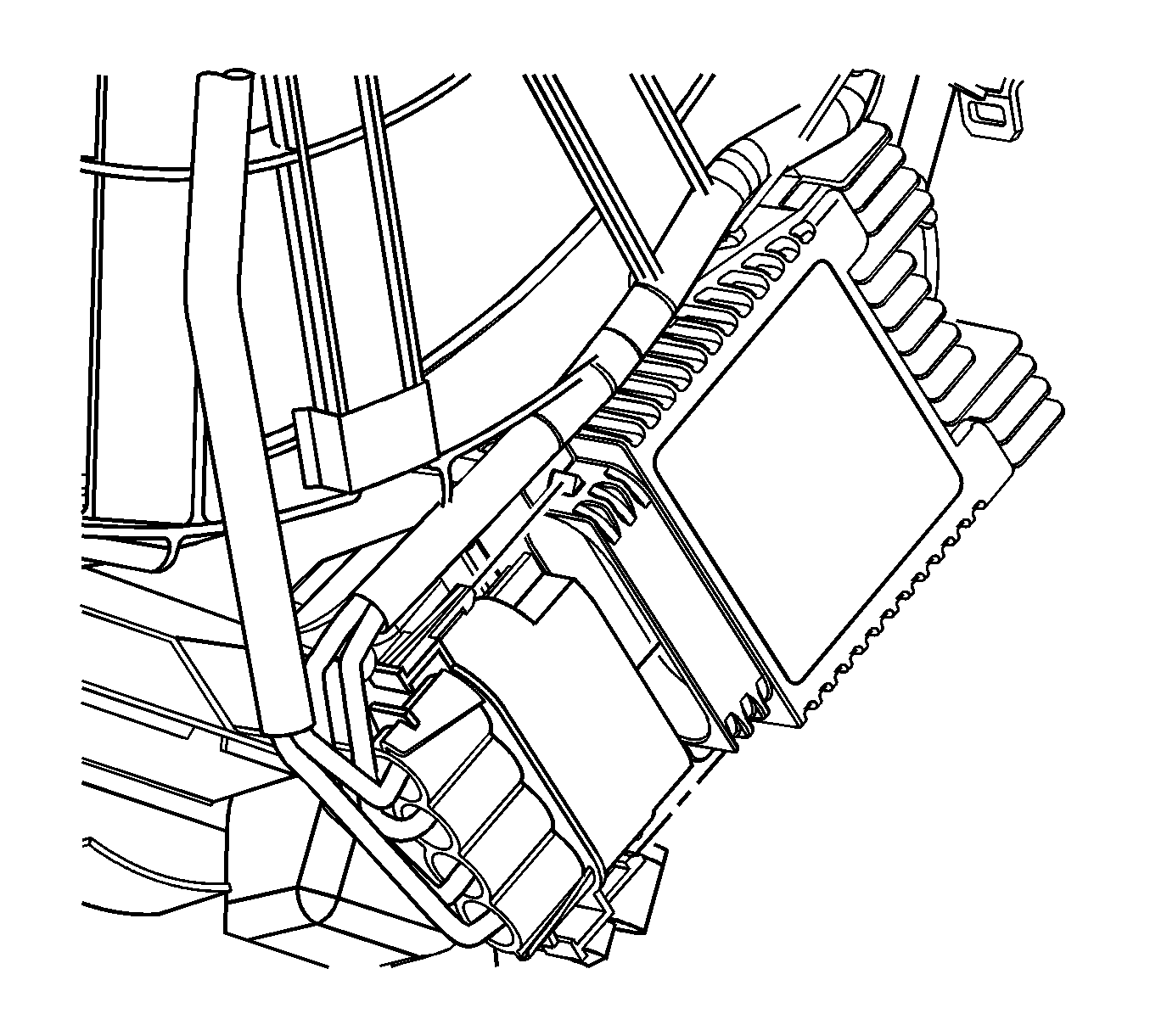

Fig 1: Cooling Fan Control Module & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the cooling fan control module to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the cooling fan control module retaining bolt.
Tighten: Tighten the bolt to 6 N.m (53 lb in).

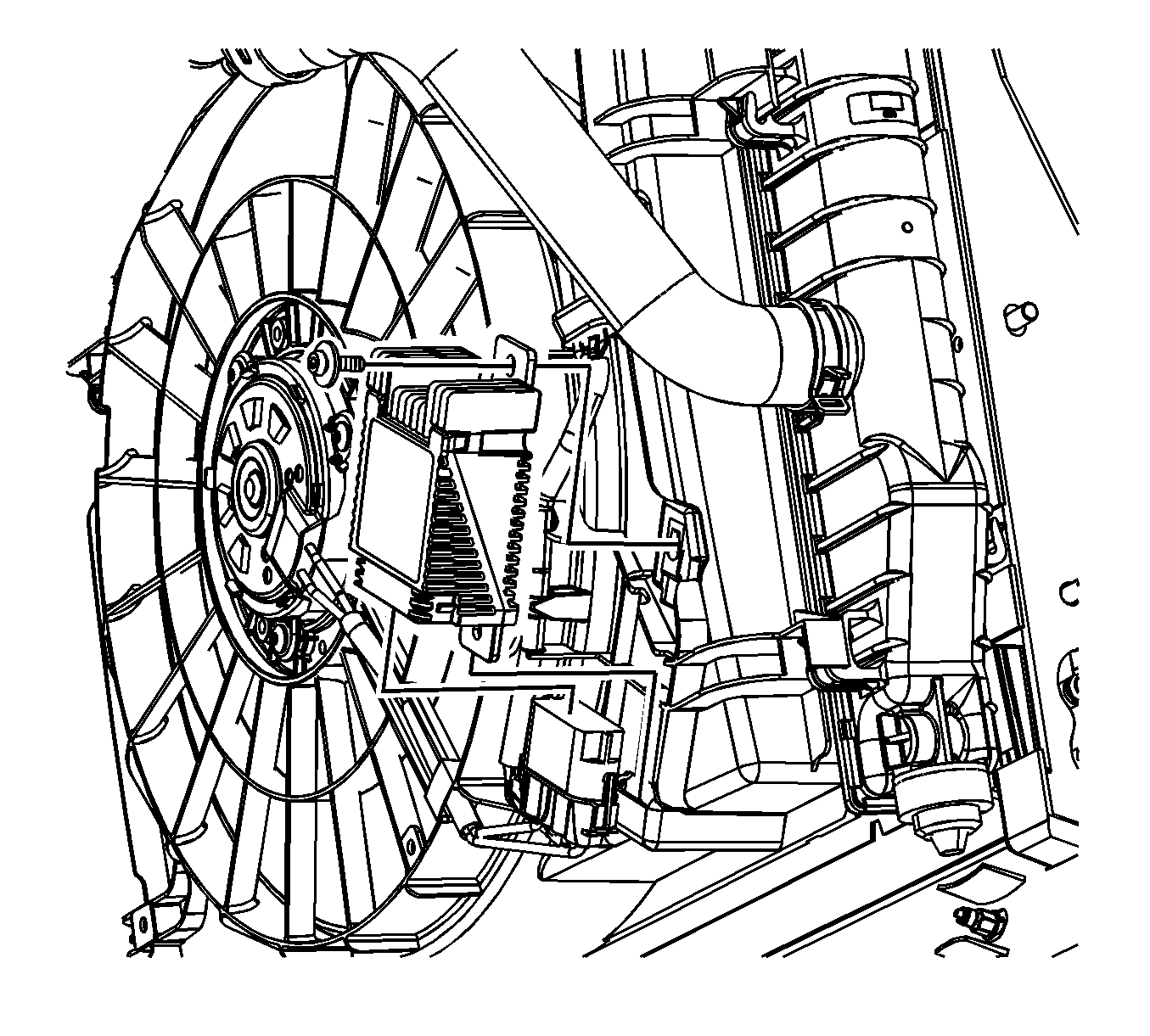

Fig 2: Cooling Fan Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the cooling fan control module electrical connector.
Lower the vehicle.
