Home >> Chevrolet >> 2005 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Control Module, A/T
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

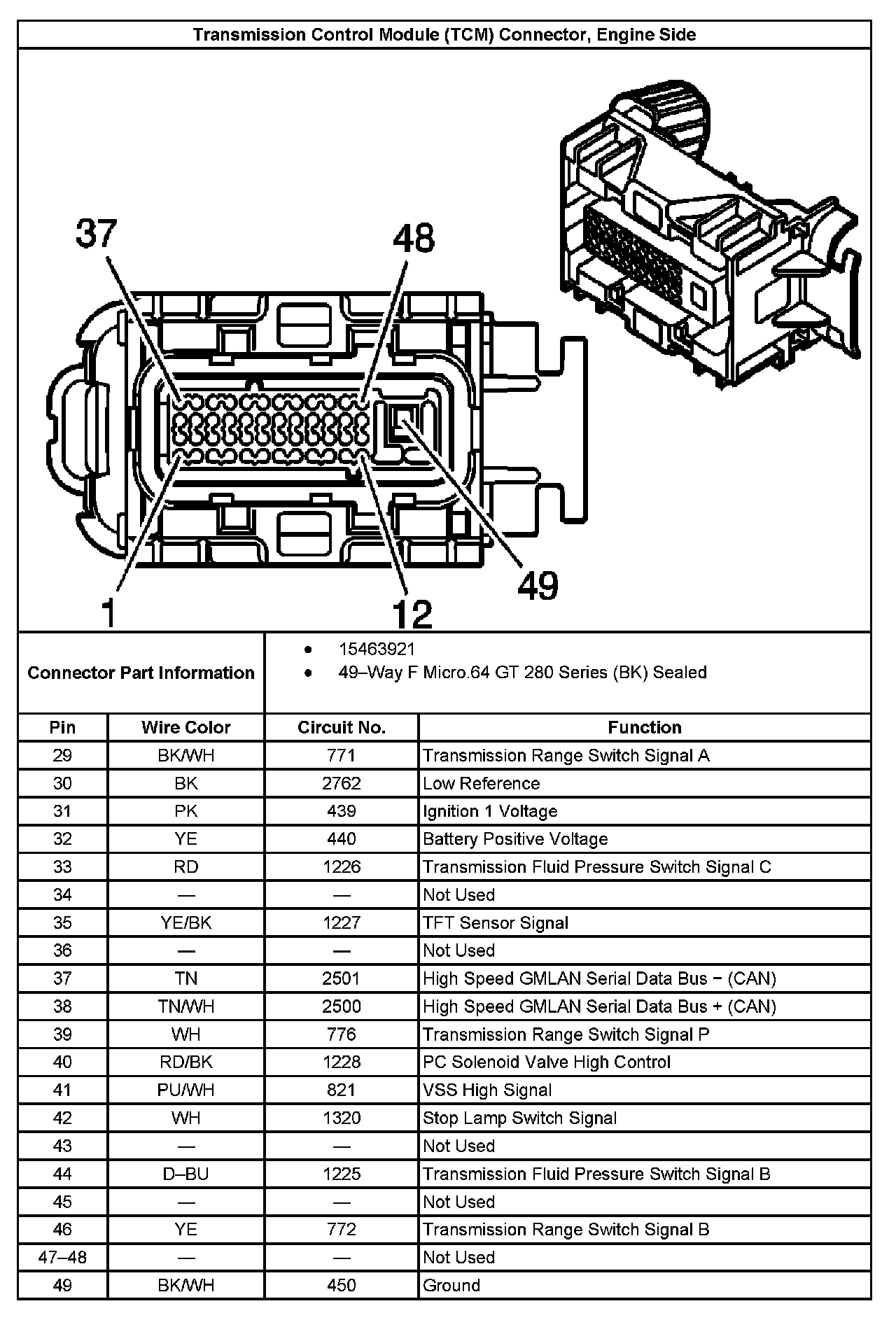

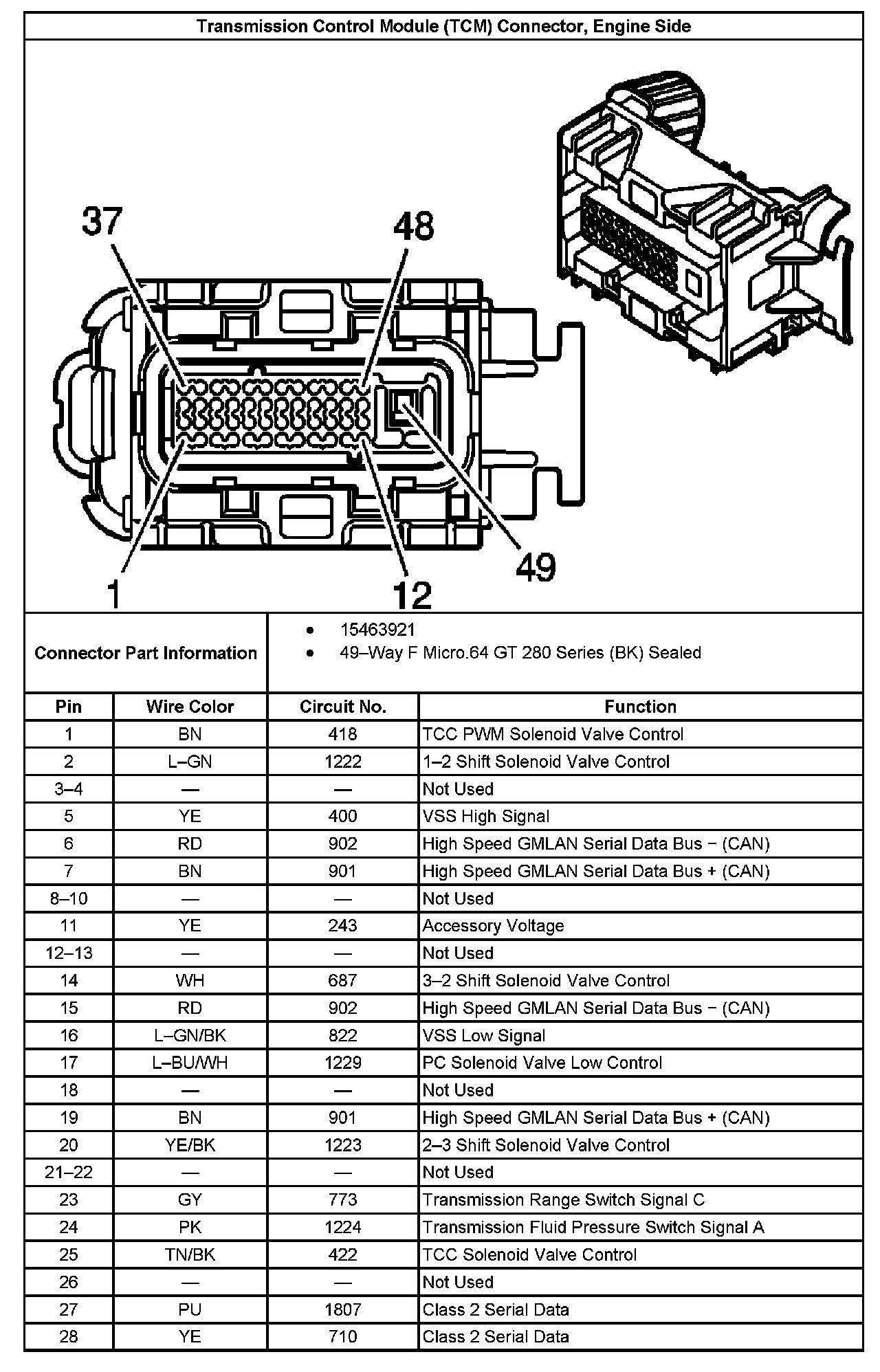

Control Module, A/T
