Electronic Brake Control Module
Electronic Brake Control Module C1:

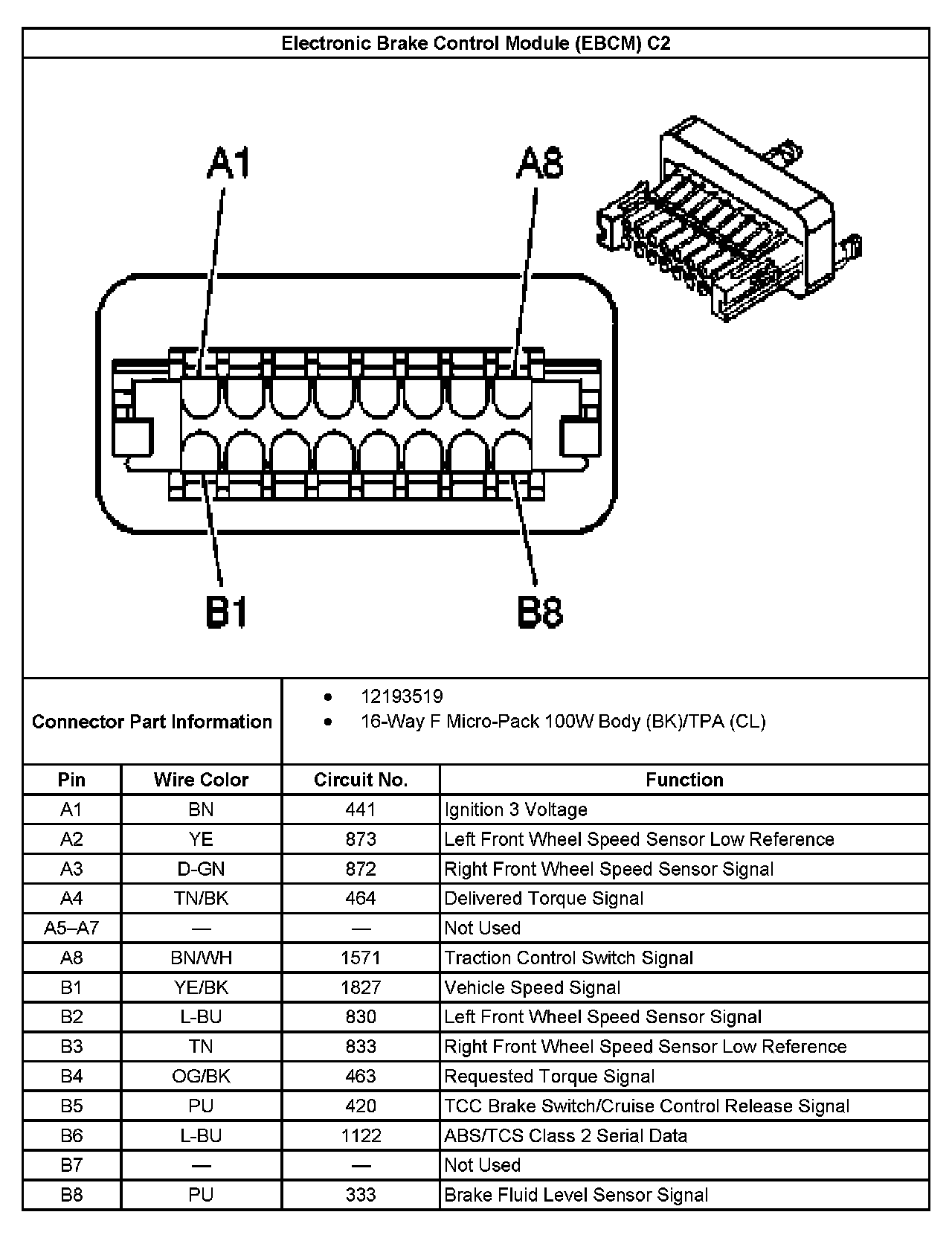

Electronic Brake Control Module C2:
