Thread Repair Specifications
Thread Repair Specifications
Engine Block:

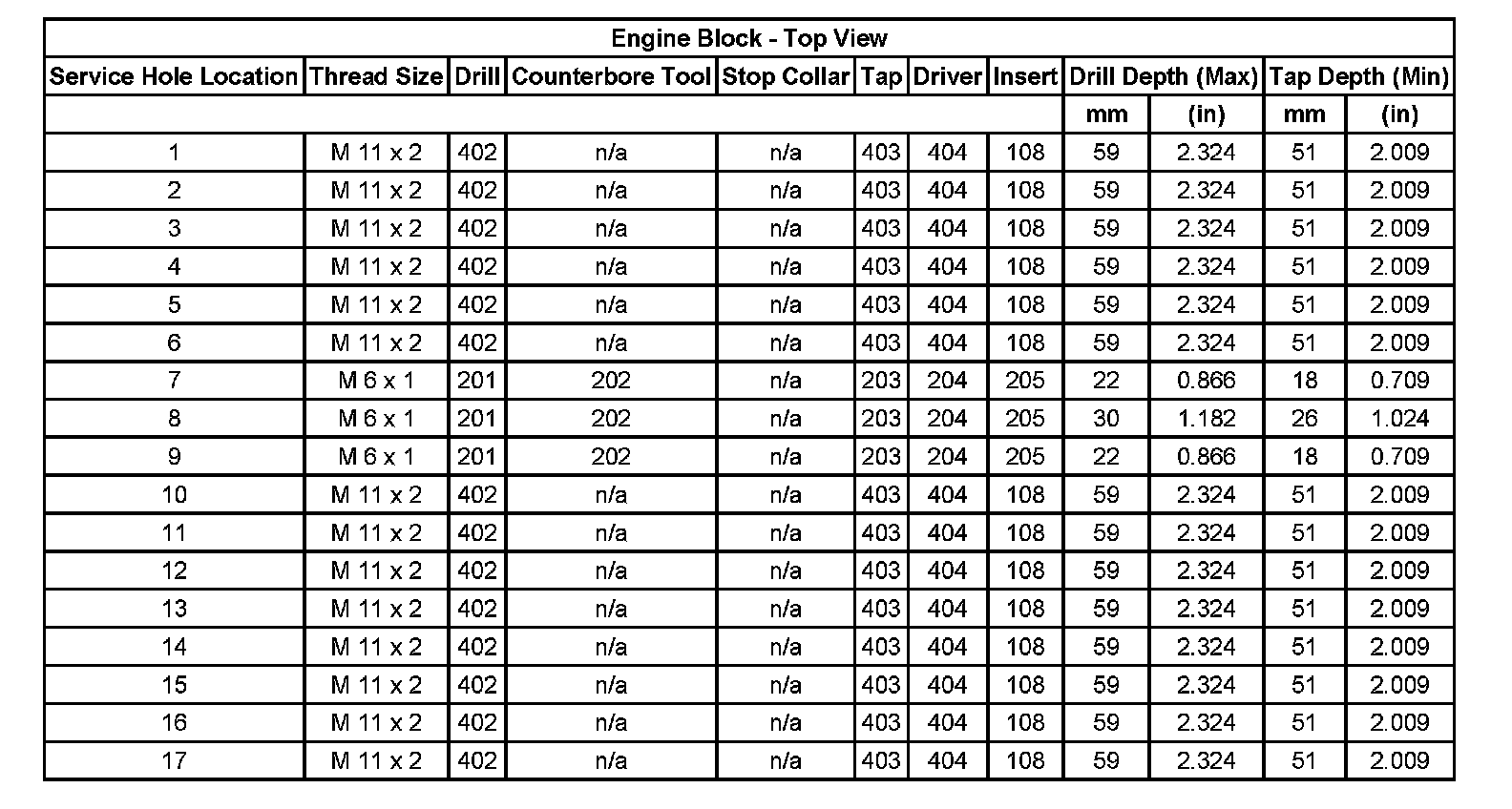

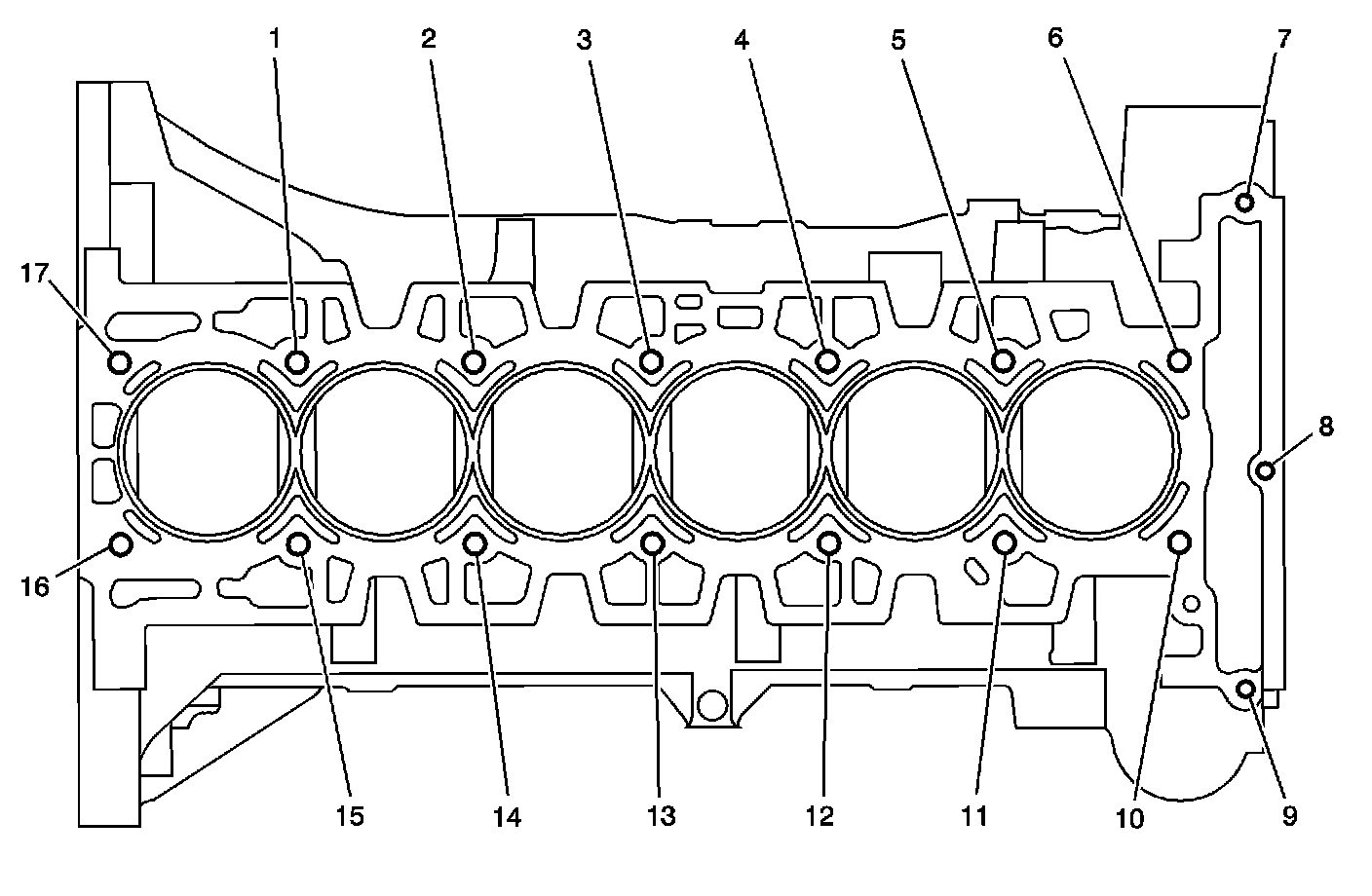

Engine Block - Top View
Engine Block:

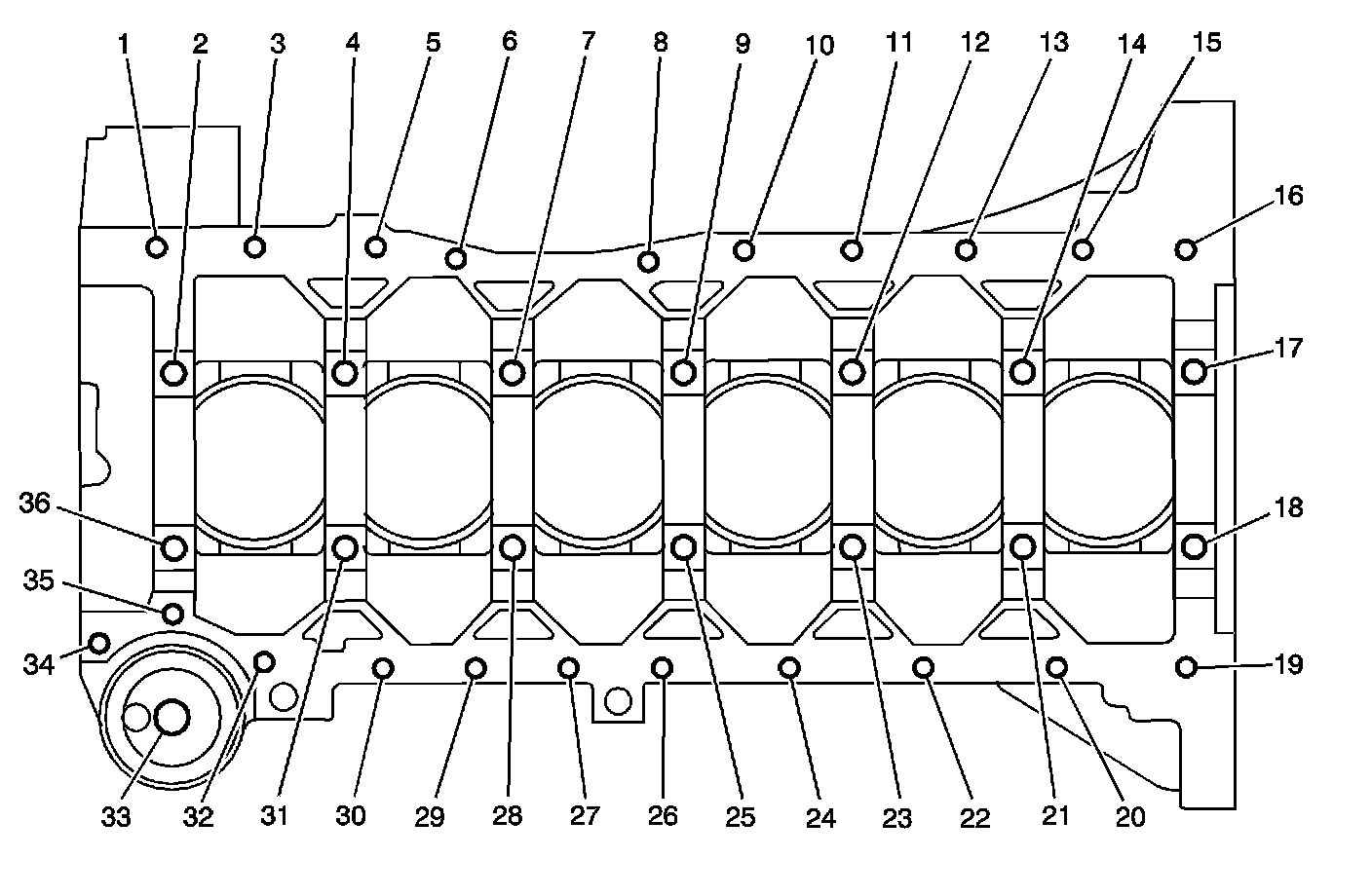

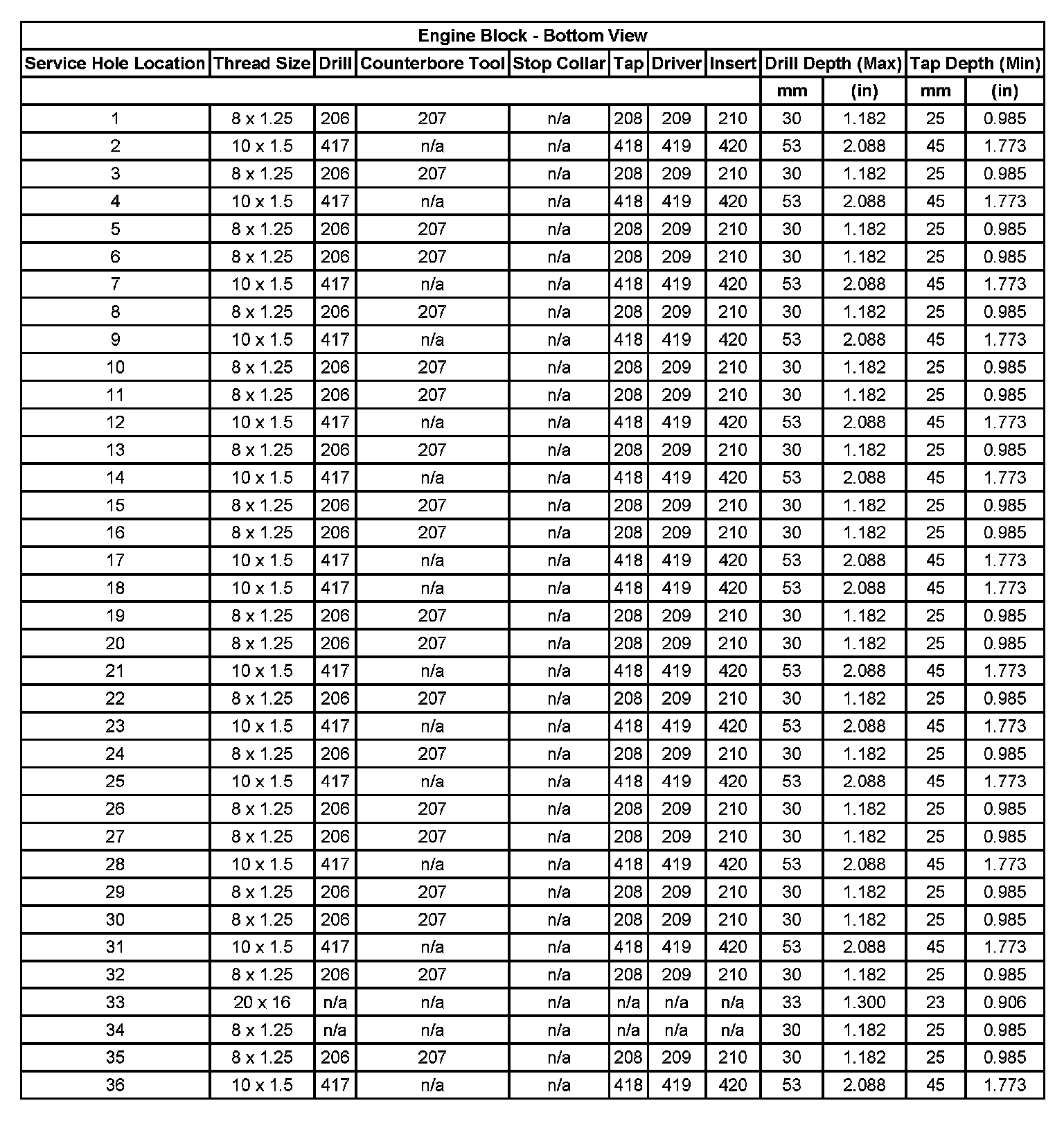

Engine Block - Bottom View
Engine Block:

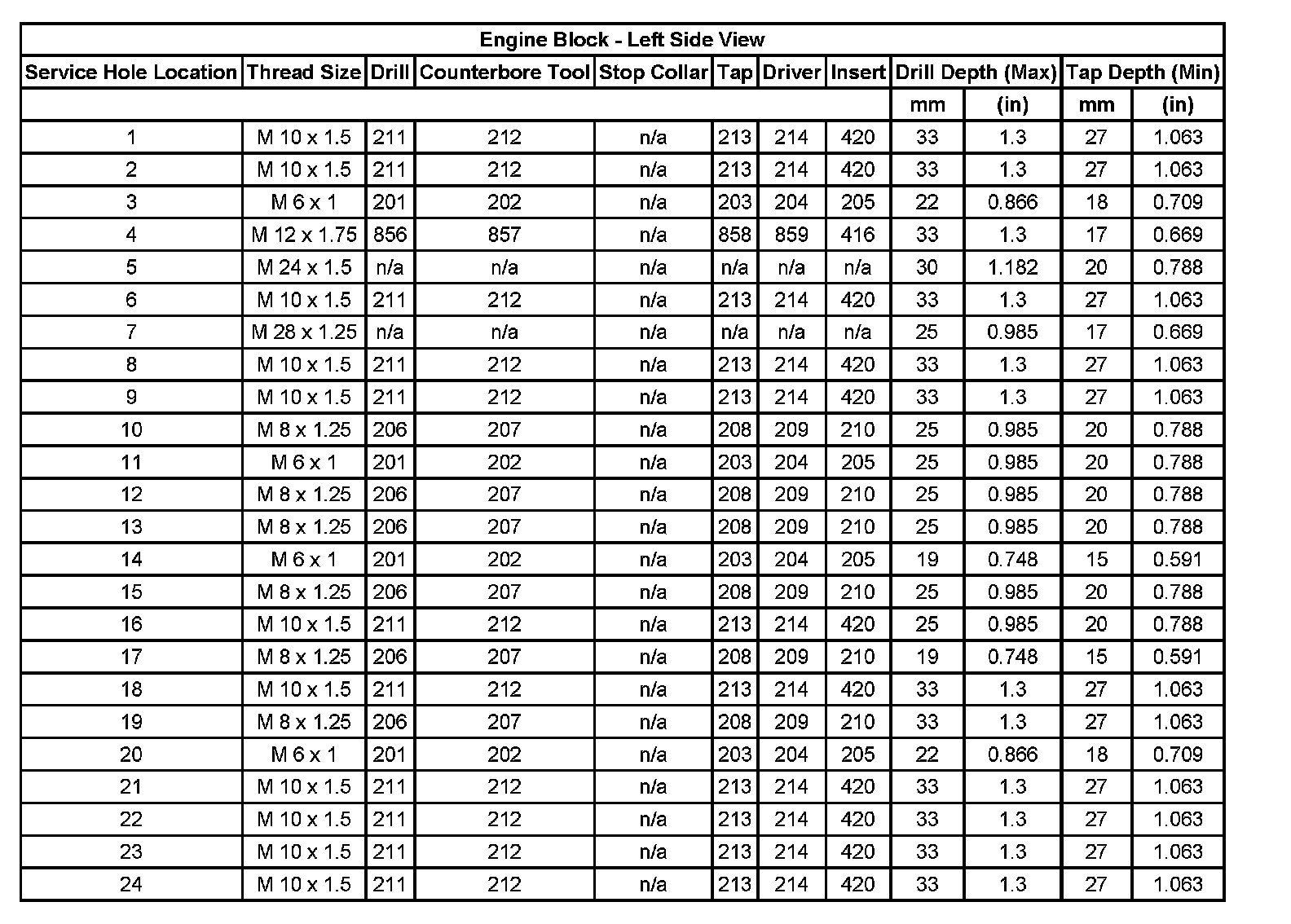

Engine Block - Left Side View
Engine Block:

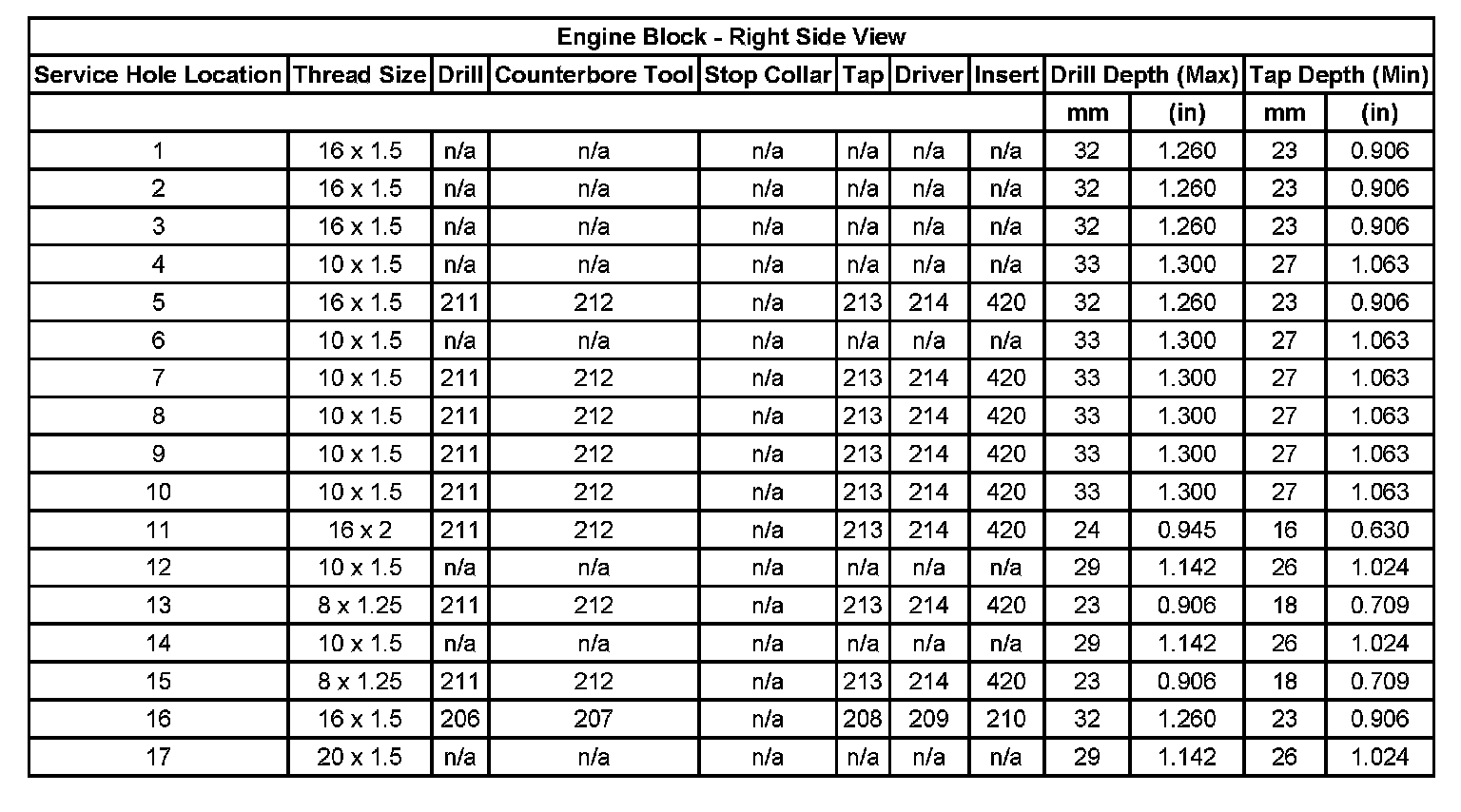

Engine Block - Right Side View
Engine Block:

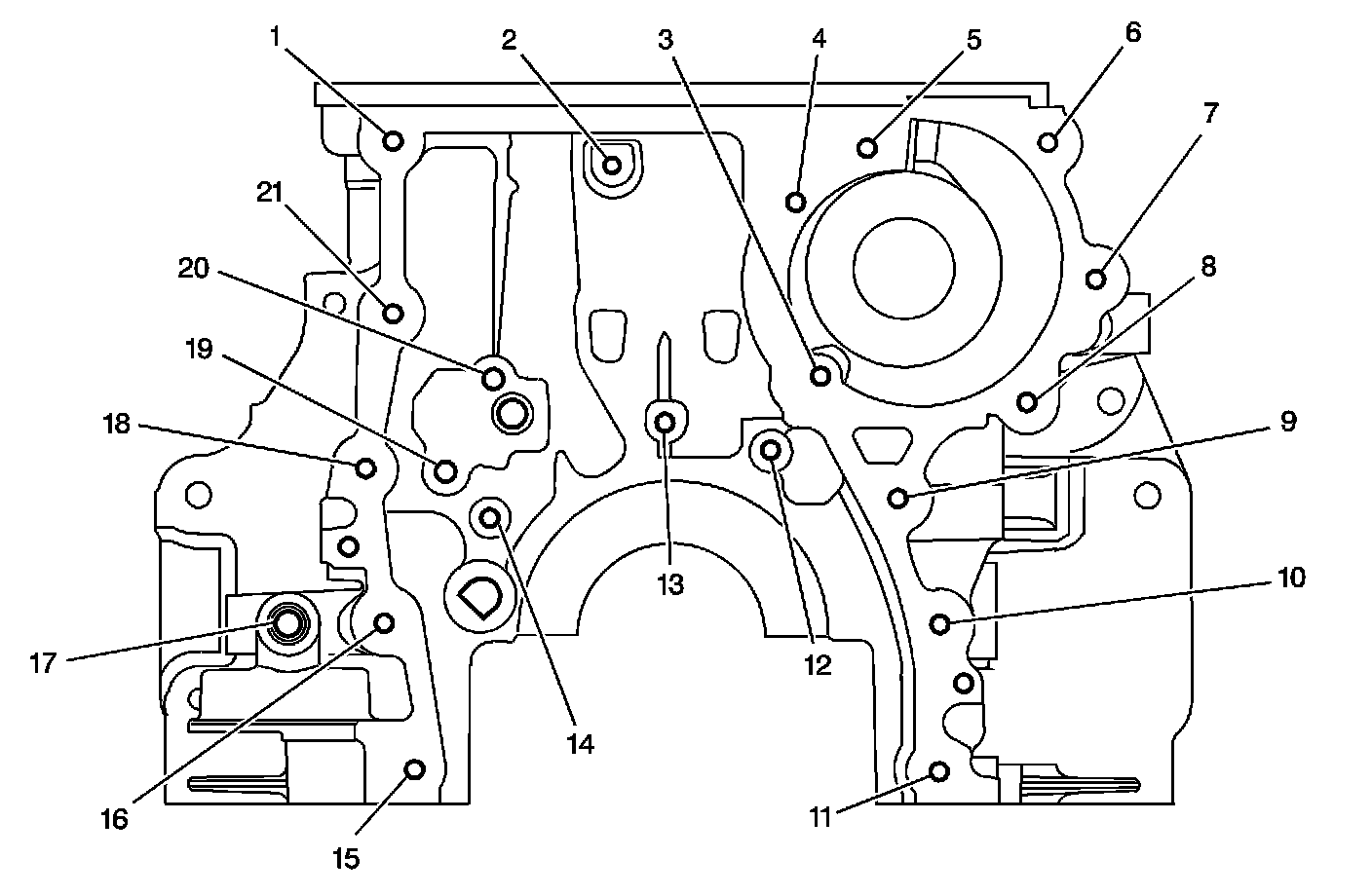

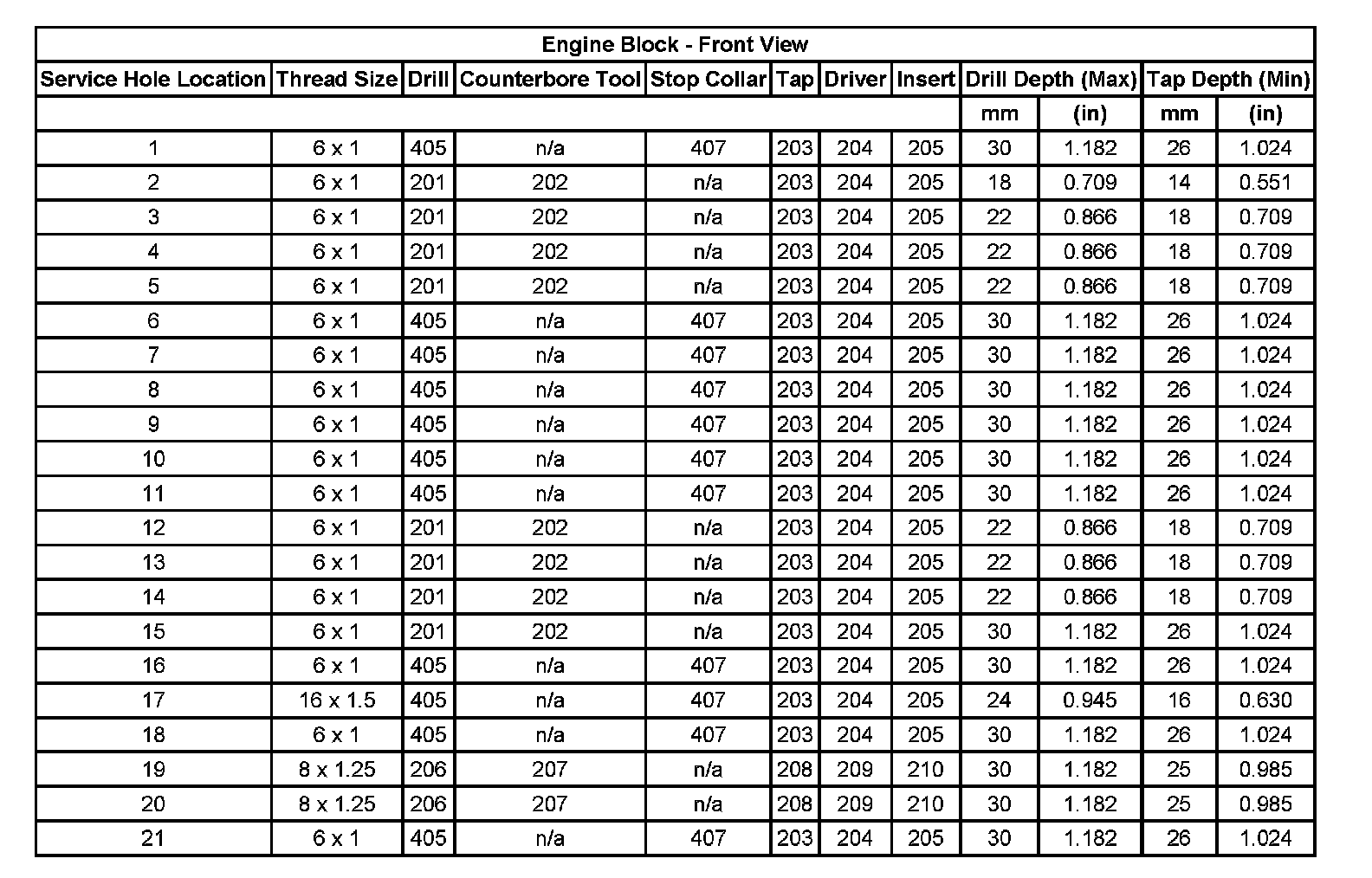

Engine Block - Front View
Engine Block:

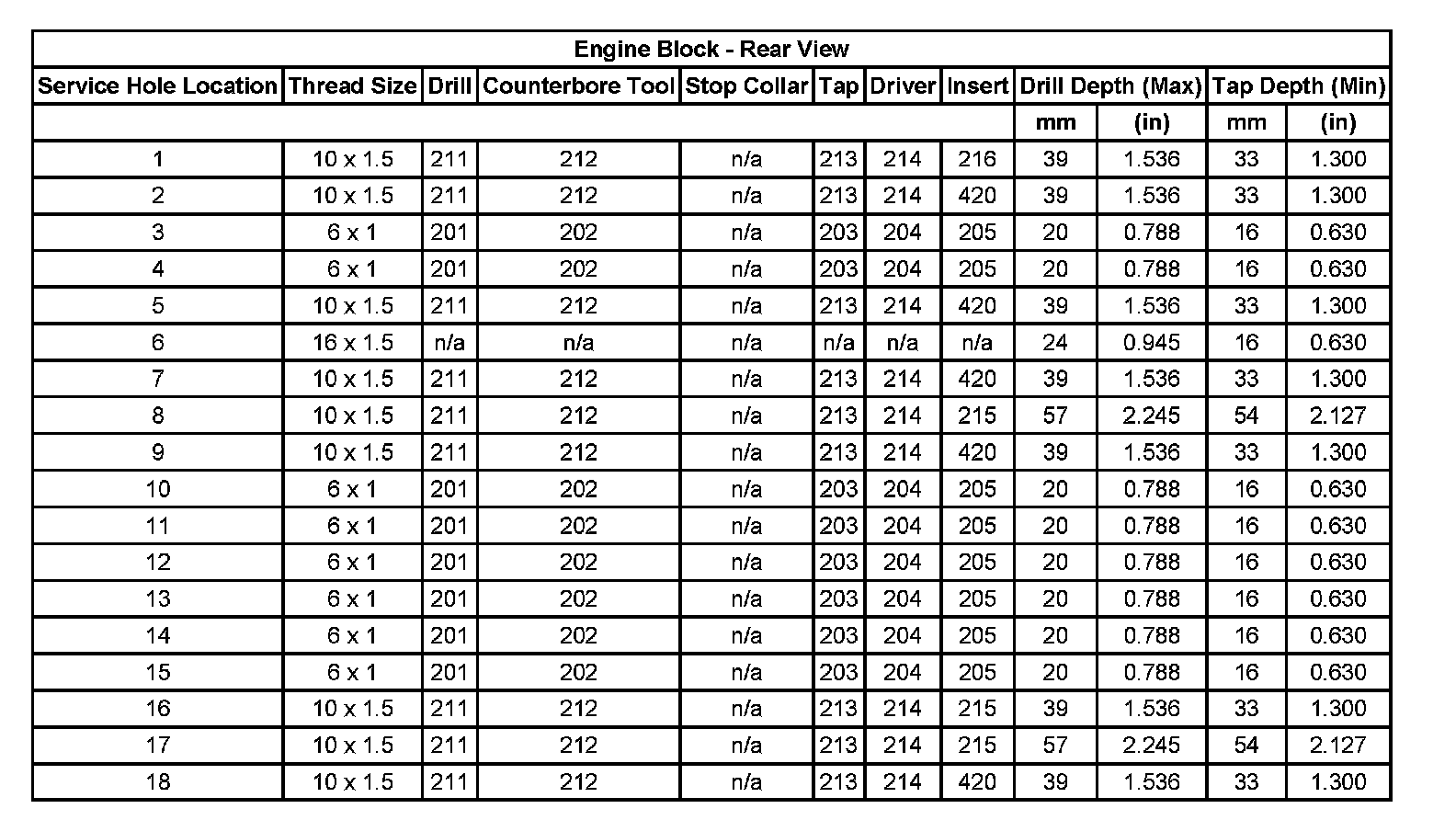

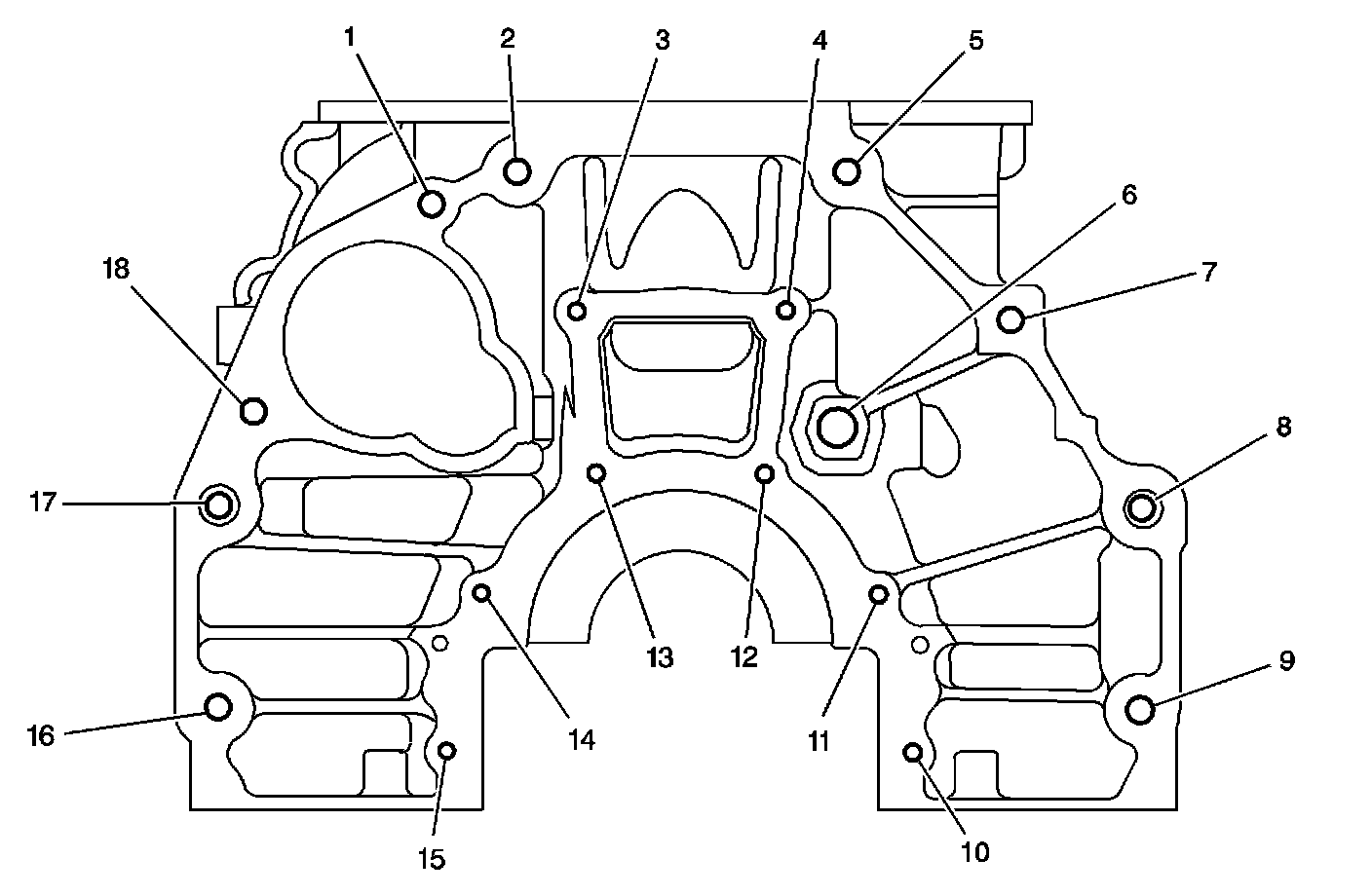

Engine Block - Rear View
Cylinder Head:

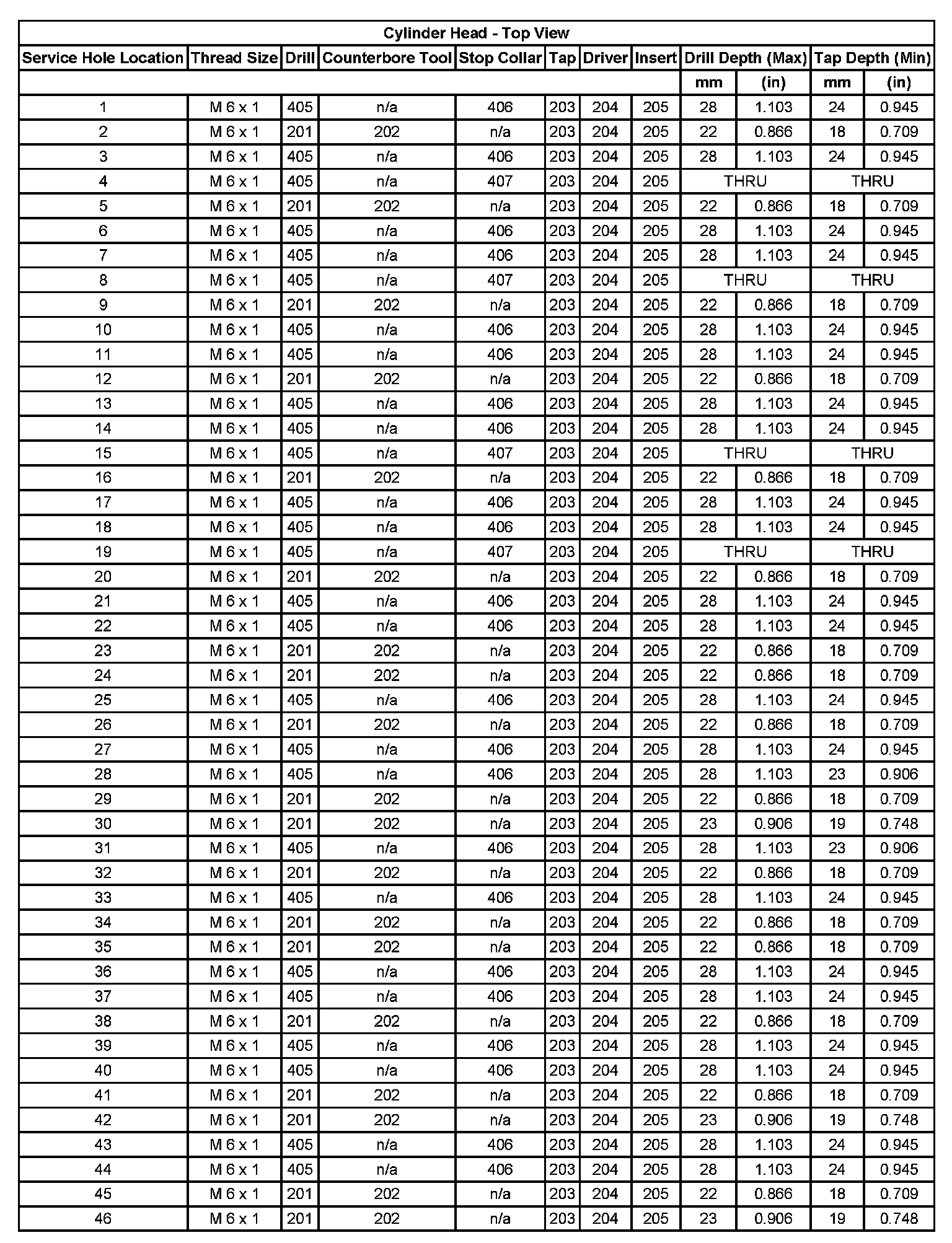

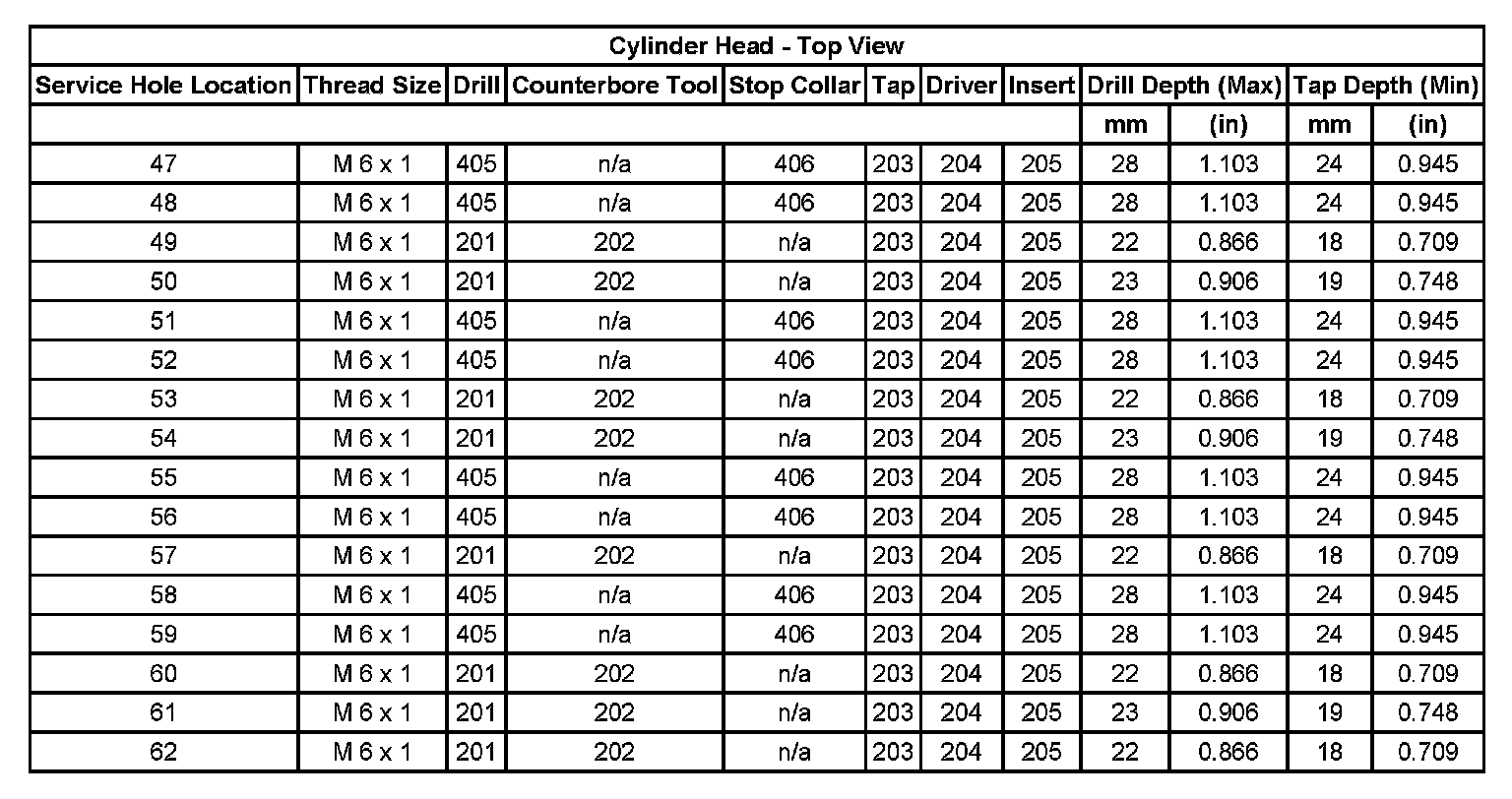

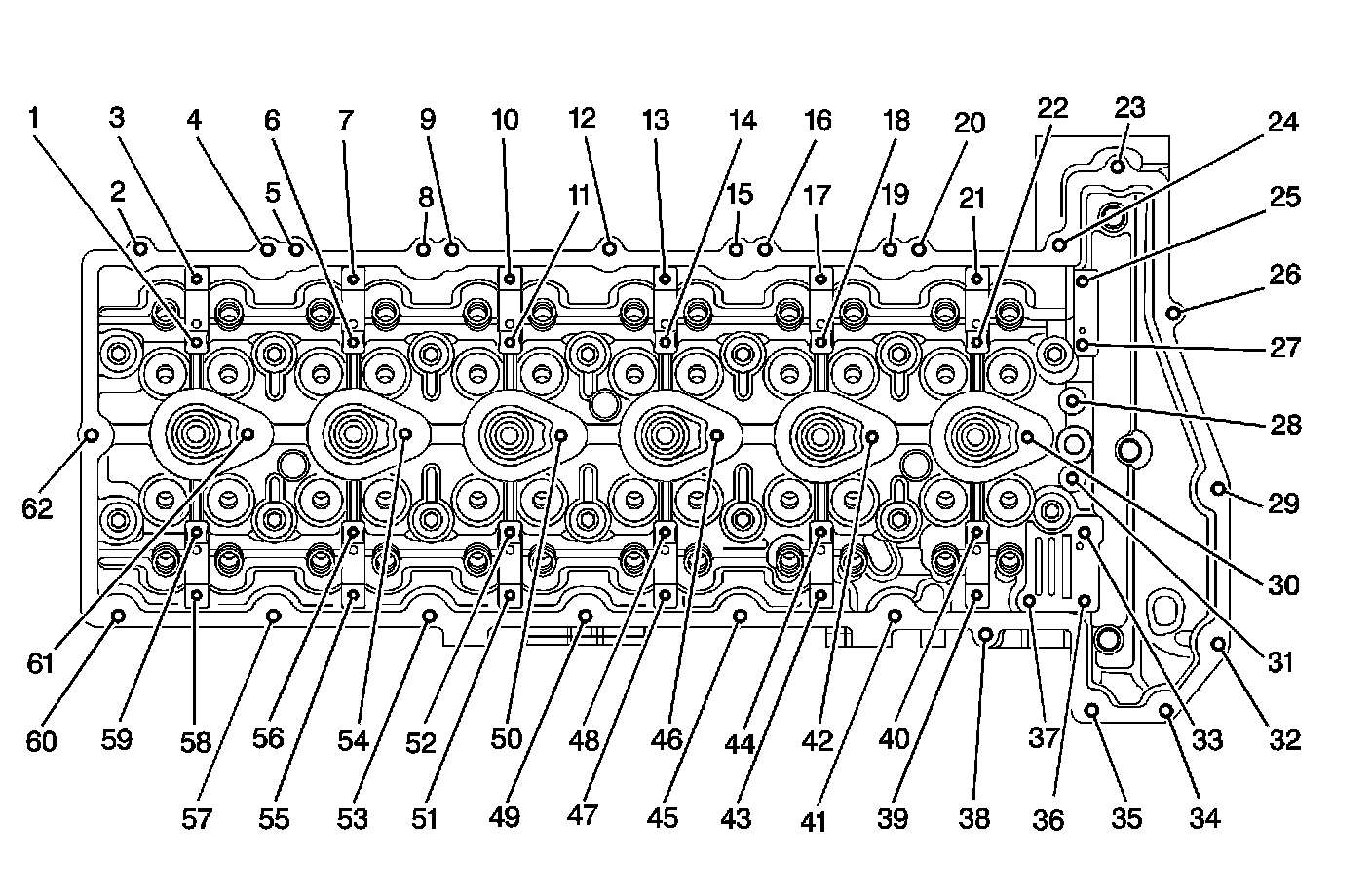

Cylinder Head - Top View
Cylinder Head:
Cylinder Head - End View (Front)
Cylinder Head:
Cylinder Head - End View (Rear)
Cylinder Head:

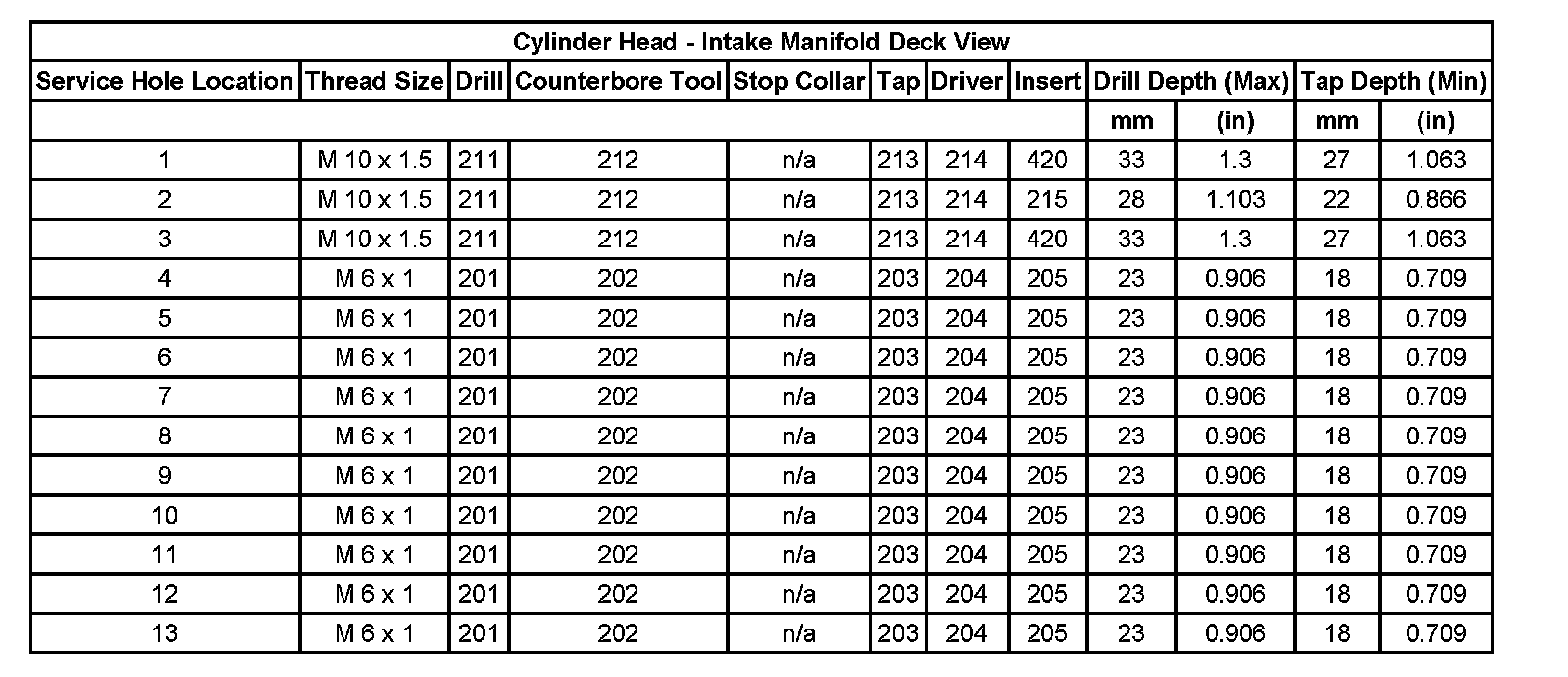

Cylinder Head - Intake Manifold Deck View

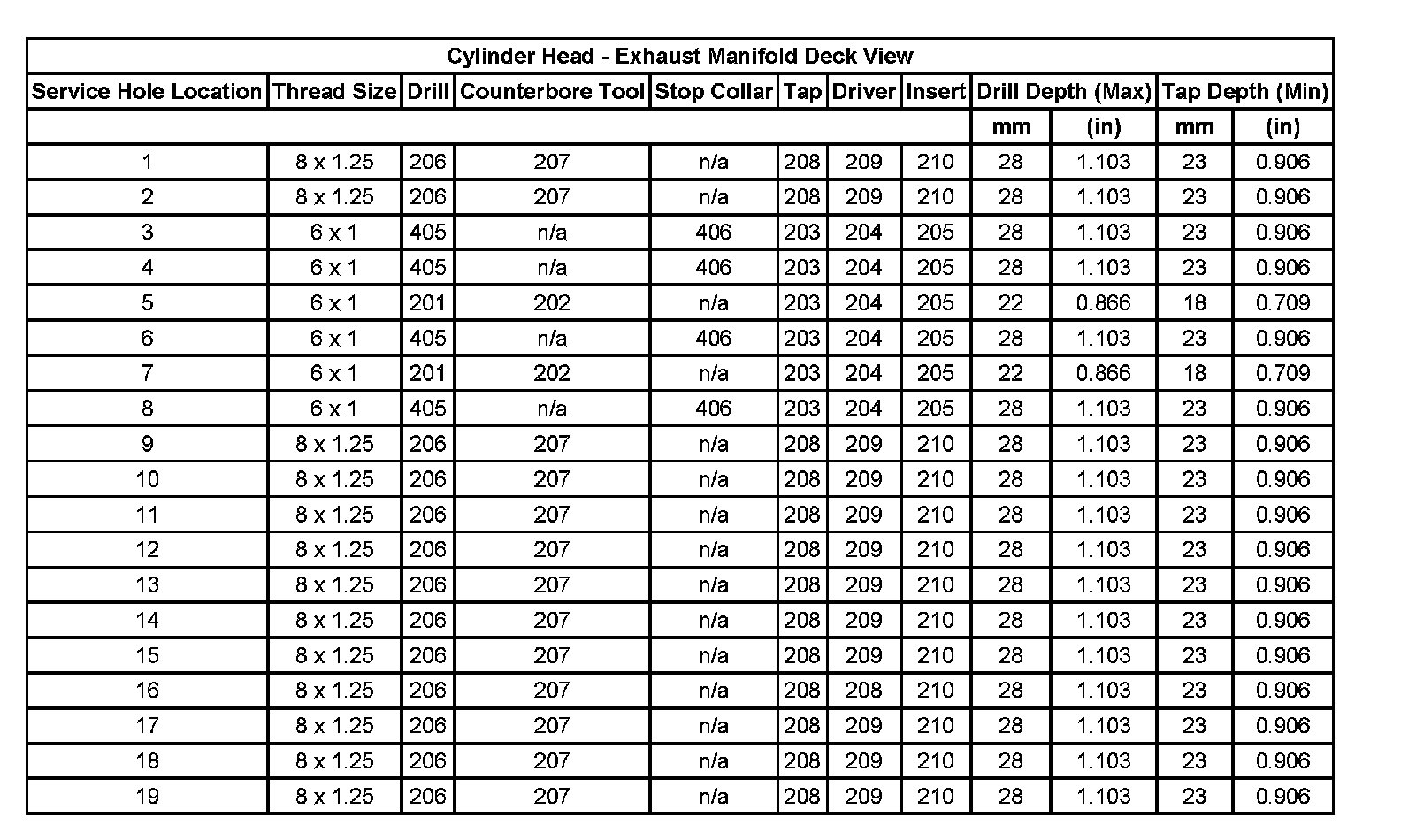

Cylinder Head - Exhaust Manifold Deck View
Oil Pan:

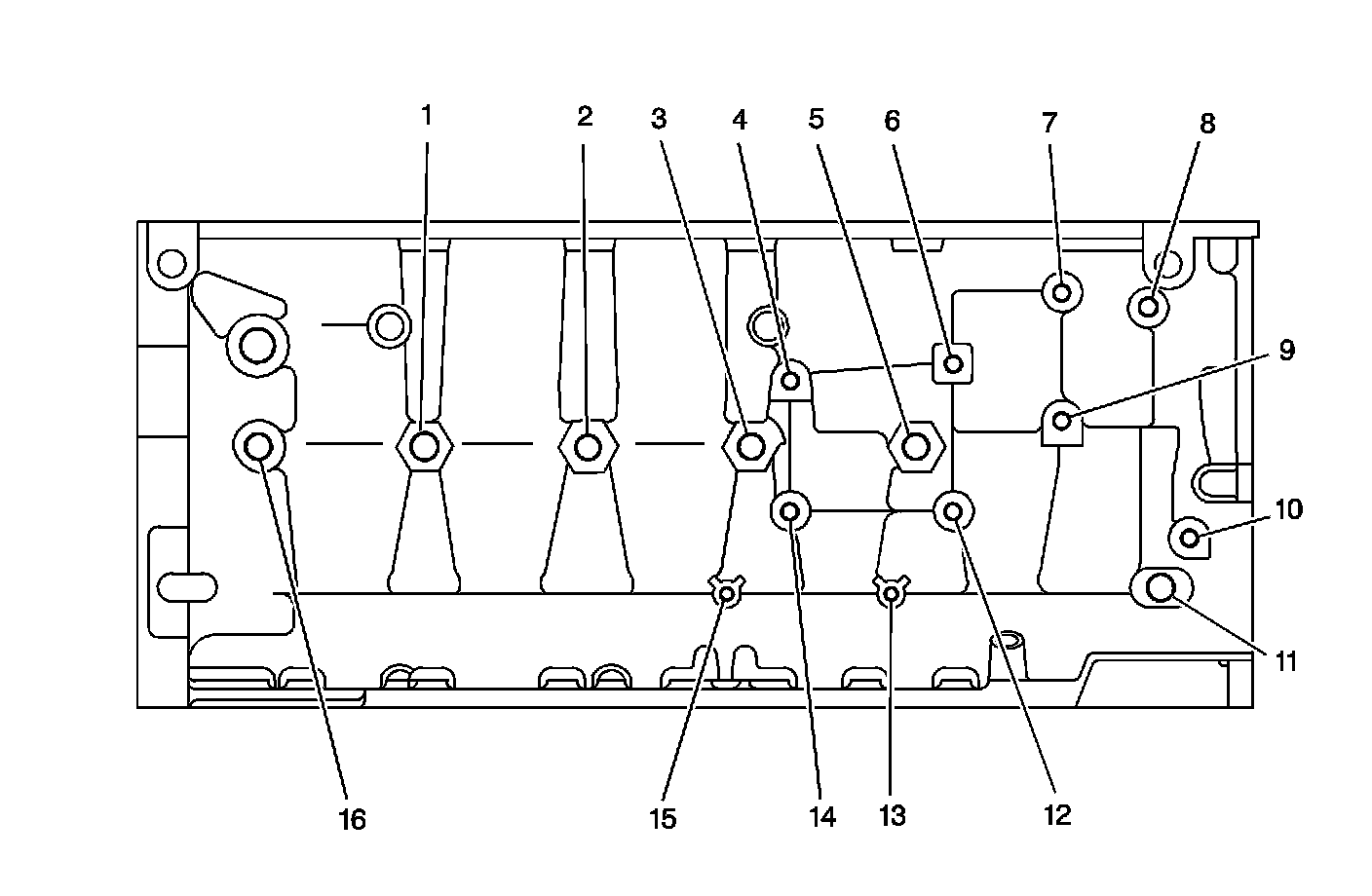

Oil Pan - Top View
Oil Pan:
Oil Pan - Left Side View
Oil Pan:
Oil Pan - Right Side View
Oil Pan:
Oil Pan - Rear View
Engine Front Cover:

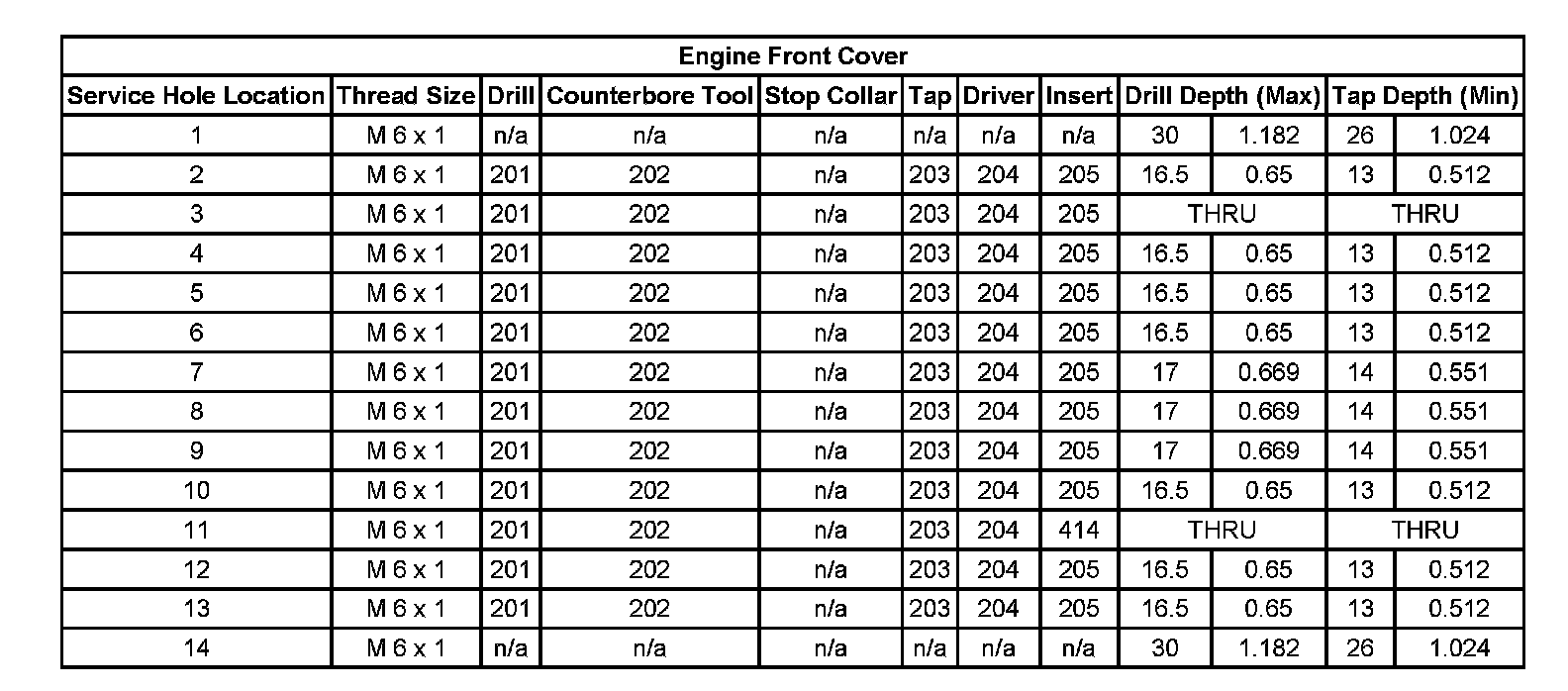

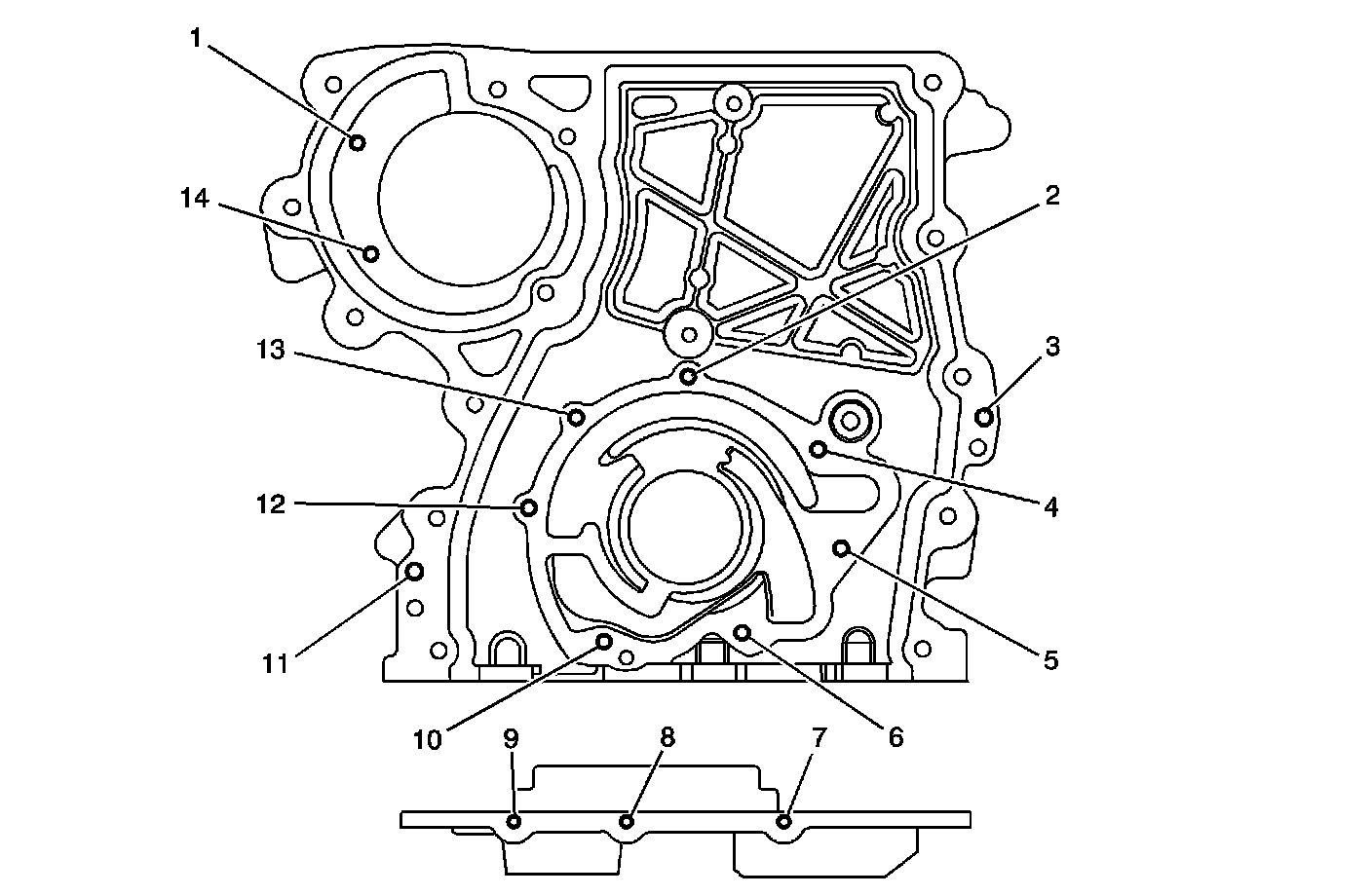

Engine Front Cover
Crankshaft Rear Oil Seal Housing:
Crankshaft Rear Oil Seal Housing
