SIR Component Views

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

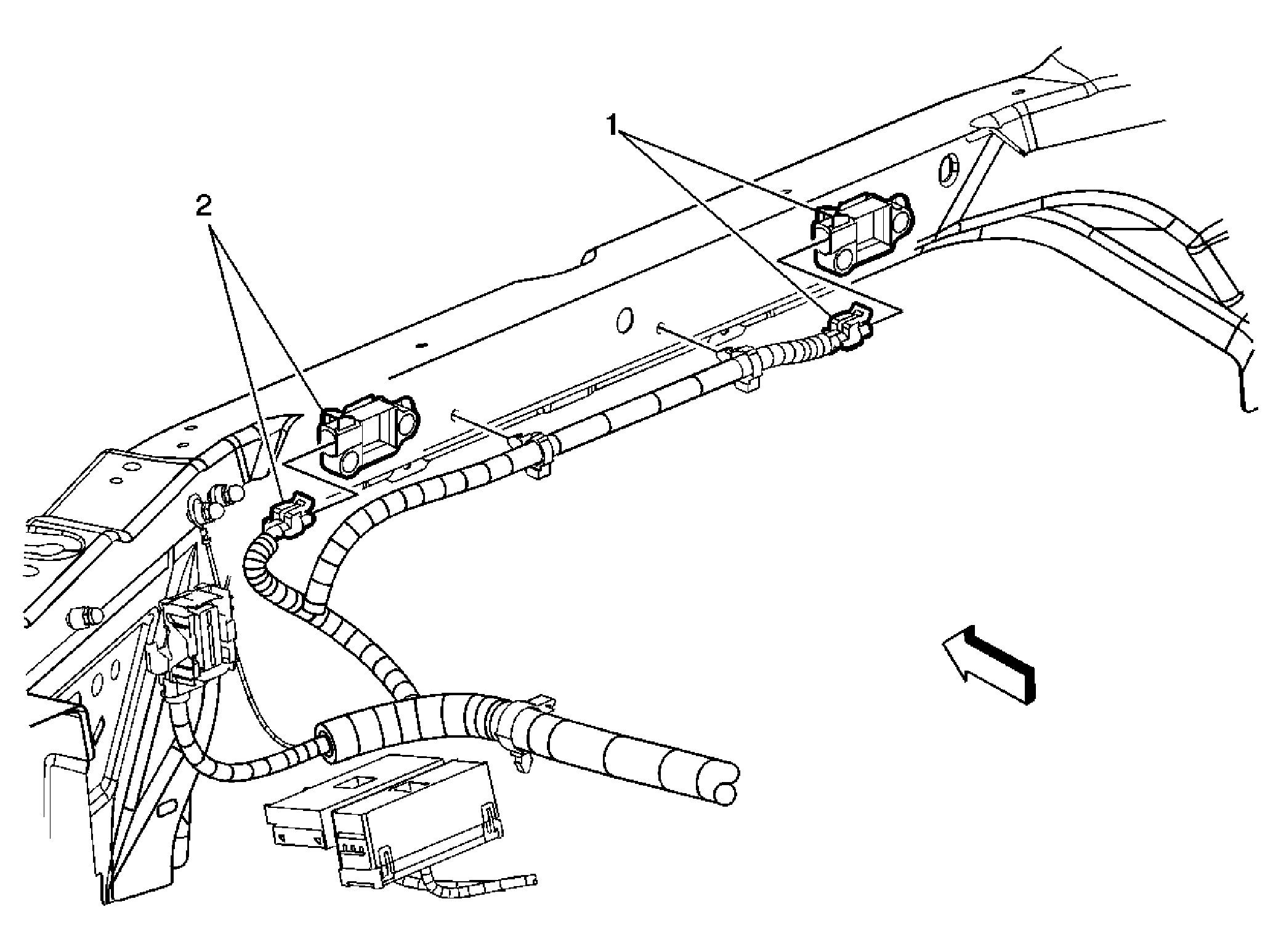

Fig 1: View Of Front Impact Bar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left

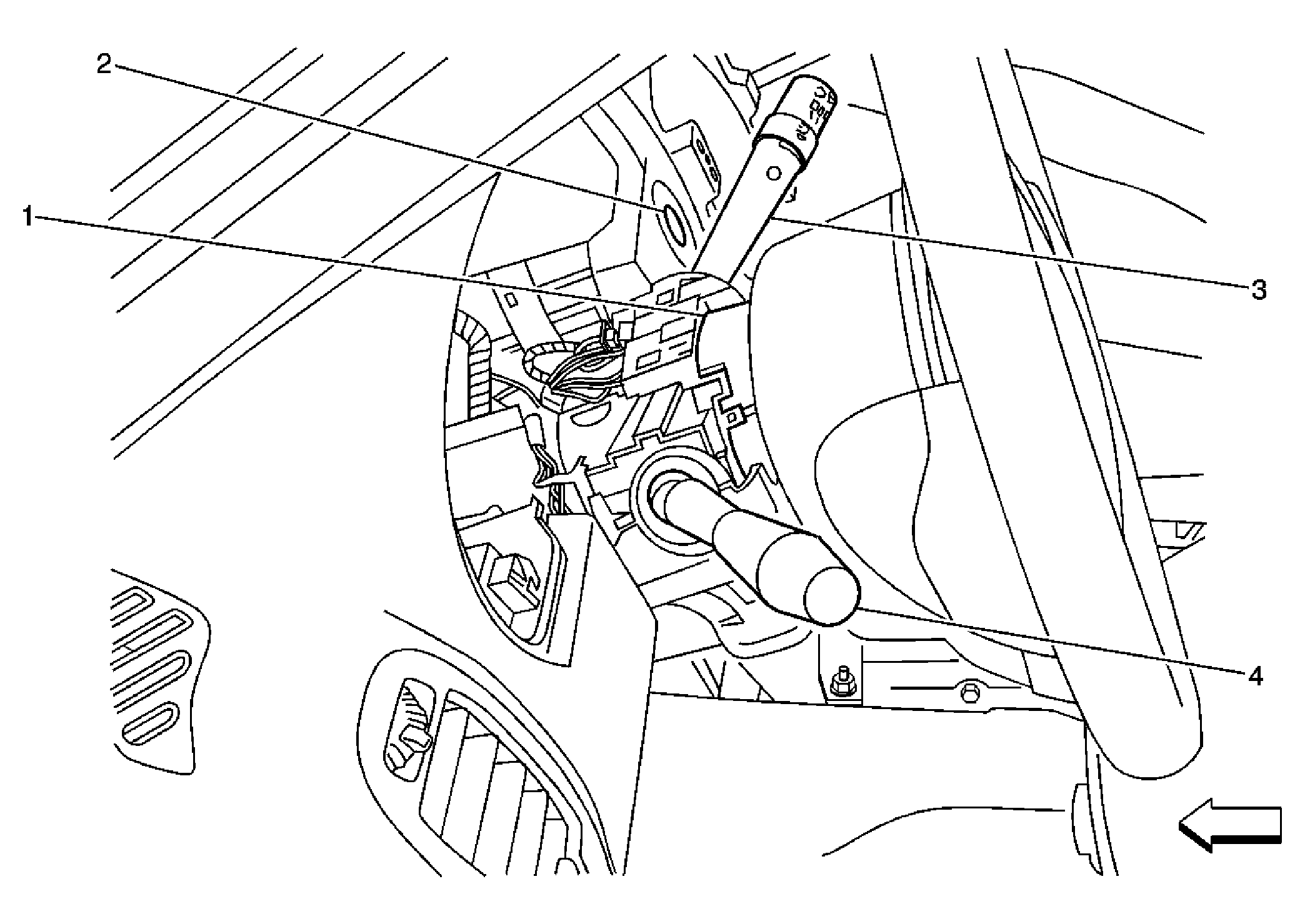

Fig 2: Viewing Top of Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Ignition Switch
3	Windshield Wiper/Washer Switch
4	Turn Signal/Multifunction Switch

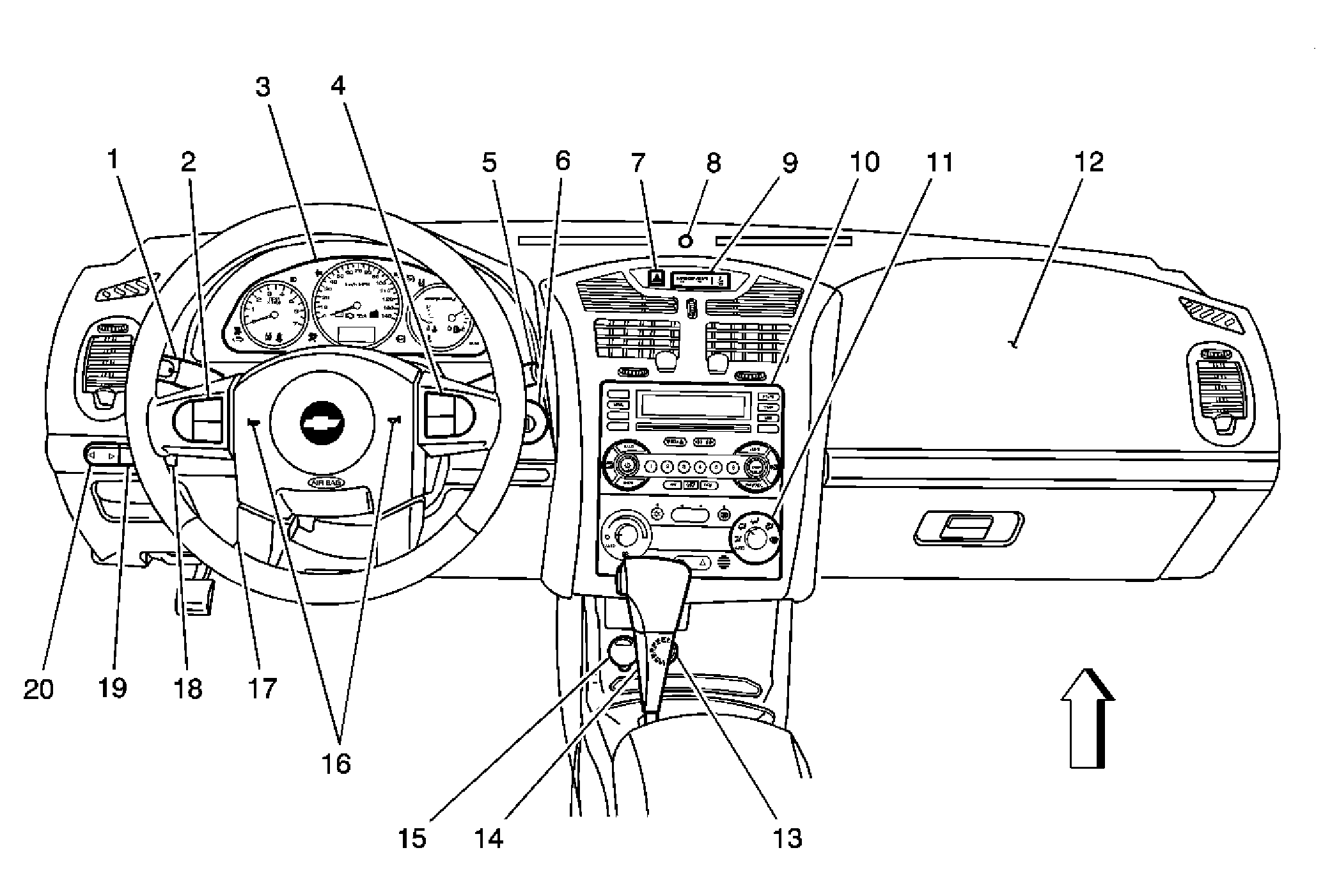

Fig 3: View Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Hazard Switch
8	Ambient Light Sensor
9	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator (AL0)
10	Radio
11	HVAC Control Module
12	Inflatable Restraint I/P Module
13	Traction Control Switch (NW7/NW9) Auxiliary Power Outlet - Front (w/o NW7/NW9)
14	Transmission Shifter
15	Cigar Lighter
16	Horn Buttons/ Inflatable Restraint Steering Wheel Module
17	Data Link Connector (DLC)
18	Fog Lamp Switch (T96)
19	I/P Dimmer Switch
20	Adjustable Pedals Position Switch (JF4)

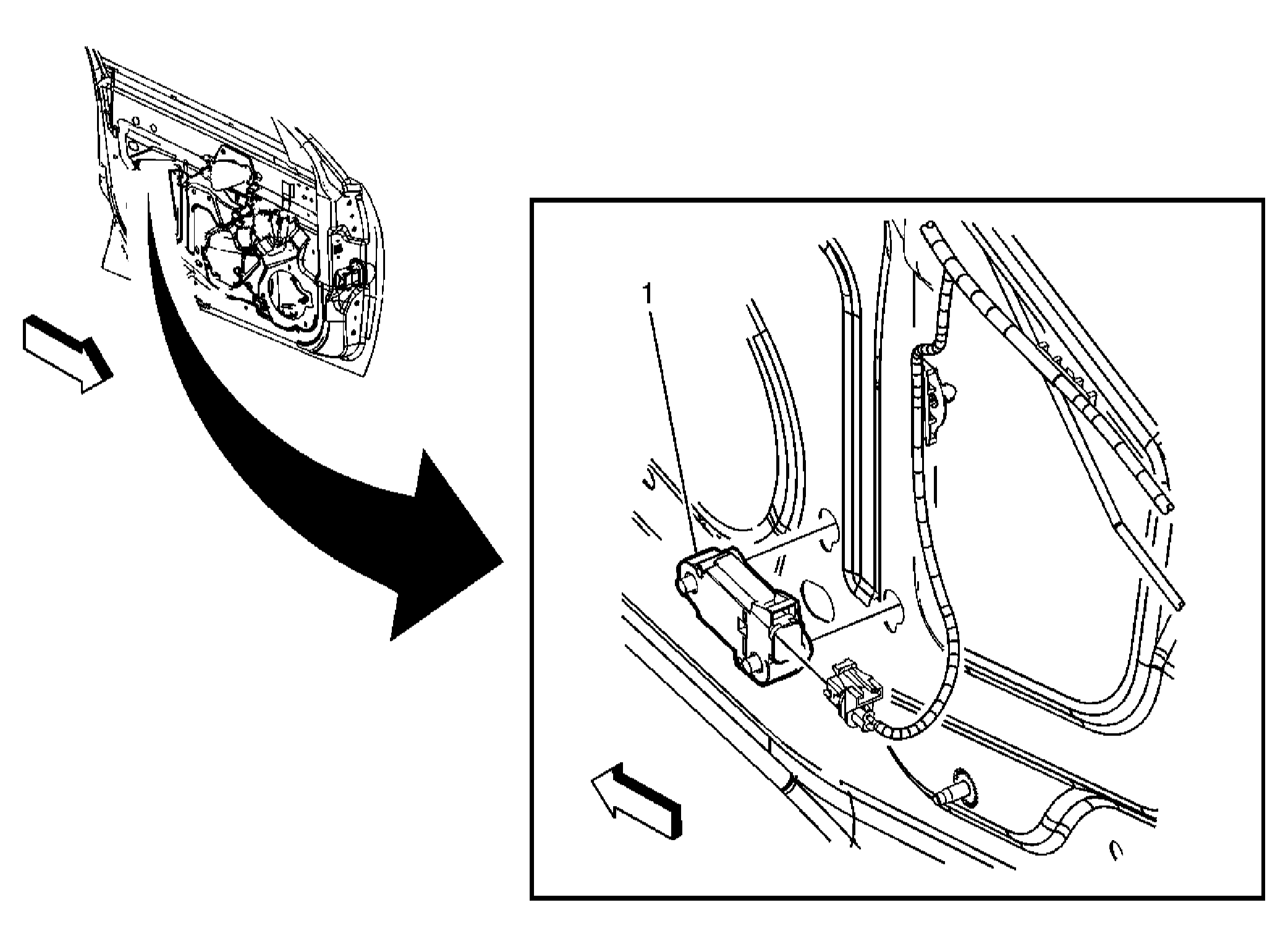

Fig 4: View Of Left Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor - Left (Right Similar)

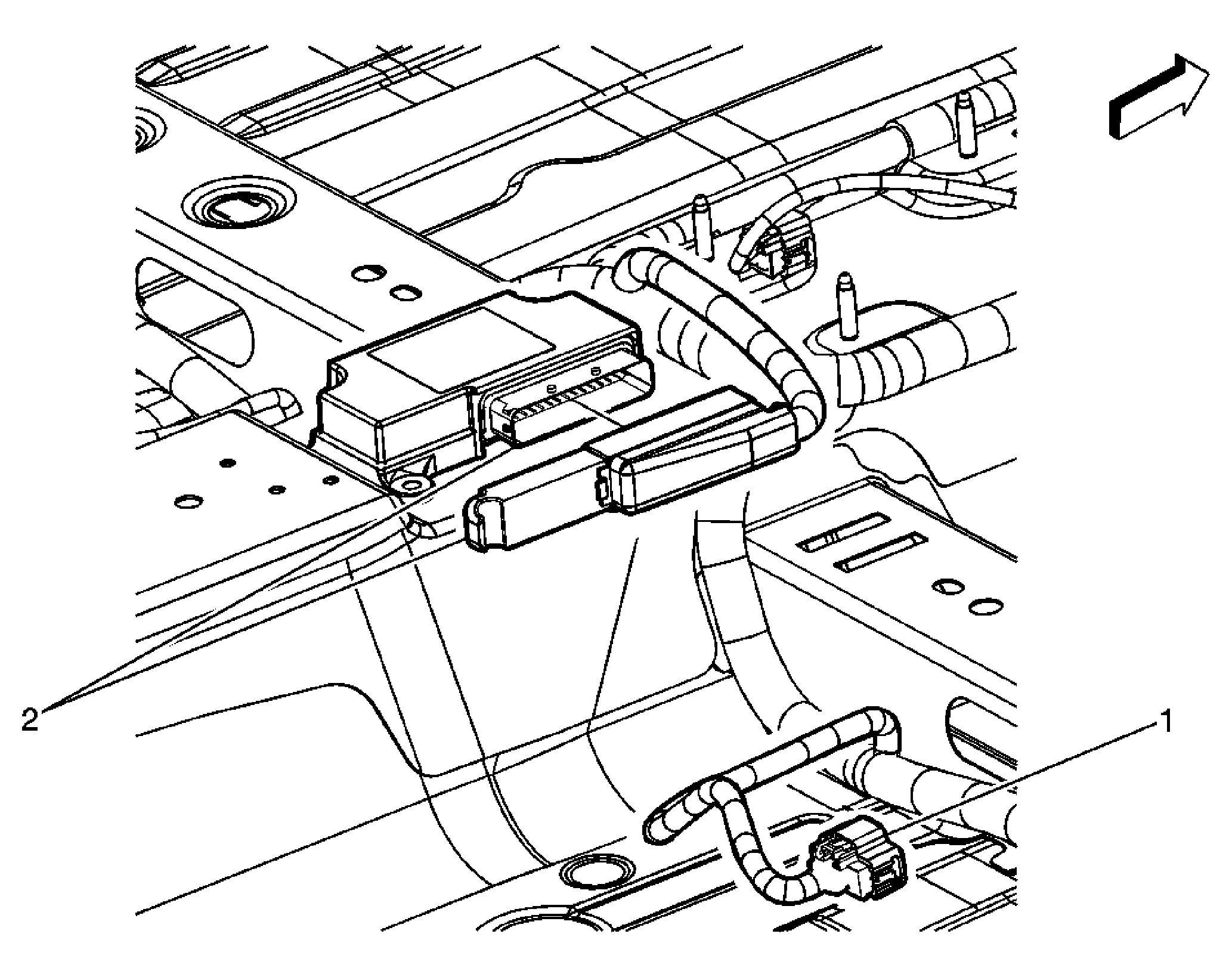

Fig 5: Viewing Under Center Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C310
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)

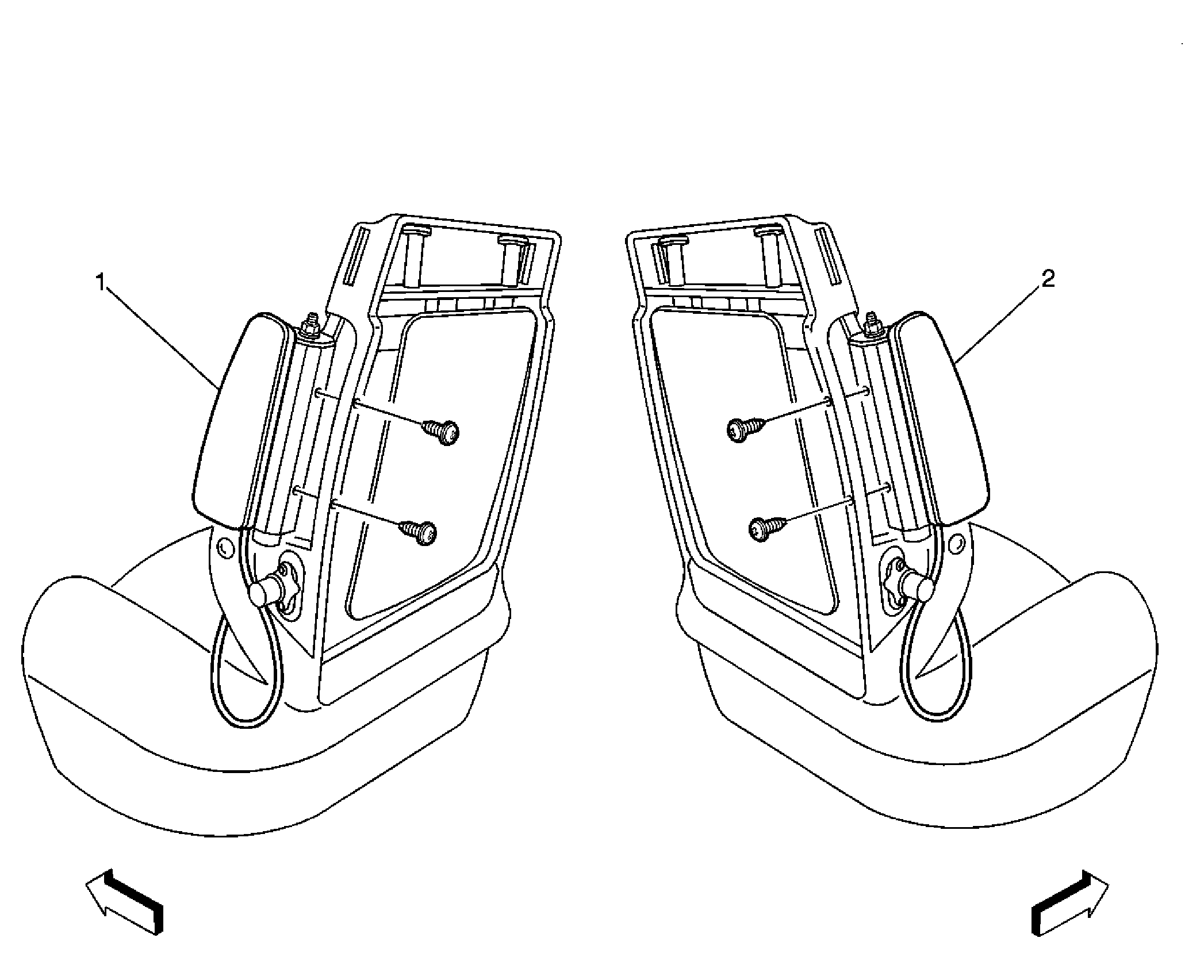

Fig 6: View Of Side Impact Modules

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left (AY0)
2	Inflatable Restraint Side Impact Module - Right (AY0)

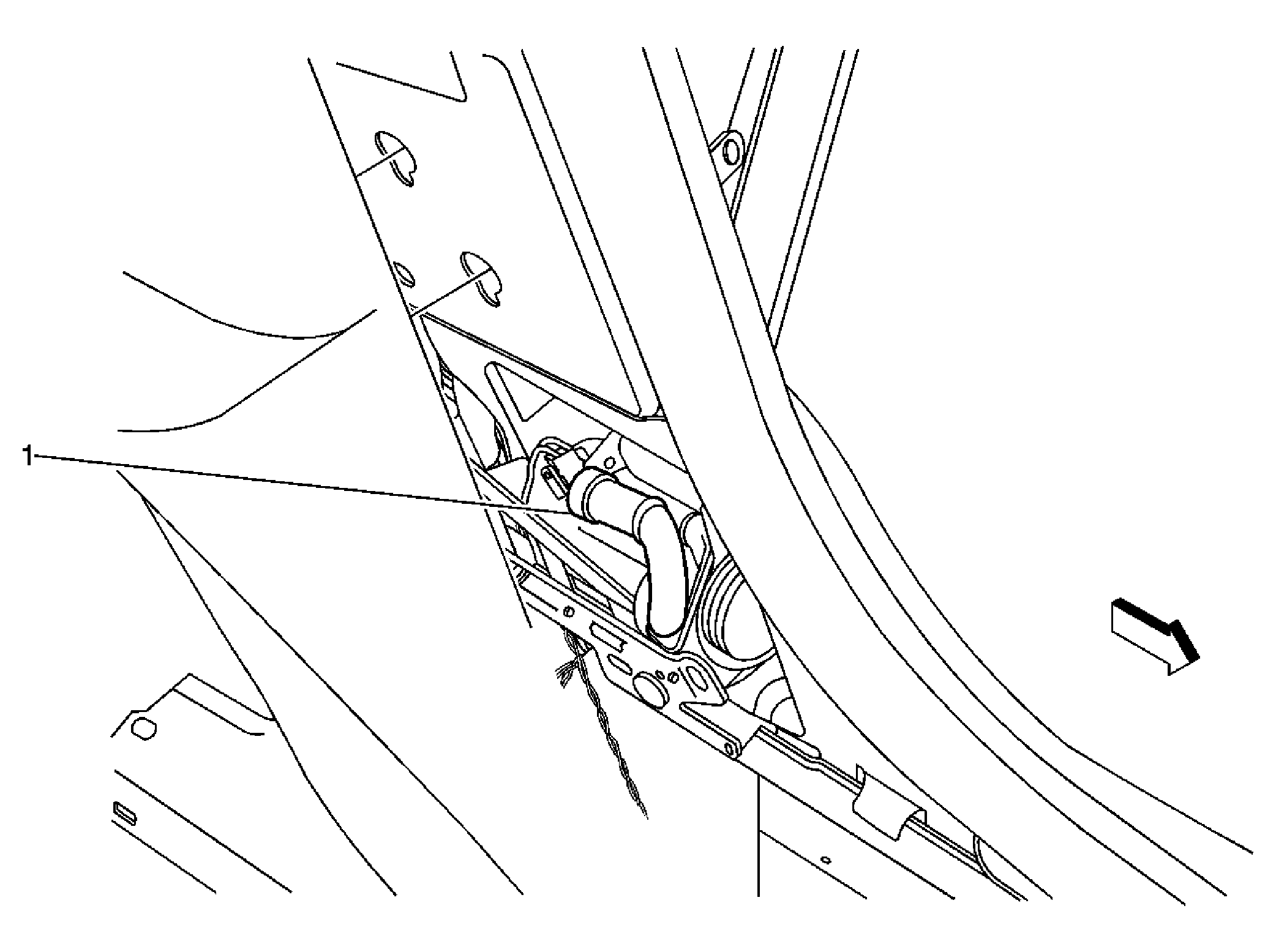

Fig 7: View Of Lower Left B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Driver

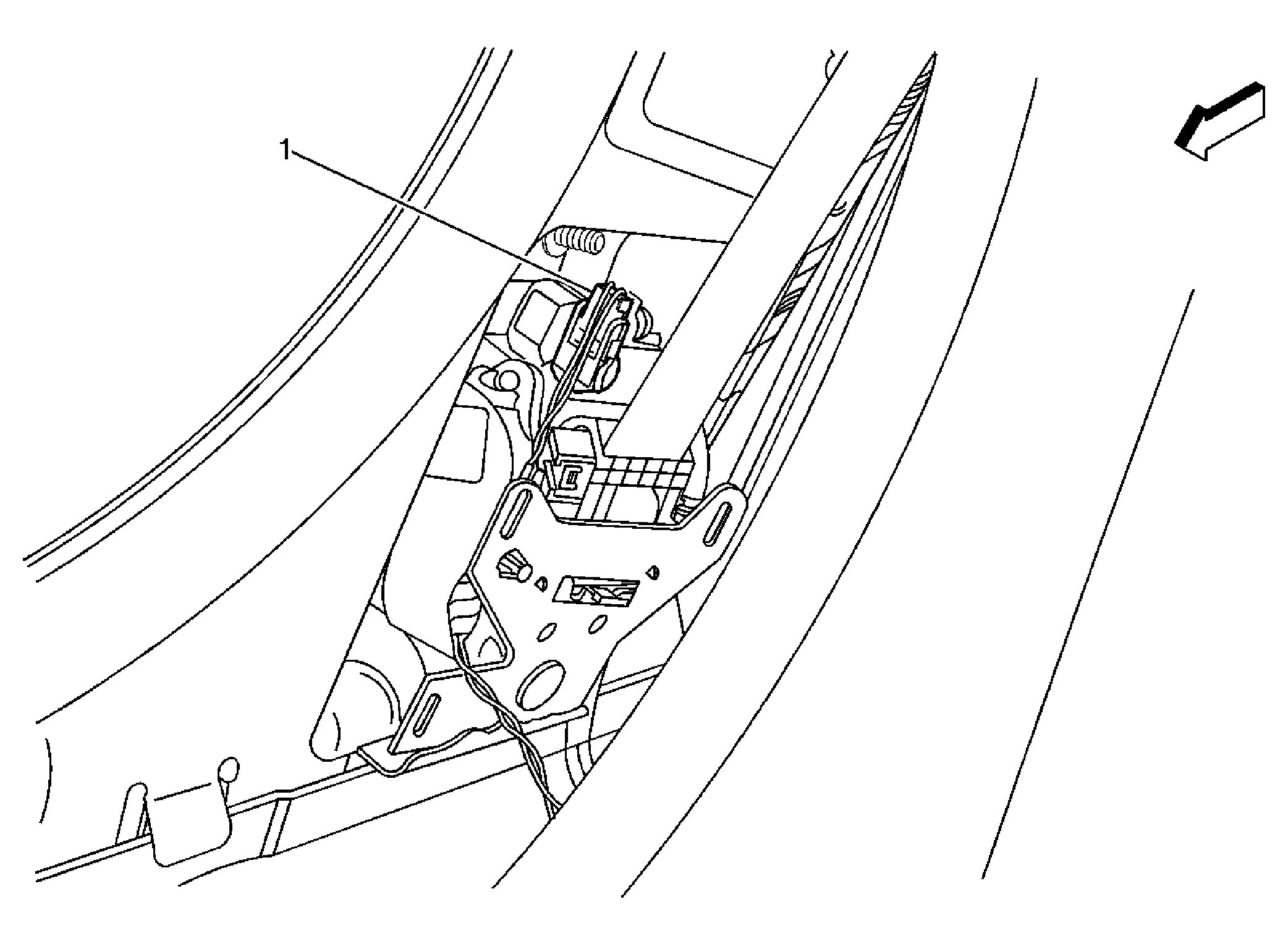

Fig 8: View Of Lower Right B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Front Passenger

Fig 9: Inside of the Left C-Pillar - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (AY0)
2	C451 (UE1)
3	Rear Window Defogger Grid C1

Fig 10: Left Rear of Passenger Compartment View - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Rear
2	C451 (UE1)
3	Inflatable Restraint Roof Rail Module - Left (AY0)
4	C404
5	C421 (AY0)
6	Remote Control Door Lock Receiver (RCDLR)
7	G302

Fig 11: Inside of Right C-Pillar - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid C2
2	G301
3	Inflatable Restraint Roof Rail Module - Right (AY0)

Fig 12: Right Rear of Passenger Compartment Component Views - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	Inflatable Restraint Roof Rail Module - Right (AY0)
3	C422 (AY0)
4	Digital Radio Receiver (U2K)
