Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Fasteners And Clips From SIR Module

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Position the module tether rearward of the molding attaching clips.

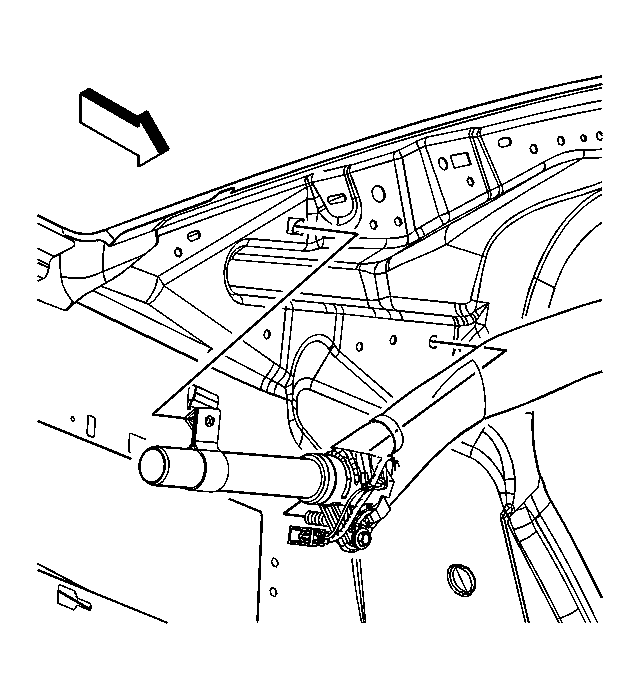

Unpack the new inflator assembly. Start at the rear of the vehicle and install the inflator module to the structure.

Fig 2: Unsnapping SIR Tether Retainer And Removing Tether From Windshield Pillar

Courtesy of GENERAL MOTORS CORP.

Working from the rear of the vehicle, install the retaining tabs to the structure to hold the inflator module in place.

Fig 3: Removing SIR Module From Vehicle

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: Visually inspect the side curtain to assure that the curtain is not twisted.

Install the remaining side SIR module fasteners.
Tighten: Tighten the fasteners to 5 N.m (44 lb in).
Install the hook on the curtain tether to the windshield pillar. Snap the hook retainer into place.
Install the headliner and the garnish moldings to the vehicle. Refer to Headliner Replacement (Sedan) or Headliner Replacement (Extended Sedan) in Interior Trim.
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 2 or to SIR Disabling and Enabling Zone 6 .
After replacing the module, deploy the old module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
