Navigation System Schematics

WARNING: This page is about a different car, the 2005 Pontiac Aztek and 2005 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

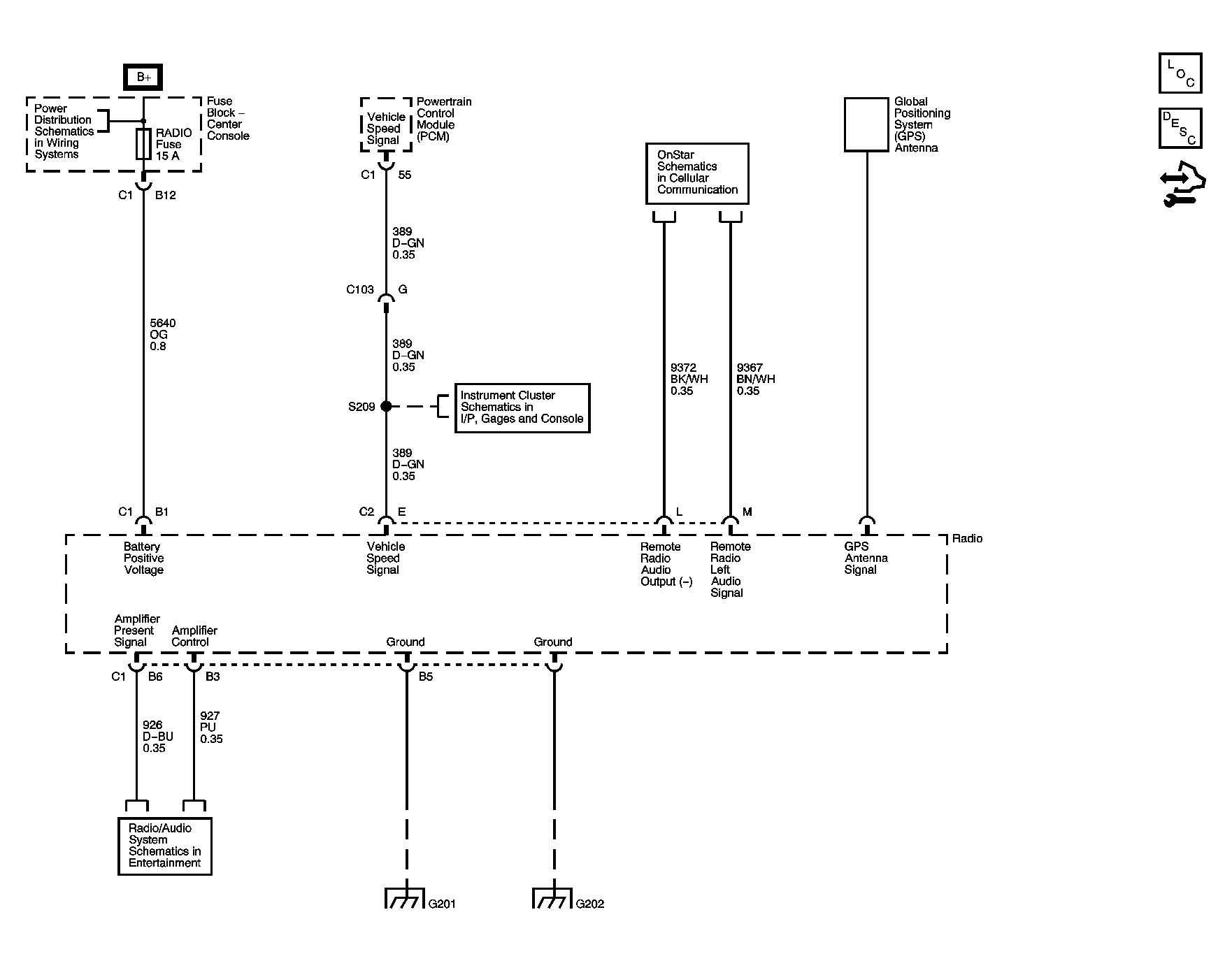

Fig 1: Navigation System
GM1500807Courtesy of GENERAL MOTORS CORP.
