Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important: Ensure that the module strap is not twisted during the installation of cable.

Install the cable to the module band.
Install the cable to the module.

Fig 1: Installing Cable To Module Band
Courtesy of GENERAL MOTORS CORP.

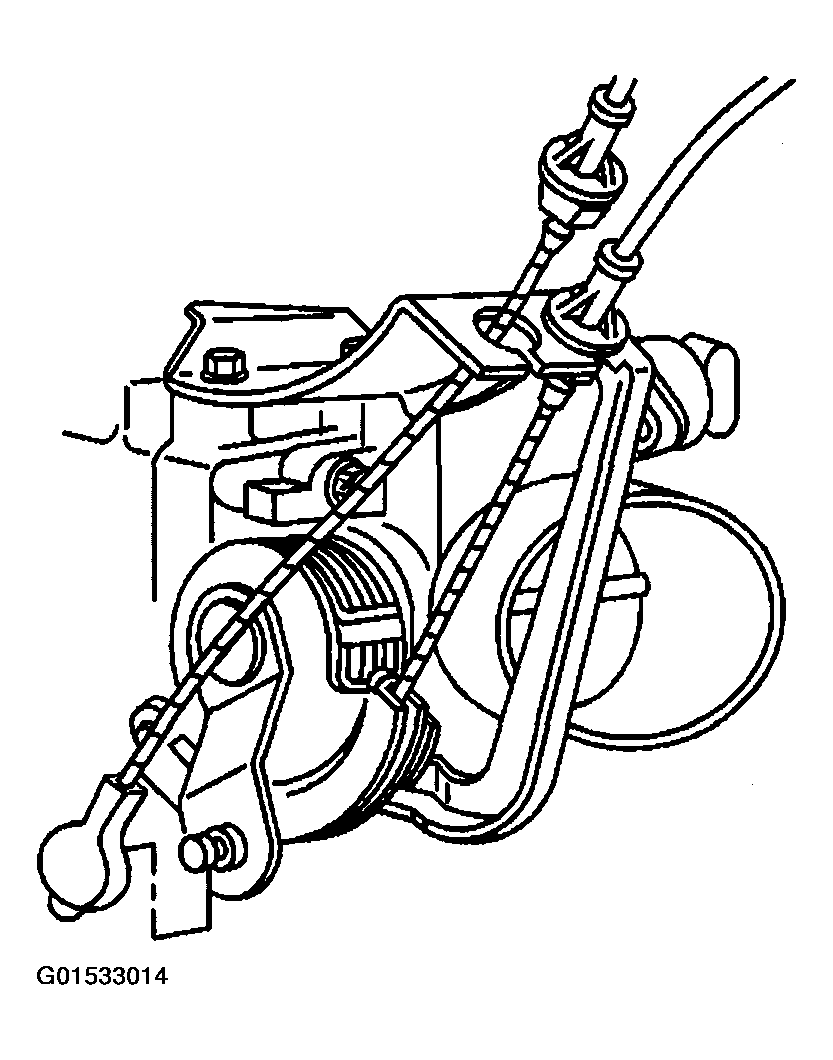

Install the cable to the throttle lever and accelerator control cable bracket.

Fig 2: Installing Cable To Throttle Lever And Accelerator Control Cable Bracket
Courtesy of GENERAL MOTORS CORP.
