Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Installing Cable To Module Band

Courtesy of GENERAL MOTORS CORP.

Important: Ensure that the module strap is not twisted during the installation of the cable.

Install the cable to the module band.
Install the cable to the module.
Install the cable to the throttle lever and accelerator control cable bracket.

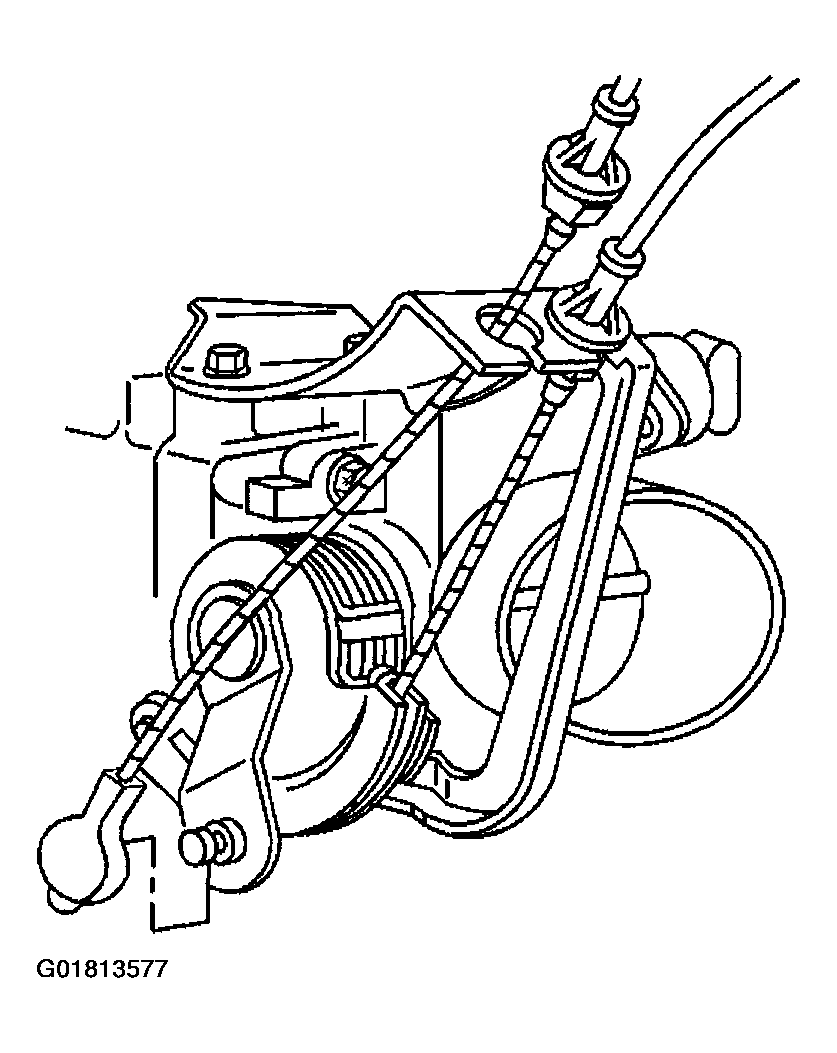

Fig 2: Installing Cable To Throttle Lever & Accelerator Control Cable Bracket

Courtesy of GENERAL MOTORS CORP.
