Automatic Transmission Controls Schematics

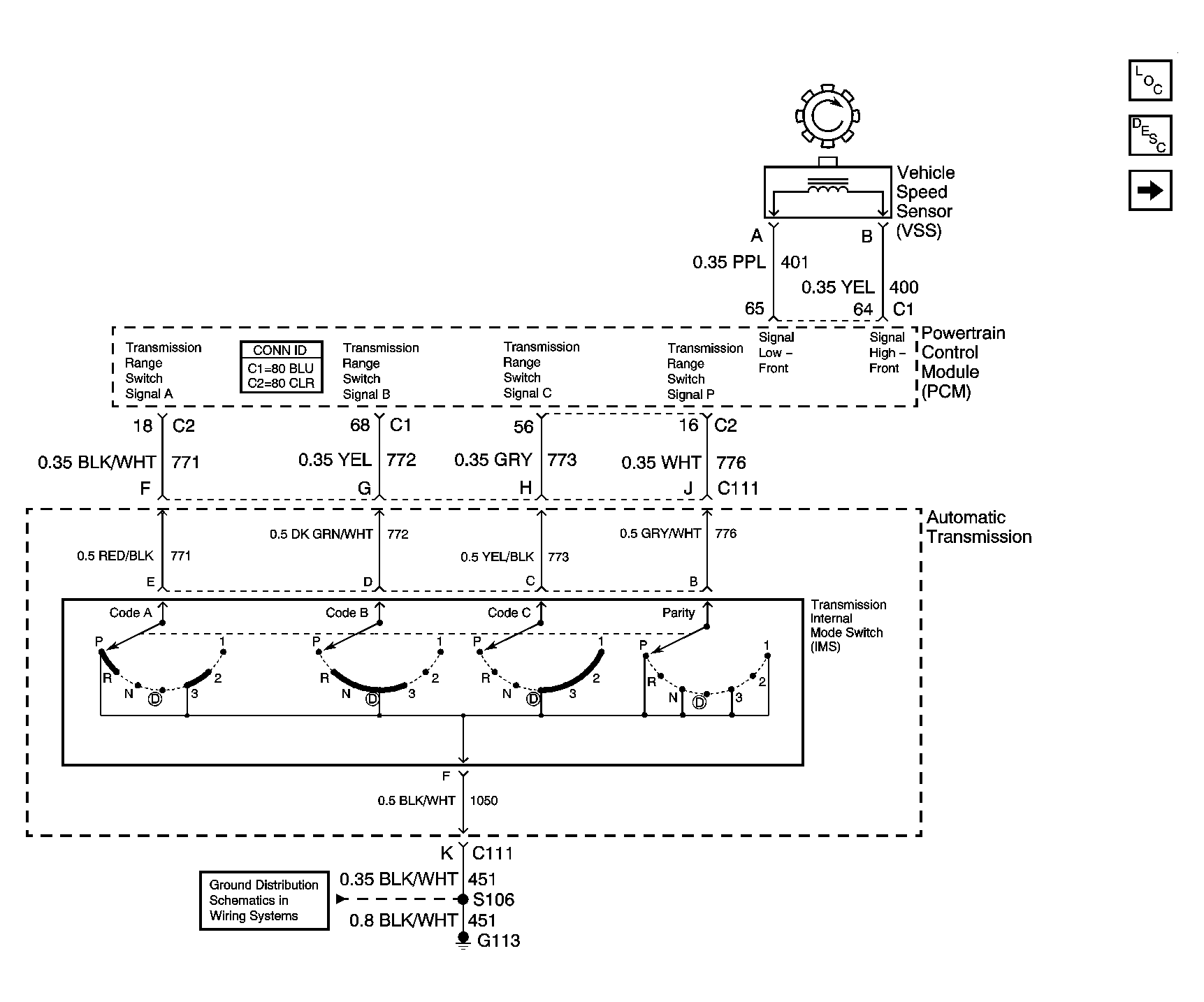

Fig 1: Internal Mode Switch (IMS) and VSS Schematic
GM906508Courtesy of GENERAL MOTORS CORP.

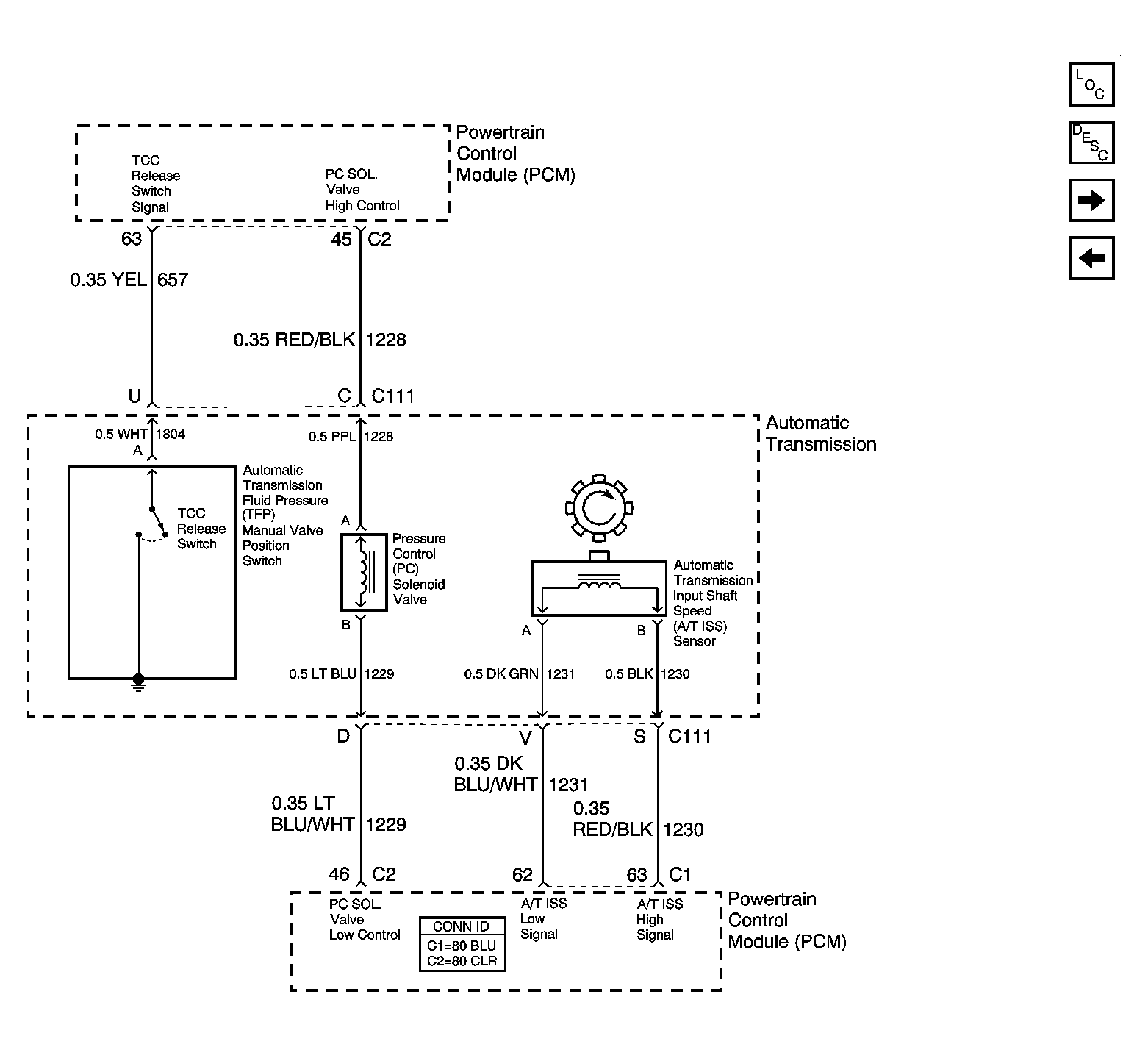

Fig 2: Automatic Transmission Schematic
GM906522Courtesy of GENERAL MOTORS CORP.

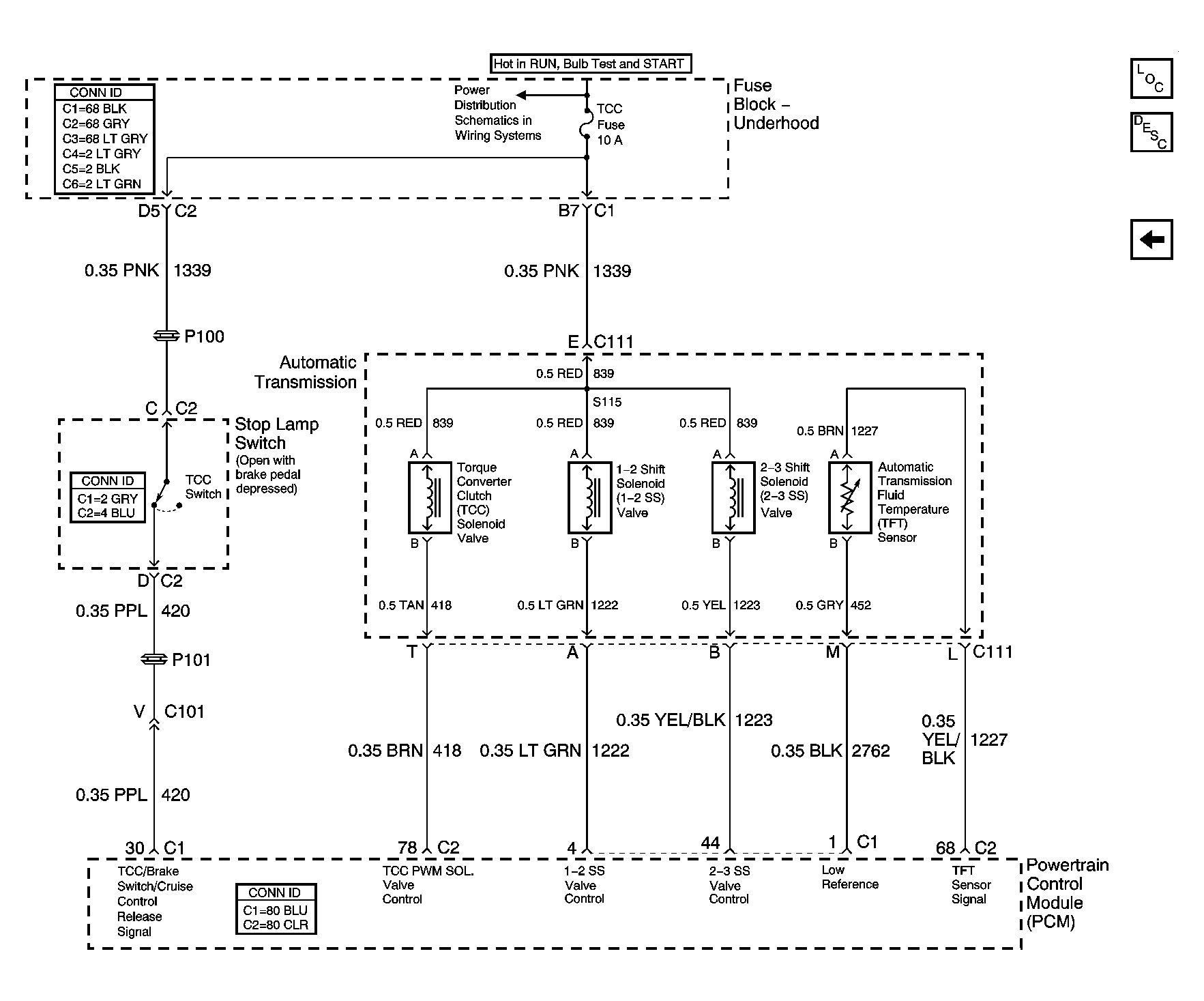

Fig 3: Automatic Transmission TCC Switch Schematic
GM795588Courtesy of GENERAL MOTORS CORP.
