LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2005
>>
Venture FWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

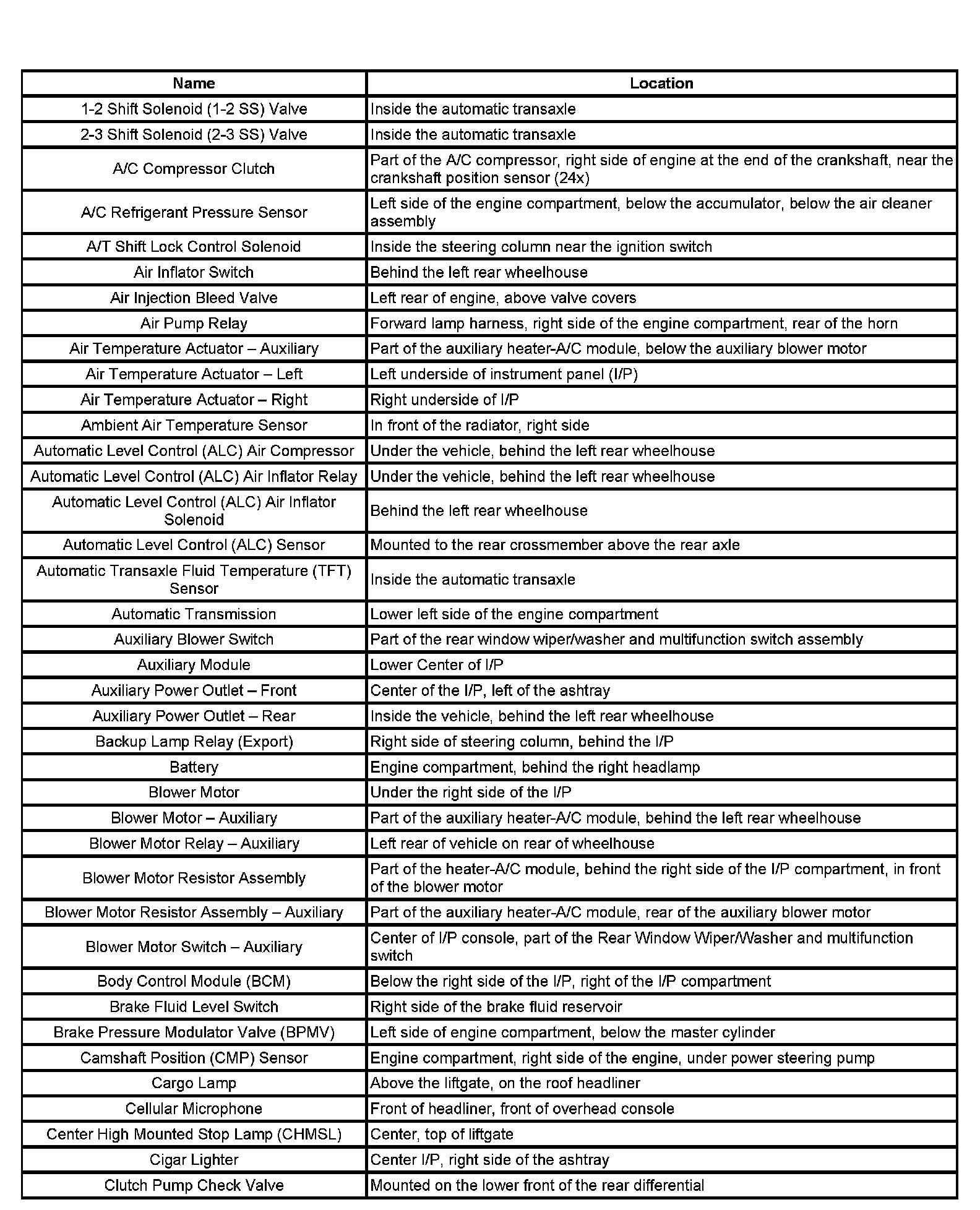

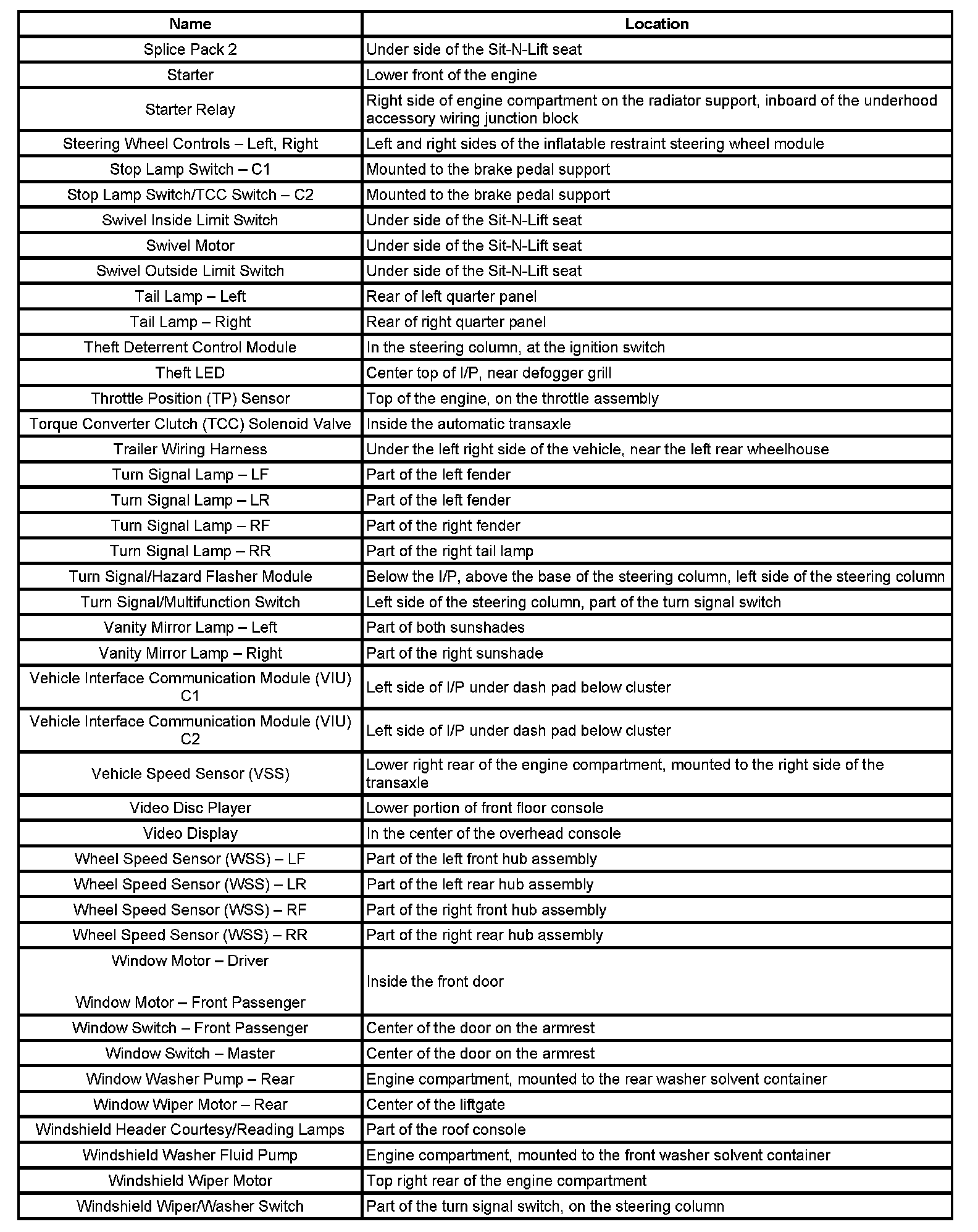

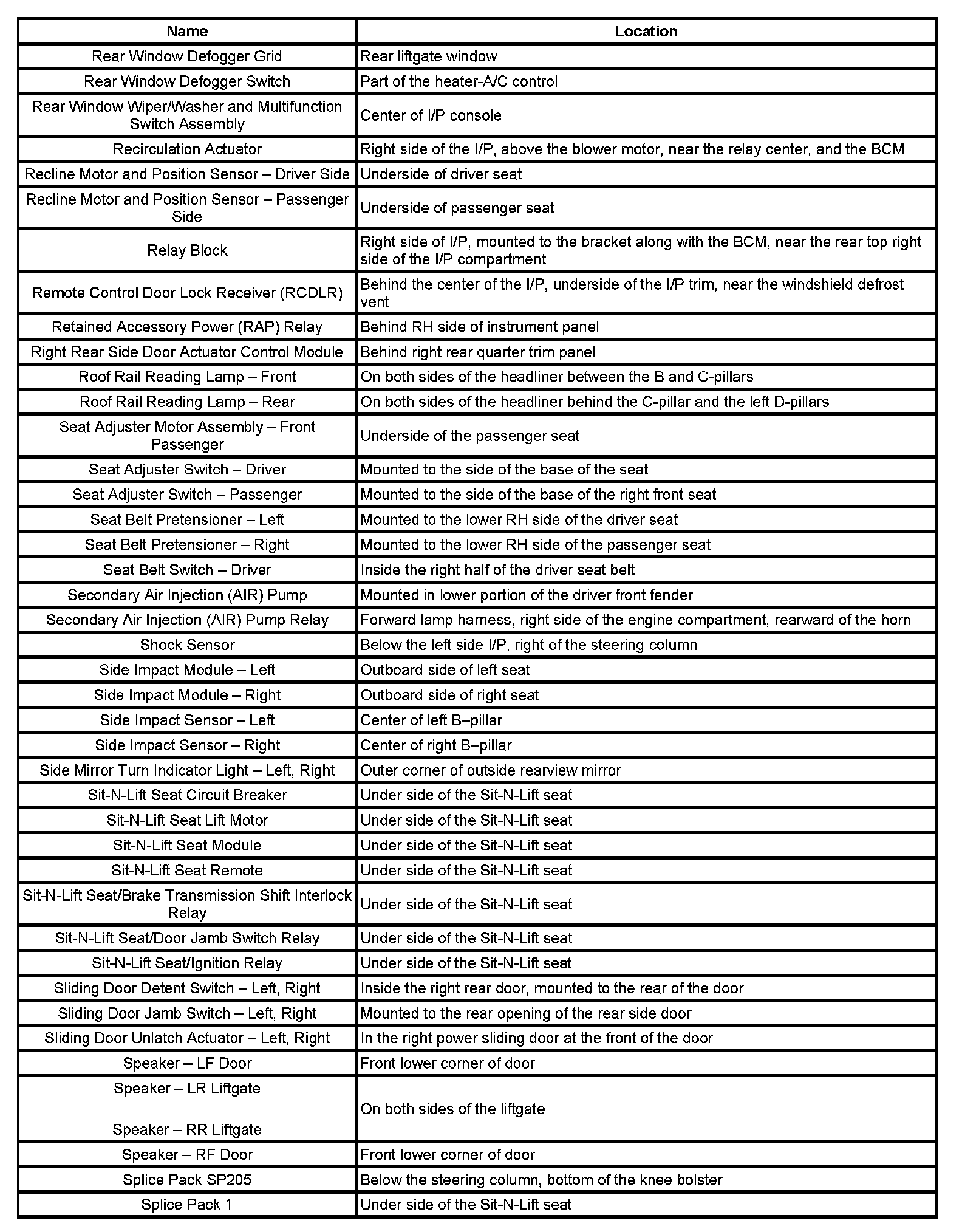

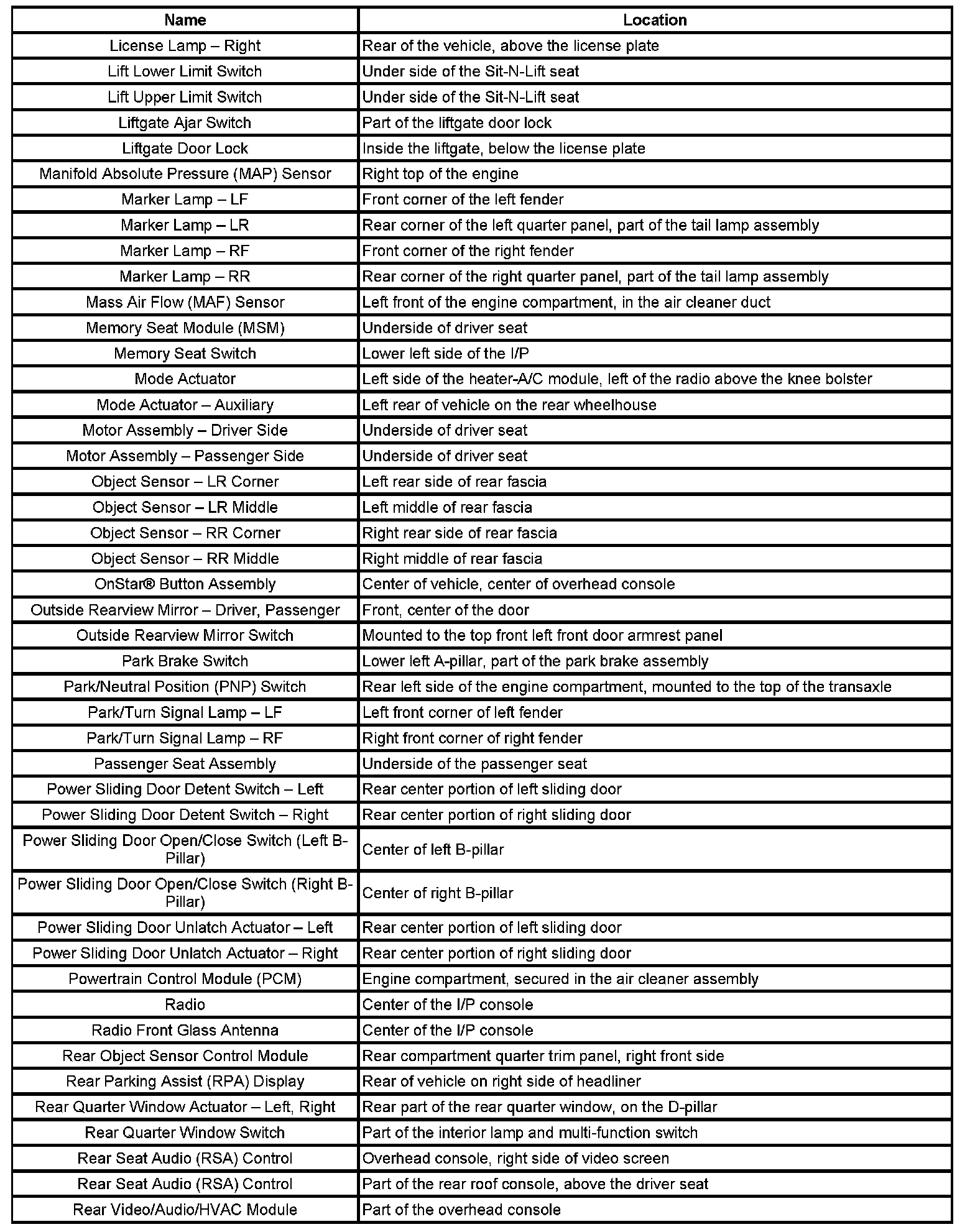

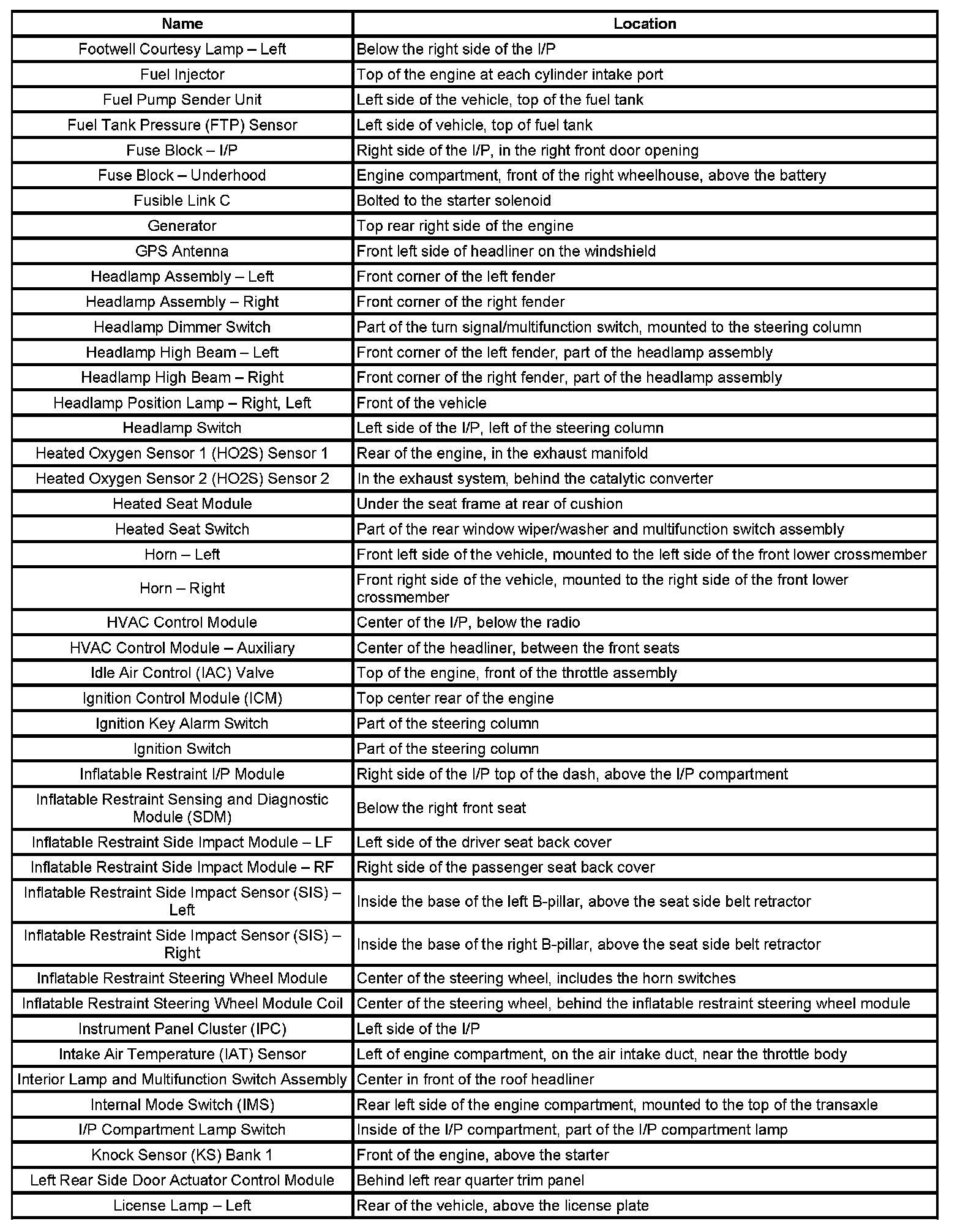

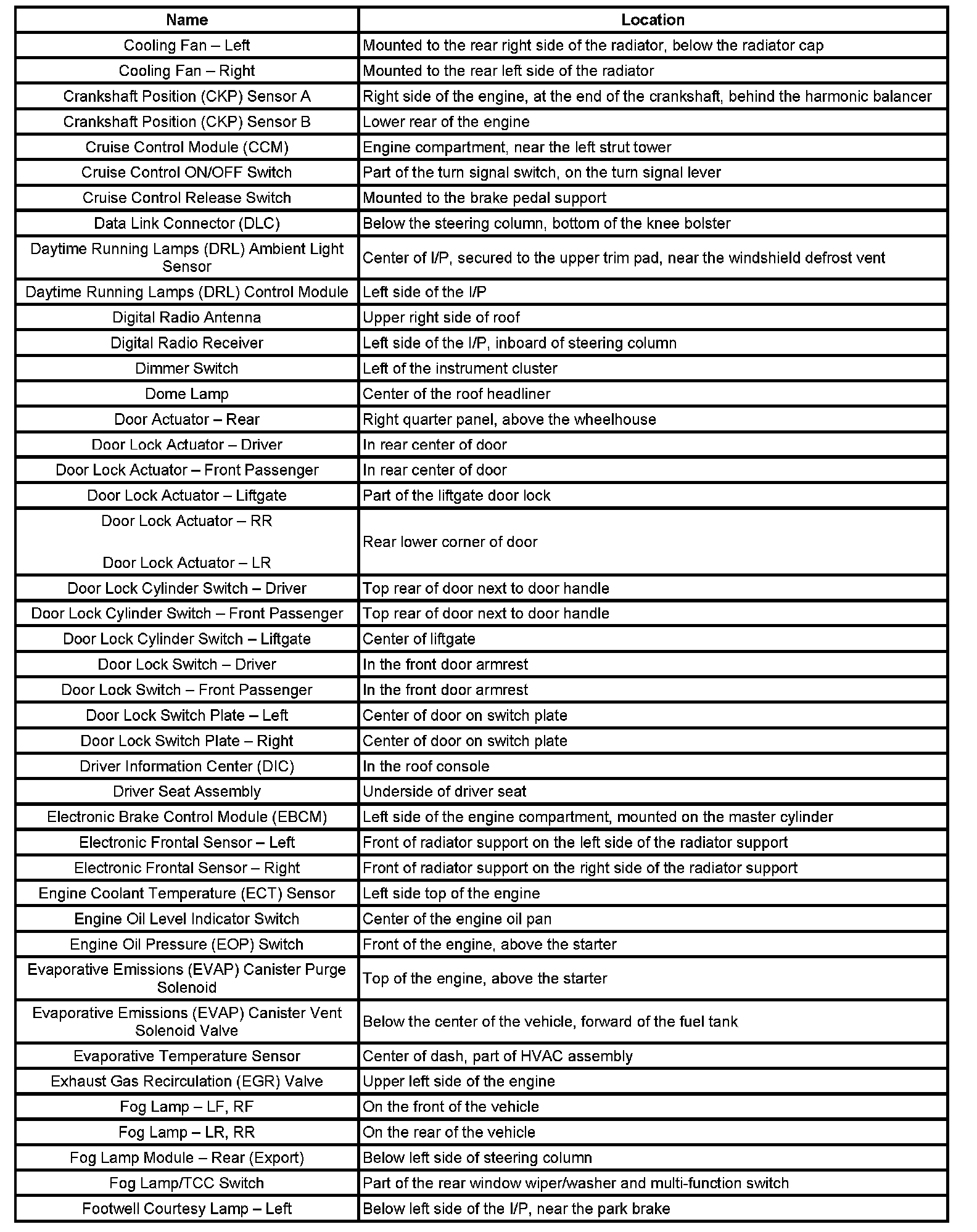

Components
1-2 Sh - Cl:
Co - Fo:
Fo - Li:
Li - Re:
Re - Sp:
Sp - Wi:
