Left Rear Side Door Actuator Control Module Connector

Left Rear Side Door Actuator Control Module Connector C1:

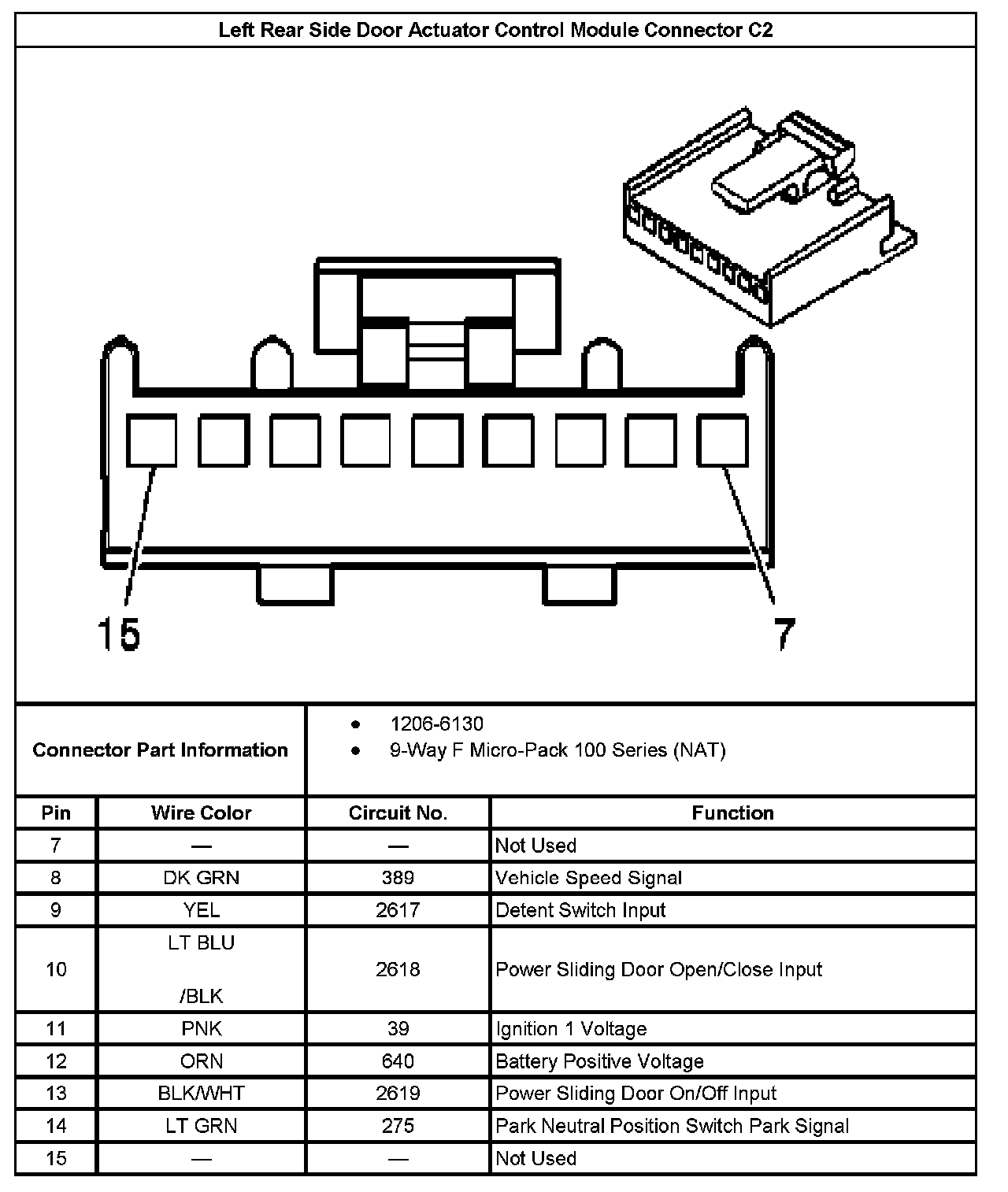

Left Rear Side Door Actuator Control Module Connector C2:



Left Rear Side Door Actuator Control Module Connector C3:



Left Rear Side Door Actuator Control Module Connector C4:



Left Rear Side Door Actuator Control Module C5:
