HVAC Control Module Connector

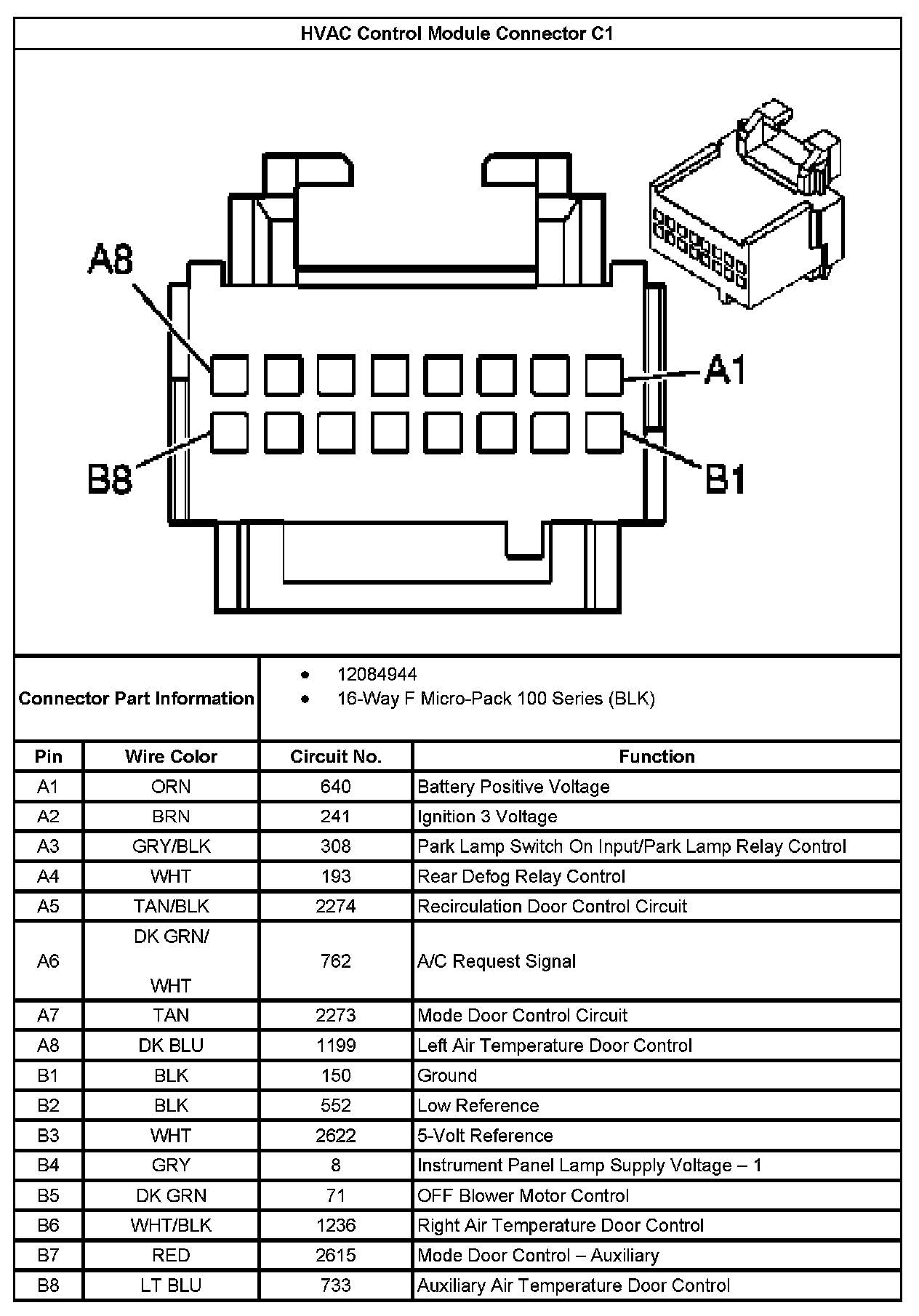

HVAC Control Module Connector C1:



HVAC Control Module Connector C2:
