Power Control Module (PCM) C1

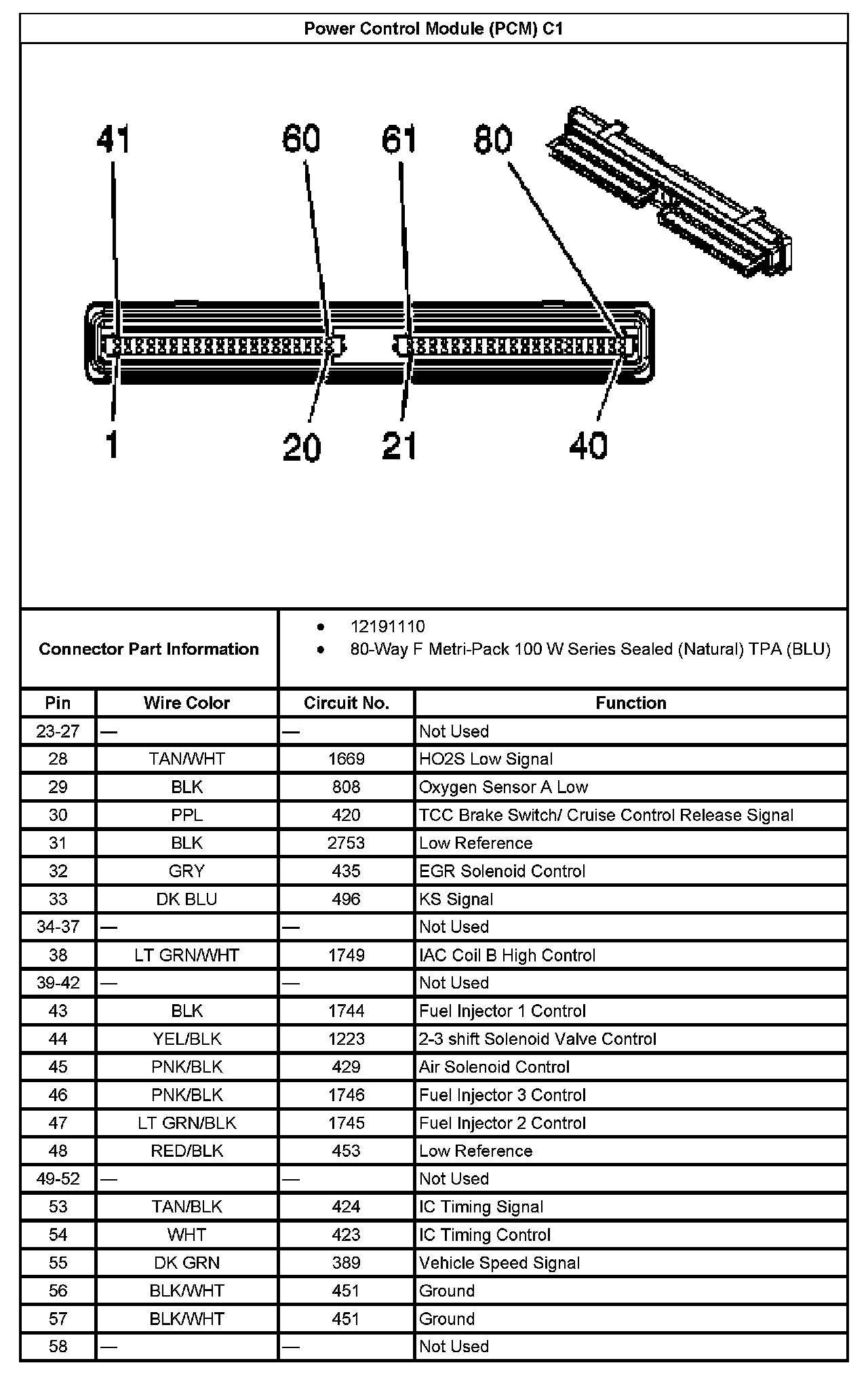

Power Control Module (PCM) C1 Part 1:

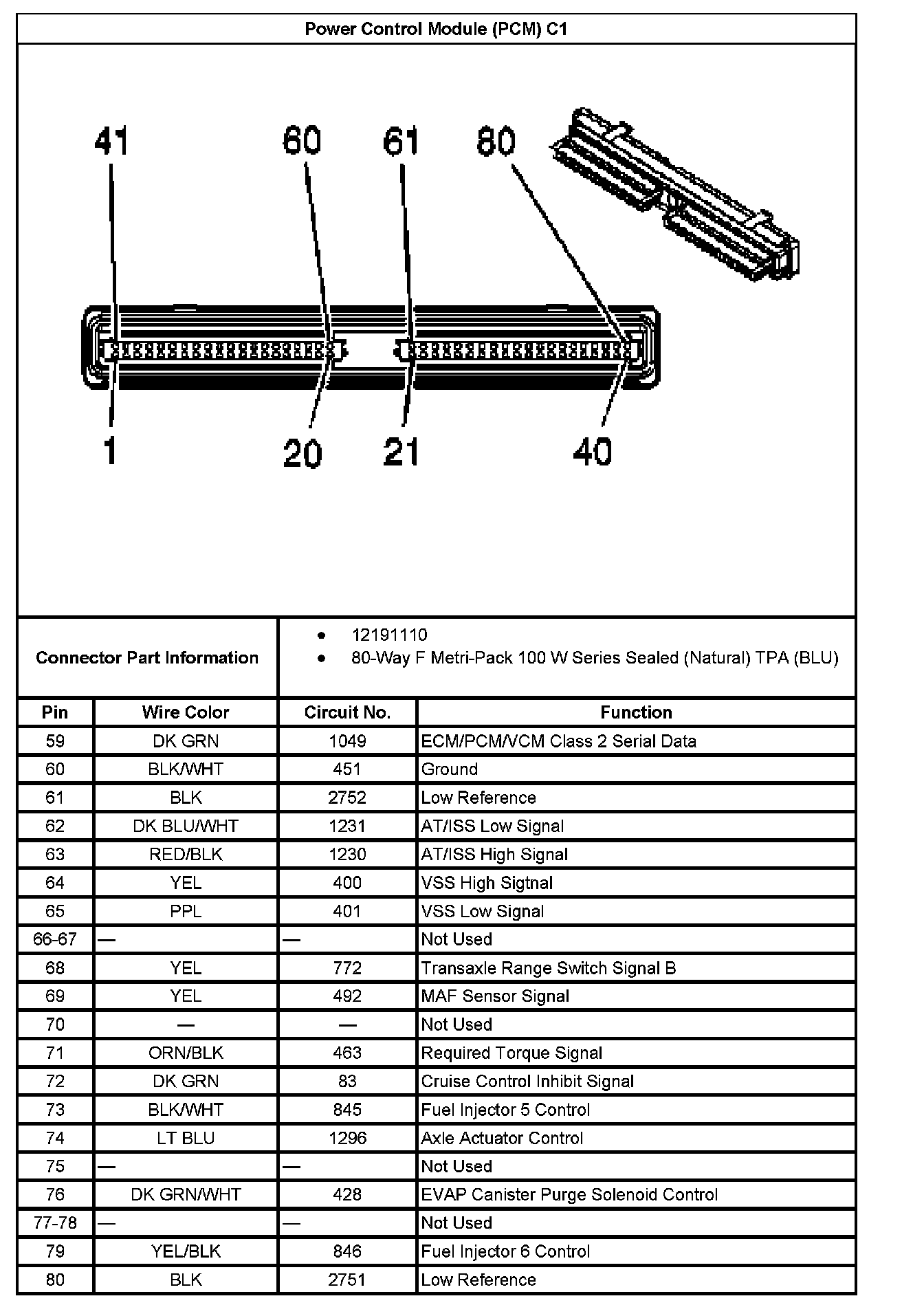

Power Control Module (PCM) C1 Part 2:

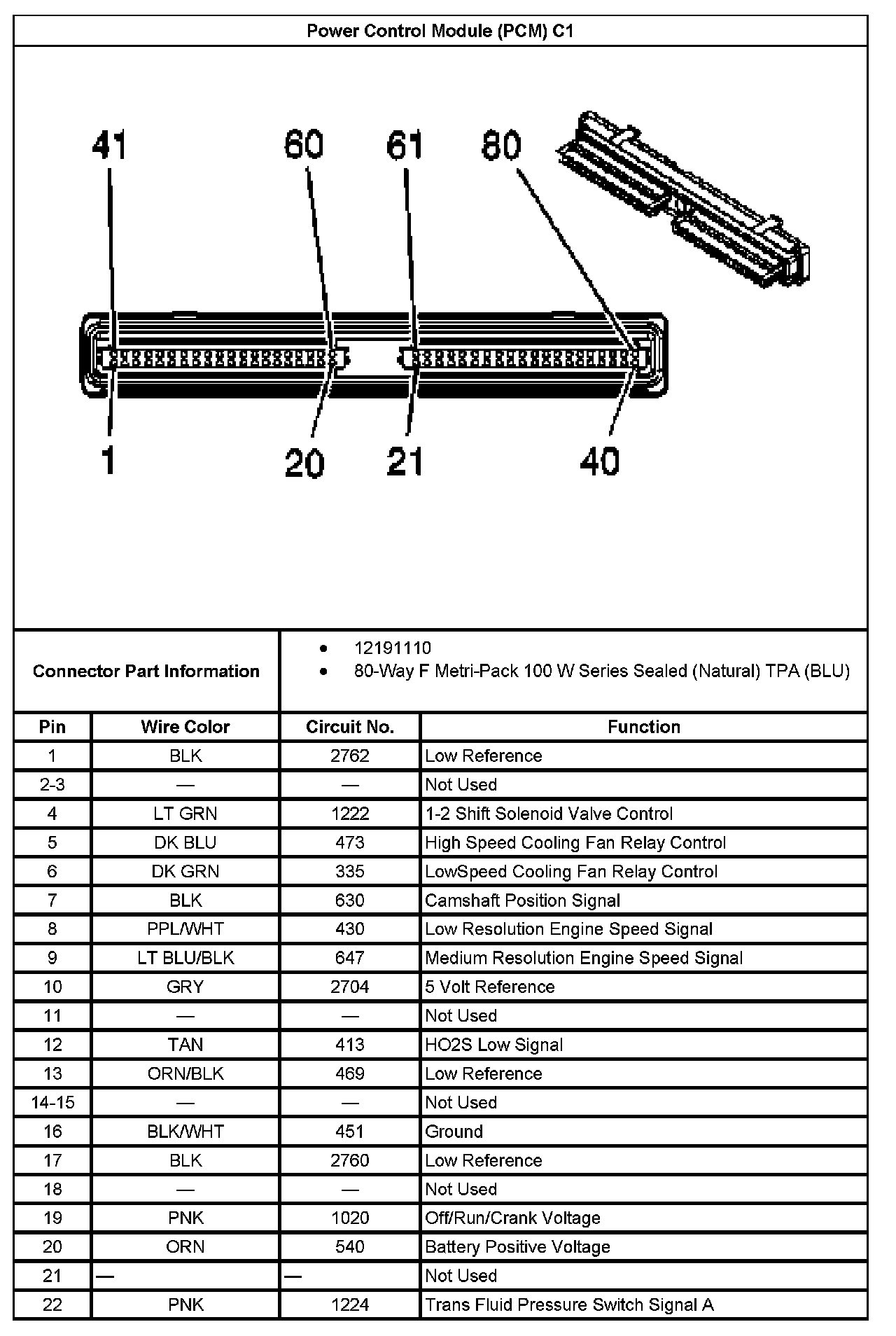

Power Control Module (PCM) C1 Part 3:
