Power Control Module (PCM) C2

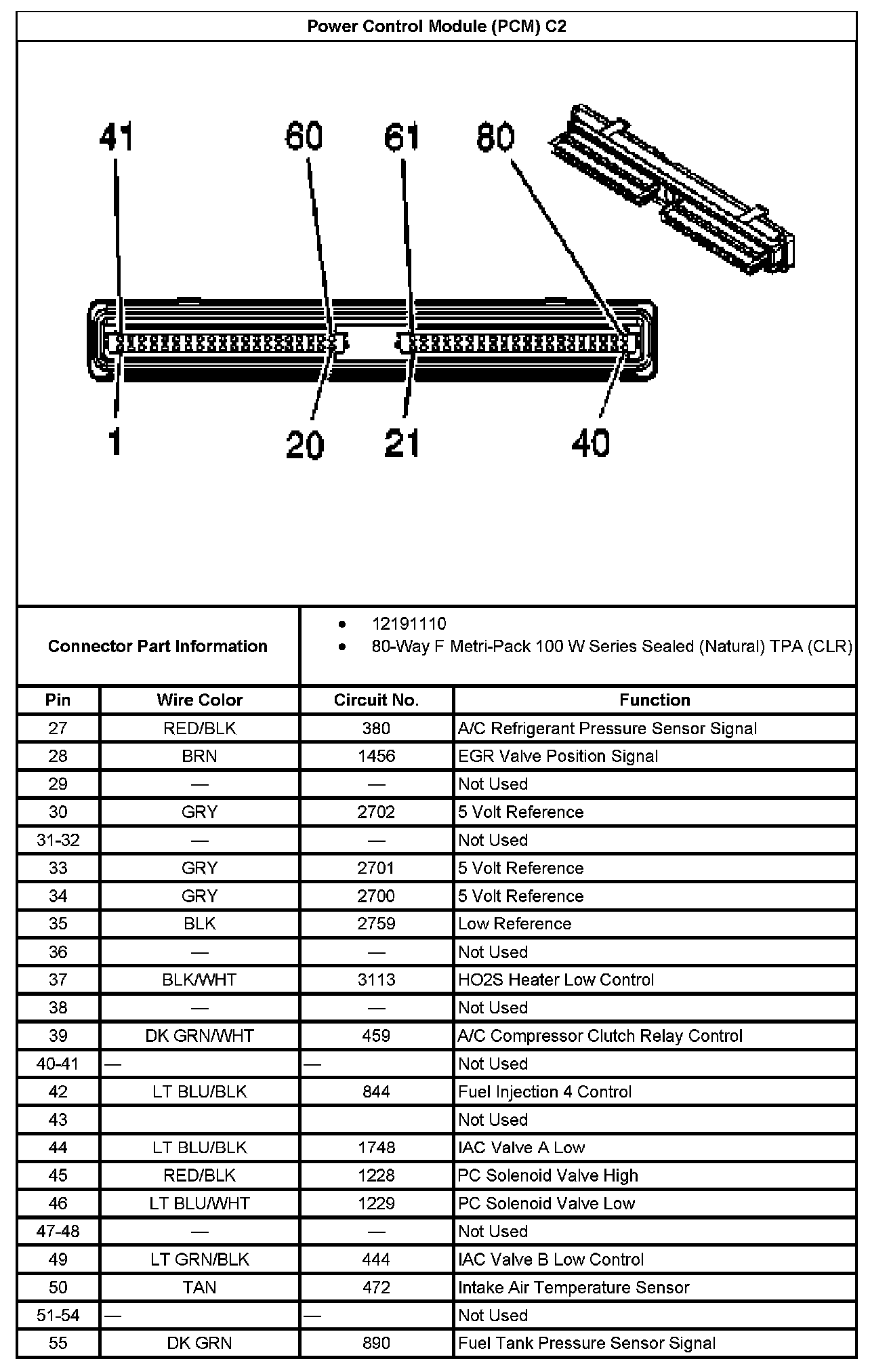

Power Control Module (PCM) C2 Part 1:

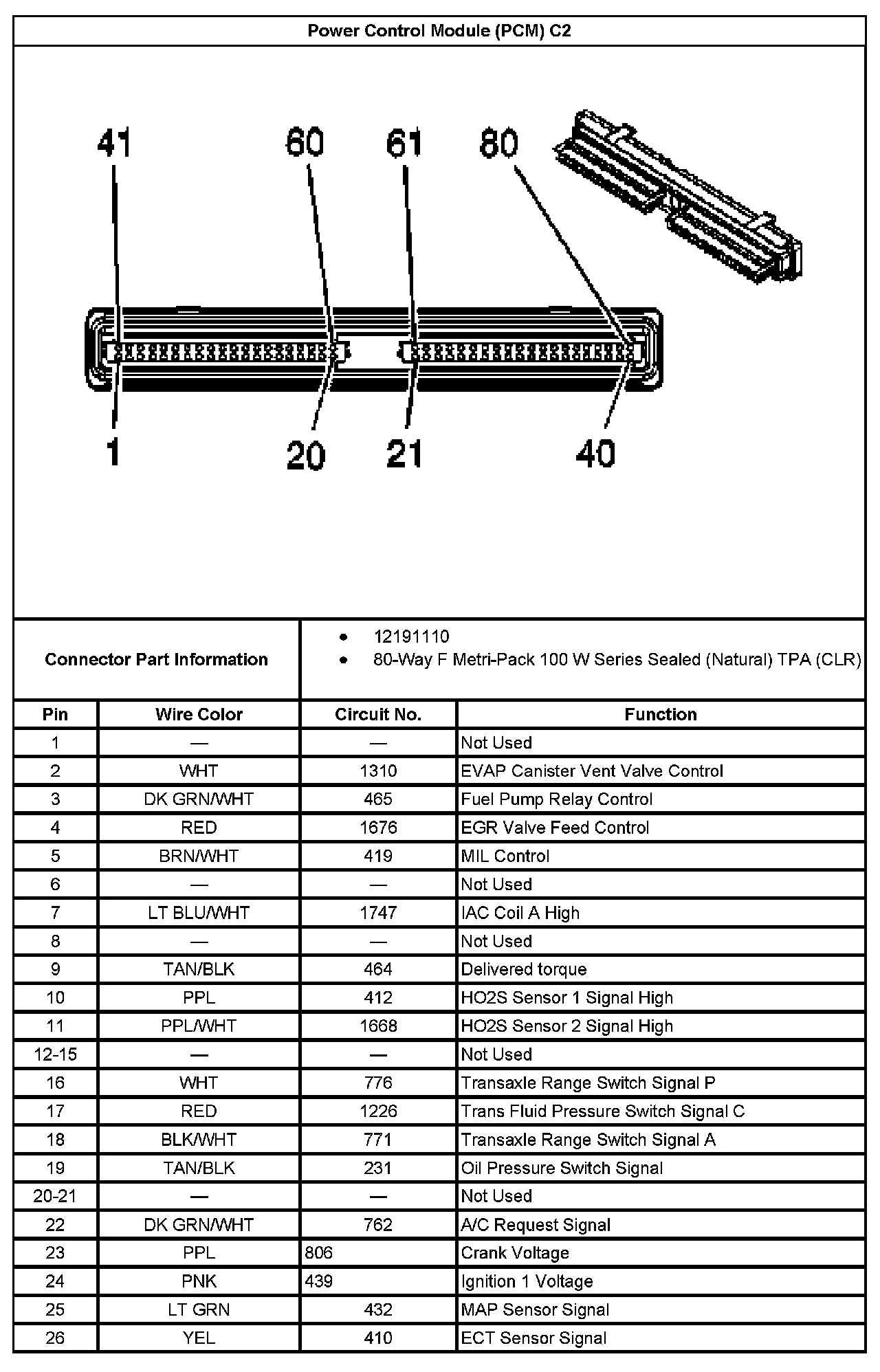

Power Control Module (PCM) C2 Part 2:

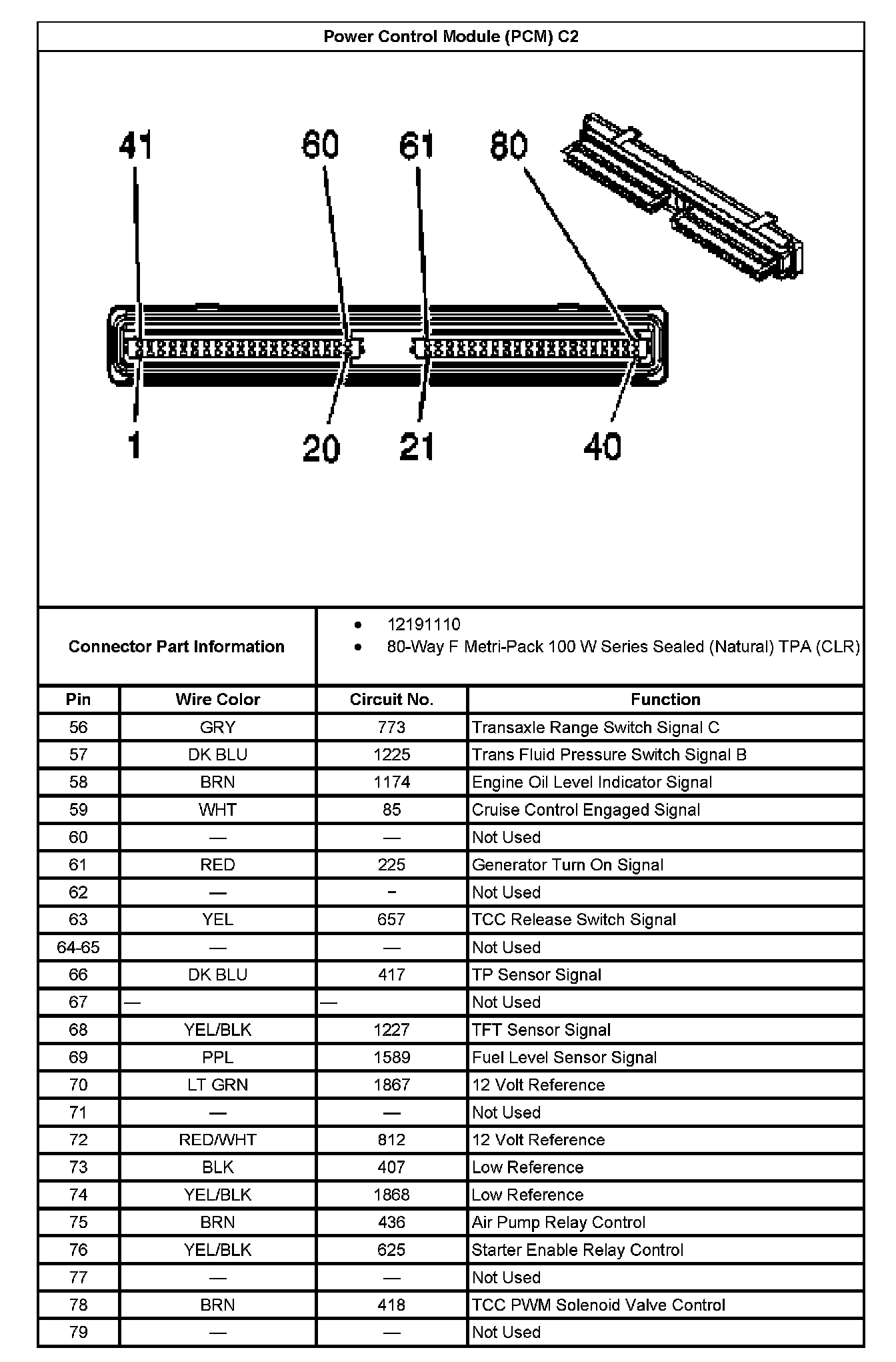

Power Control Module (PCM) C2 Part 3:



Power Control Module (PCM) C2 Part 4:
