Installation Procedure

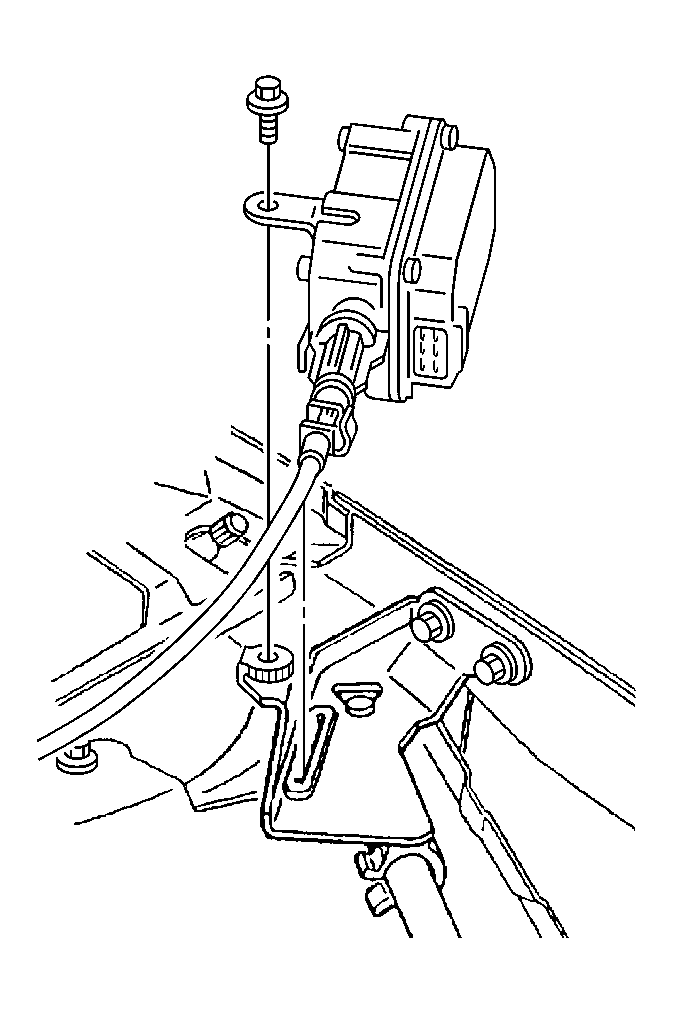

    Fig 1: View Of Mounting Bracket Bolt For Cruise Control Module
    GM315308Courtesy of GENERAL MOTORS CORP.
  1. Install the cruise control module to the mounting bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the mounting bracket bolt to the cruise control module.

    Tighten:  Tighten the bolt to 6 N.m (53 lb in).

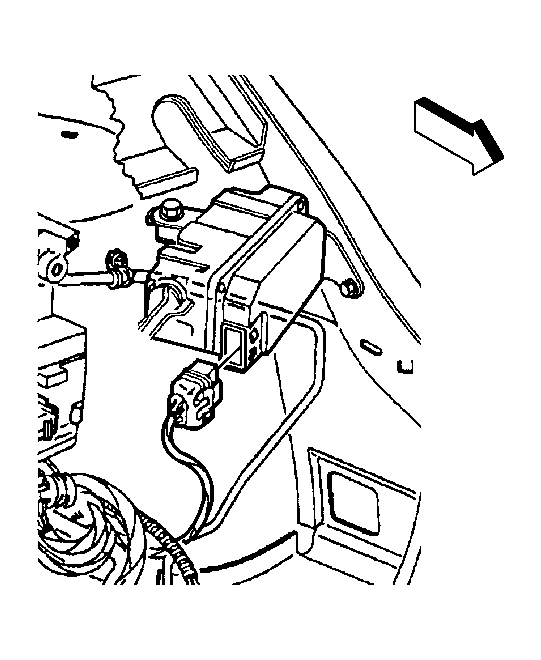

    3. Fig 2: View Of Electrical Connector
    GM388889Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the module.
  4. Install the cruise control cable to the module. Refer to Cruise Control Cable Replacement .
  5. Adjust the cruise control cable. Refer to Cruise Control Cable Replacement .
