ABS Component Views

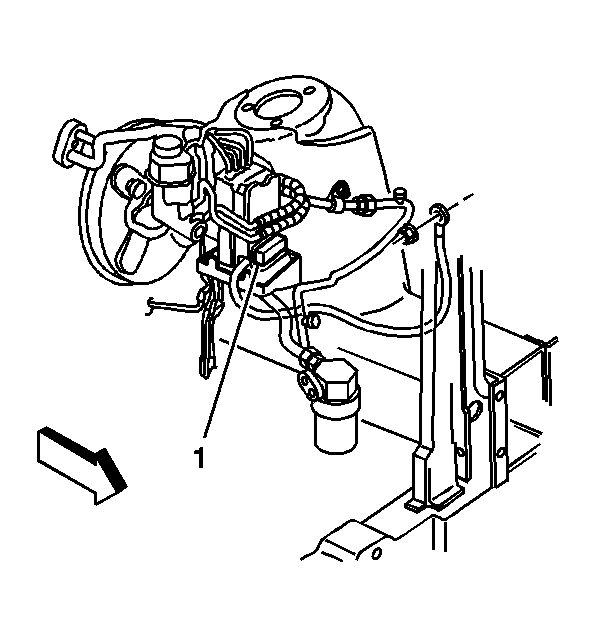

Fig 1: LH Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM)

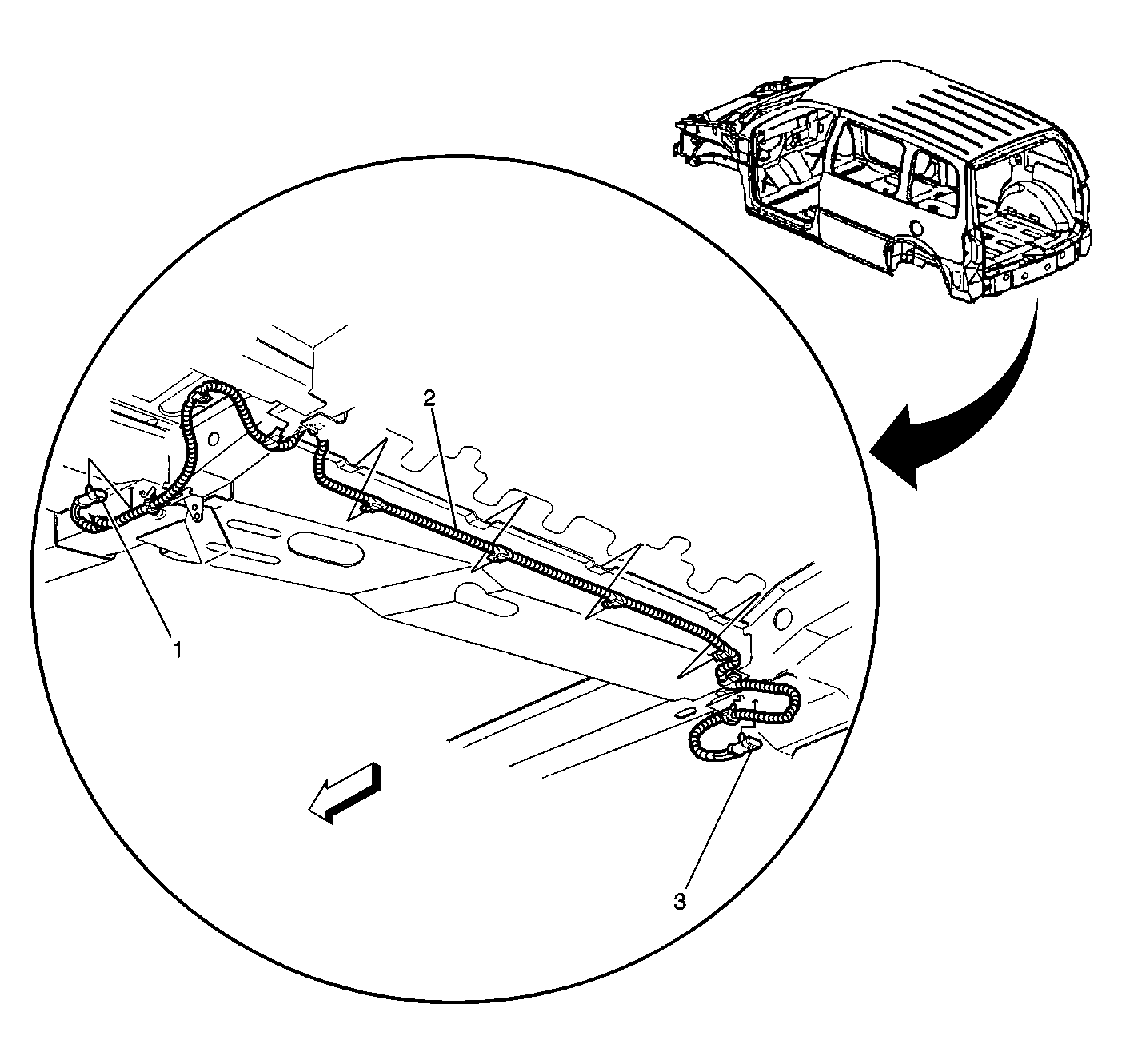

Fig 2: Underneath Rear of Vehicle Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	In-line Connector C309, Electronic Brake Control Harness to Wheel Speed Sensor (WSS)-LR Harness
2	Electronic Brake Control Harness
3	In-line Connector C306, Electronic Brake Control Harness to Wheel Speed Sensor (WSS)-RR Harness

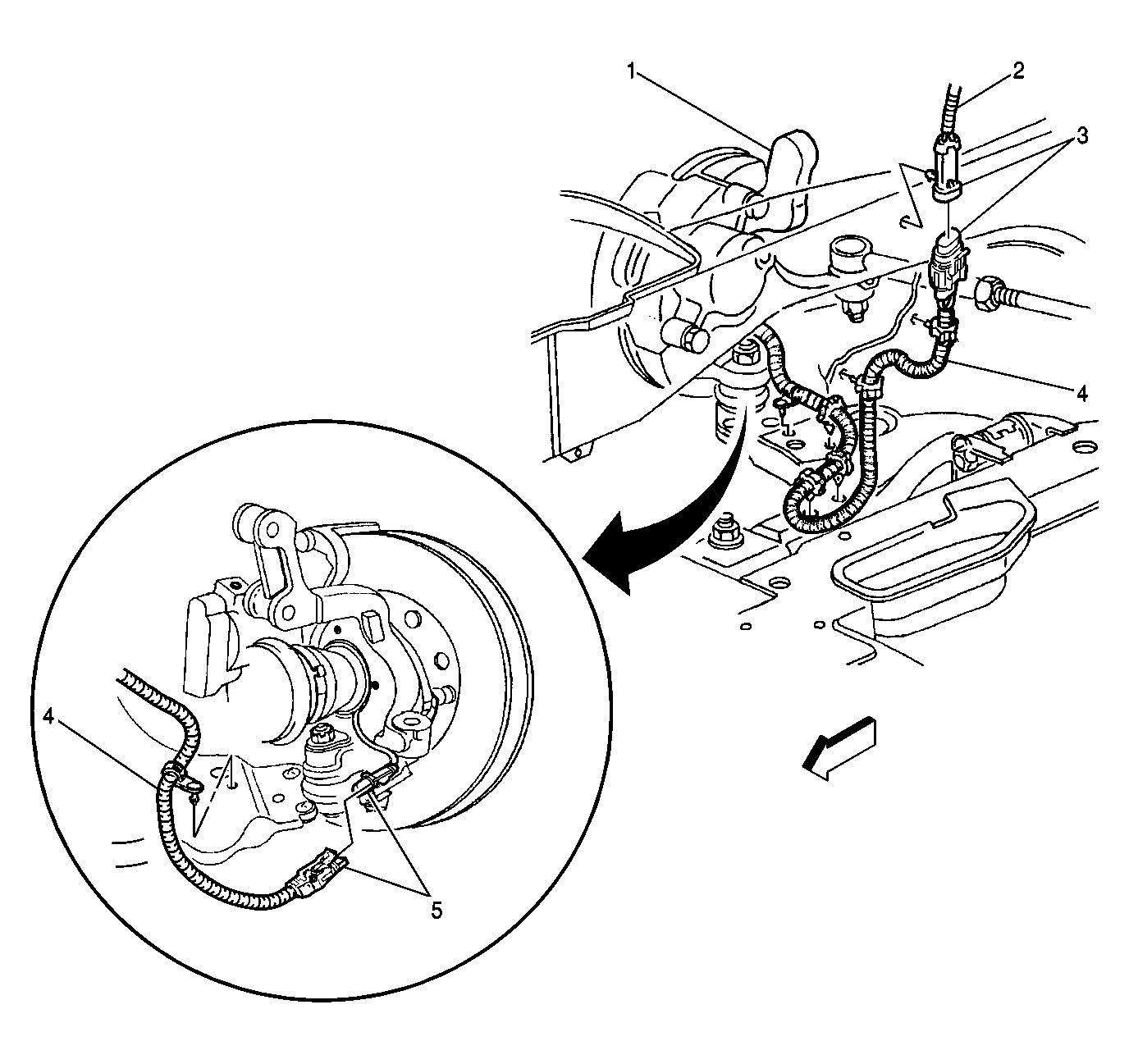

Fig 3: RF Wheel (LF Wheel Speed Sensor Similar) Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Wheel
2	I/P Harness
3	In-line Connector C172
4	Wheel Speed Sensor (WSS)-RF Harness
5	Wheel Speed Sensor (WSS)-RF Harness Connector to Wheel Speed Sensor (WSS)-RF (pigtail) (LF Similar)

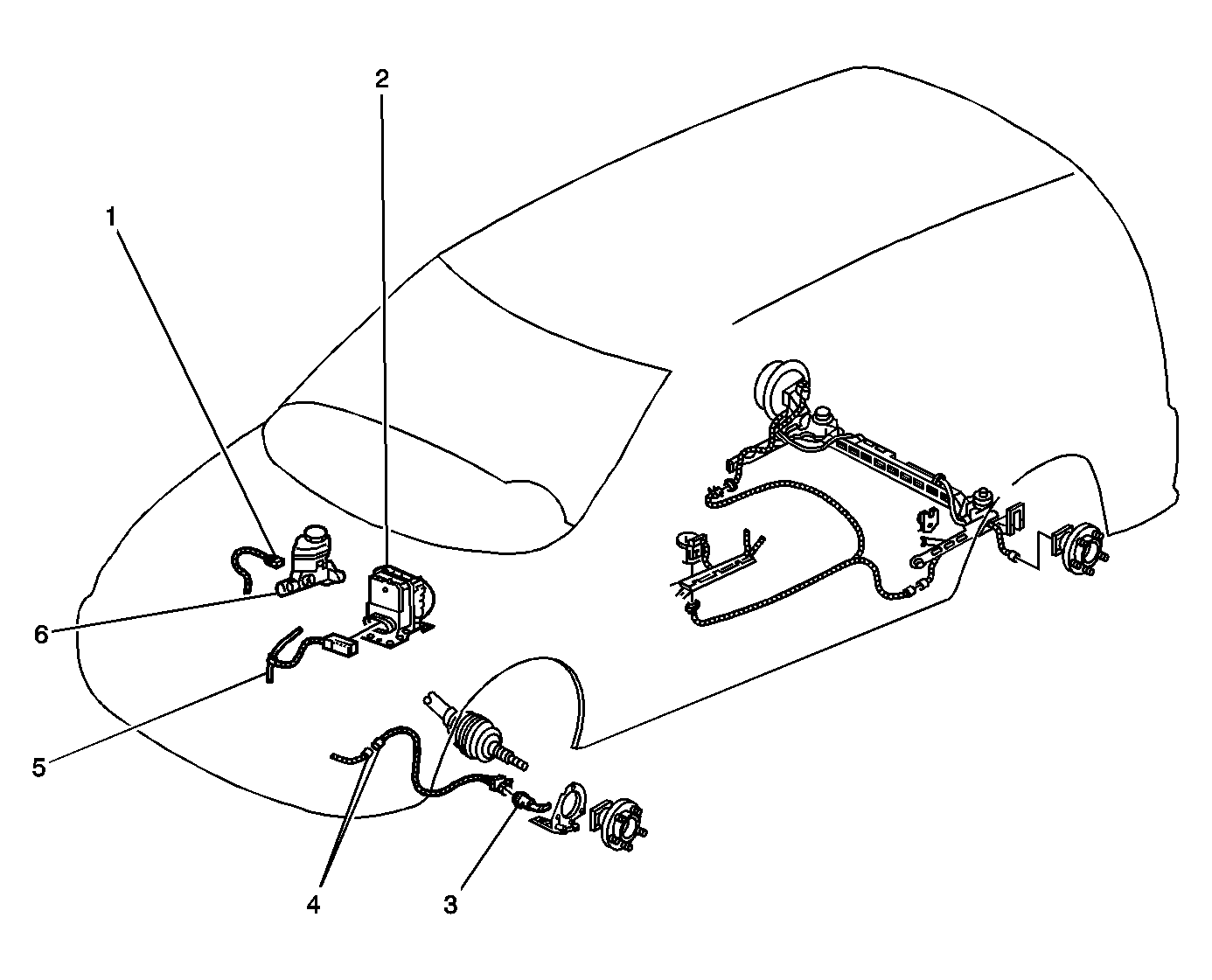

Fig 4: Front of Vehicle Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Electronic Brake Control Module (EBCM), Brake Pressure Modulator Valve (BPMV)
3	Engine Harness
4	C171
5	Wheel Speed Sensor (WSS)
6	Brake Master Cylinder
