Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cable from the throttle lever and accelerator control cable bracket.

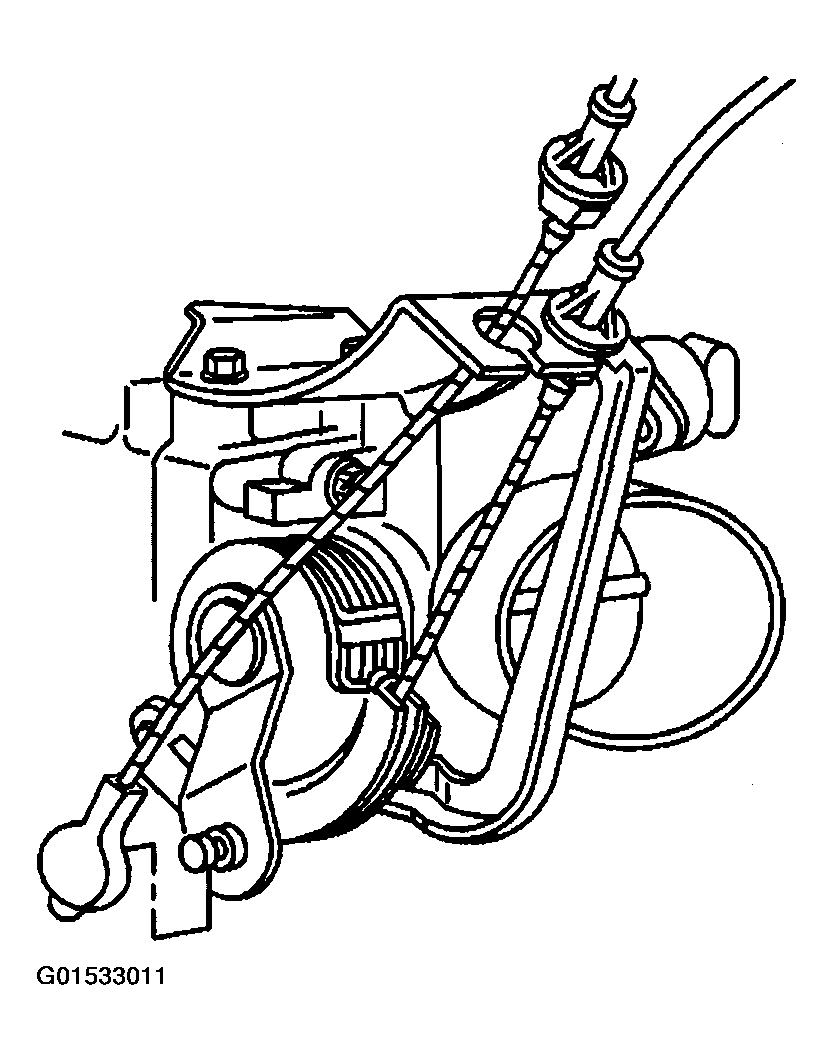

Fig 1: Removing Cable From Throttle Lever And Accelerator Control Cable Bracket
Courtesy of GENERAL MOTORS CORP.
Rotate the cable counter clockwise at the module in order to remove the cable from the module.
Remove the cable from the module band.

Fig 2: Removing Cable From Module Band
Courtesy of GENERAL MOTORS CORP.
