Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood rear seal part way to gain access to the wiper drive system module cover retainers.
  3. Remove the wiper drive system module cover from the pinchweld flange.
  4. Remove the wiper drive system module cover from the engine compartment.

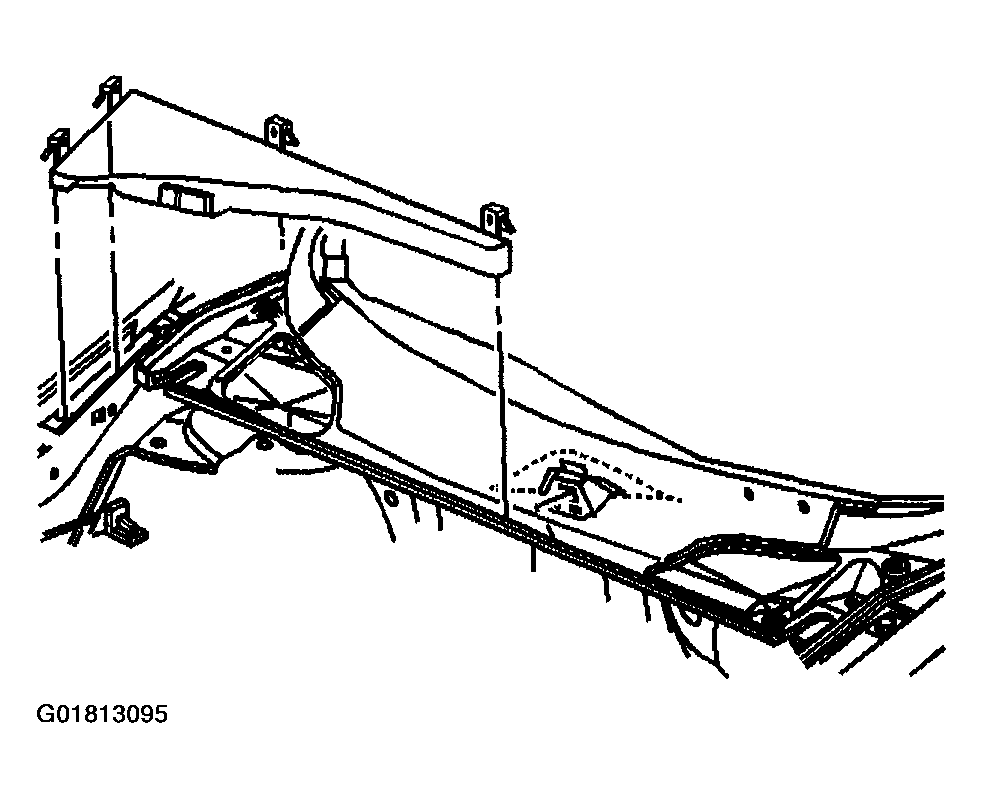

    Fig 1: Removing Wiper Drive System Module Cover & Retainers
    G01813095Courtesy of GENERAL MOTORS CORP.
