Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Remove the cruise control and bracket. Refer to CRUISE CONTROL MODULE REPLACEMENT .
  4. Remove the wiper motor. Refer to Wiper Motor Replacement .
  5. Remove the wiper drive system module screws.
  6. Remove the wiper drive system module from the vehicle.

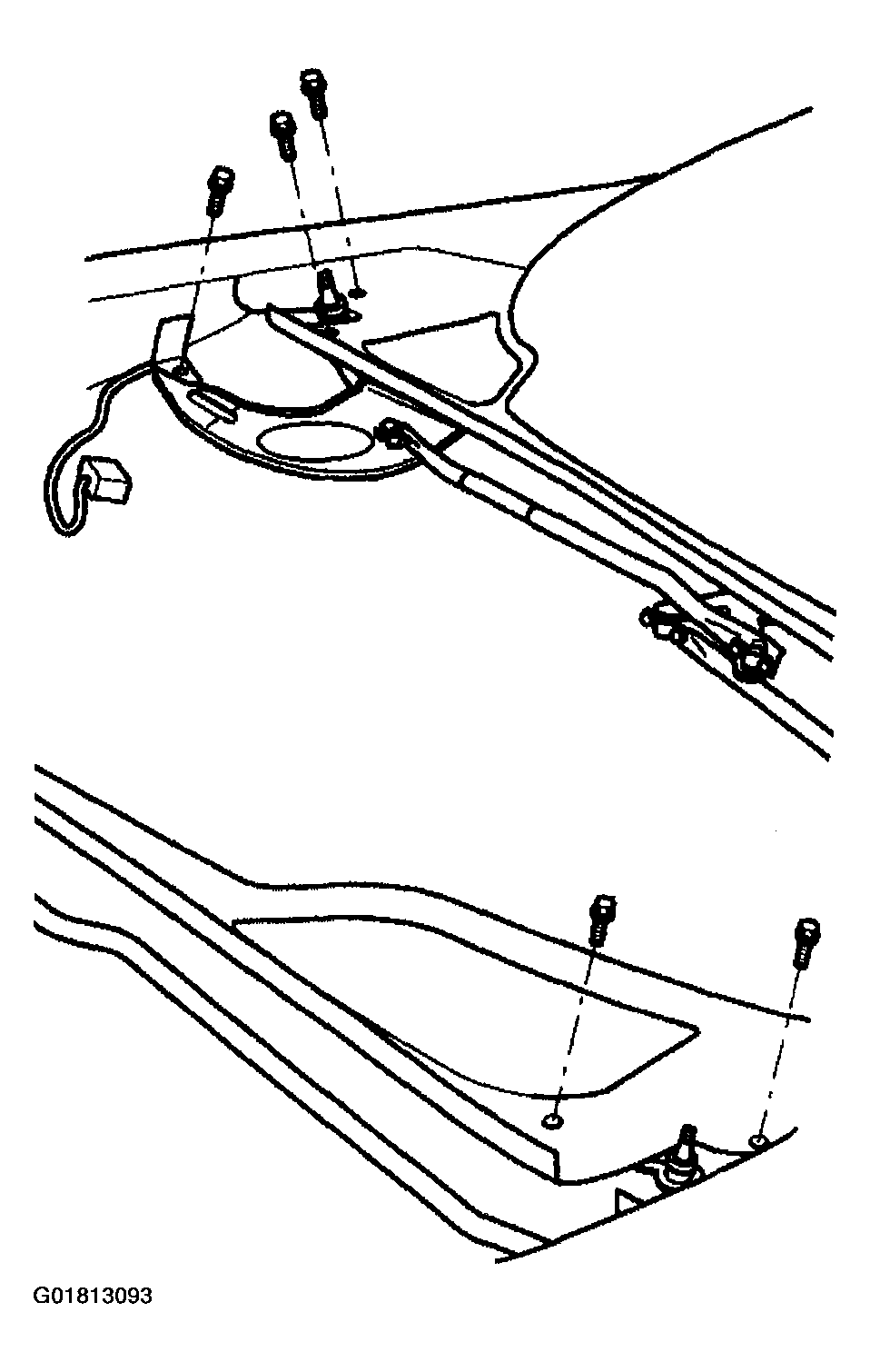

    Fig 1: Removing Wiper Drive System Module & Screws
    G01813093Courtesy of GENERAL MOTORS CORP.
