WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Body Control Module Schematics (Ignition Input, Door Locks And Exterior Lamps Output)
Courtesy of GENERAL MOTORS CORP.

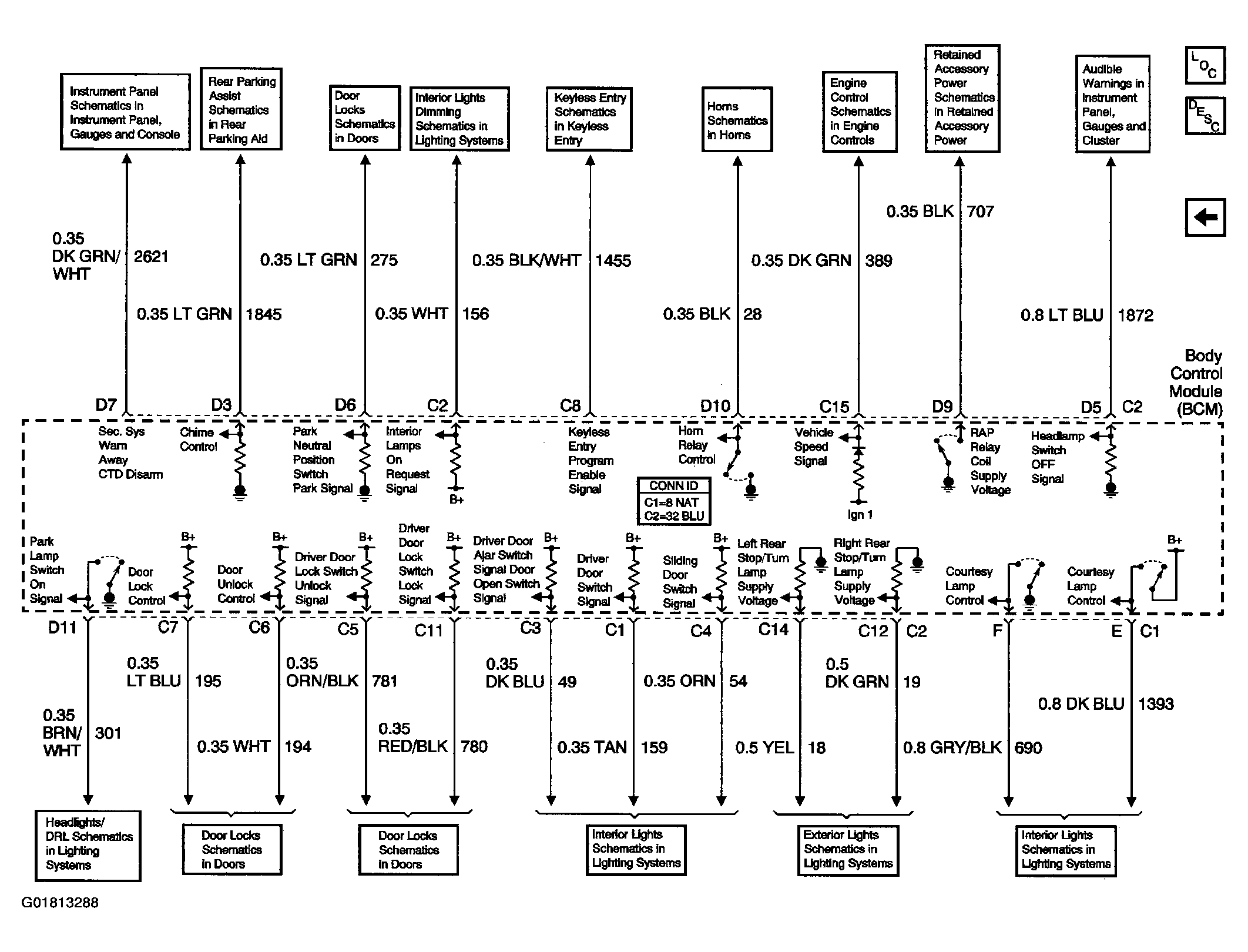

Fig 2: Body Control Module Schematics (Interior Lights On Request And Horn Control)
