Installation Procedure

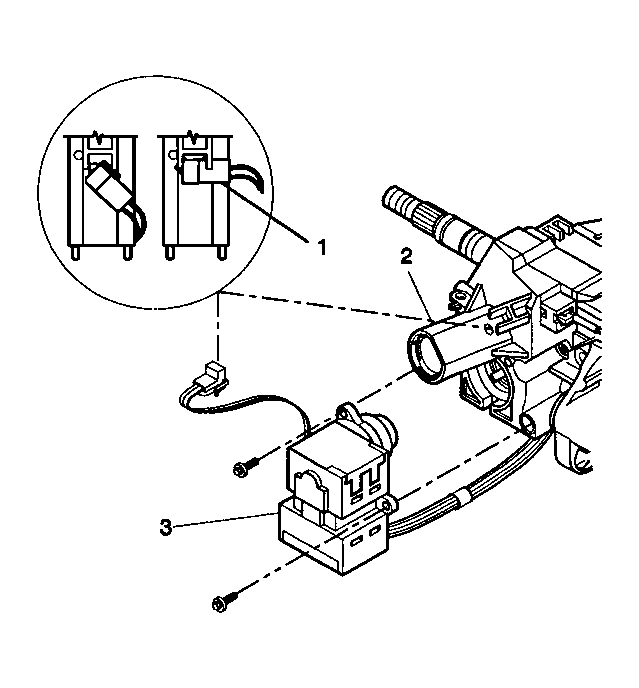

Fig 1: Expanded View Of Key Alarm Connector To Ignition Lock Cylinder Case

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the ignition switch assembly (3) onto the ignition lock cylinder case (2) and secure by using the 2 tapping screws.
Tighten: Tighten the screws to 4.7 N.m (42 lb in).
Install the key alarm connector (1) into the ignition lock cylinder case (2).

Fig 2: Locating Theft Deterrent Module & Ignition Lock Cylinder Case Assembly

Courtesy of GENERAL MOTORS CORP.

Fig 3: Turn Signal & Multifunction Switch Assembly Connectors

Courtesy of GENERAL MOTORS CORP.

Slide the turn signal switch assembly connectors (2) to the bulkhead connector (1).

Fig 4: View Of Steering Column Wiring Harness Assembly

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SIR Inflator Module Coil Caution in Cautions and Notices.

Install the wire harness assembly (4) into the wire harness strap (5).
Install the wire harness strap (2) into the steering column tilt head assembly (1).
Install the wire harness straps (3) onto the wire harness assembly (4).
Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
