Entertainment/Communication Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 GMC Savana Special, 2007 GMC Savana Camper Special, 2007 GMC Savana, 2007 Chevrolet RV Cutaway, and 2007 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

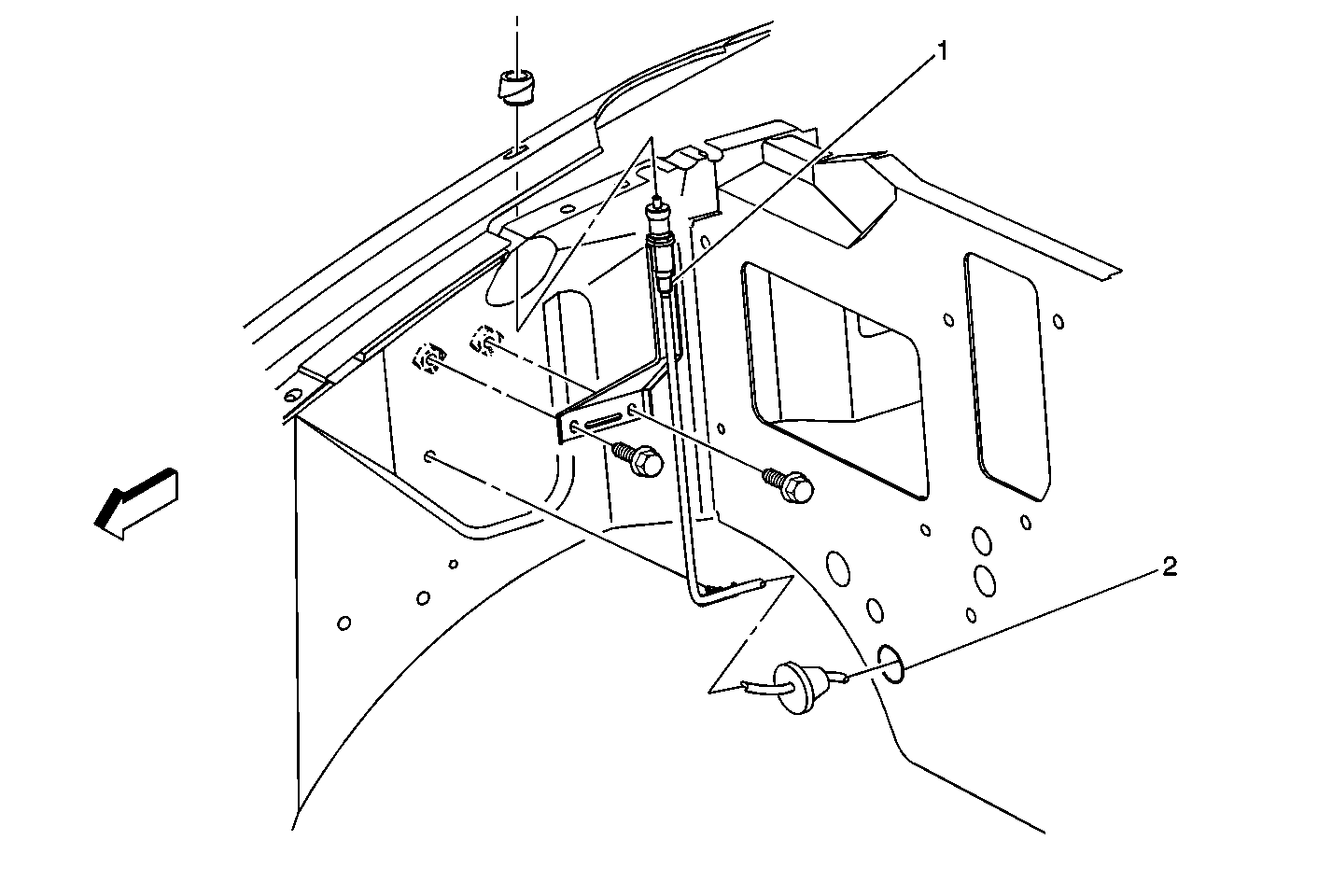

Fig 1: Component View - RR Of Engine Compartment
GM344437Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Antenna
2 Lower Cowl

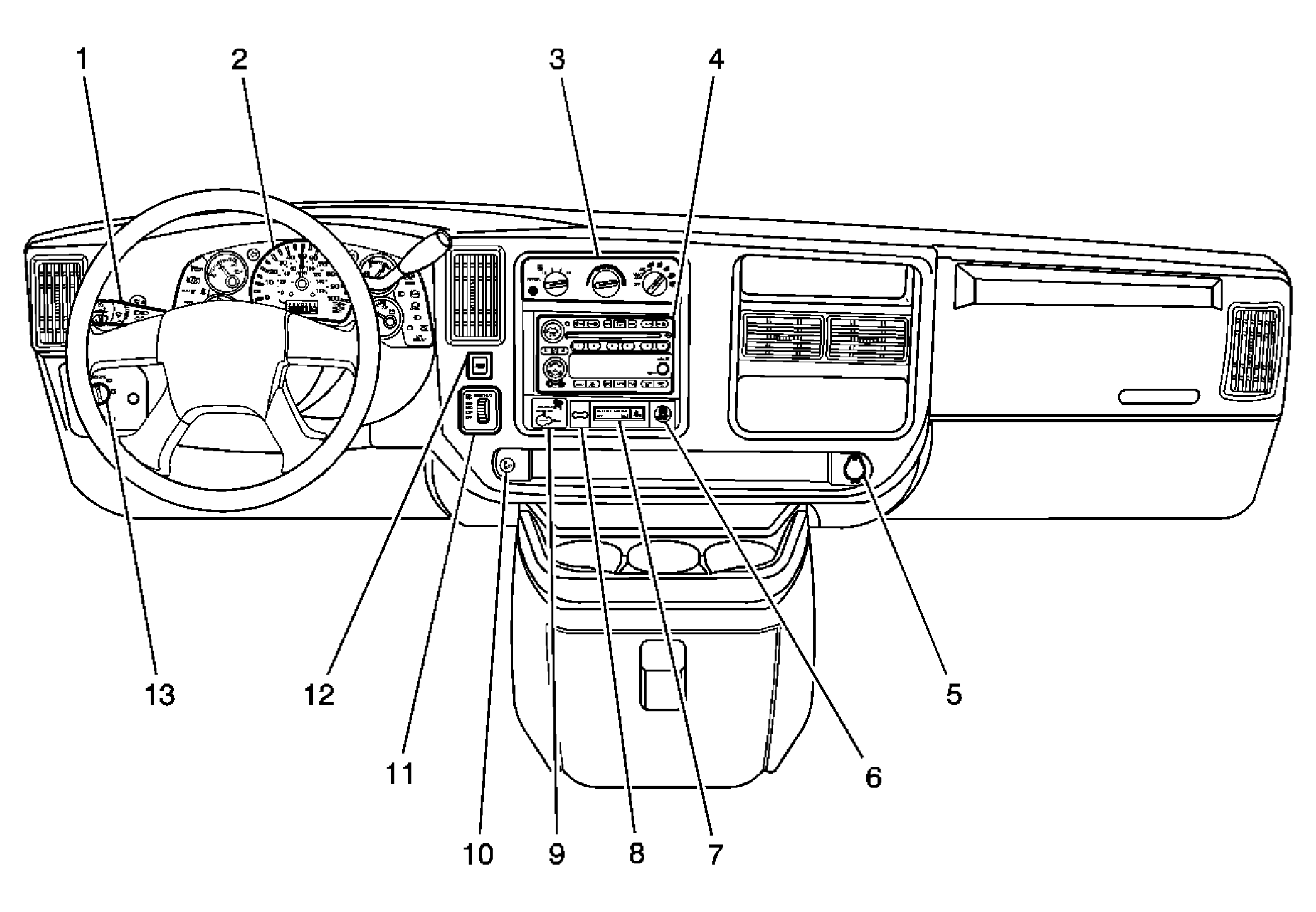

Fig 2: Instrument Panel
GM1631556Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Instrument Panel Cluster (IPC)
3 HVAC Control Assembly
4 Radio
5 Auxiliary Power Outlet 2
6 Traction Control Switch (JL4)
7 Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator (Light Duty w/o YF7)
8 High Idle Switch (UF3)
9 Inflatable Restraint I/P Disable Switch (Heavy Duty)
10 Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4)
11 Blower Motor Switch - Auxiliary (C36)
12 Tow/Haul Switch
13 Headlamp and Panel Dimmer Switch

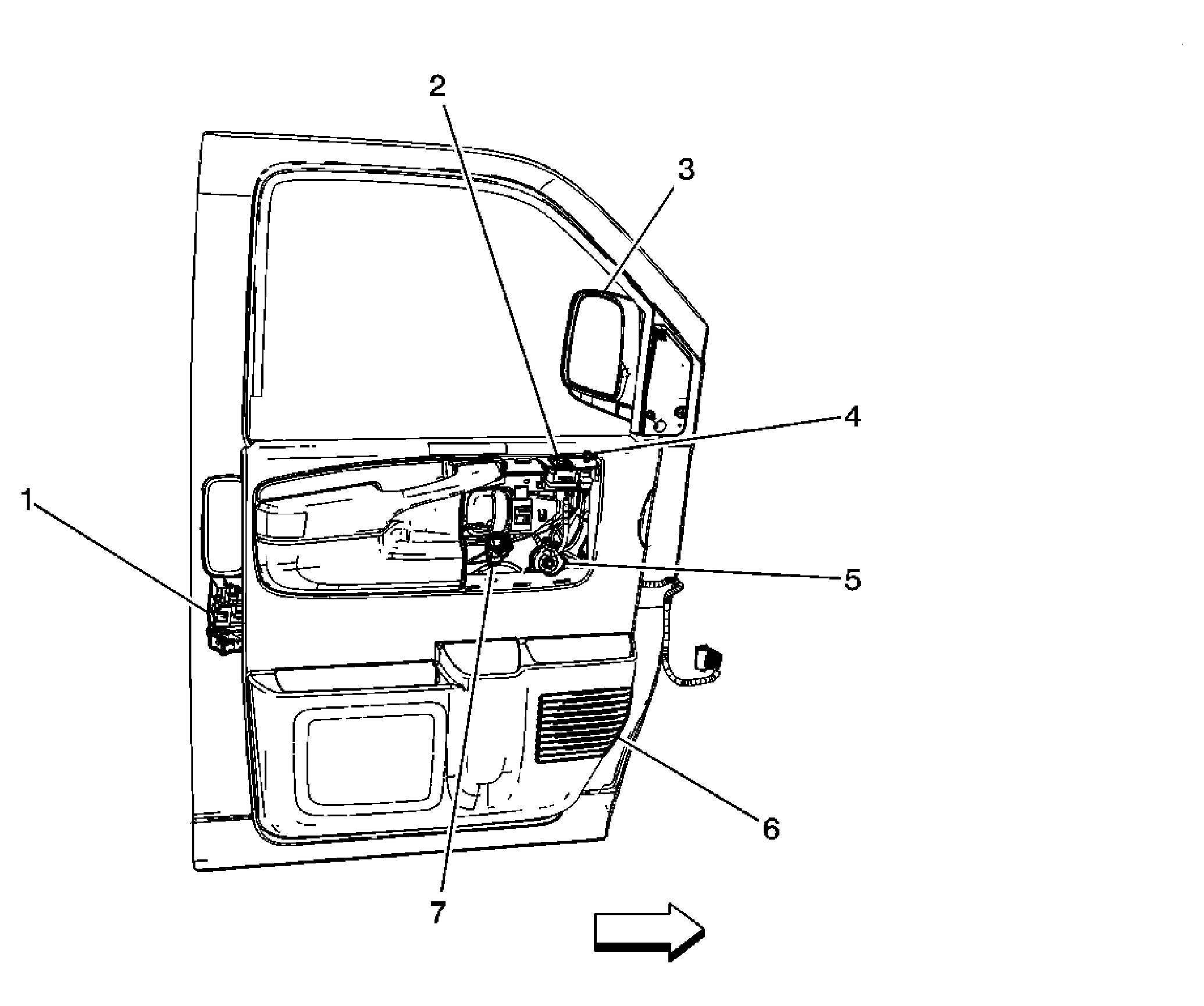

Fig 3: Driver Door
GM1696885Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Latch Assembly - Driver
2 Window Switch - Driver (A31)
3 Outside Rearview Mirror - Driver
4 Outside Rearview Mirror Switch (DE5/DE7)
5 Window Motor - Driver (A31)
6 Speaker - LF Door
7 Door Lock Switch - Driver (AU3)

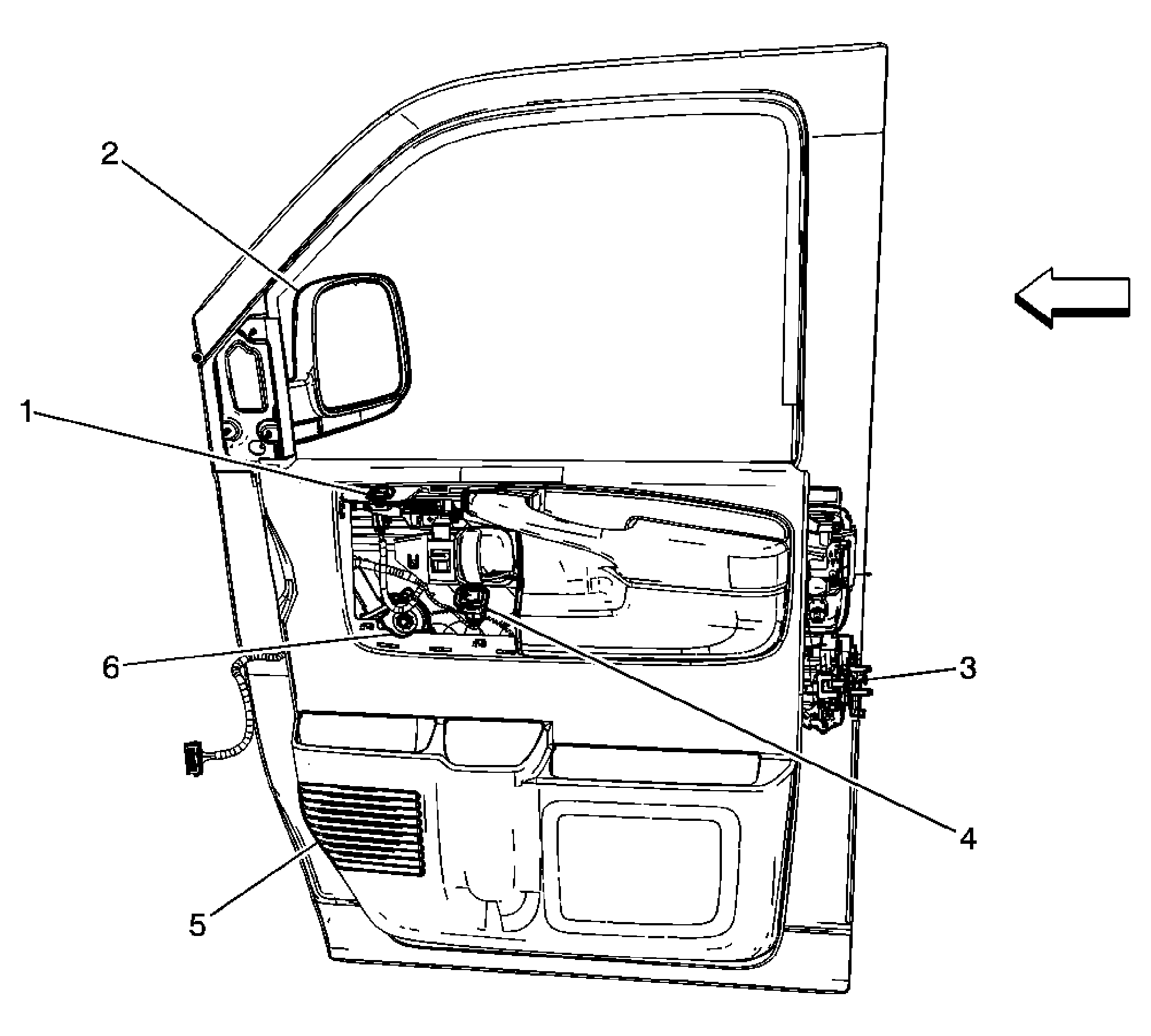

Fig 4: Front Passenger Door
GM1696886Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - Front Passenger (A31)
2 Outside Rearview Mirror - Passenger
3 Door Latch Assembly - Passenger
4 Door Lock Switch - Front Passenger (AU3)
5 Speaker - RF Door
6 Window Motor - Passenger (A31)

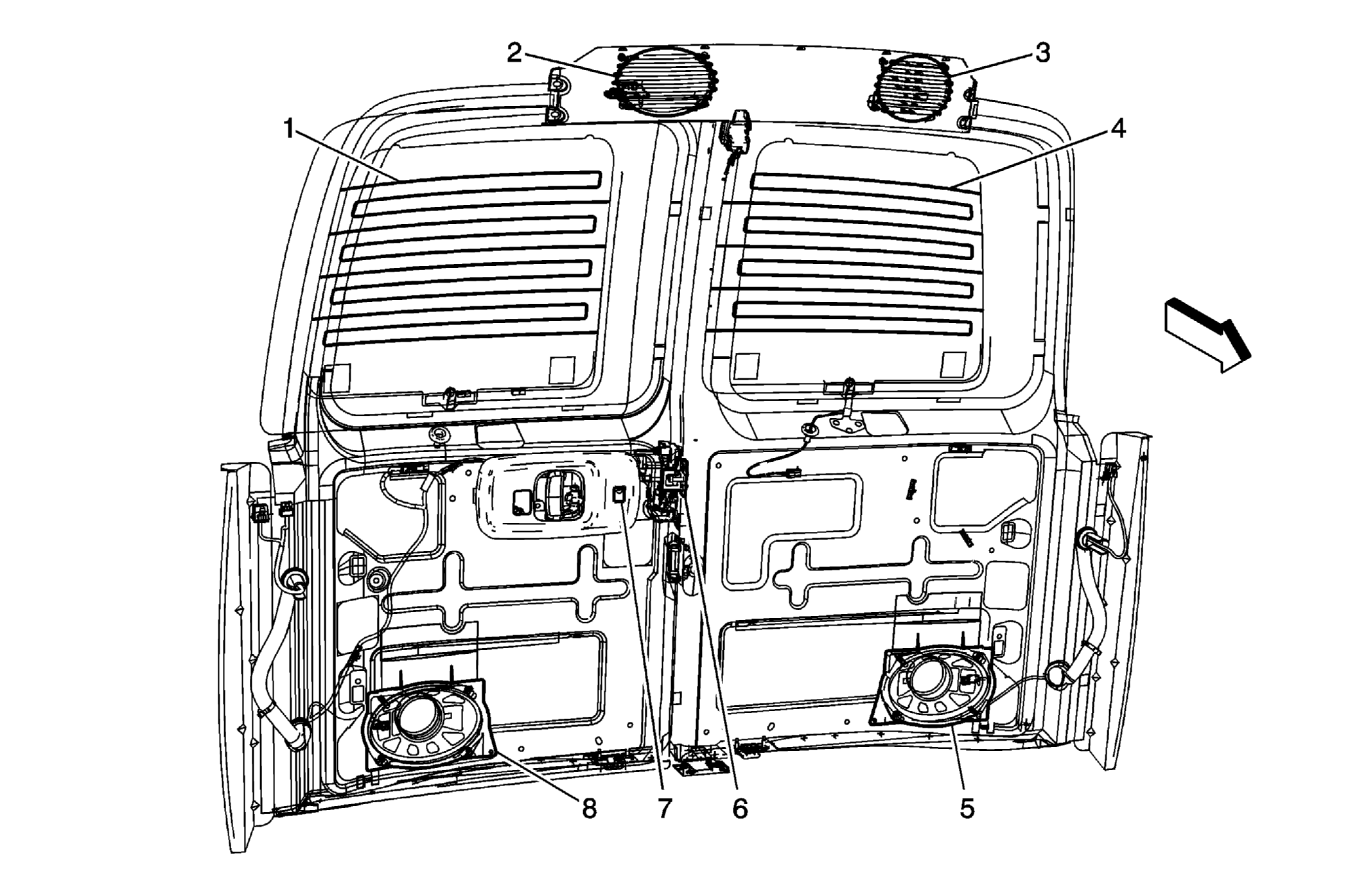

Fig 5: Rear Doors (Passenger/Cargo)
GM1696890Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Defogger Grid - Right (C49)
2 Speaker - RR
3 Speaker - LR
4 Rear Window Defogger Grid - Left (C49)
5 Speaker - LR Door (UB1/UC6)
6 Door Latch Assembly - Cargo
7 Door Lock Switch - Rear Cargo (AU3)
8 Speaker - RR Door (UB1/UC6)
