System Specifications

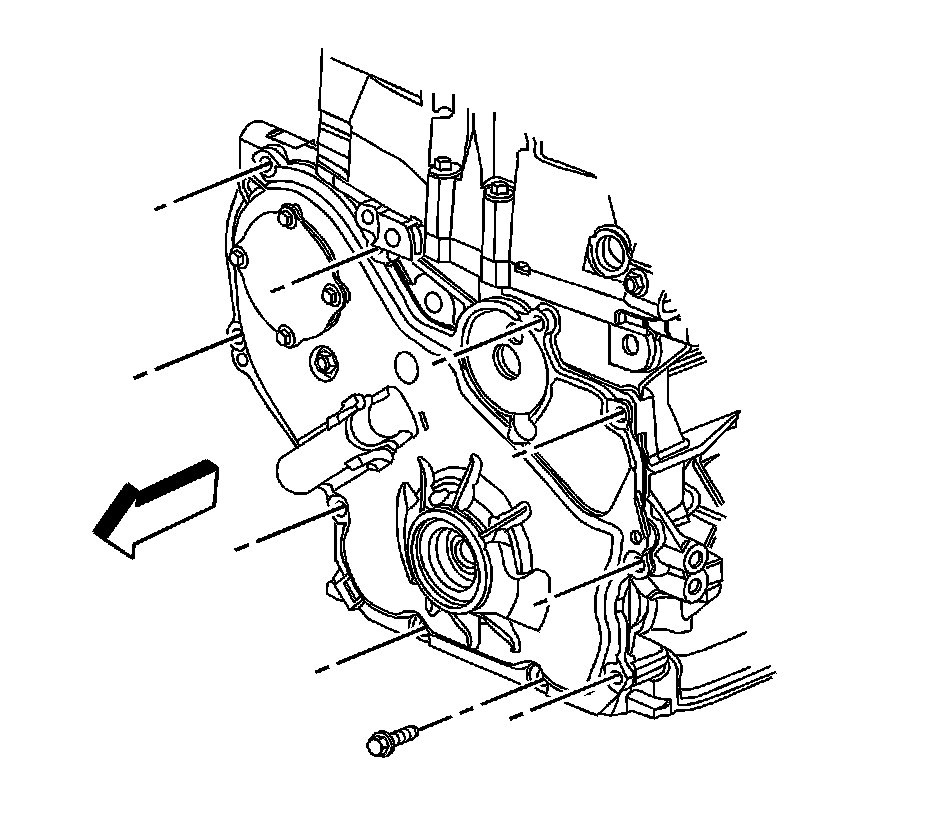

Install the engine front cover bolts.
Tighten the bolts to 25 Nm (18 ft. lbs.)

Timing Adjustable Chain Guide Bolt 10 Nm (89 inch lbs.)
Timing Chain Oil Nozzle Bolt 10 Nm (89 inch lbs.)
Timing Fixed Chain Guide Bolt 15 Nm (11 ft. lbs.)
Timing Upper Chain Guide Bolt 10 Nm (89 inch lbs.)

Crankshaft Balancer Bolt
^ First Pass 100 Nm (74 ft. lbs.)
^ Final Pass 125 degrees
