Transmission Control Systems

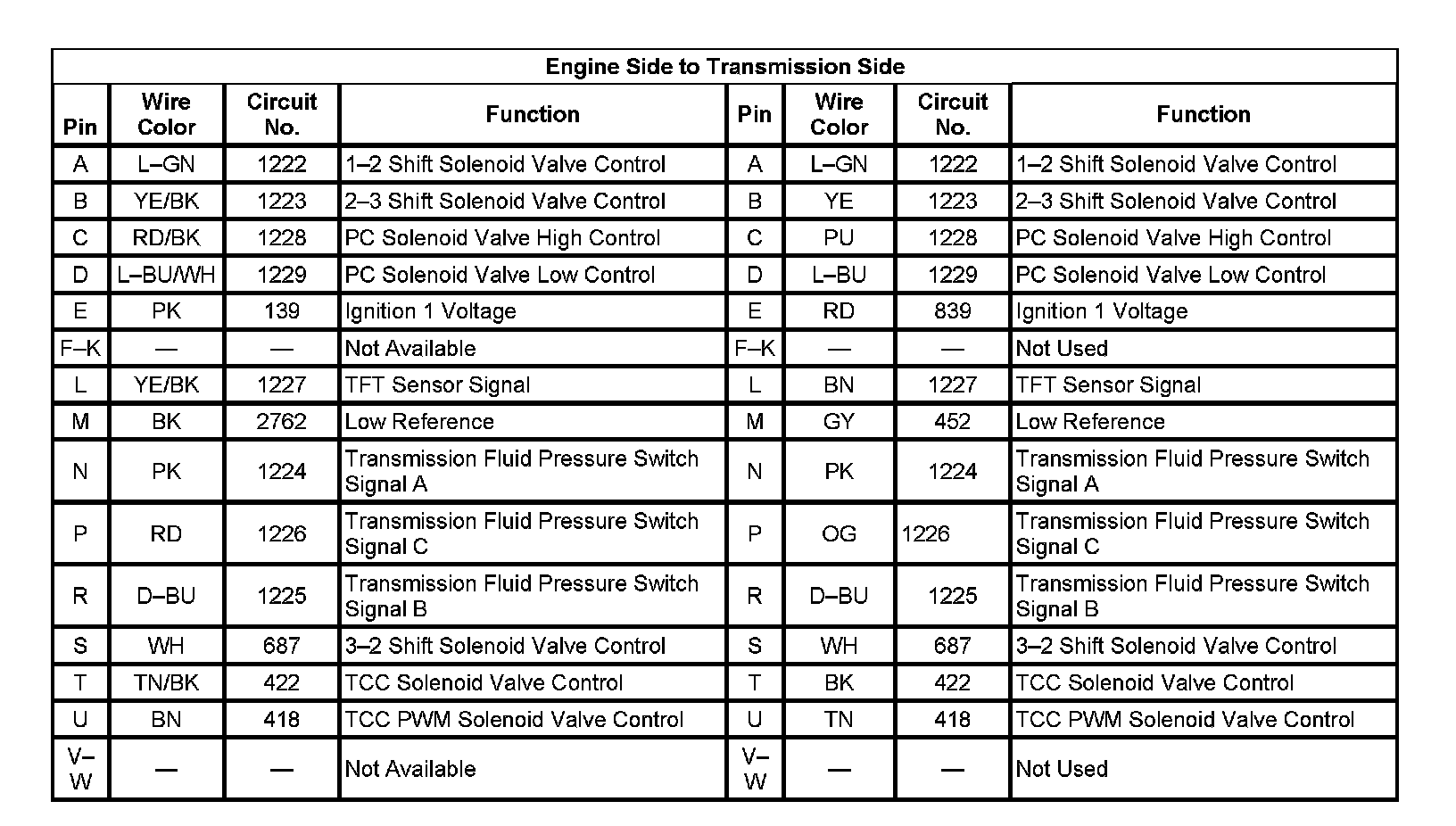

Engine Side to Transmission Side
Engine Side to Transmission Side:
Engine Side to Transmission Side:
