Fuse Block - I/P Bottom View: Notes

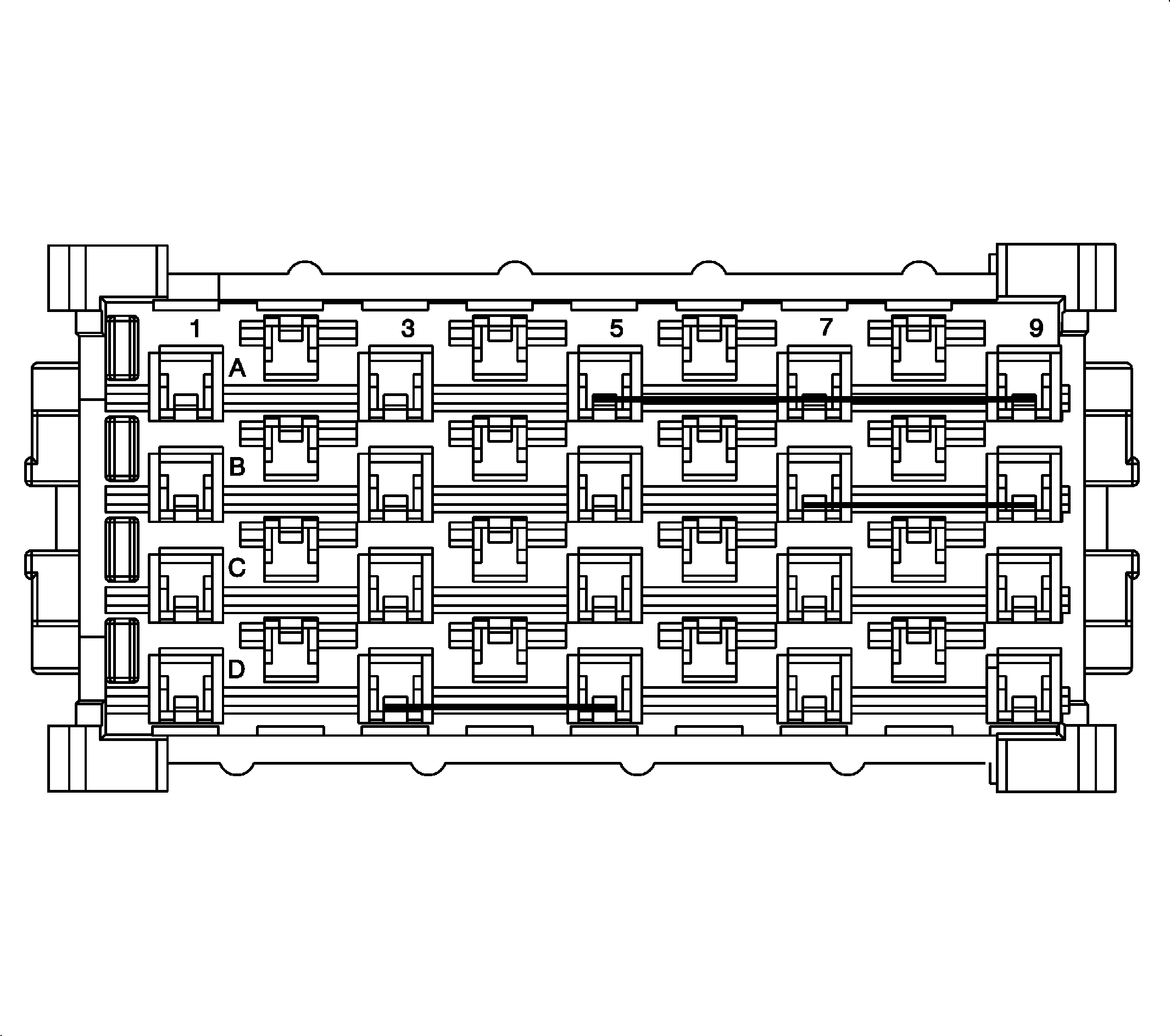

Fig 1: Bottom View I/P Fuse Block
GM1556095Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P Wire Entry

Connector Part Information
  • 12160504
  • 36-Way F Metri-Pack 280 Series, Flexlock (BK)
  • Indexing May Vary
Pin Wire Color Circuit No. Function
A1-A3 - - Not Used
A4 RD/WH 3640 Battery Positive Voltage
A5 - - Not Used
A6 RD/WH 3540 Battery Positive Voltage
A7 RD/BK 742 Battery Positive Voltage
A8 RD/WH 3440 Battery Positive Voltage
A9 - - Not Used
B1-B5 - - Not Used
B6 RD/WH 3240 Battery Positive Voltage
B7 RD/BK 742 Battery Positive Voltage
B8 RD/WH 1640 Battery Positive Voltage
B9 - - Not Used
C1 - - Not Used
C2 YE 243 Accessory Voltage
C3 YE 143 Accessory Voltage
C4-C7 - - Not Used
C8 YE 196 Windshield Wiper Motor Park Switch Signal
C9 PK 5780 Windshield Wiper Motor Park Switch Signal
D1-D2 - - Not Used
D3 RD/WH 1540 Battery Positive Voltage
D4 RD/BK 742 Battery Positive Voltage
D5 RD/WH 1540 Battery Positive Voltage
D6 RD/BK 742 Battery Positive Voltage
D7 RD/WH 1440 Battery Positive Voltage
D8-D9 - - Not Used
