Relay Block - I/P Bottom View: Notes

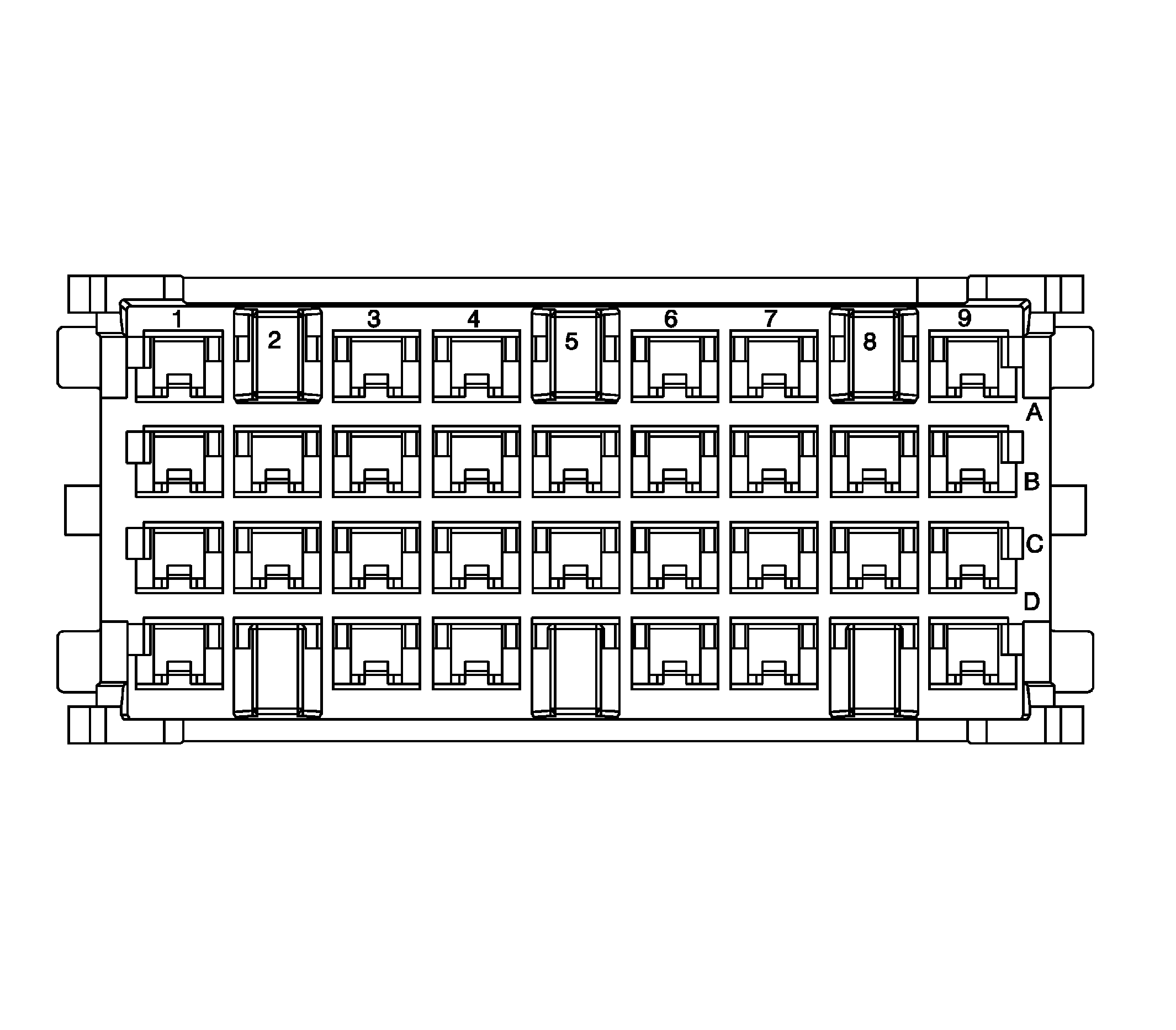

Fig 1: Bottom View I/P Relay Block
GM1556081Courtesy of GENERAL MOTORS CORP.
Relay Block - I/P Wire Entry

Connector Part Information
  • 12146836
  • 30-Way F Metri-Pack 280 Series, Flexlock (BK)
  • Indexing May Vary
Pin Wire Color Circuit No. Function
A1-A3 - - Not Used
A4 RD/WH 1040 Battery Positive Voltage
RD/WH 1040 Battery Positive Voltage
A6 L-BU 187 Rear Fog Lamp Switch Signal
A7 RD/WH 3140 Battery Positive Voltage
A9 BK 1550 Ground
B1-B3 - - Not Used
B4 RD/WH 1040 Battery Positive Voltage
B5 - - Not Used
B6 OG 122 Rear Fog Lamp Supply Voltage
B7 GY 2169 Convertible Top Relay Cover Release Control
B8 - - Not Used
B9 PU 2168 Folding Top Lid Latch Supply Voltage
C1-C3 - - Not Used
C4 RD/WH 1440 Battery Positive Voltage
C5 - - Not Used
C6 WH 93 Fuel Door Release Relay Control
C7 RD/WH 3640 Battery Positive Voltage
RD/WH 3640 Battery Positive Voltage
C8 - - Not Used
C9 L-BU 1344 Trunk Release Relay Control
D1-D3 - - Not Used
D4 RD/WH 1440 Battery Positive Voltage
D6 PK/WH 79 Trunk Release Relay Control
D7 RD/WH 3640 Battery Positive Voltage
D9 L-BU 383 Trunk Release Control
