Rear of Engine

Disassembled Views

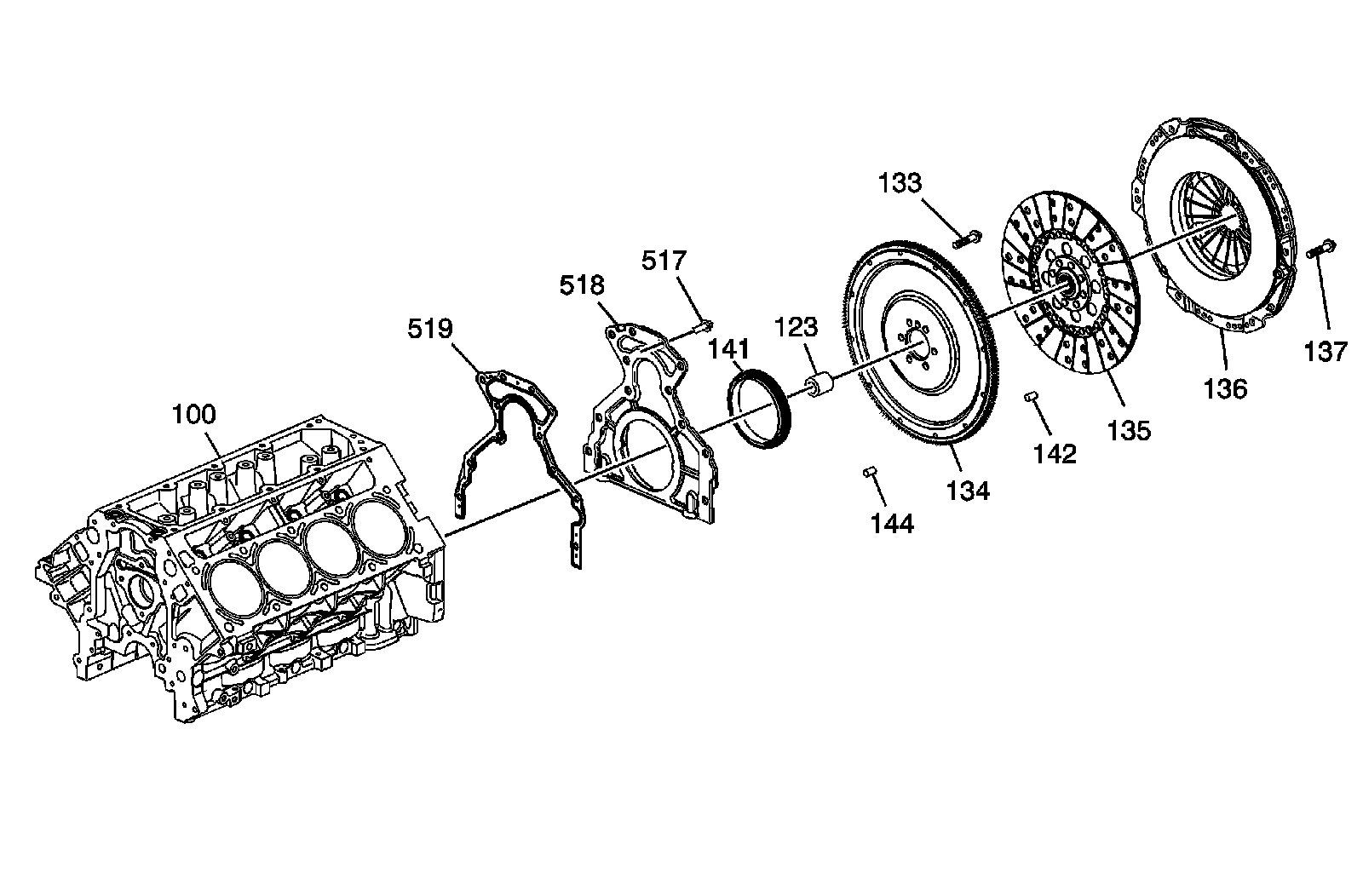

Rear of Engine:

100 - Engine Block
123 - Transmission Pilot Bearing
133 - Bolt
134 - Flywheel - Manual Transmission
135 - Clutch Drive Plate - Manual Transmission
136 - Clutch Pressure Plate - Manual Transmission
137 - Bolt
141 - Crankshaft Rear Oil Seal
142 - Clutch Pressure Plate Locating Pin - Manual Transmission
144 - Flywheel Weight - Manual Transmission
517 - Bolt
518 - Crankshaft Rear Oil Seal Housing
519 - Crankshaft Rear Oil Seal Housing Gasket
