Express 3500 V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

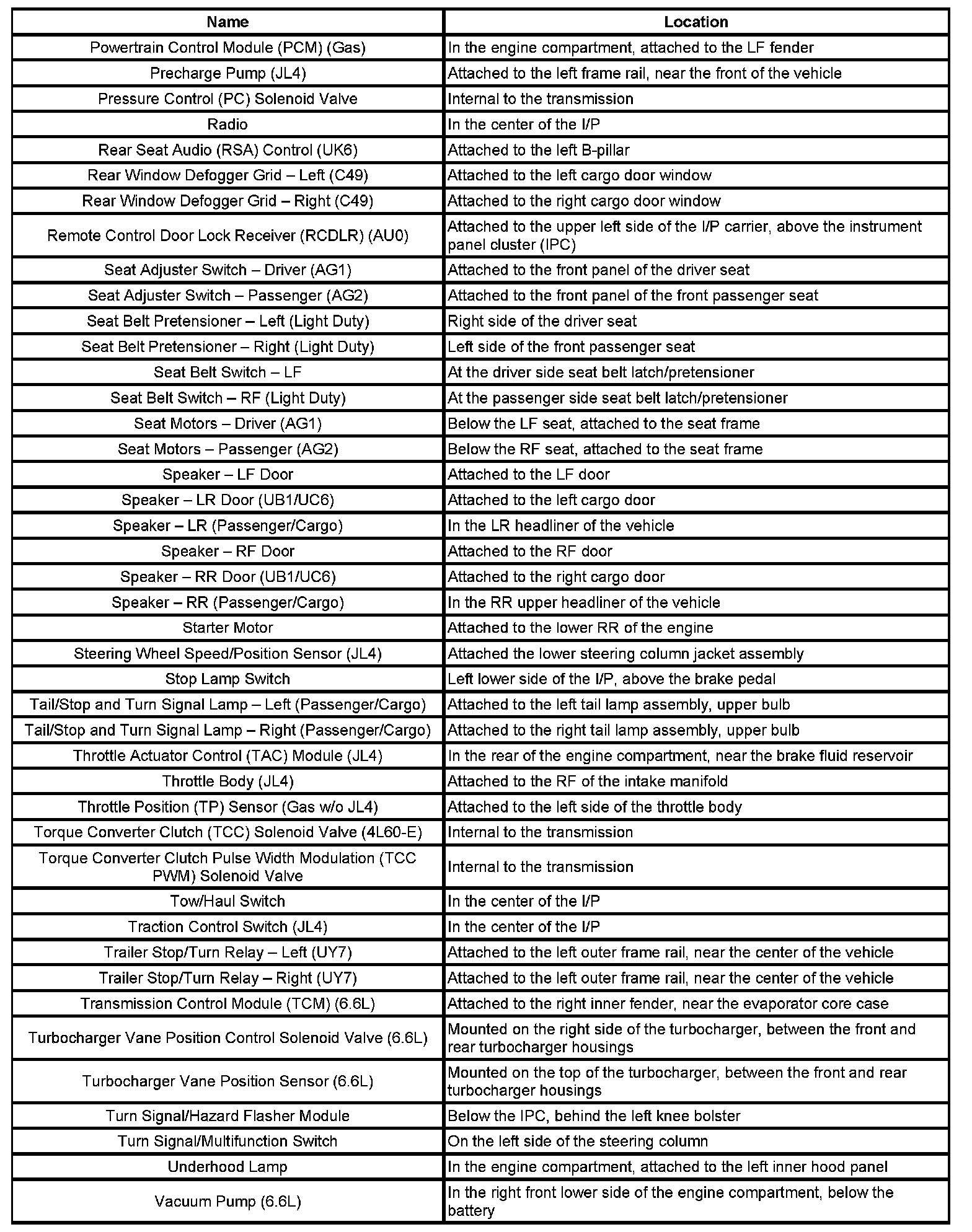

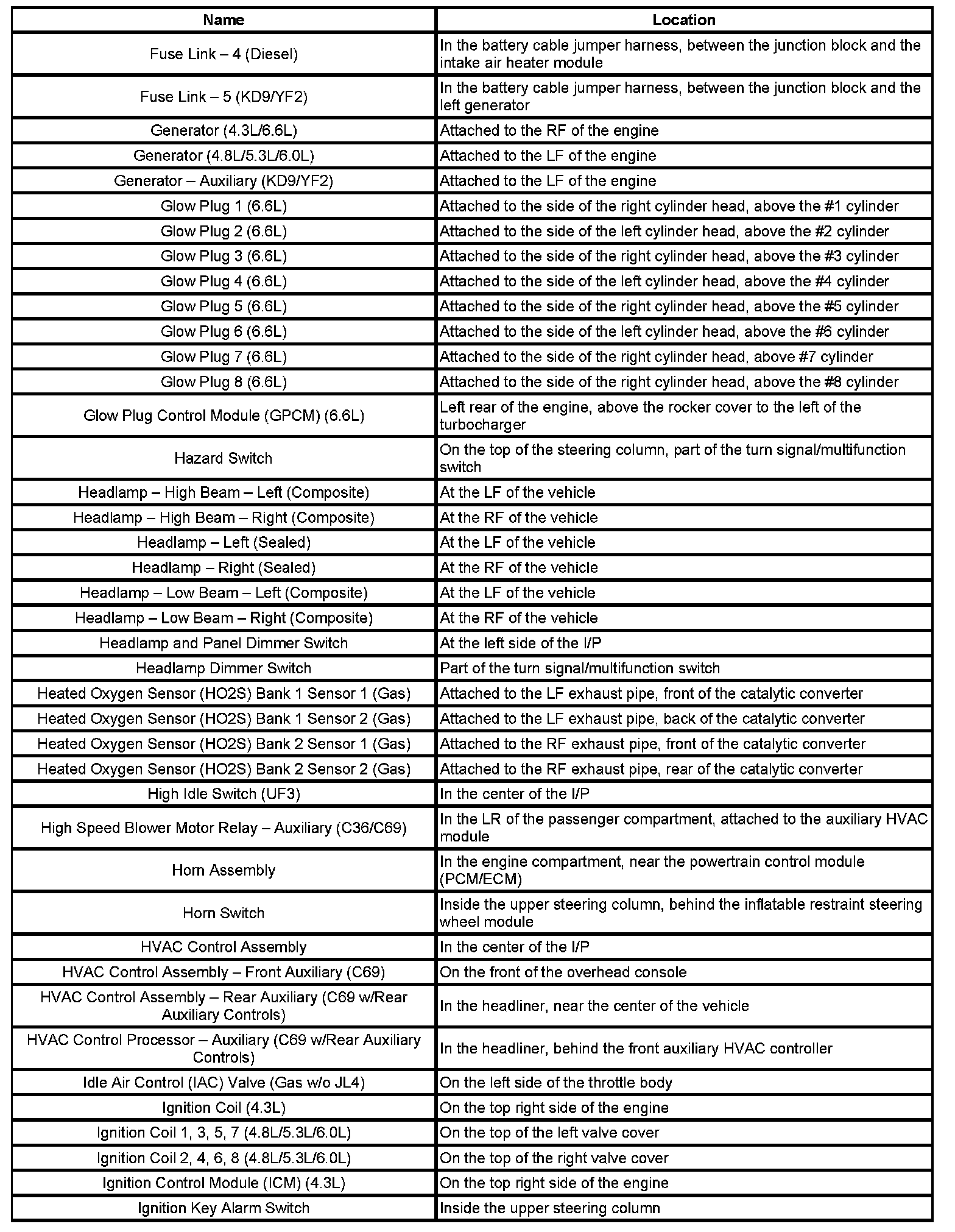

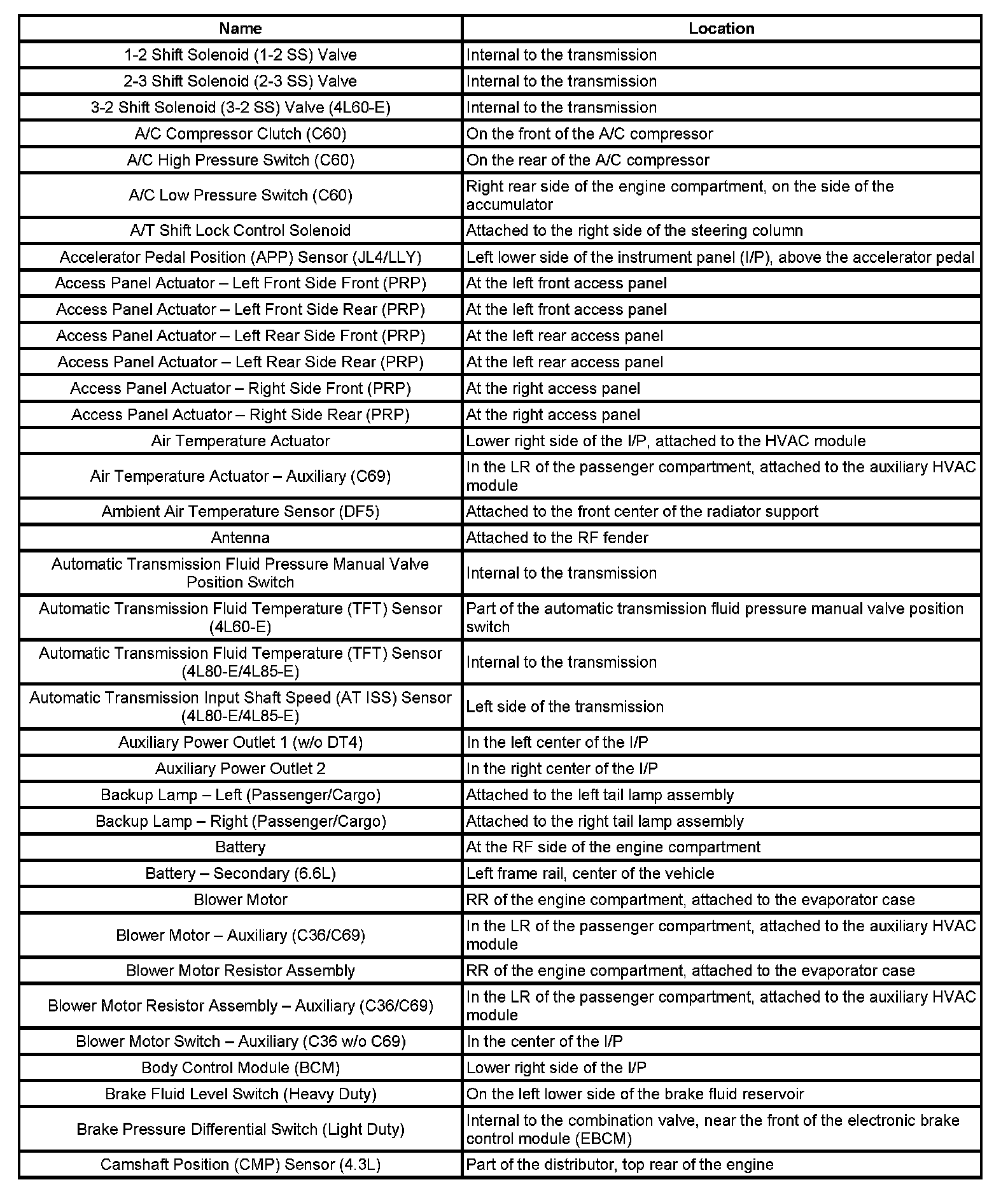

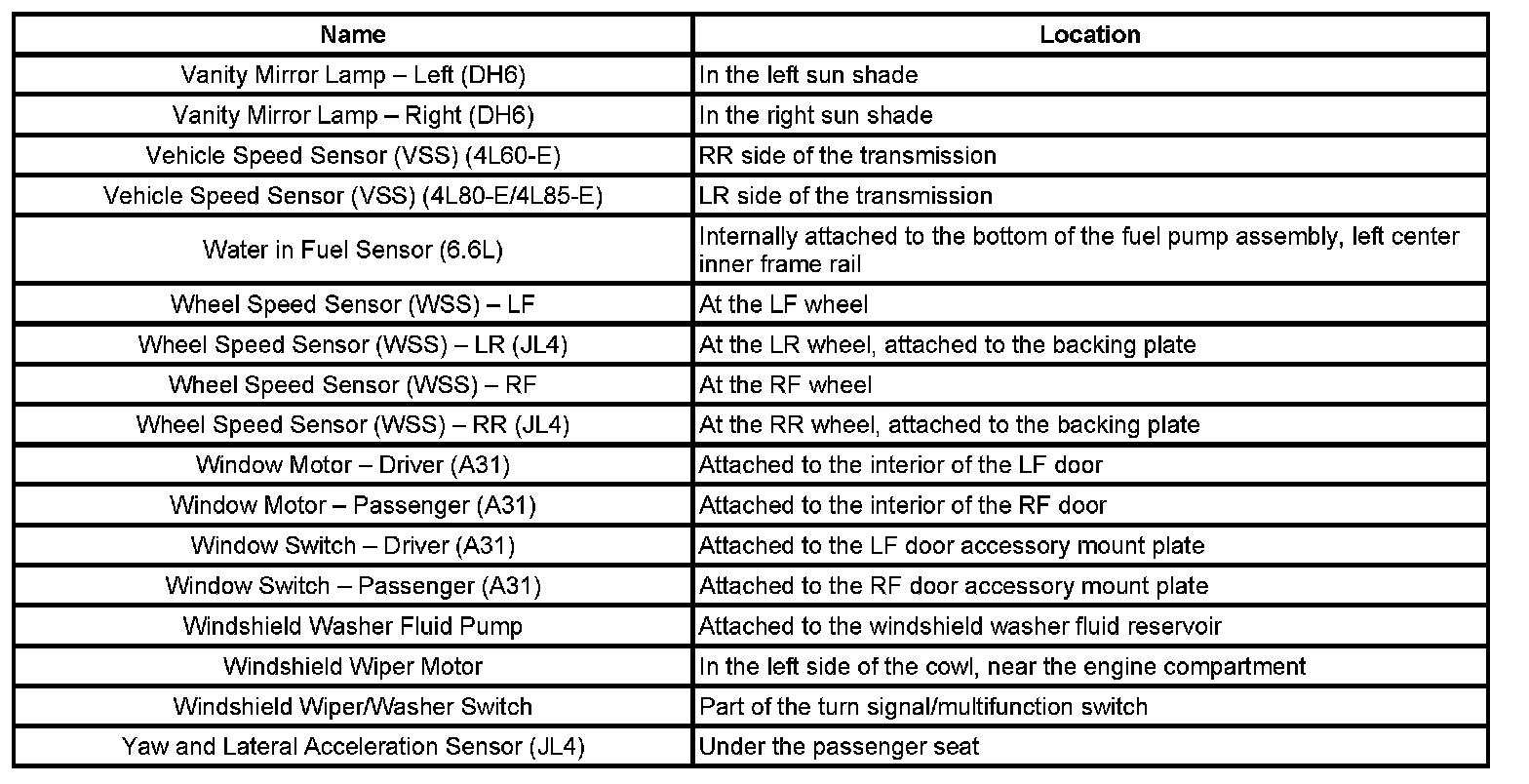

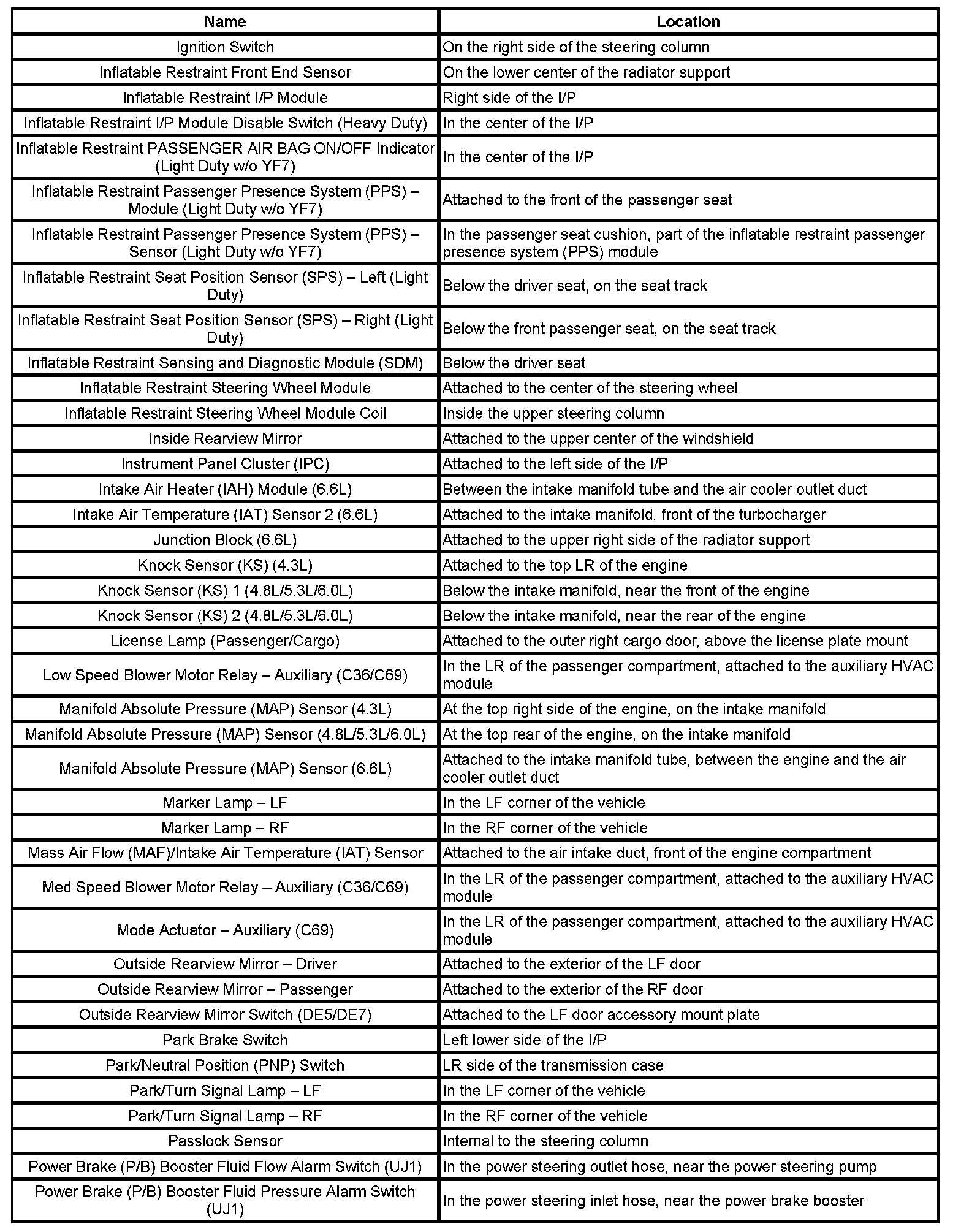

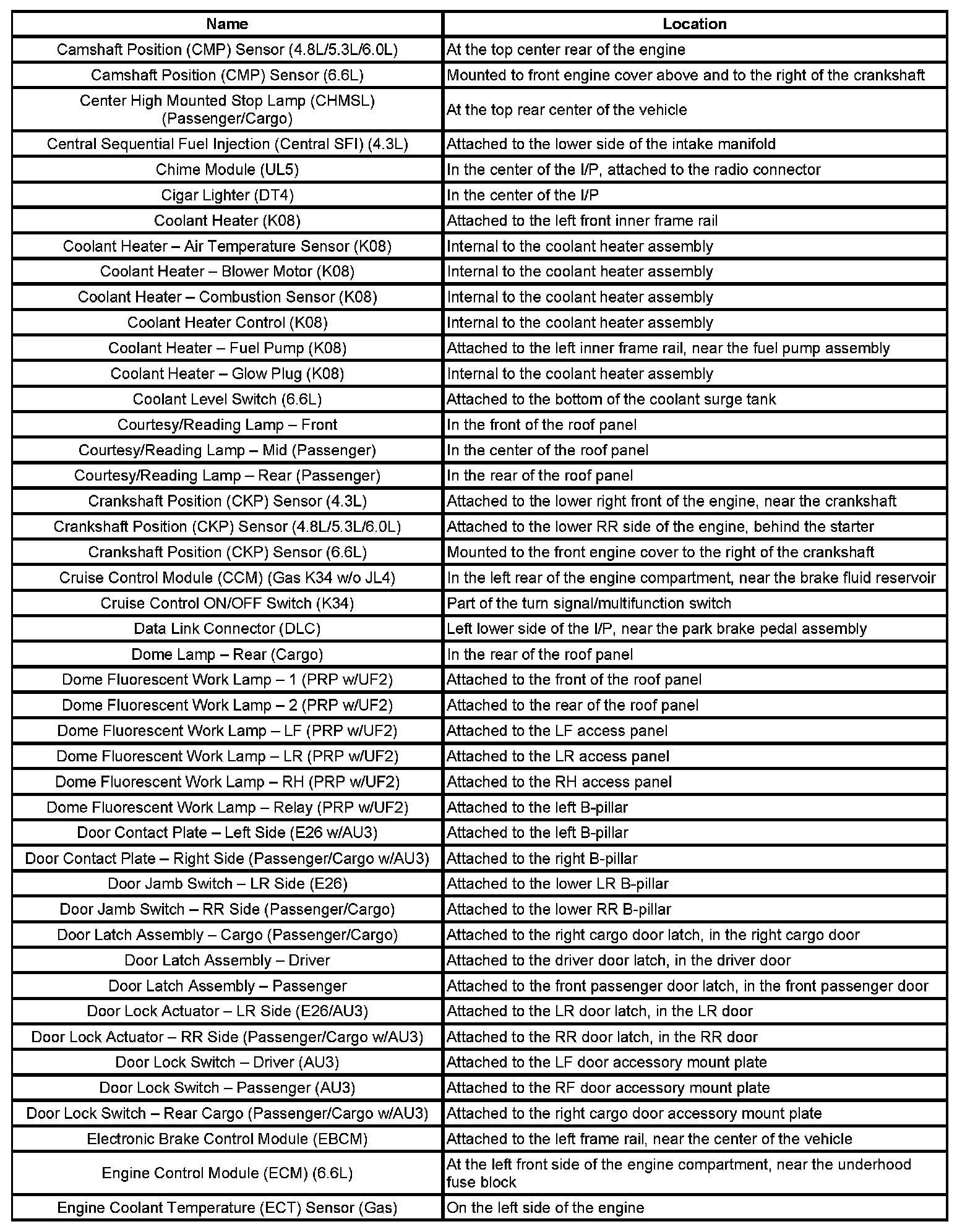

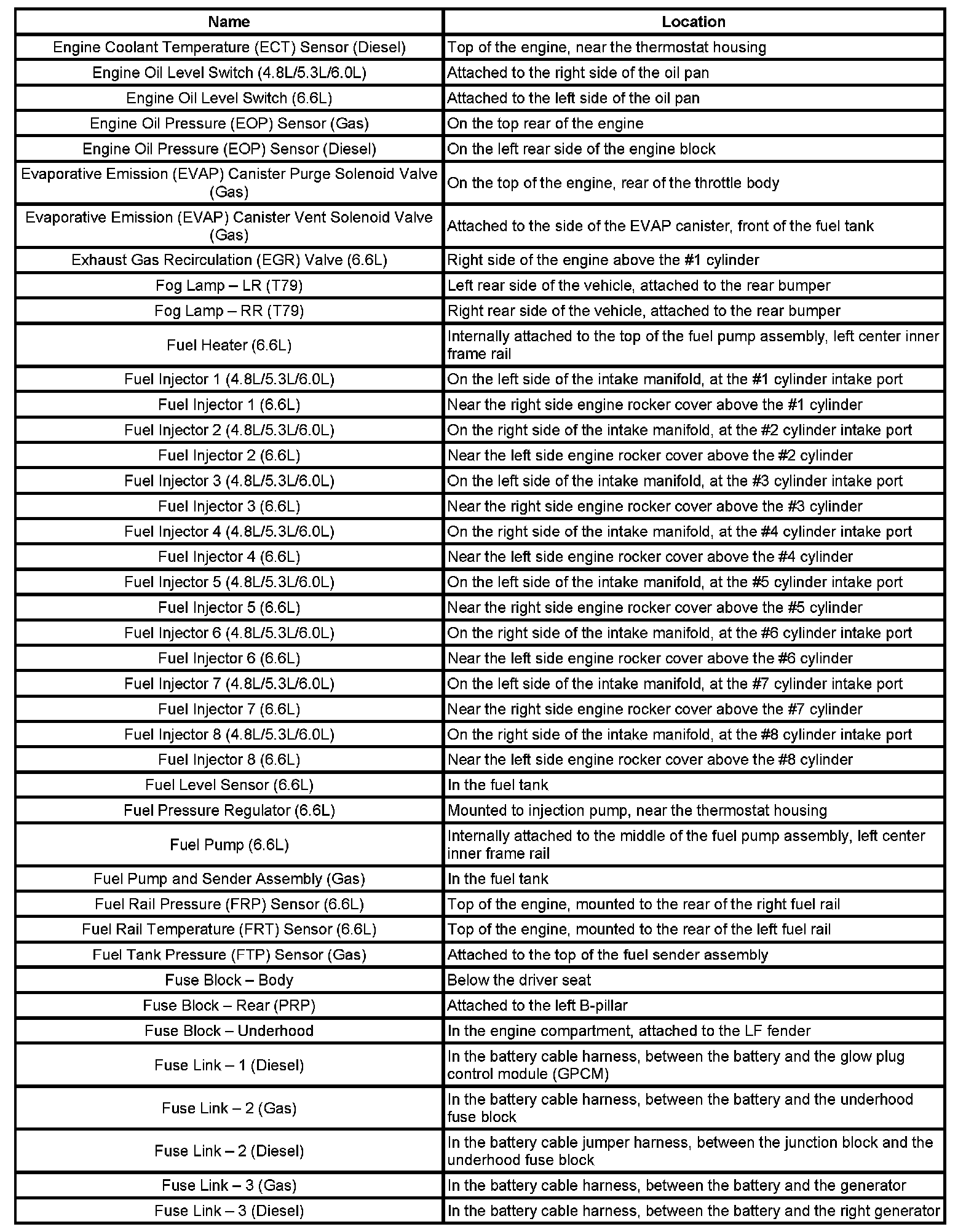

Components
1-2 Sh - Ca:
Ca - En:
En - Fu:
Fu - Ig:
Ig - Po:
Po - Va:
Va - Ya:
