Fluid - A/T: Service and Repair

Transmission Fluid Checking Procedure

Transmission Fluid Check:

The oil level control plug (65) is located on the torque converter side of the transmission.

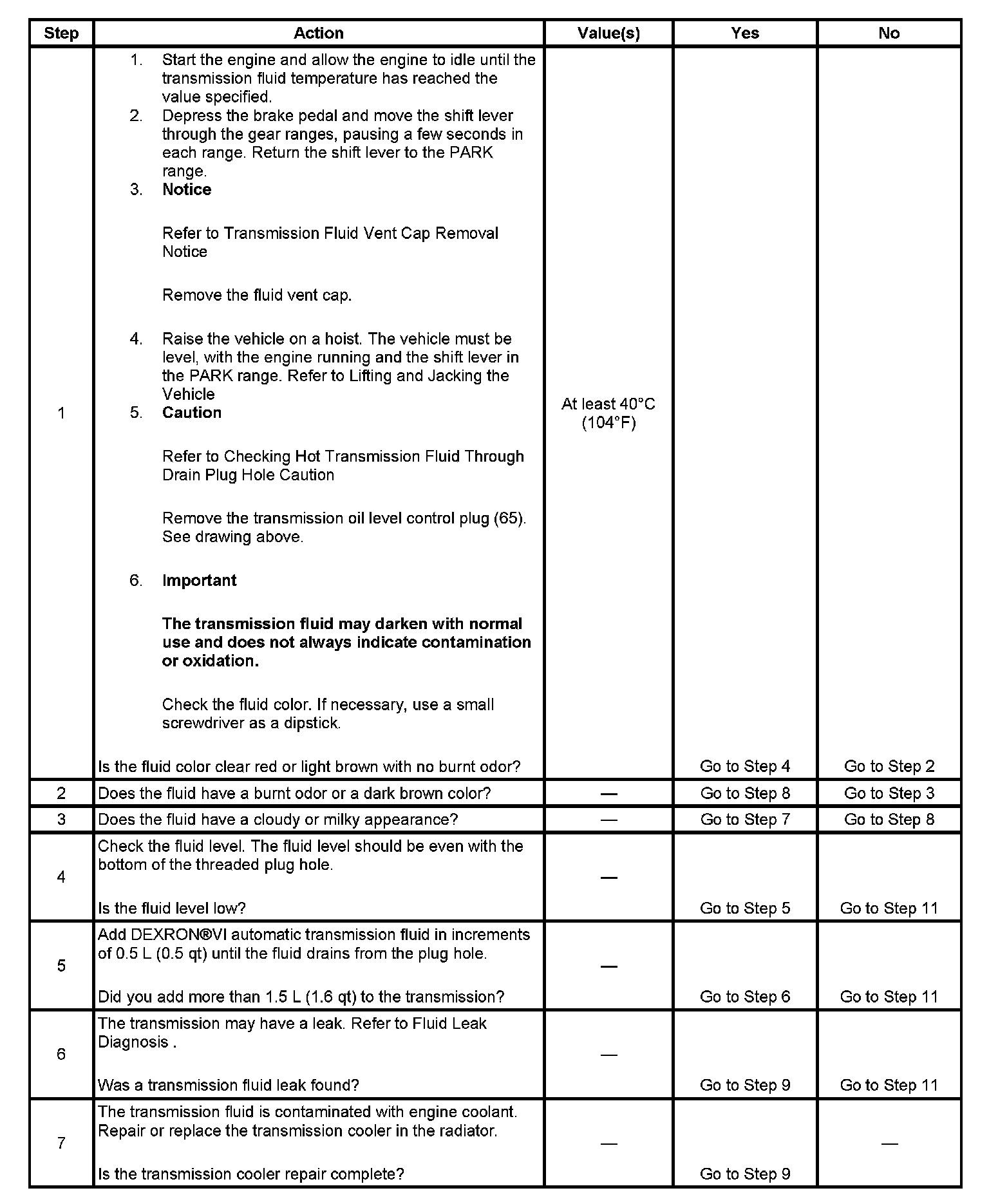

Step 1 - Step 7:

Step 8:

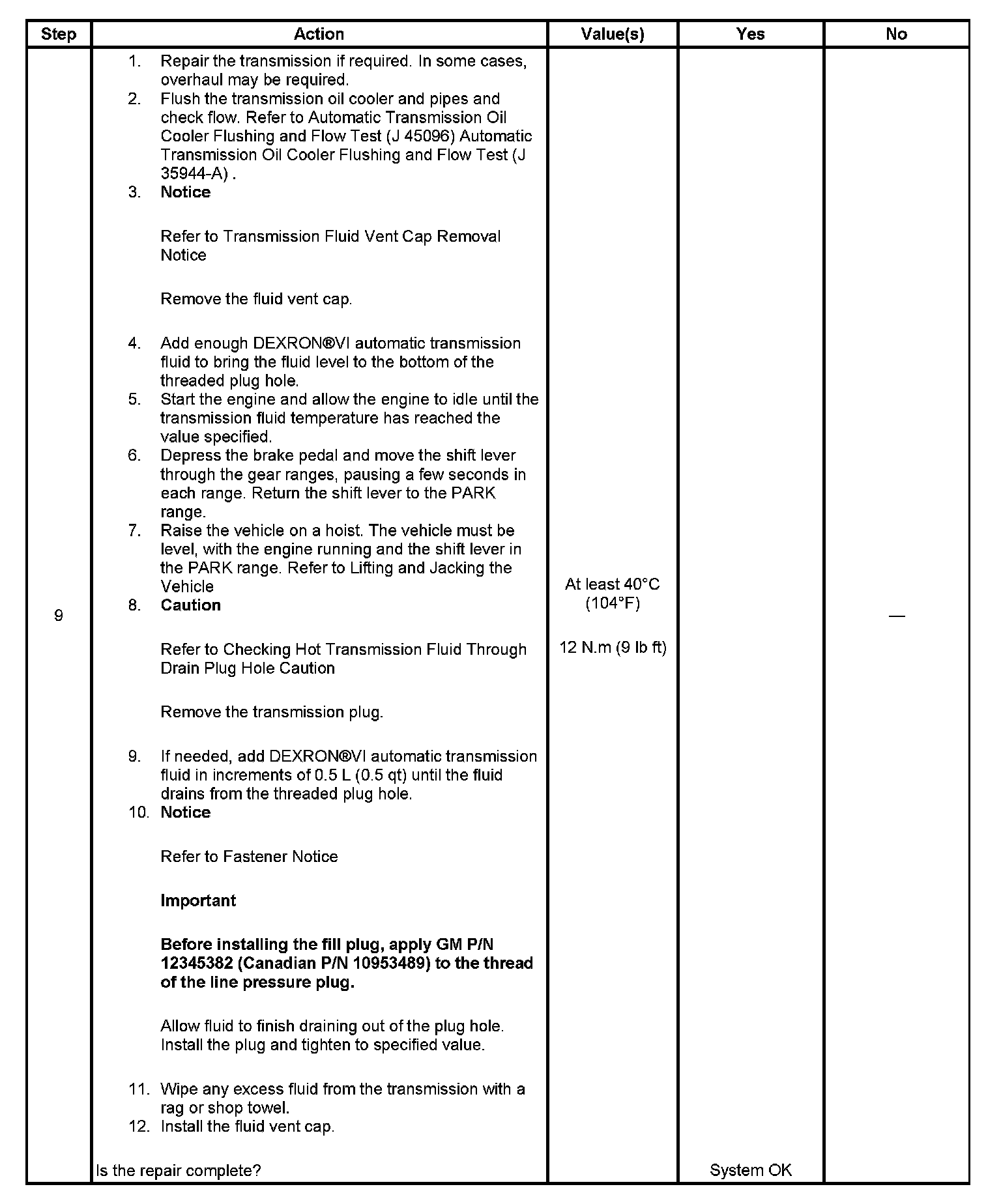

Step 9:

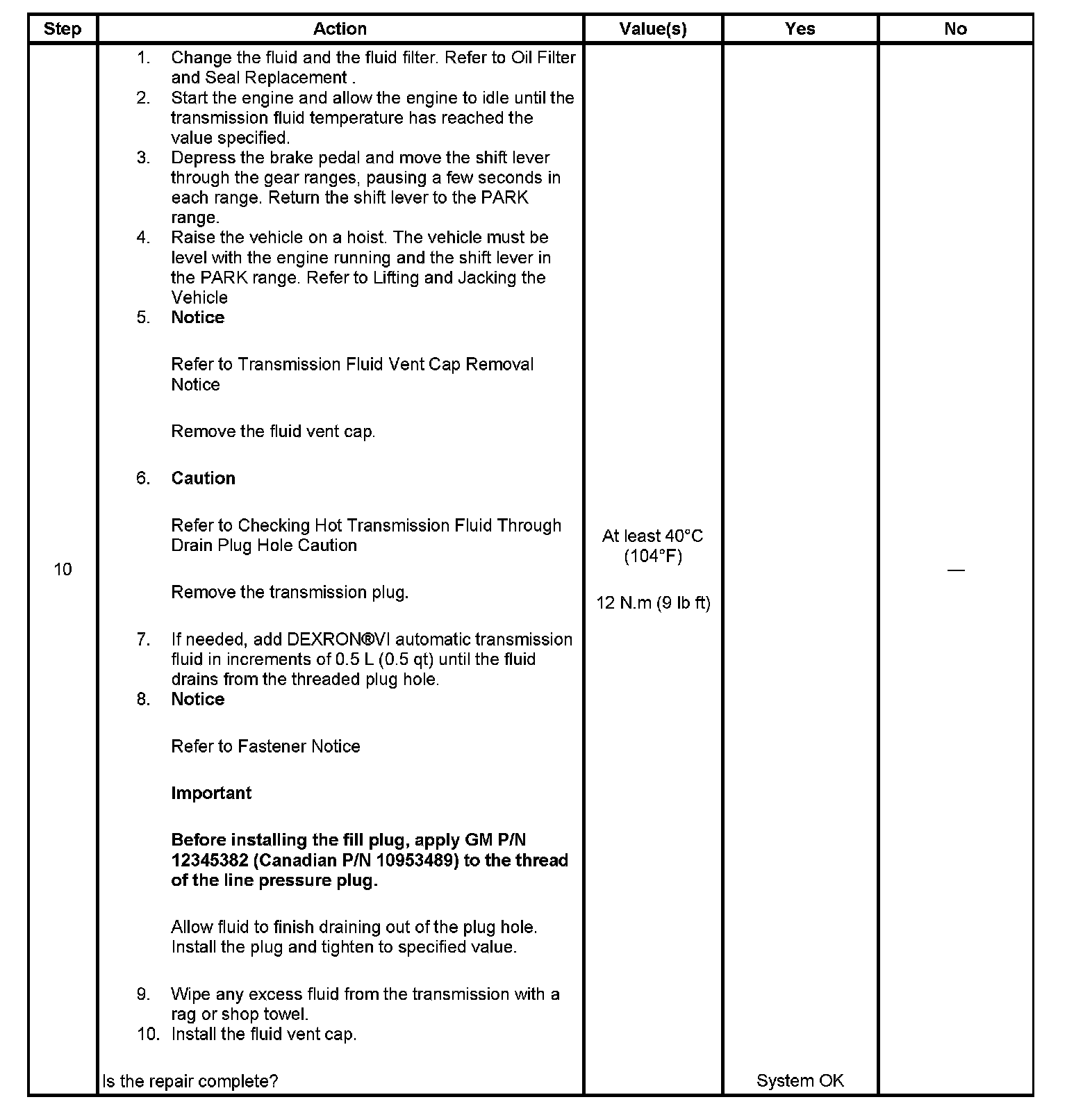

Step 10:

Step 11:
