Power Window Switch Replacement

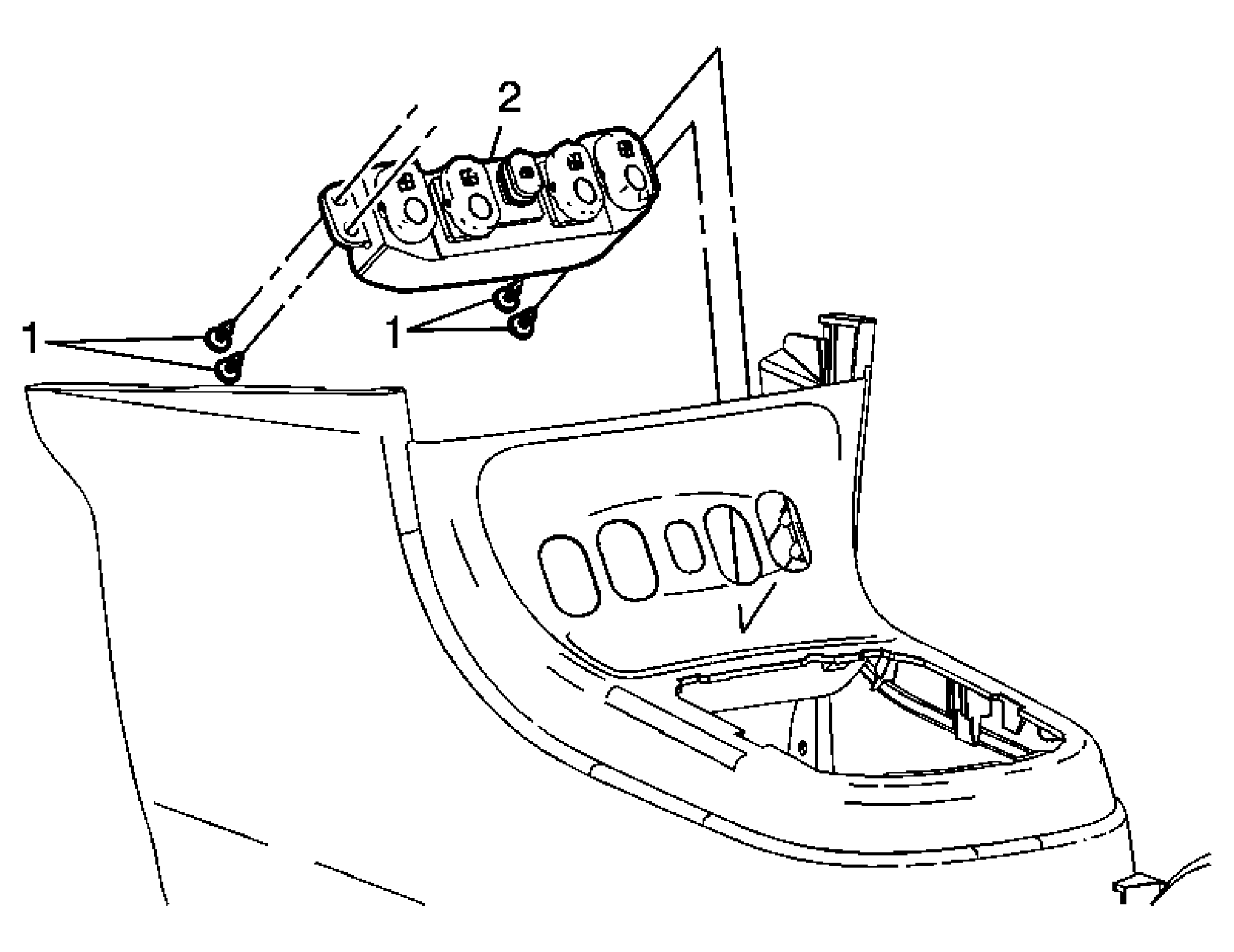

Fig 1: Power Window Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front floor console. Refer to Console Replacement - Front Floor .
1	Screw, Power Window Switch (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Switch Assembly, Front and Rear Side Door Window Tip: Disconnect the electrical connector.
