Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

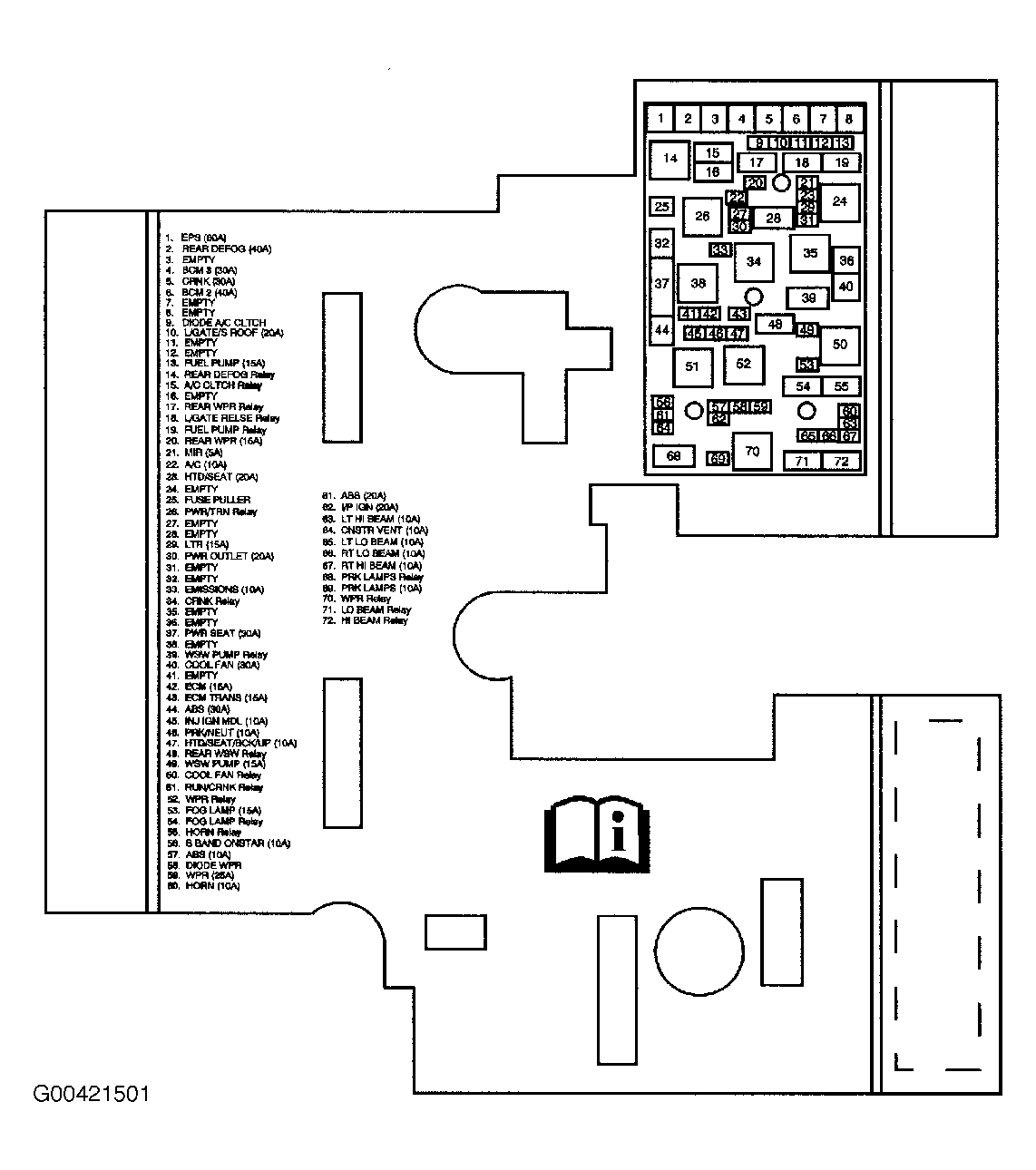

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

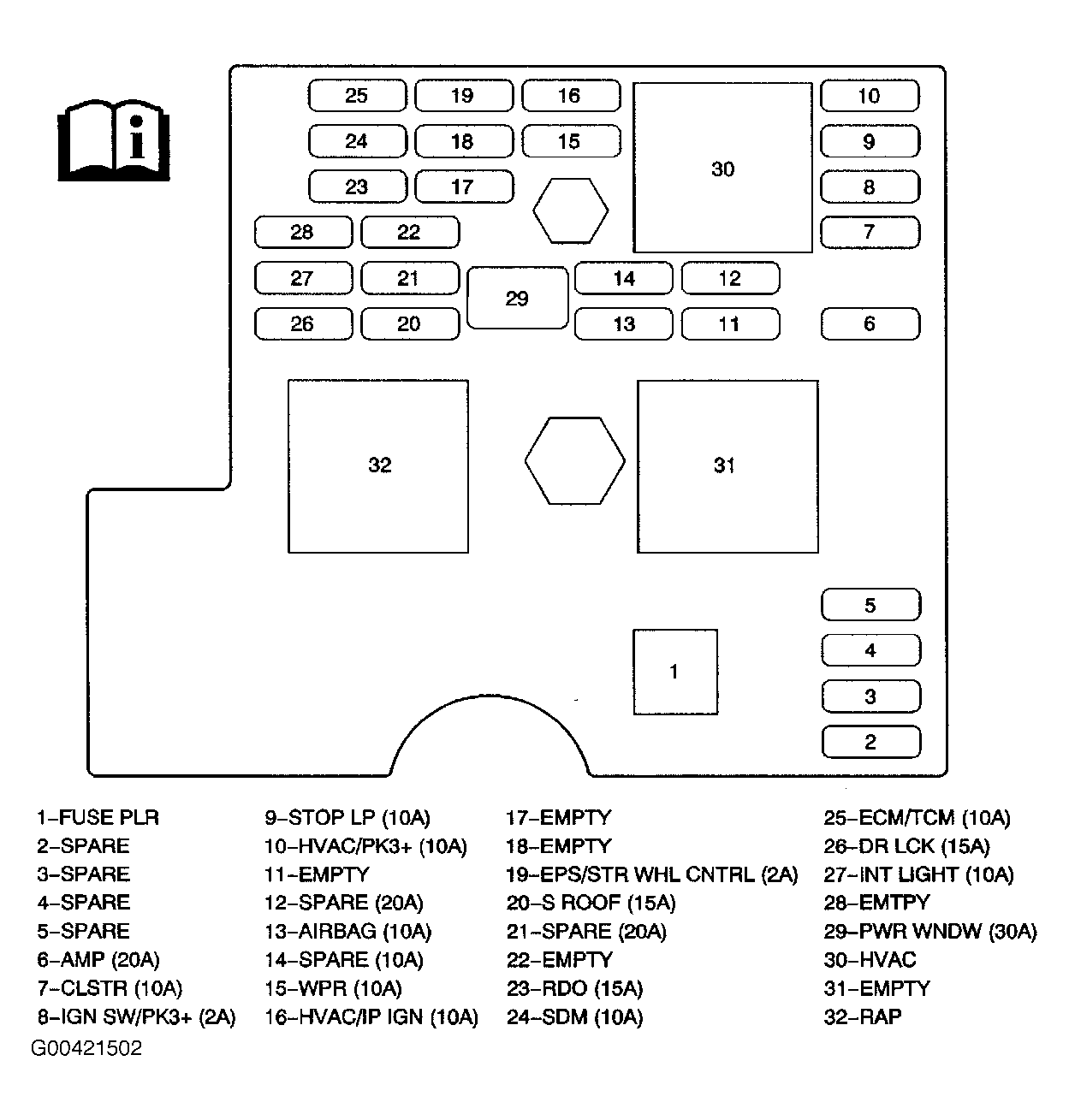

Fig 2: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 4: Left Front Wheelwell (Right Front Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Right Rear Wheelwell (Left Rear Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Automatic Transmission (4T45-E)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 8: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Rear Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 10: Vehicle Floor
Courtesy of GENERAL MOTORS CORP.
Fig 11: Behind Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 12: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 13: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 14: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

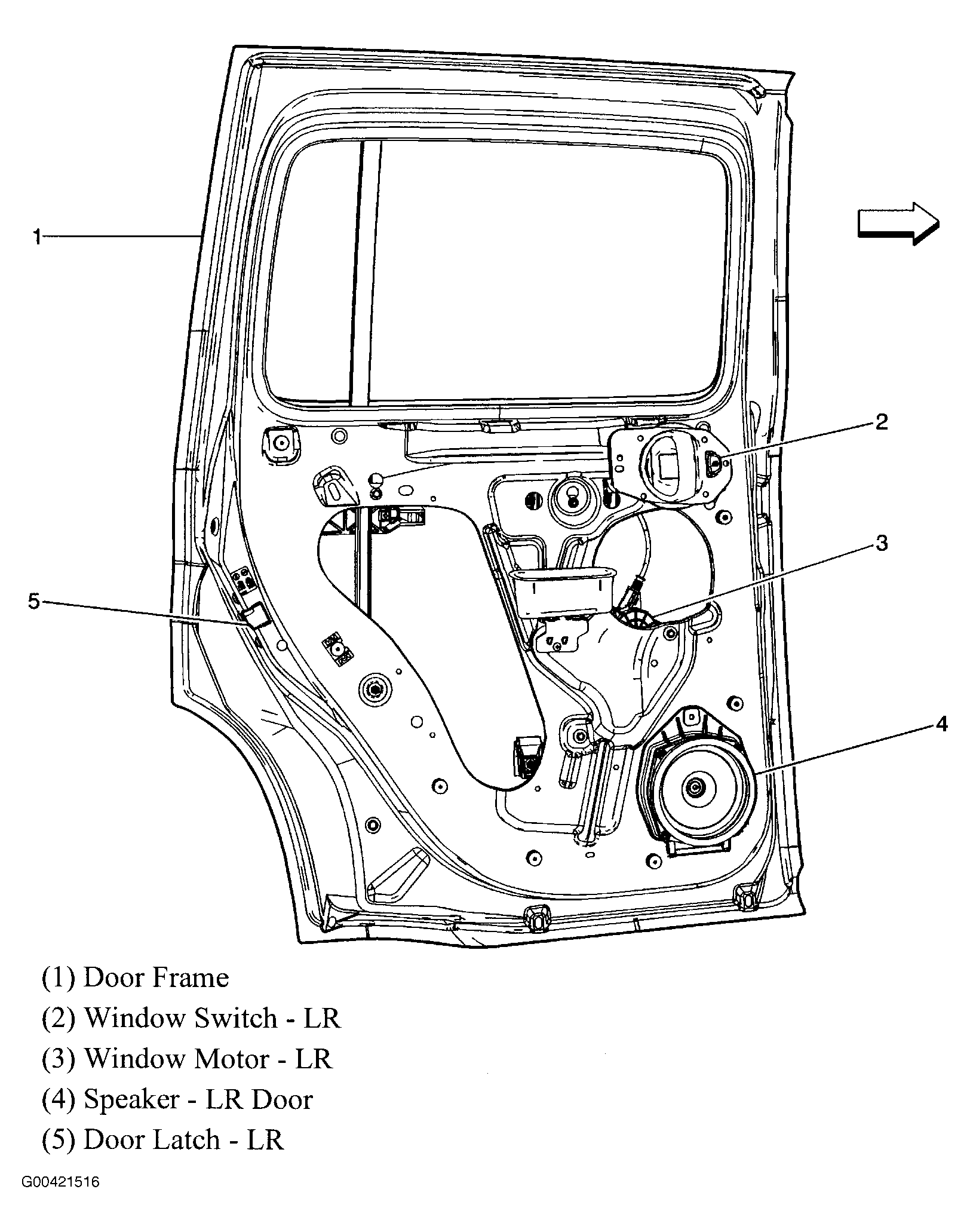

Fig 15: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

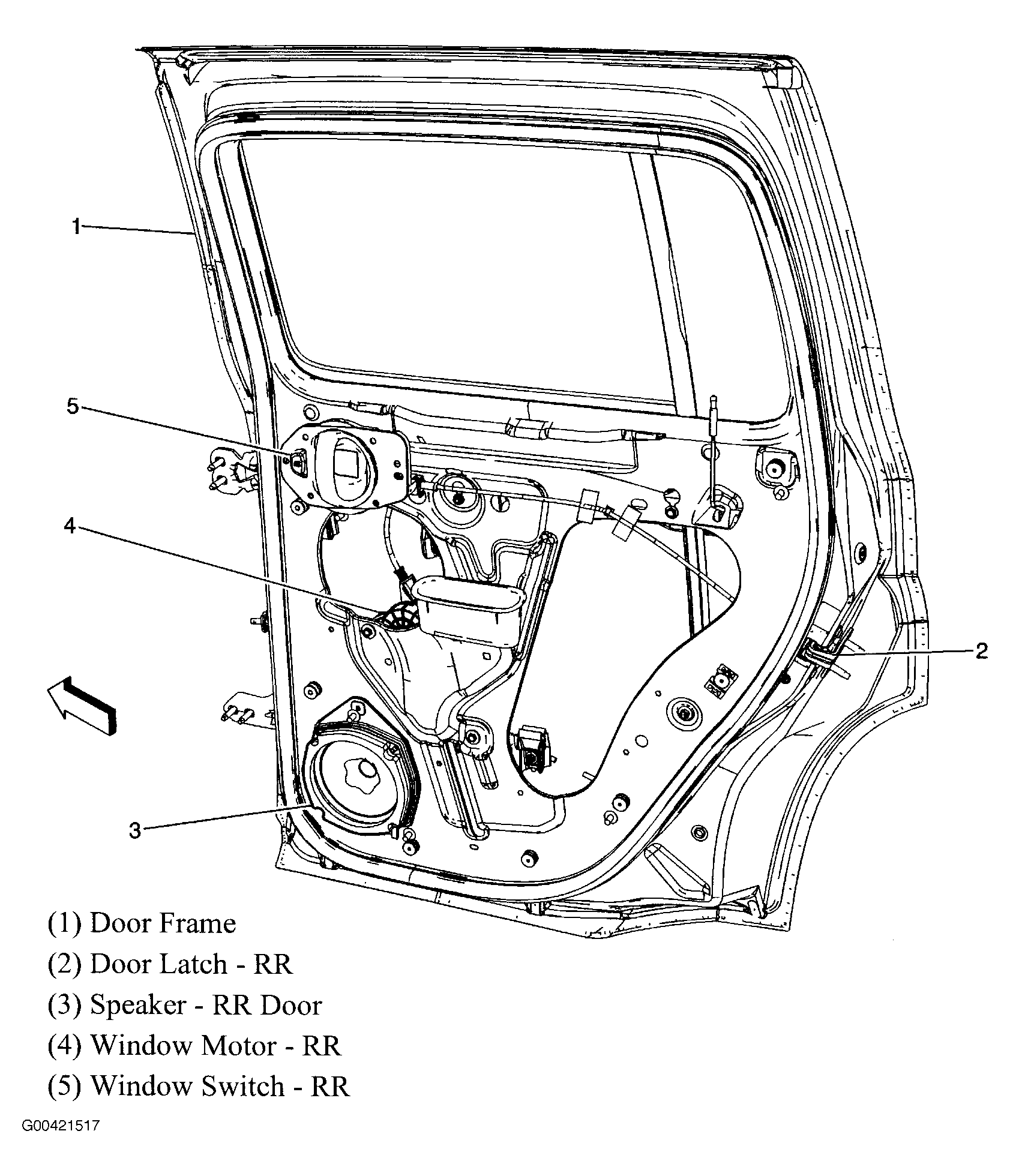

Fig 16: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 17: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 18: Rear Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Top Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Top Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 26: Lower Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 27: Left Side Of Engine (2.2L/2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Front Of HVAC Unit
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left Front Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 30: Right Front Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 31: Left Rear Quarterpanel
Courtesy of GENERAL MOTORS CORP.
Fig 32: Manual Transmission
Courtesy of GENERAL MOTORS CORP.

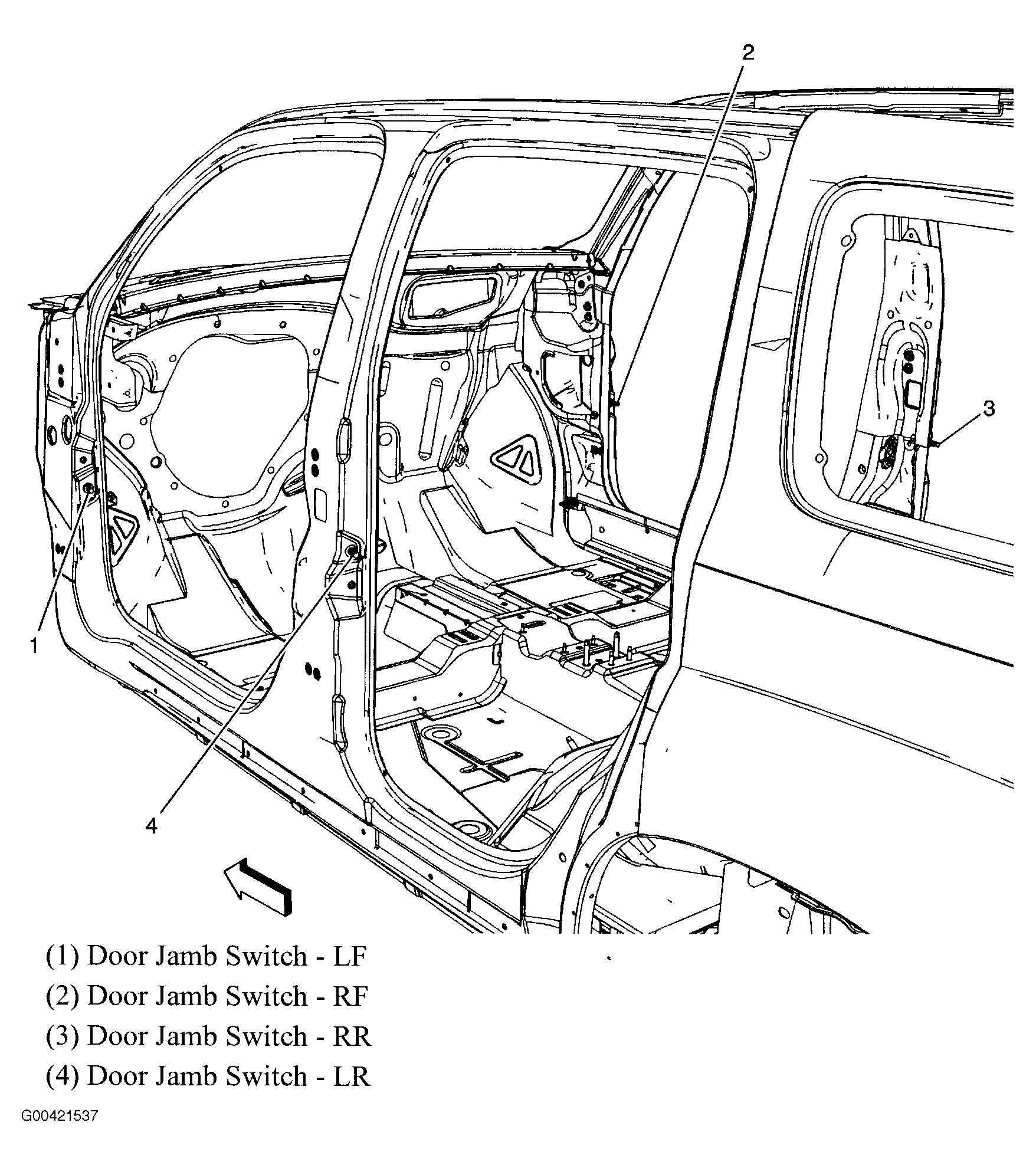

Fig 33: Vehicle Door Jambs
Courtesy of GENERAL MOTORS CORP.
Fig 34: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 35: Roof & Dash
Courtesy of GENERAL MOTORS CORP.
Fig 36: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 37: Left & Right "B" Pillars
Courtesy of GENERAL MOTORS CORP.
Fig 38: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Side Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 40: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 41: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Rear Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Rear Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Rear Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Passenger Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Passenger Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

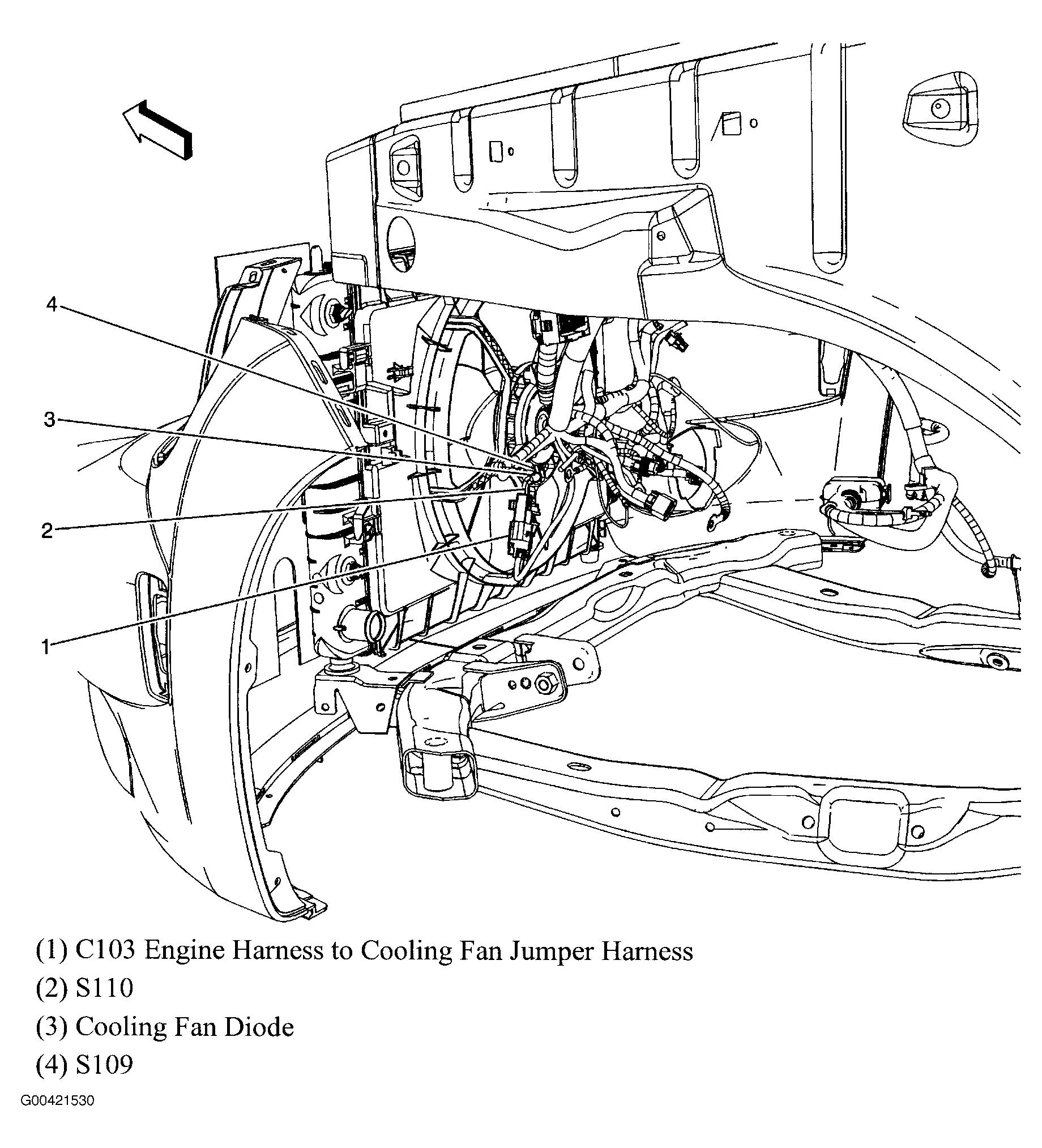

Fig 50: Behind Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 51: At HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 52: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 53: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 54: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 55: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 56: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 57: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 58: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
