Installation Procedure

    Fig 1: View Of ICM
    GM783965Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure the interconnect and seal are lined up before module installation.
  1. Install the ignition control module in the ignition coil housing.
    2. NOTE: Refer to Fastener Notice .
  2. Install the ignition control module screws.

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

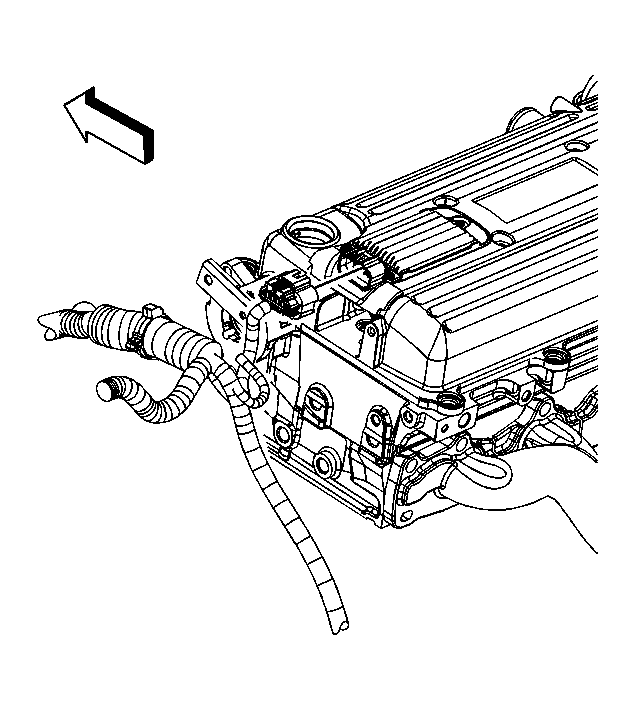

    3. Fig 2: Ignition Control Module Electrical Connector
    GM1625481Courtesy of GENERAL MOTORS CORP.
  3. Connect the ignition control module electrical connector.
