Installation Procedure

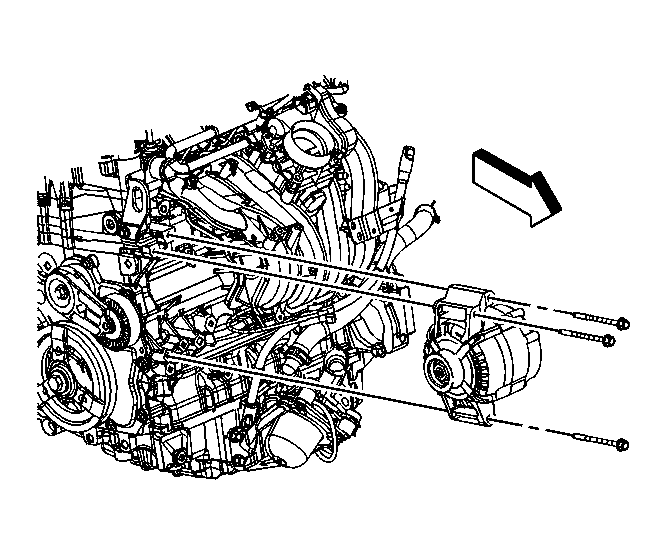

    Fig 1: Generator & Bolts
    GM1631670Courtesy of GENERAL MOTORS CORP.
  1. Position the generator to the engine block.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the generator bolts.

    Tighten:  Tighten the bolts to 22 N.m (16 lb ft).

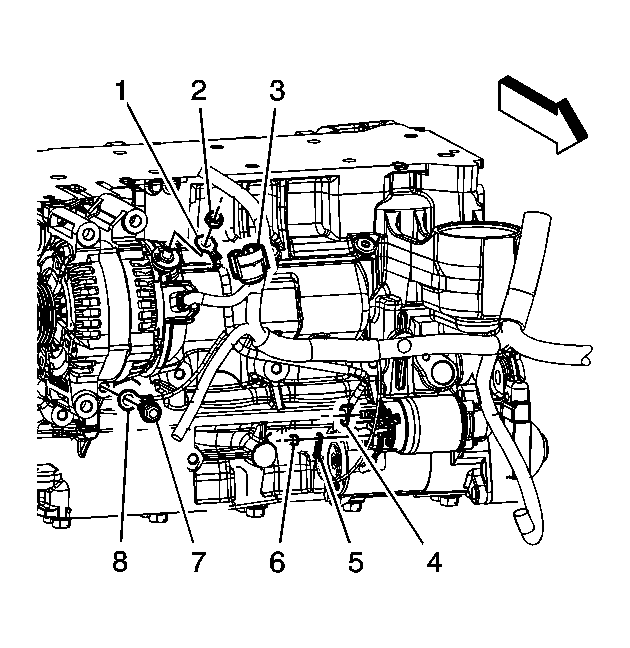

    3. Fig 2: View Of Engine Harness Terminal,Terminal Nut, & Engine Harness Boot
    GM1625472Courtesy of GENERAL MOTORS CORP.
  3. Install the engine harness terminal (1) to the generator.
  4. Install the generator terminal nut (2).

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  5. Position the engine harness boot (3).
    6. Fig 3: TAC,Fuel Injector Harness & Generator Electrical Connectors
    GM1623764Courtesy of GENERAL MOTORS CORP.
  6. Connect the generator electrical connector (3).
  7. Install the air cleaner assembly, if necessary. Refer to Air Cleaner Assembly Replacement or Air Cleaner Assembly Replacement .
  8. Install the drive belt. Refer to Drive Belt Replacement or Drive Belt Replacement .
  9. Connect negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
