Data Communication Component Views
WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
I/P Trim |
| 2 |
Body Control Module (BCM) |
| 3 |
Master Window Switch |
| 4 |
A/T Shift Control (MN5) |
| 5 |
Floor Panel |
| 6 |
Park Brake Switch |
| 7 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 8 |
Floor Panel |
Courtesy of GENERAL MOTORS CORP.

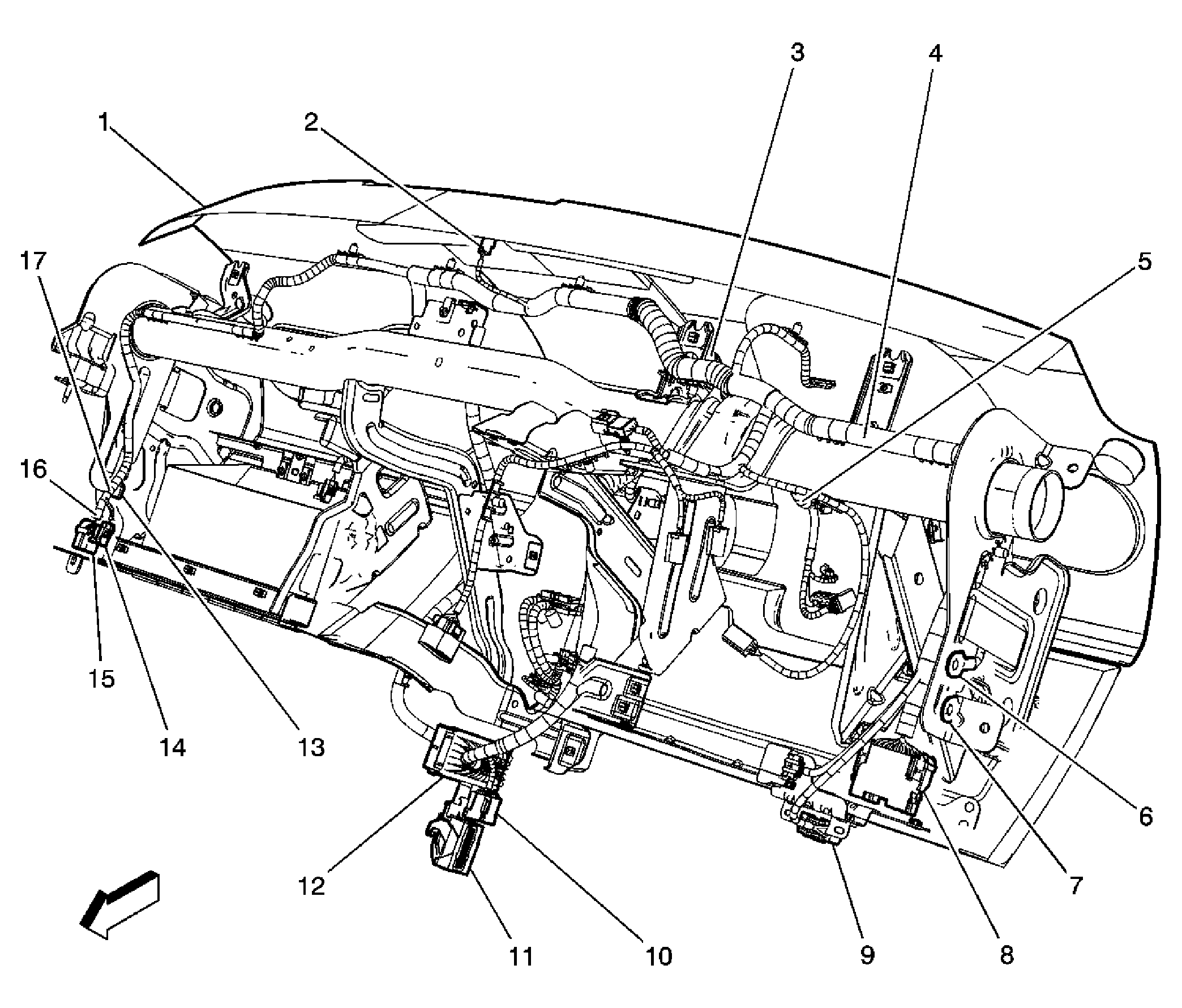

| Callout |
Component Name |
| 1 |
Instrument Panel |
| 2 |
Ambient Light Sensor |
| 3 |
S201 |
| 4 |
S200 |
| 5 |
S206 |
| 6 |
G203 |
| 7 |
G201 |
| 8 |
C201 |
| 9 |
Data Link Connector (DLC) |
| 10 |
SP205 |
| 11 |
Body Control Module (BCM) C2 |
| 12 |
Body Control Module (BCM) C4 |
| 13 |
C210 |
| 14 |
C206 |
| 15 |
C200 (KA1, UE1, U2K) |
| 16 |
S204 |
| 17 |
S205 (UE1) |
