Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Manual Transmission (M86)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch
2	Vehicle Speed Sensor

Fig 2: Front of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal/DRL Lamp - RF
2	Headlamp - Right
3	Headlamp - Left
4	Park/Turn Signal/DRL Lamp - LF
5	Marker Lamp - LF
6	Fog Lamp - LF (T37)
7	Fog Lamp - RF (T37)
8	Marker Lamp - RF

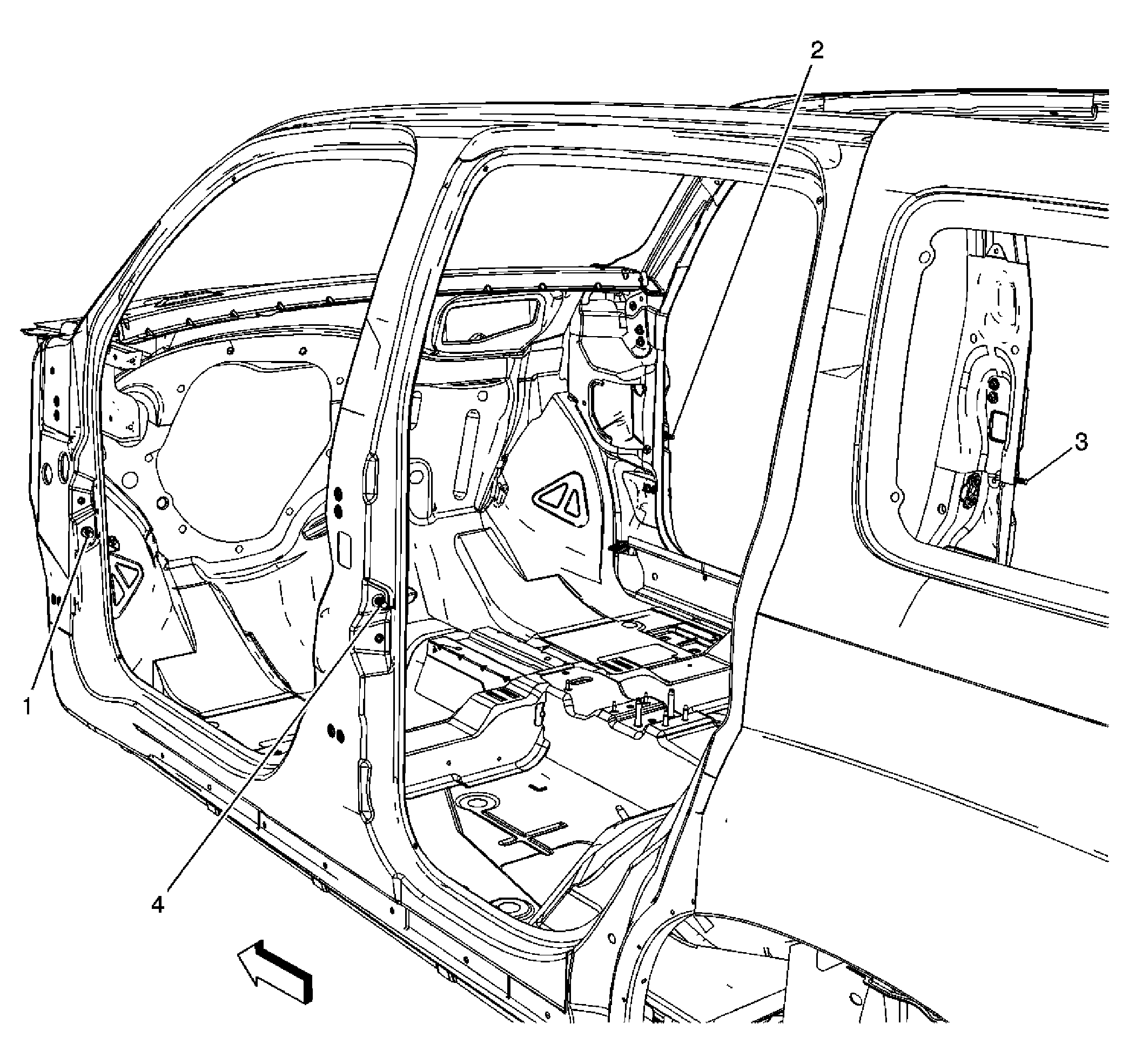

Fig 3: Door Jamb Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - LF
2	Door Jamb Switch - RF
3	Door Jamb Switch - RR (Except Panel Van)
4	Door Jamb Switch - LR (Except Panel Van)

Fig 4: Headliner Components - Bottom

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome Lamp
3	Cellular Microphone (UE1)
4	OnStar Button Assembly (UE1)
5	Inside Rearview Mirror
6	Sunroof Switch (CF5)
7	Console Flood Lamp

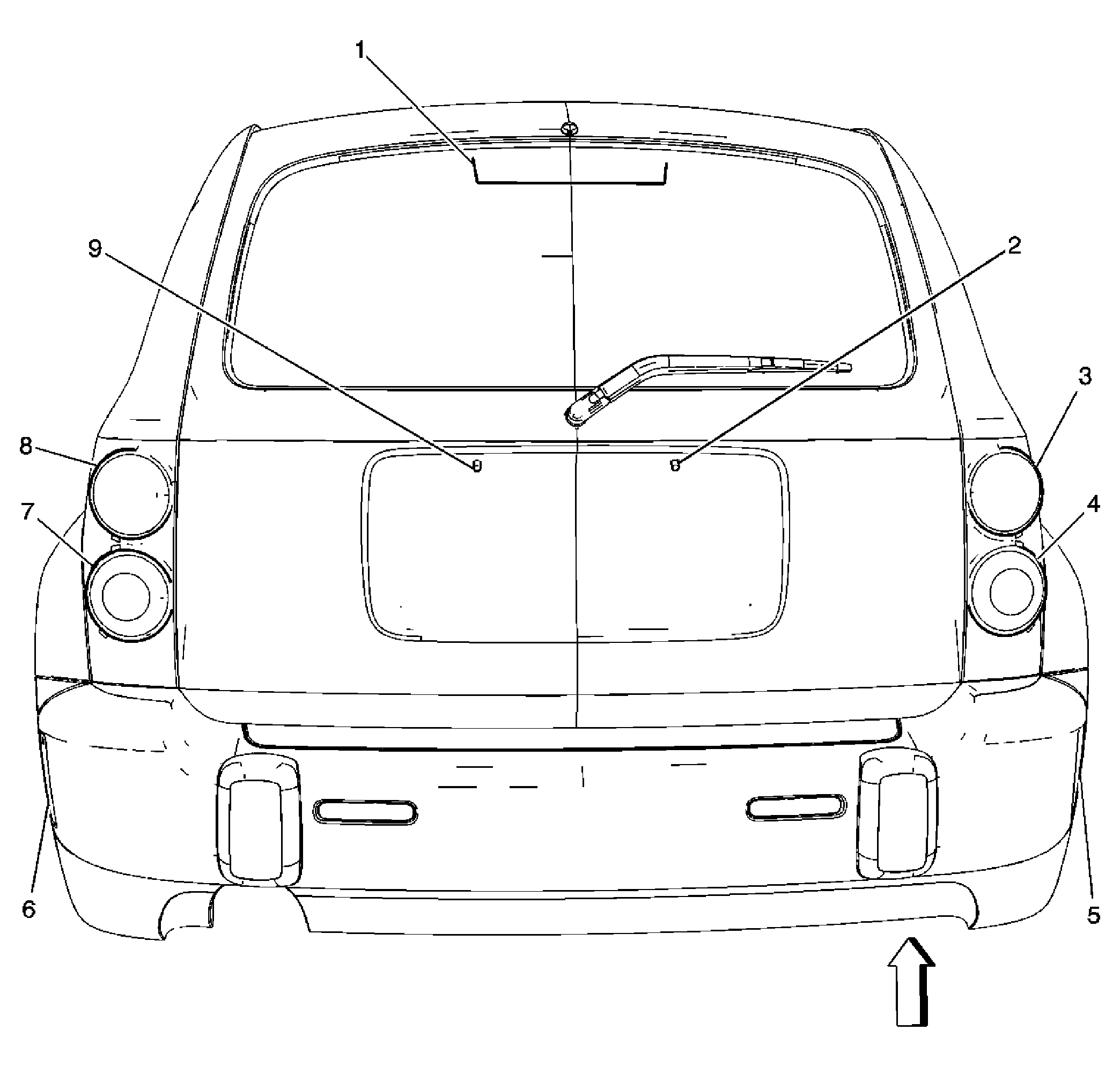

Fig 5: Rear of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center high Mounted Stop Lamp (CHMSL)
2	License Lamp - Right
3	Tail/Stop and Turn Signal Lamp - Right
4	Backup Lamp - Right
5	Marker Lamp - RR
6	MArker Lamp - LR
7	Backup Lamp - Left
8	Tail/Stop and Turn Signal Lamp - Left
9	License Lamp - Left

Fig 6: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light Sensor
3	Hazard Switch
4	Fog Lamp Switch (T37)
5	I/P Compartment
6	Radio
7	HVAC Control Assembly
8	Cigar Lighter (DT4)/Power Outlet (w/o DT4)
9	Master Window Switch
10	Rear Wiper/Washer Switch
11	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
12	Instrument Panel (I/P) Dimmer Switch

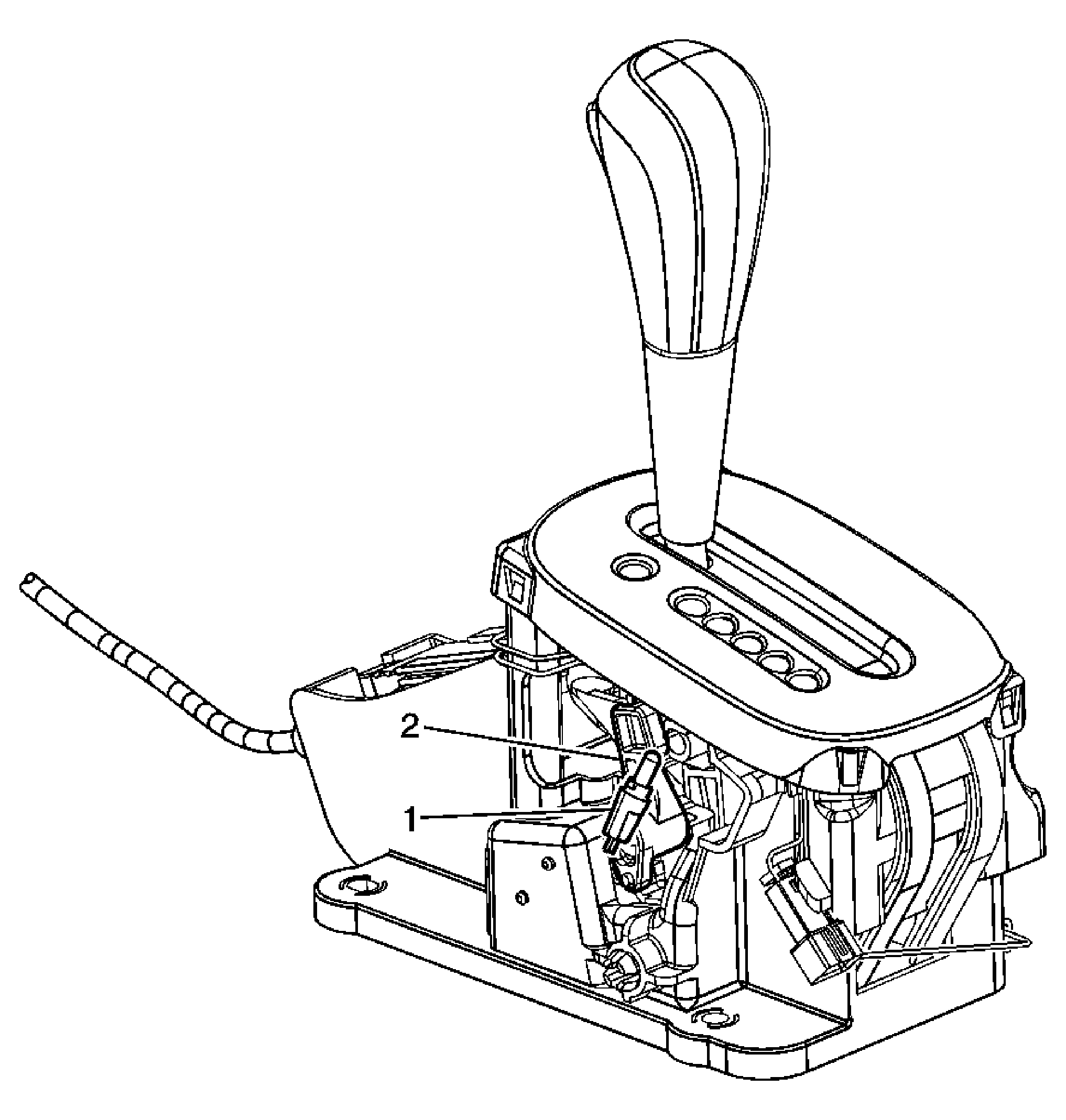

Fig 7: Inside Center Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	PRNDL Lamp Socket
2	PRNDL Lamp Bulb

Fig 8: LR Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch - LR (Except Panel Van)
3	Window Motor - LR (Except Panel Van)
4	Speaker - LR Door
5	Door Latch - LR (Except Panel Van), Rear Access Panel Latch - LR (Panel Van)

Fig 9: RR Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch - RR (Except Panel Van), Rear Access Panel Latch - RR (Panel Van)
3	Speaker - RR Door
4	Window Motor - RR (Except Panel Van)
5	Window Switch - RR (Except Panel Van)

Fig 10: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Ignition Lock Control Actuator (MN5)
5	Power Steering Control Module (PSCM)
6	Electronic Power Steering (EPS) Motor
7	Ignition Switch

Fig 11: Pedal Assemblies

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CPP) Switch (M86)
2	Clutch Start Switch (M86)
3	Stop Lamp/Torque Converter Clutch (TCC) Switch/Cruise Release Switch
4	Stop Lamp Switch
5	Accelerator Pedal Position (APP) Sensor
6	Floor Panel
