Engine Controls Component Views

Fig 1: LF of the Engine Compartment

GM1653137

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
2	Brake Fluid Level Switch
3	Windshield Wiper Motor
4	Electronic Brake Control Module (EBCM)
5	A/C Refrigerant Pressure Sensor
6	Transmission Control Module (TCM)
7	Engine Control Module (ECM)
8	G101
9	Inflatable Restraint Front end Sensor - Left

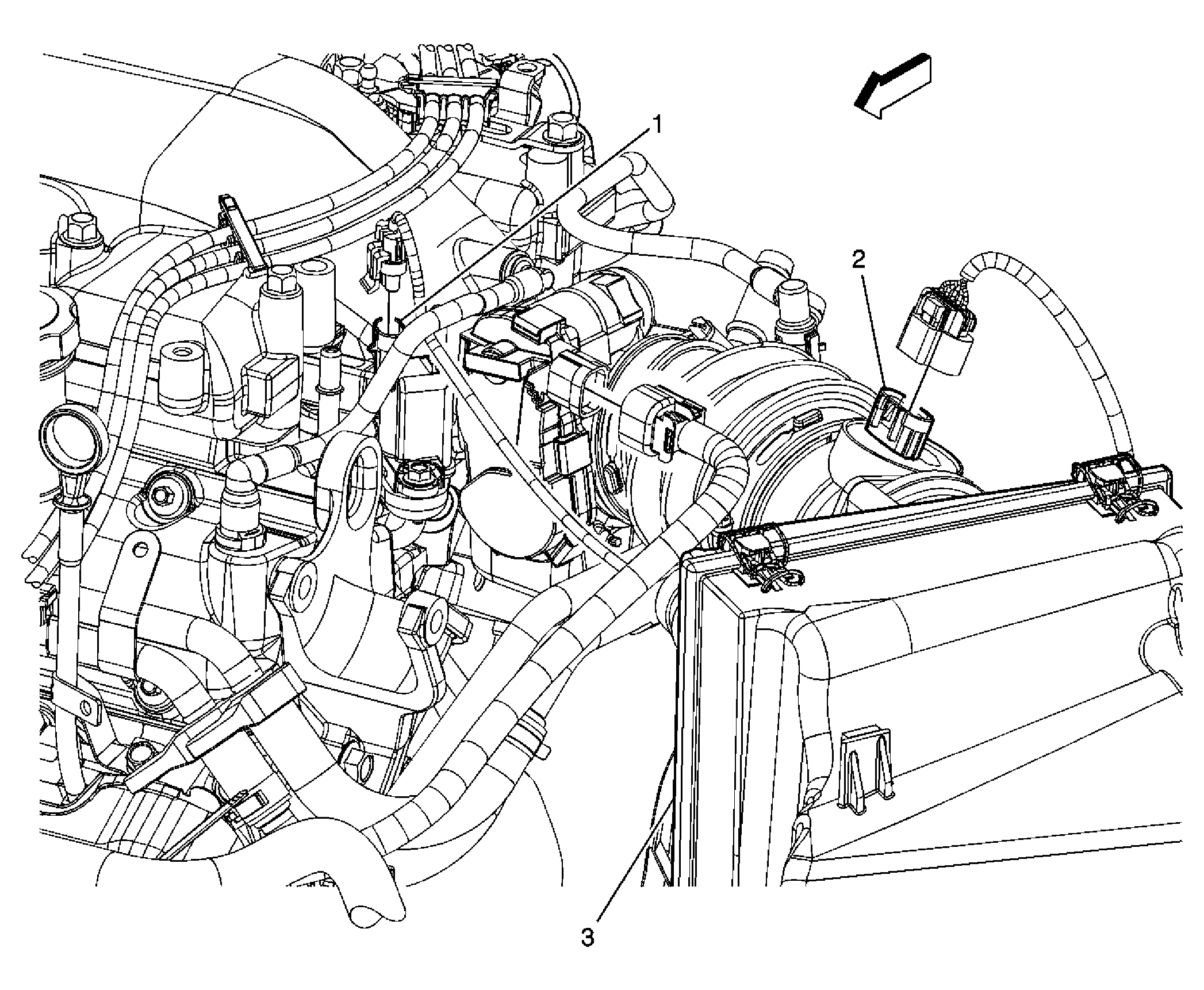

Fig 2: Near The Air Cleaner Duct (LZE, LZ4, LZ9)

GM1700230

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
3	Air Cleaner Housing

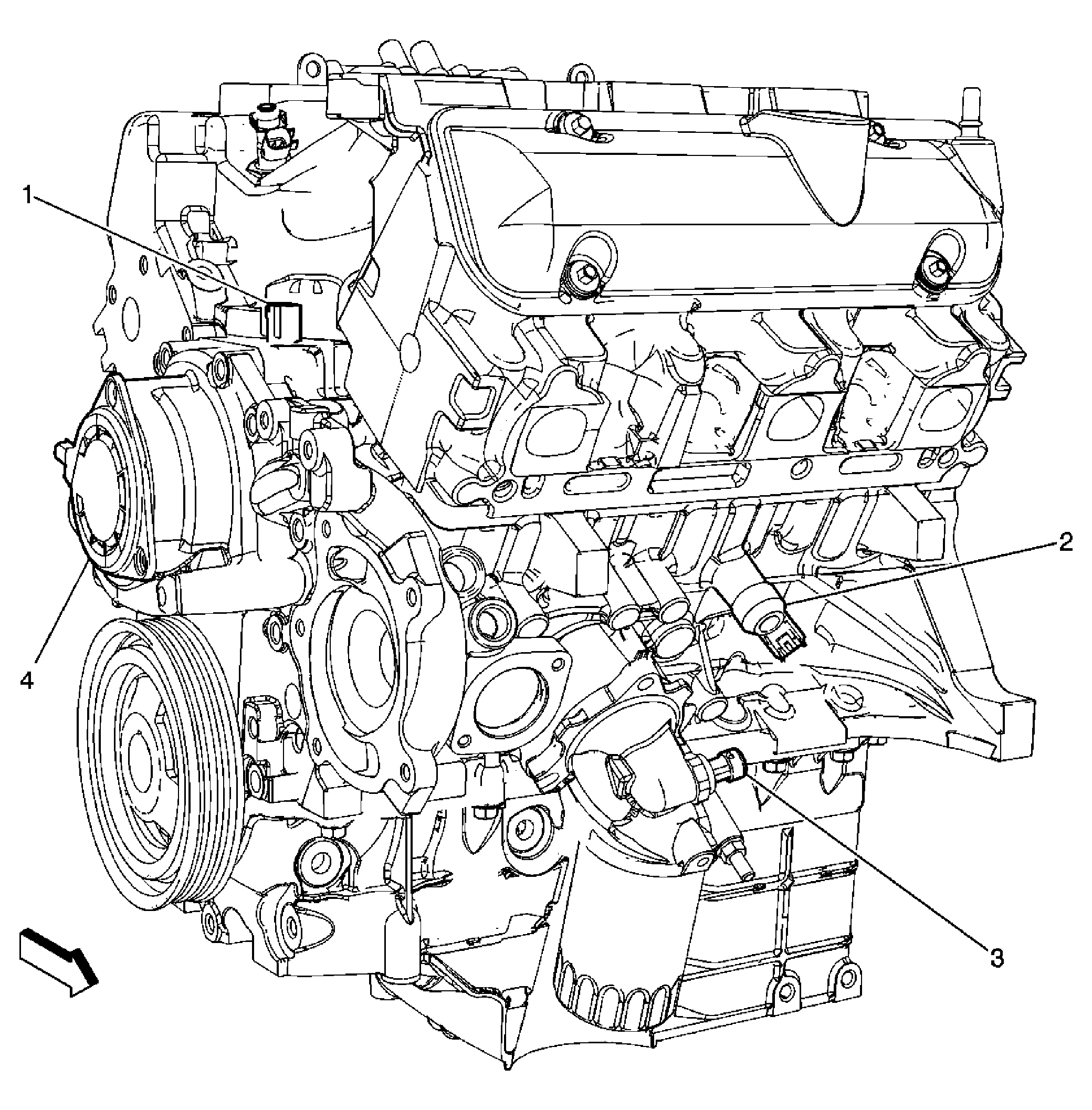

Fig 3: Front Of Engine (LZE, LZ4, LZ9)

GM1700287

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Knock Sensor (KS) Bank 2
3	Engine Oil Pressure (EOP) Sensor
4	Camshaft Position Actuator Solenoid

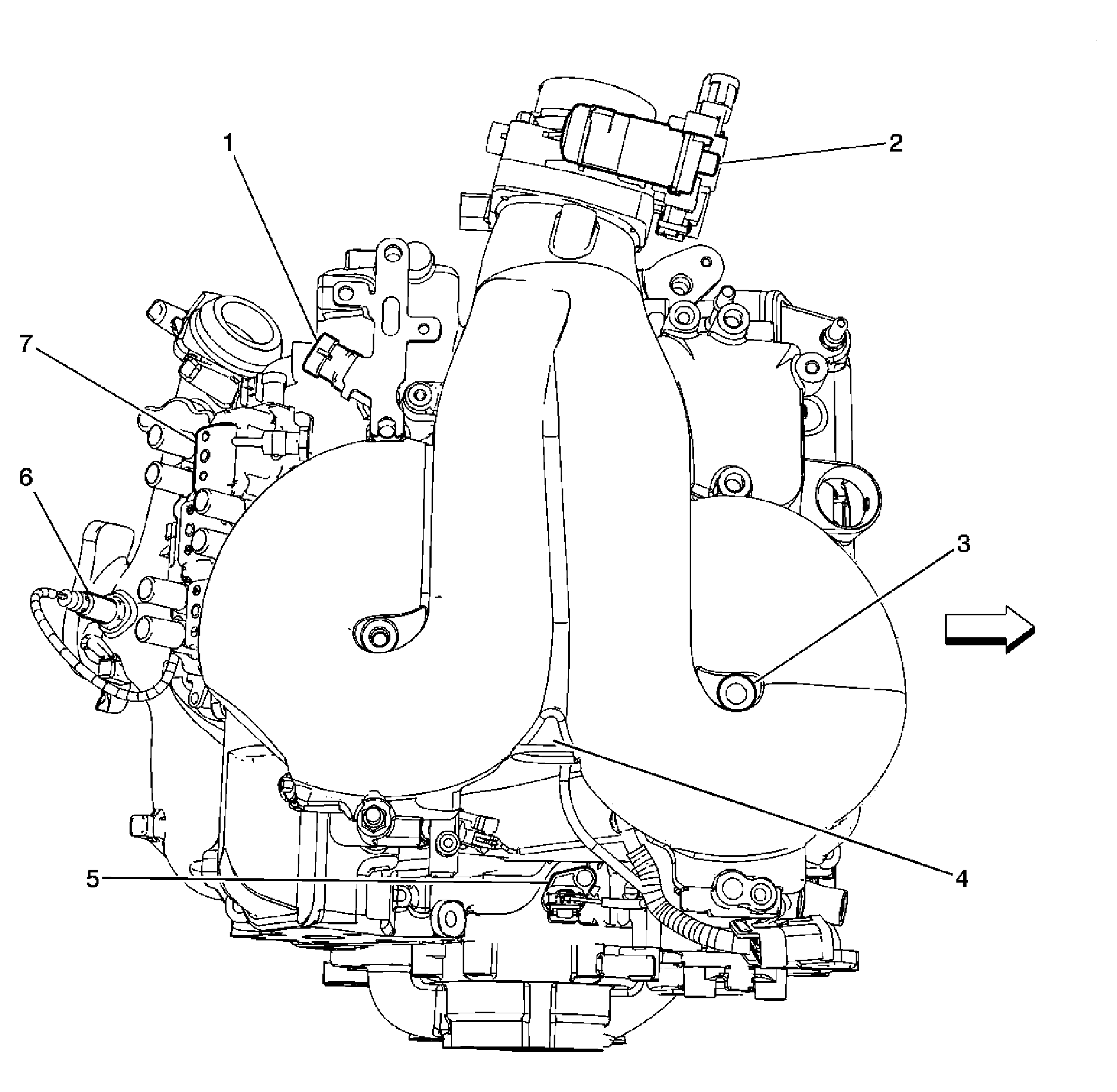

Fig 4: Top Of Engine (LZE, LZ4, LZ9)

GM1700296

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor
2	Throttle Body
3	Intake Manifold
4	Intake Manifold Tuning (IMT) Valve Solenoid (LZ9)
5	Camshaft Position (CMP) Sensor
6	Heated Oxygen Sensor (HO2S) 1
7	Ignition Control Module (ICM)

Fig 5: Beneath The Upper Intake (LZE, LZ4, LZ9)

GM1700294

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 5
2	Engine Coolant Temperature (ECT) Sensor
3	Fuel Injector 6
4	Fuel Injector 4
5	Fuel Injector 2
6	Fuel Injector 1
7	Fuel Injector 3

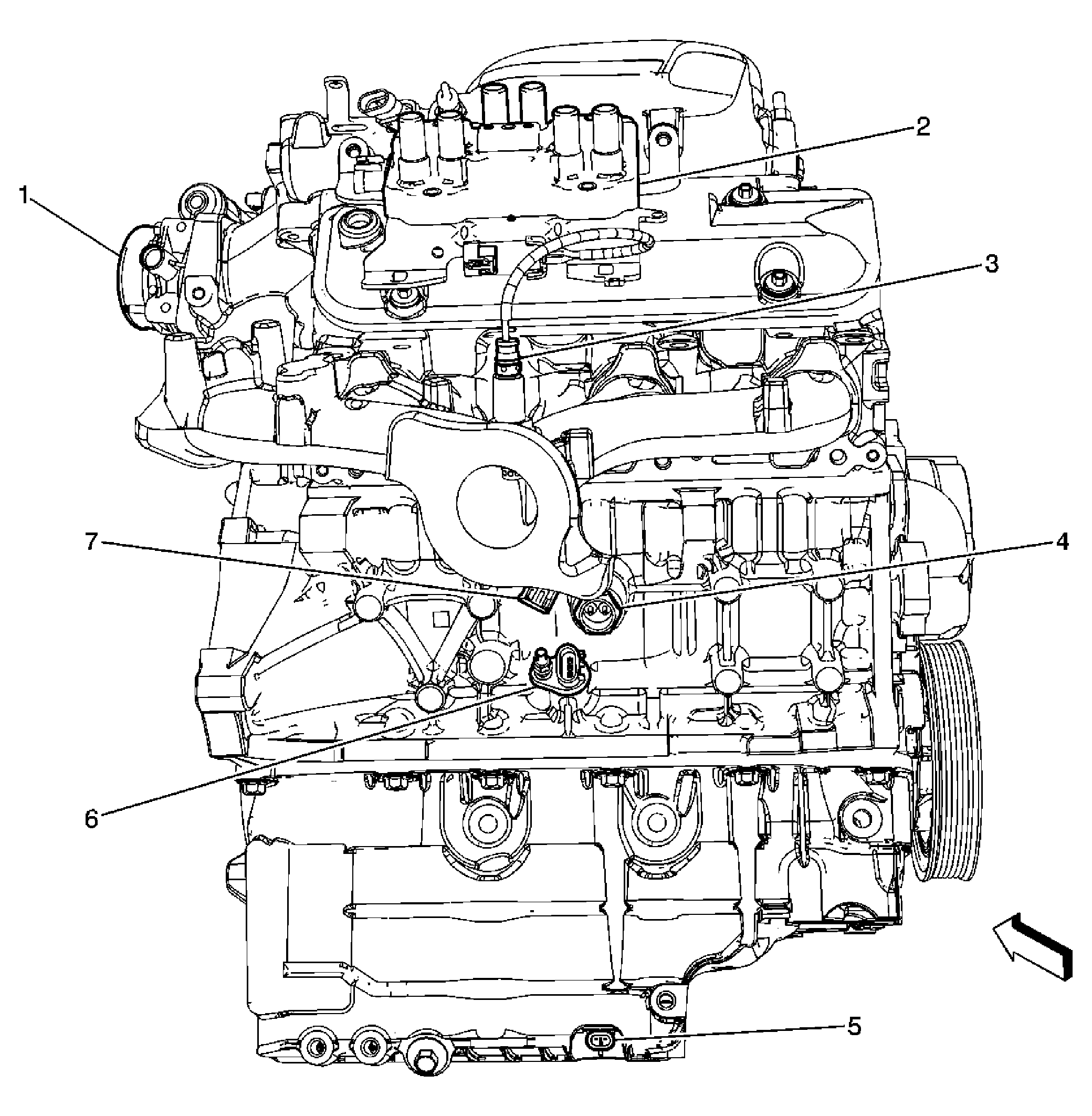

Fig 6: Rear Of Engine (LZE, LZ4, LZ9)

GM1700291

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Body
2	Ignition Control Module (ICM)
3	Heated Oxygen Sensor (HO2S) 1
4	Engine Coolant Heater
5	Engine Oil Level Switch
6	Crankshaft Position (CKP) Sensor
7	Knock Sensor (KS) Bank 1

Fig 7: Underbody

GM1203644

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) 2

Fig 8: Pedal Assemblies

GM1700245

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Dash Panel
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor

Fig 9: Fuel Tank Components

GM1653116

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank
2	Fuel Pump and Sender Assembly
3	Fuel Pump
4	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
