Power Mirror Switch Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

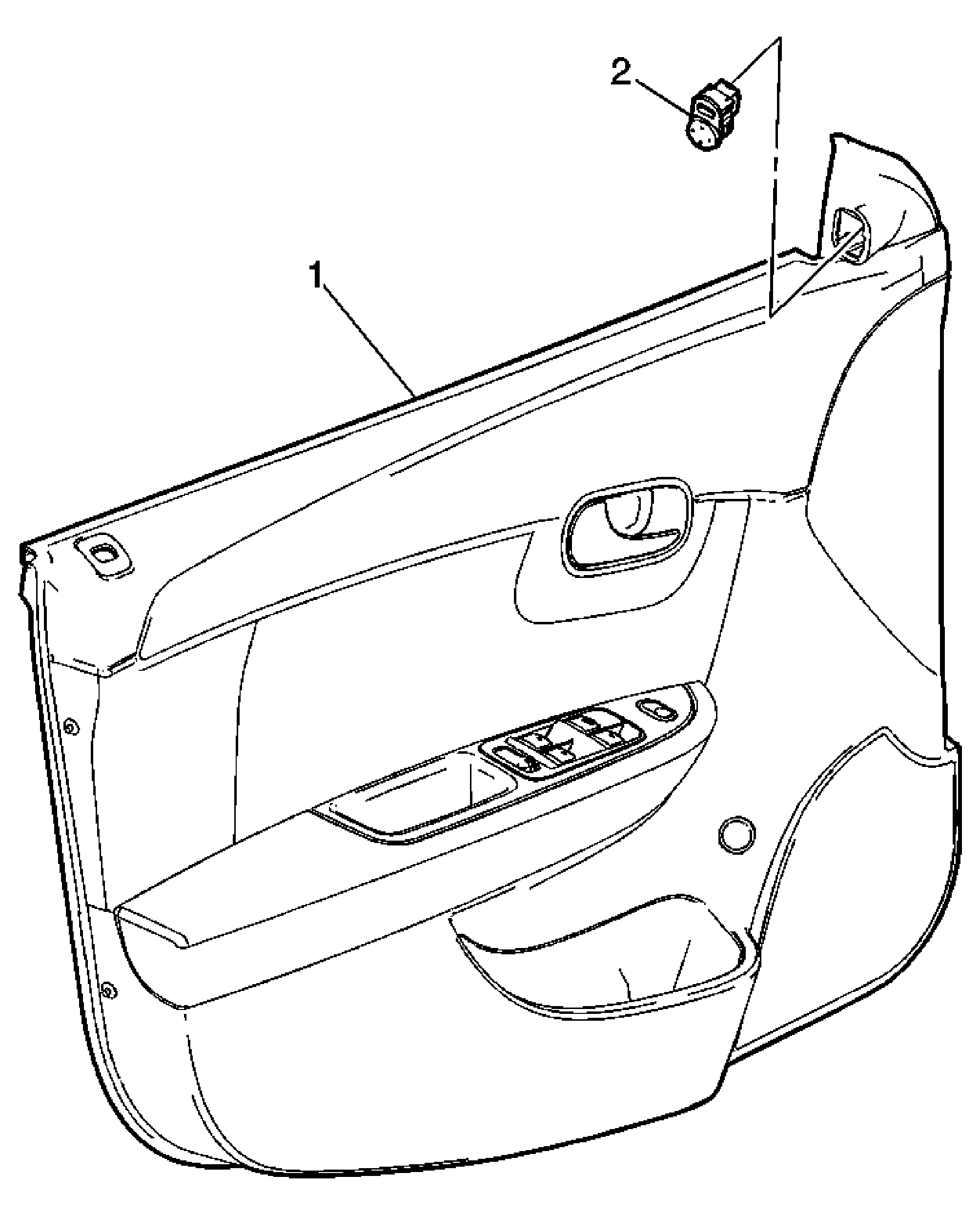

| Callout |
Component Name |
| 1 |
Front Side Door Trim Panel |
| 2 |
Outside Rearview Mirror Switch Assembly Procedure
- Using a plastic pry tool, gently pry on the sides to release the switch.
- Disconnect the electrical connector.
|
