Control Module: Diagrams

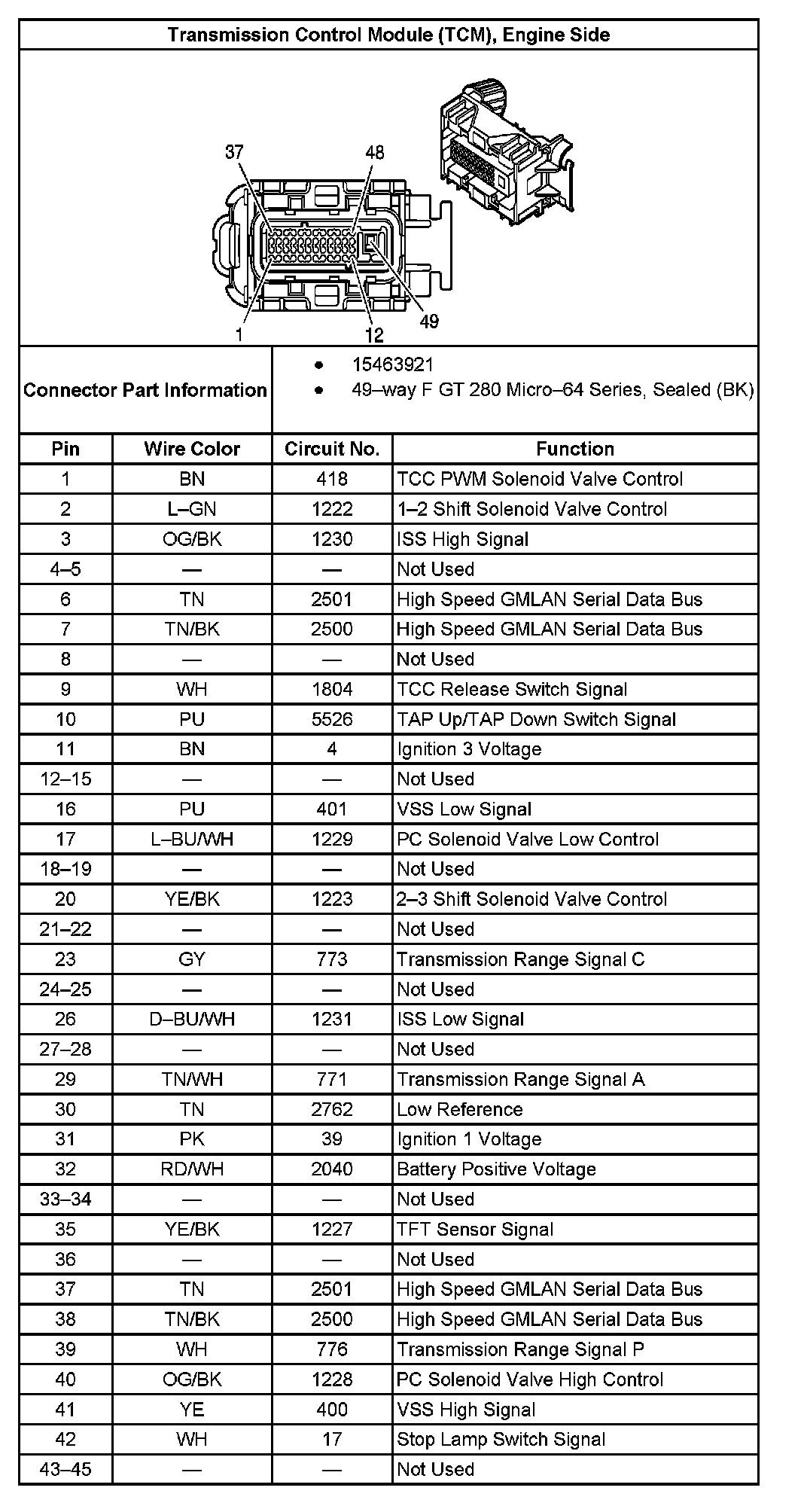

Transmission Control Module (TCM), Engine Side:
Transmission Control Module (TCM), Engine Side:
