Keyless Entry Schematics

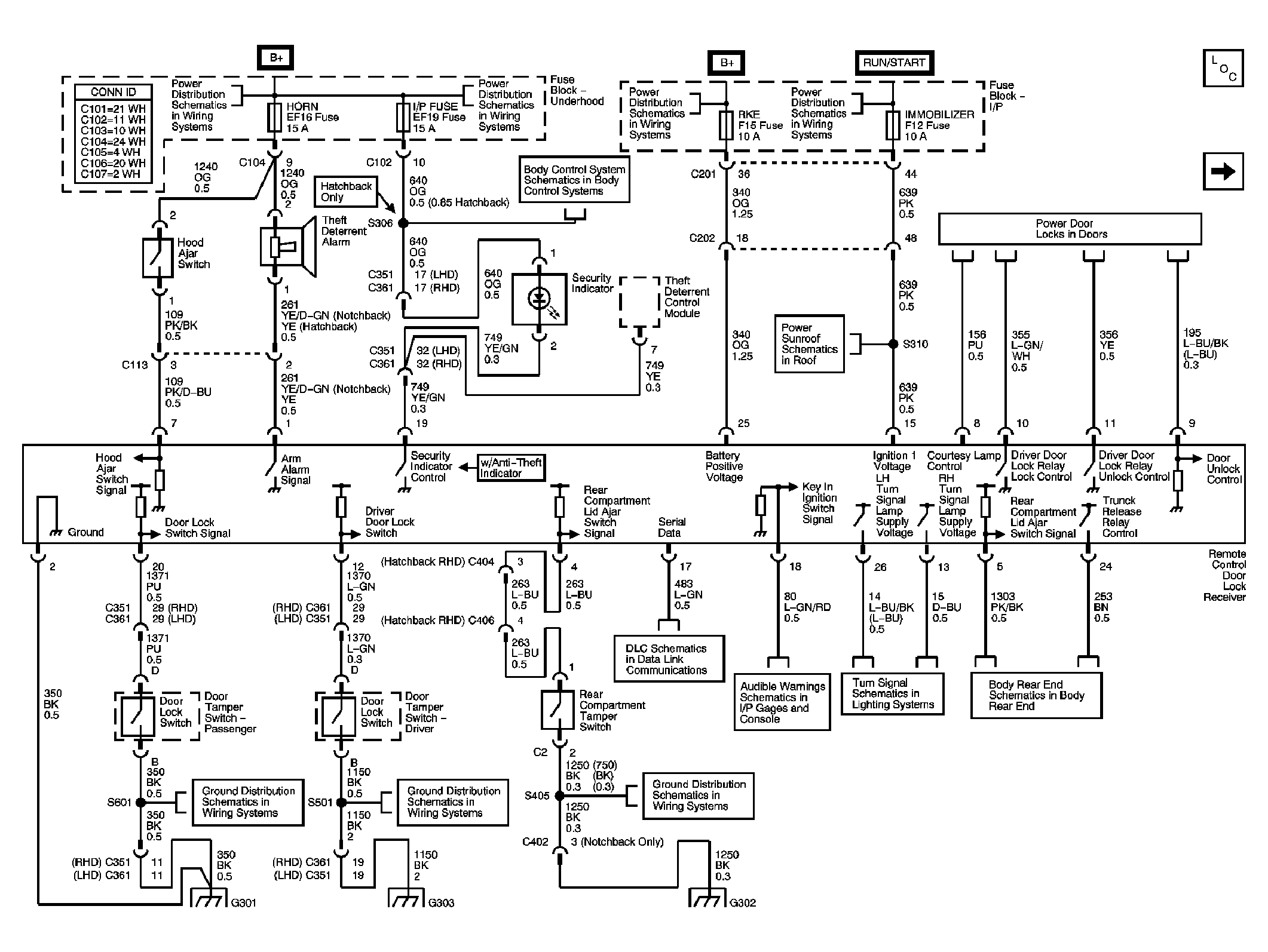

Fig 1: Remote Control Door Lock Receiver Schematic
GM1650892Courtesy of GENERAL MOTORS CORP.

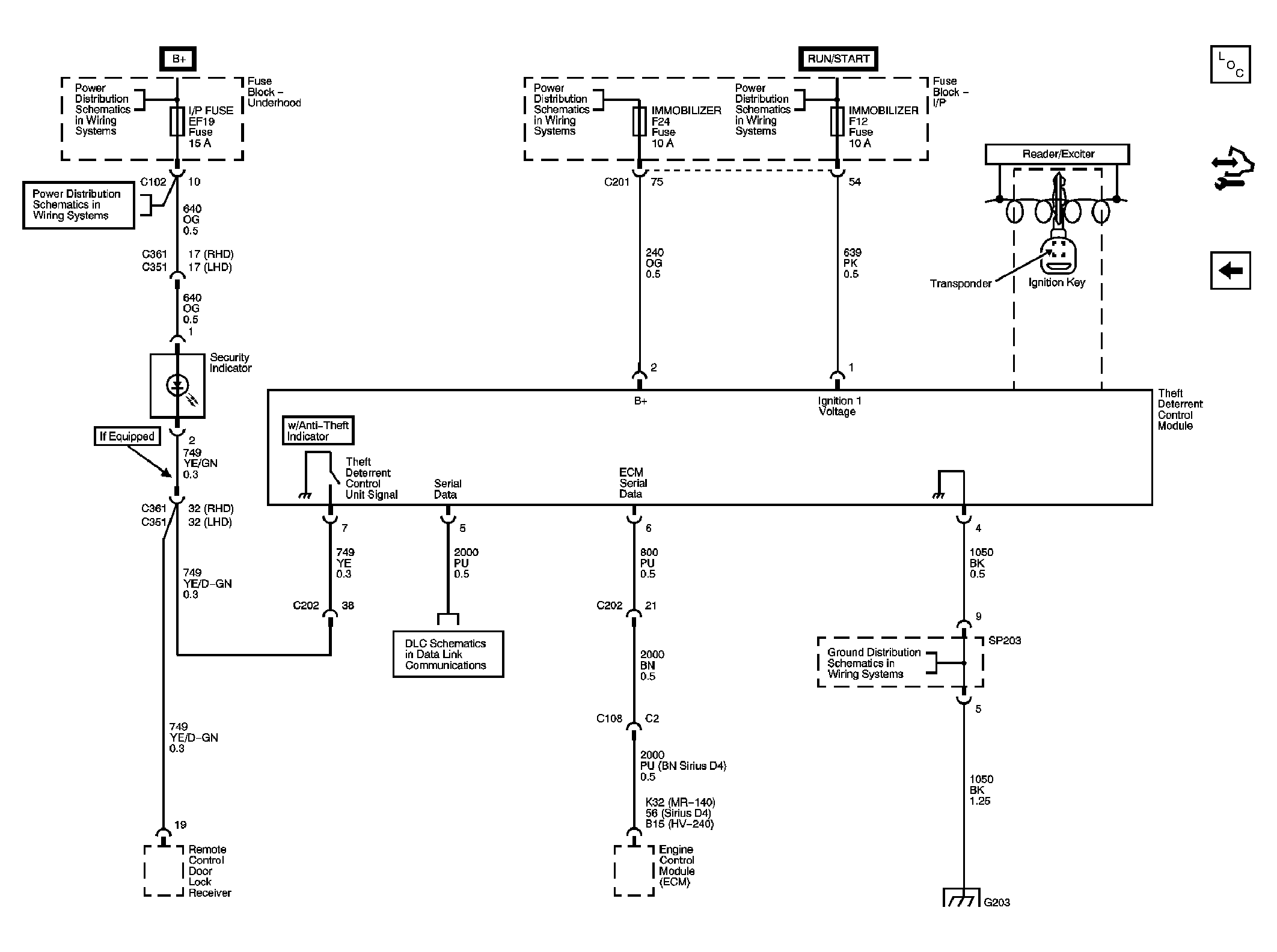

Fig 2: Theft Deterrent Control Module Schematic
GM1372177Courtesy of GENERAL MOTORS CORP.
