Engine Controls Schematics

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp Schematic (MIL)
GM1456534Courtesy of GENERAL MOTORS CORP.

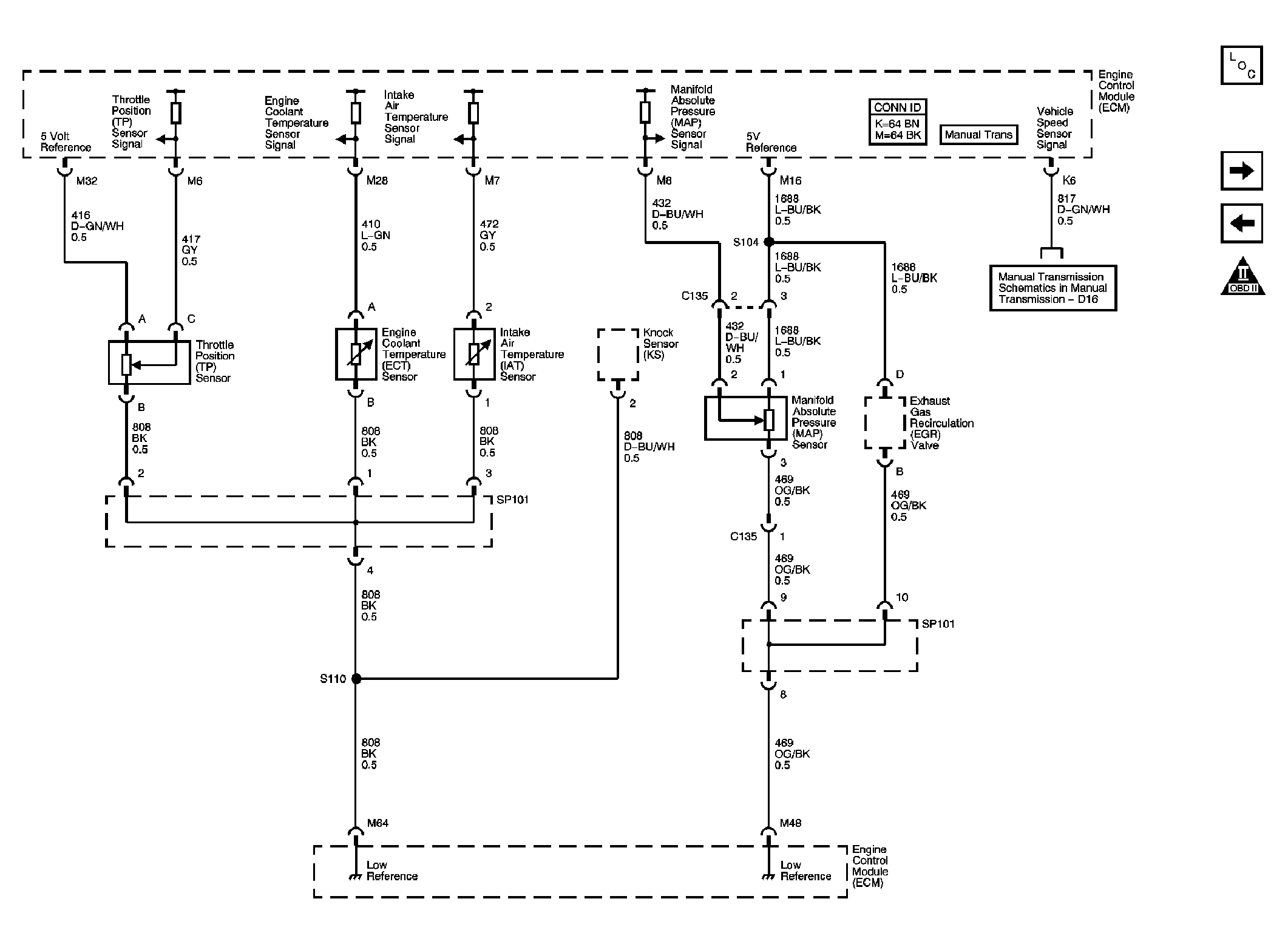

Fig 2: Engine Data Sensors Schematic - Pressure and Temperature
GM1650845Courtesy of GENERAL MOTORS CORP.

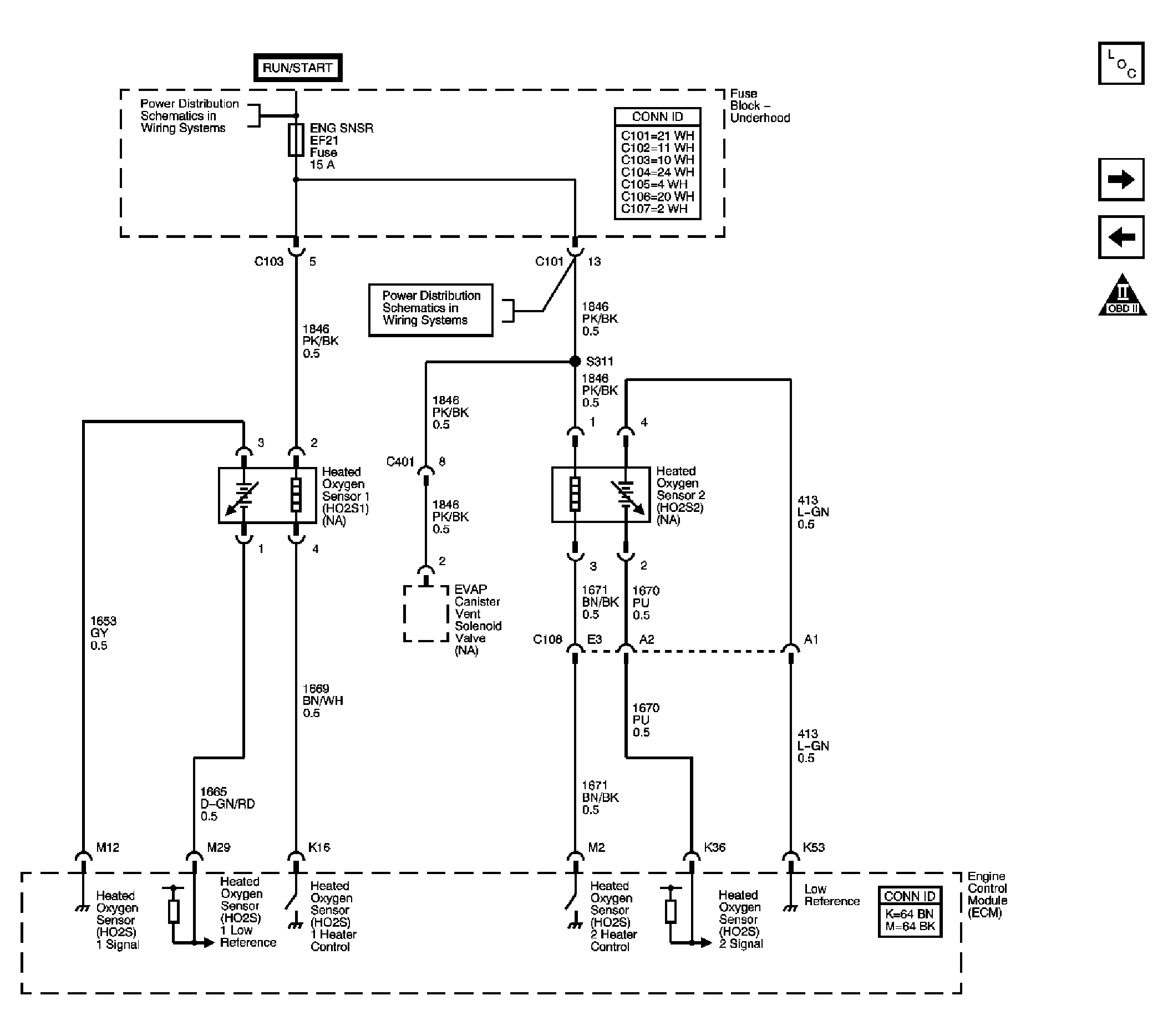

Fig 3: Oxygen Sensors Schematic (O2S)
GM1650846Courtesy of GENERAL MOTORS CORP.
Fig 4: Ignition Controls Schematic - Sensors
GM1456539Courtesy of GENERAL MOTORS CORP.
Fig 5: Ignition Controls Schematic - Ignition System
GM1456538Courtesy of GENERAL MOTORS CORP.
Fig 6: Fuel Controls Schematic - Fuel Pump Controls And Fuel Injectors
GM1456540Courtesy of GENERAL MOTORS CORP.
Fig 7: Fuel Controls Schematic - EVAP Controls
GM1456542Courtesy of GENERAL MOTORS CORP.
Fig 8: Device Controls Schematic
GM1456543Courtesy of GENERAL MOTORS CORP.
Fig 9: Controlled/Monitored Subsystem References Schematic
GM1456544Courtesy of GENERAL MOTORS CORP.
