Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.
Back Up Lamp - Left or Right

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A WH 24 Backup Lamps Supply Voltage
B - - Not Used
G BK/WH 750 Ground
Center High Mounted Stop Lamp (CHMSL) Hatchback

GM1467036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610392
  • 2-Way F SDL Series (WH)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 L-BU 20 Stop Lamp Switch Signal
Center High Mounted Stop Lamp (CHMSL) Notchback

GM1467036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610392
  • 2-Way F SDL Series (WH)
Pin Wire Color Circuit No. Function
1 L-BU 20 Stop Lamp Switch Signal
2 BK 1250 Ground
Daytime Running Lamp (DRL) Module (North America)

GM1481283Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12034998
  • 8-Way F Connector (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 WH 629 Daytime Running Lamp (DRL) Indicator Control
3 BN 141 Ignition 3 Voltage
4 BK 450 Ground
5 OG 140 Battery Voltage
6 L-GN 11 Headlamp High Beam Supply Voltage
7 PU 12 Headlamp Low Beam Supply Voltage
8 PU/WH 33 Brake Warning Indicator Control
Daytime Running Lamp (DRL) Relay (North America)

GM1497842Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 838033
  • 9-Way F Relay
Pin Wire Color Circuit No. Function
1 (86) L-GN 11 Headlamp High Beam Supply Voltage
2 (87) PU 12 Headlamp Low Beam Supply Voltage
3-6 - - Not Used
7 (30) BN/WH 309 Right Park Lamp Supply Voltage
8 - - Not Used
9 BK 250 Ground
Daytime Running Lamp (DRL) Module (Scandinavia)

GM1500892Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • F8-4
  • 8-Way F Connector (BK)
Pin Wire Color Circuit No. Function
1 OG 140 Battery Voltage
2 BN/WH 309 Park Lamp Signal
3 D-BU 2641 Daytime Running Lamp (DRL) Relay Control
4 PU 12 Headlamp Low Beam Supply Voltage
5 BK 1050 Ground
6 PK 239 Ignition Voltage
7 BN/WH 309 Park Lamp Signal
8 PU/WH 231 Oil Pressure Signal
Daytime Running Lamp (DRL) Relay 1 (Scandinavia)

GM1497842Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 838033
  • 9-Way F Relay
Pin Wire Color Circuit No. Function
1 (87) OG 140 Battery Positive Voltage
2 - - Not Used
3 (85) OG 140 Battery Positive Voltage
4-6 - - Not Used
7 (30) D-BU 2641 Daytime Running Lamp (DRL) Relay Control
8 - - Not Used
9 (86) WH 1080 Park Lamp Relay Control
Daytime Running Lamp (DRL) Relay 2 (Scandinavia)

GM1497842Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36409
  • 9-Way F Relay
Pin Wire Color Circuit No. Function
1 (85) BN 141 Battery Positive Voltage
2 - - Not Used
3 (87) L-BU 1346 Headlamp Relay Supply Voltage/Headlamp Control
4-6 - - Not Used
7 L-BU 2346 Flash to Pass Signal
8 - - Not Used
9 WH/BK 1798 Headlamp Relay Control
Dome Lamp w/Dimmer/Decay

GM1467042Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610398
  • 6-Way F SDL Series (WH)
Pin Wire Color Circuit No. Function
1 OG 640 Battery Positive Voltage
2 - - Not Used
3 D-GN/WH 900 Key Cylinder Lamp Control
4 PU 156 Courtesy Lamp Control
5 BK 850 Ground
6 PK 839 Ignition 1 Voltage
Dome Lamp w/o Dimmer/Decay

GM1467039Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610396
  • 4-Way F SDL Series (WH)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK 850 Ground
3 PU 156 Courtesy Lamp Control
4 OG 640 Battery Positive Voltage
Door Ajar Switch - Driver

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630063
  • 2-Way 250 Series (BK)
Pin Wire Color Circuit No. Function
1 PU 156 Courtesy Lamp Control
2 PU/WH 126 Left Front Door Open Switch Signal
Door Ajar Switch - Passenger

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630063
  • 1-Way 250 Series (BK)
Pin Wire Color Circuit No. Function
1 PU 156 Courtesy Lamp Control
Door Ajar Switch - Rear Door

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630063
  • 1-Way 250 Series (BK)
Pin Wire Color Circuit No. Function
1 PU 156 Courtesy Lamp Control
Fog Lamp - Left Front

GM646148Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12020599
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PU 34 Front Fog Lamp Supply Voltage
B BK 50 Ground
Fog Lamp - Rear (Left or Right) (w/Rear Fog Lamps)

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A WH 122 Rear Fog Lamp Supply Voltage
B - - Not Used
G BK/WH 70 Ground
Fog Lamp - Right Front

GM646148Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12020599
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PU 34 Front Fog Lamp Supply Voltage
B BK 150 Ground
Hazard Switch

GM1467121Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651056
  • 10-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 D-GN 44 Instrument Panel Lamps Dimmer Switch
3 BN/WH 309 Right Park Lamp Supply Voltage
4 BN 27 Hazard Flasher Signal (Optional)
5 L-BU 14 Left Turn Signal Lamps Supply Voltage
6 D-BU 15 Right Turn Signal Lamps Supply Voltage
7 D-BU 1508 Turn Signal Switch Signal
8 OG 1040 Battery Positive Voltage
9 PK 16 Turn Signal Flasher Signal
10 PK 339 Ignition 1 Voltage
Headlamp - High Beam - Left

GM73251Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • 2-Way F Metri-Pack 480 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A RD 711 Left Headlamp High Beam Supply Voltage
B BK/WH 1250 Ground
Headlamp - High Beam - Right

GM73251Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • 2-Way F Metri-Pack 480 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A RD 311 Right Headlamp High Beam Supply Voltage
B BK/WH 1250 Ground
Headlamp - Low Beam - Left

GM73251Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • 2-Way F Metri-Pack 480 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A L-GN 712 Left Headlamp Low Beam Supply Voltage
B BK/WH 250 Ground
Headlamp - Low Beam - Right

GM73251Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • 2-Way F Metri-Pack 480 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A L-GN 312 Right Headlamp Low Beam Supply Voltage
B BK/WH 250 Ground
Headlamp Leveling Switch

GM1468511Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 5557-06R
  • 6-Way F Mini Fit Conn. Rec. Housing (WH)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 D-GN 189 Headlamp Leveling Motor Supply Voltage
3 PU 12 Headlamp Low Beam Supply Voltage
4 D-GN 44 Instrument Panel Lamps Dimming Control
5 - - Not Used
6 BK 250 Ground
Headlamp Switch

GM1468422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 5559-06P
  • 6-Way Mini Fit Conn. Crimp Pin Housing (BK)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage (w/o North America DRL)
PU 12 Headlamp Low Beam Supply Voltage (w/North America DRL)
2 WH/BK 1798 Headlamp Relay Control
3 BK 250 Ground
4 - - Not Used
5 YE 317 Front Fog Relay Coil Supply Voltage
6 WH 1080 Park Lamp Relay Control
I/P Dimmer Switch

GM1467010Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610045
  • 3-Way F 250 Series (WH)
Pin Wire Color Circuit No. Function
1 D-GN 44 Instrument Panel Lamps Dimmer Switch
2 BK 250 Ground
3 BN/WH 309 Right Park Lamp Supply Voltage
Key Cylinder Lamp

GM1467026Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610207
  • 2-Way F 118 (PA) Series (WH)
Pin Wire Color Circuit No. Function
1 OG 640 Battery Positive Voltage
2 D-GN/WH 900 Key Cylinder Lamp Control
Lamp Control Module

GM1467119Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 WH 1080 Park Lamp Relay Control
3 WH 1080 Park Lamp Relay Control
4 OG 1540 Battery Positive Voltage
5 BK 1050 Ground
6 PU 126 Left Front Door Open Switch Signal
7 L-GN 80 Key in Ignition Switch Signal
8 - - Not Used
License Plate Lamp

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way F Lamp Socket Wedge Base W2 (L-GY)
Pin Wire Color Circuit No. Function
A BK 709 Left Park Lamp Supply Voltage
B WH 550 Ground
Park/Turn Signal Lamp - Left Front (North America)

GM1467029Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610327
  • 3-Way F SWP Series (GY)
Pin Wire Color Circuit No. Function
1 BK 50 Ground
2 PU 709 Left Park Lamp Supply Voltage
3 L-BU 14 Left Turn Signal Lamps Supply Voltage
Park/Turn Signal Lamp - Right Front (North America)

GM1467029Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610327
  • 3-Way F SWP Series (GY)
Pin Wire Color Circuit No. Function
1 BK 150 Ground
2 BN/WH 309 Right Park Lamp Supply Voltage
3 L-BU 15 Right Turn Signal Lamps Supply Voltage
Reading Lamps

GM1467036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610392
  • 2-Way F SDL Series (WH)
Pin Wire Color Circuit No. Function
1 OG 640 Battery Positive Voltage
2 BK 850 Ground
Rear Compartment Lamp

GM1481285Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • F2-14
  • 2-Way F Connector (BK)
Pin Wire Color Circuit No. Function
1 OG 640 Battery Positive Voltage
2 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal
Reverse Lamp Switch (M/T)

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12052641
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
1 PK 839 Ignition 1 Voltage
2 L-GN 24 Backup Lamp Supply Voltage
Shift Indicator Lamp

GM407137Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 94797519
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 D-GN 44 Instrument Panel Lamps Dimming Control
2 BN/WH 309 Right Park Lamp Supply Voltage
Side Marker Lamp - Left Rear

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way F Lamp Socket Wedge Base W2 (L-GY)
Pin Wire Color Circuit No. Function
A WH 709 Left Park Lamp Supply Voltage
B BK 550 Ground
Side Marker Lamp - Right Rear

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way F Lamp Socket Wedge Base W2 (L-GY)
Pin Wire Color Circuit No. Function
A WH 309 Right Park Lamp Supply Voltage
B BK 550 Ground
Stop Lamp Switch

GM1467027Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610267
  • 4-Way F 250 D/L Series (WH)
Pin Wire Color Circuit No. Function
1 OG 239 Ignition 1 Voltage
2 OG 540 Battery Positive Voltage
3 D-GN 286 Automatic Transmission Shift Lock Solenoid Supply Voltage
4 L-BU 20 Stop Lamp Supply Voltage

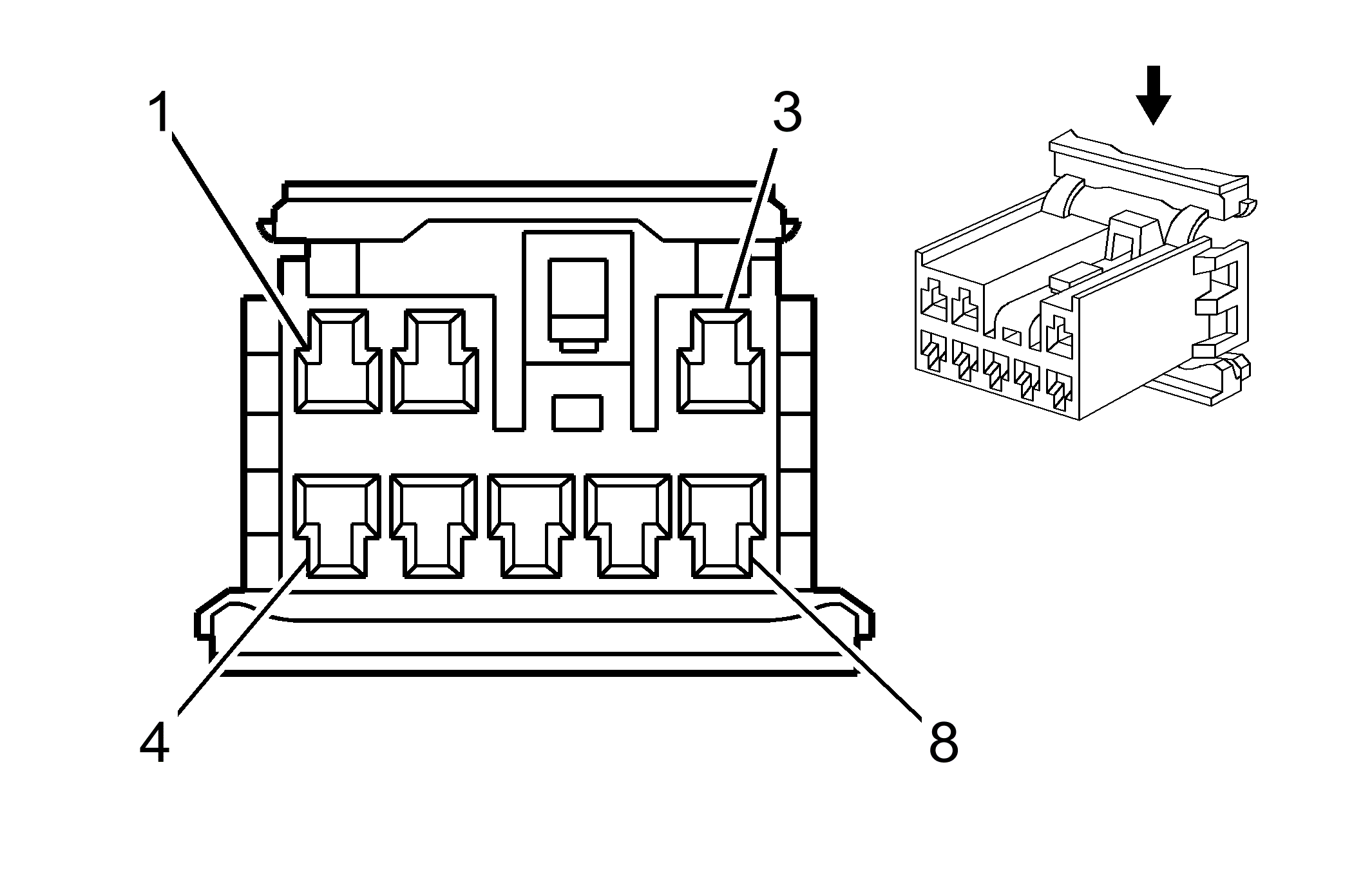

Sunroof/Dome Lamp Switch

GM1467046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610402
  • 8-Way F SDL Series (WH)
Pin Wire Color Circuit No. Function
1 BK 850 Ground
2 - - Not Used
3 OG 640 Battery Positive Voltage
4 D-GN/WH 133 Sunroof Limit Switch Low Reference
5 BN 641 Ignition 3 Voltage
6 PU 132 Sunroof Limit Switch Soft Stop Signal
7-8 - - Not Used
Tail/Stop Lamp - Left Rear Inner (Hatchback)

GM38605Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160394
  • 3-Way F Lamp Socket Wedge Base W3 Right Angle (WH)
Pin Wire Color Circuit No. Function
A RD 20 Stop Lamp Supply Voltage
B D-BU 709 Left Park Lamp Supply Voltage
G BK 450 Ground
Tail/Stop Lamp - Right Rear Inner (Hatchback)

GM38605Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160394
  • 3-Way F Lamp Socket Wedge Base W3 Right Angle (WH)
Pin Wire Color Circuit No. Function
A RD 20 Stop Lamp Supply Voltage
B D-BU 309 Right Park Lamp Supply Voltage
G BK 450 Ground
Tail/Stop Lamp - Left Rear Outer (Hatchback)

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A RD 20 Stop Lamp Supply Voltage
B WH/BK 709 Left Park Lamp Supply Voltage
G BK 250 Ground
Tail/Stop Lamp - Right Rear Outer (Hatchback)

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A RD 20 Stop Lamp Supply Voltage
B WH/BK 309 Left Park Lamp Supply Voltage
G BK 450 Ground
Turn Signal Lamp - Left Front (Except North America)

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 BK 50 Ground
2 L-BU 14 Left Turn Signal Lamps Supply Voltage
Turn Signal Lamp - Left Rear

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A YE 14 Left Turn Signal Lamps Supply Voltage
B - - Not Used
G BK 50 Ground
Turn Signal Lamp - Right Front (Except North America)

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 BK 150 Ground
2 L-BU 15 Right Turn Signal Lamps Supply Voltage
Turn Signal Lamp - Right Rear

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A YE 15 Right Turn Signal Lamps Supply Voltage
B - - Not Used
G BK 550 Ground
Turn Signal Multifunction Switch

GM1467023Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610203
  • 7-Way F 118 (PA) Series (BK)
Pin Wire Color Circuit No. Function
1 L-BU 14 Left Turn Signal Lamps Supply Voltage
2 PK 16 Turn Signal Flasher Signal
3 D-BU 15 Right Turn Signal Lamps Supply Voltage
4 L-GN 11 Headlamp High Beam Supply Voltage
5 PU 12 Headlamp Low Beam Supply Voltage
6 L-BU 1346 Headlamp Relay Supply Voltage
L-BU 2346 Flash to Pass Signal
7 OG 140 Battery Positive Voltage
Turn Signal Repeater Lamp - Left

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 L-BU 14 Left Turn Signal Lamps Supply Voltage
2 BK 1150 Ground
Turn Signal Repeater Lamp - Right

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 L-BU 15 Right Turn Signal Lamps Supply Voltage
2 BK 150 Ground
Turn Signal/Hazard Flasher Module

GM1497842Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36906
  • 9-Way Relay Connector (GN)
Pin Wire Color Circuit No. Function
1-3 - - Not Used
4 BK 250 Ground
5 - - Not Used
6 D-BU 1508 Turn Signal Switch Signal
7 - - Not Used
8 PK 16 Turn Signal Flasher Signal
9 - - Not Used
scientia non olet · About LEMON Manuals
