Power Roof Systems Component Views
WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Head Up Display (HUD) (UV6) |
| 2 | Driver Information Center (DIC) Switch |
| 3 | Sunload Sensor Assembly |
| 4 | Hazard Switch |
| 5 | Radio |
| 6 | HVAC Control Module |
| 7 | Inflatable Restraint I/P Module Disable Switch |
| 8 | I/P Compartment Lamp |
| 9 | Heated Seat Switch - Passenger |
| 10 | Suspension Control Switch |
| 11 | Inflatable Restraint I/P Module Disable Switch LED |
| 12 | Auxiliary Power Outlet |
| 13 | Traction Control Switch |
| 14 | Cigar Lighter |
| 15 | Heated Seat Switch - Driver |
| 16 | Footwell Courtesy Lamp - Left |
| 17 | Ignition Mode Switch |
| 18 | Air Temperature Sensor - Inside |
| 19 | Inflatable Restraint Steering Wheel Module |
| 20 | Rear Compartment Lid Release Switch - Interior |
| 21 | Fuel Door Release Switch |
| 22 | I/P Dimmer Switch |
| 23 | Folding Top Control Switch (CM7) |
| 24 | Head Up Display (HUD) Switch (UV6) |
| 25 | Instrument Panel Cluster (IPC) |

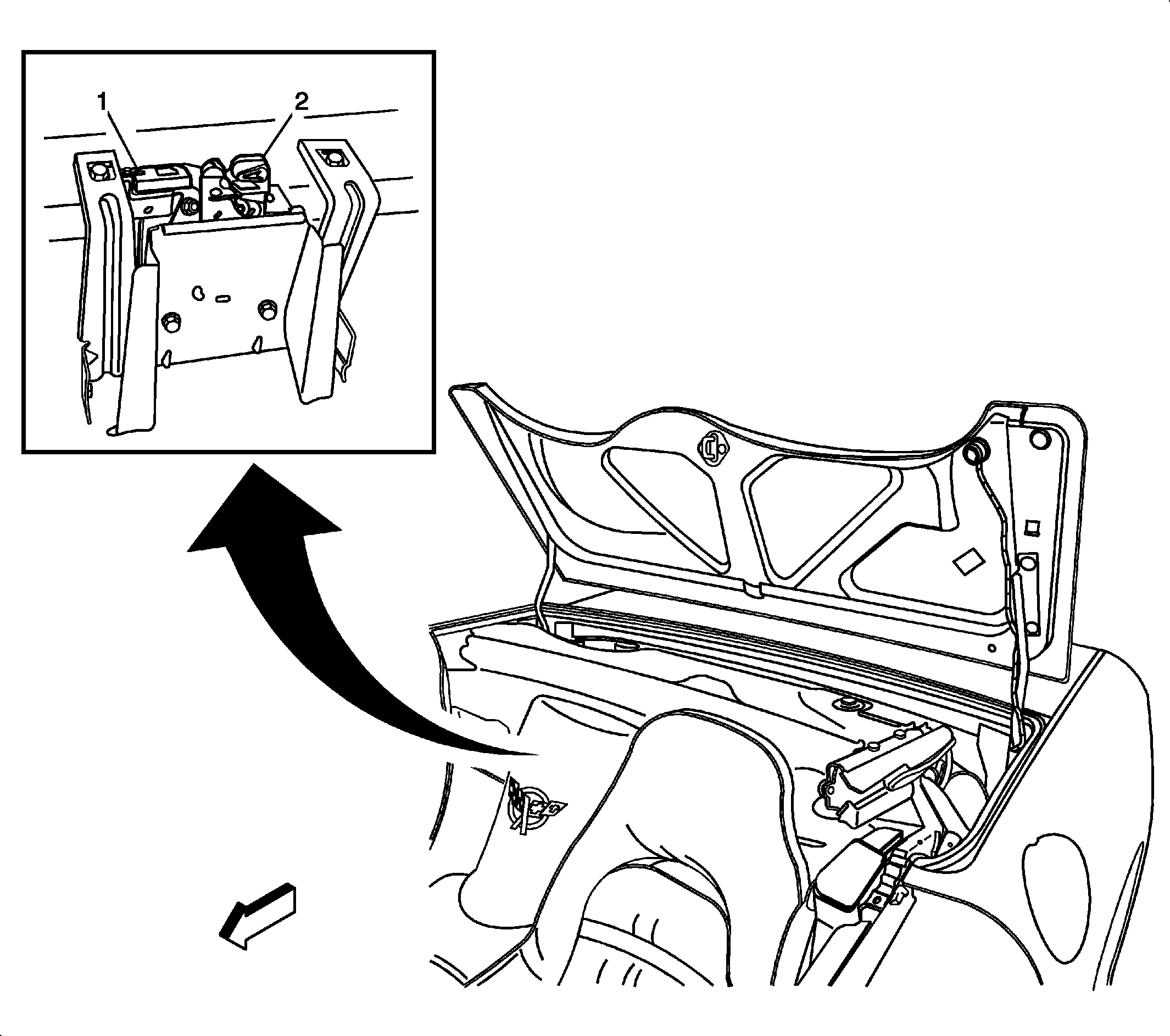

| Callout | Component Name |
|---|---|
| 1 | Folding Top Cover Latch Actuator |
| 2 | Folding Top Cover Pulldown Actuator (CM7) |
| Callout | Component Name |
|---|---|
| 1 | Tonneau Open Switch (CM7) |
| 2 | Tonneau Lid |
| 3 | Folding Top Pump and Valve Assembly |
| 4 | Luggage Barrier Switch (CM7) |

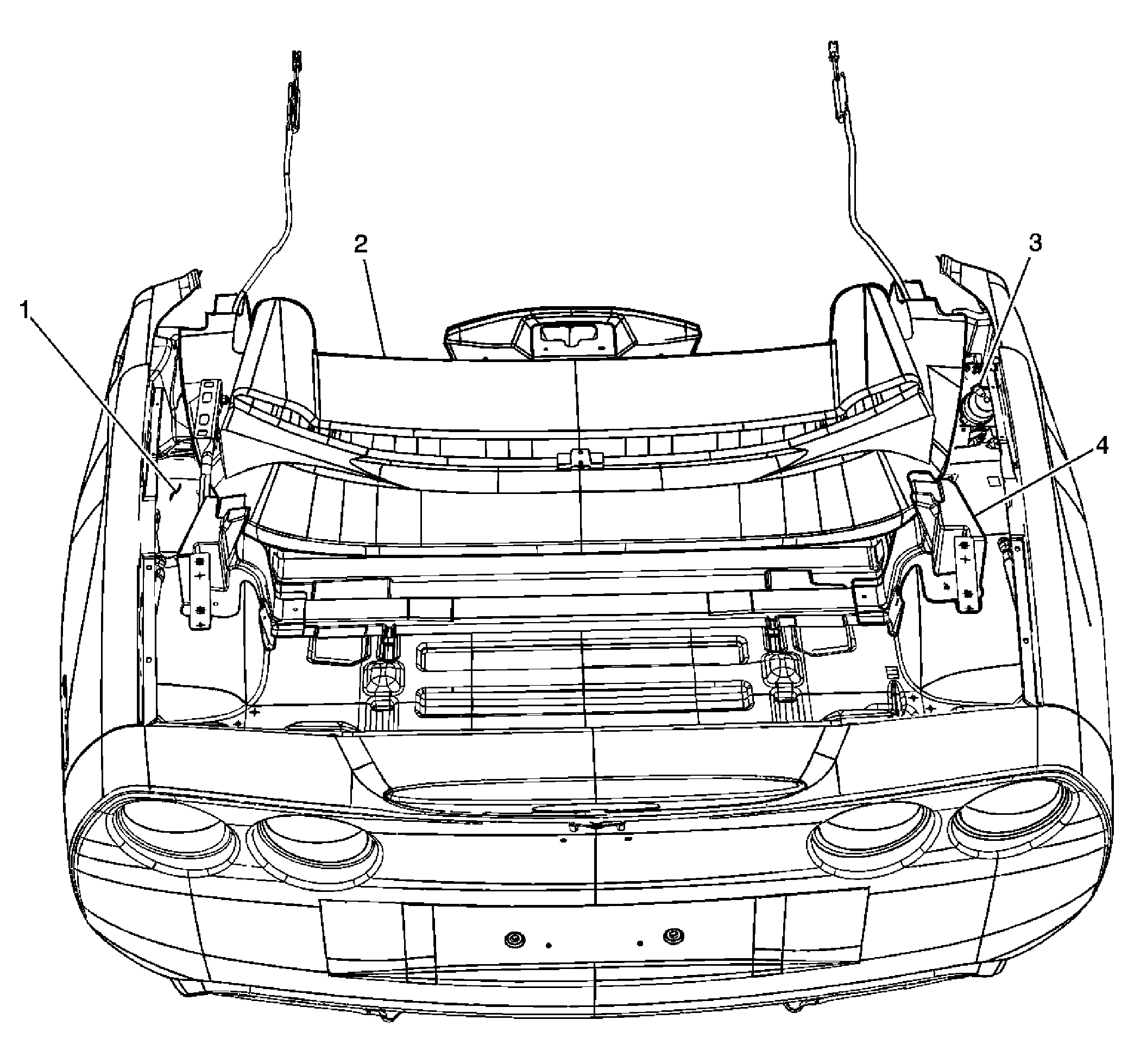

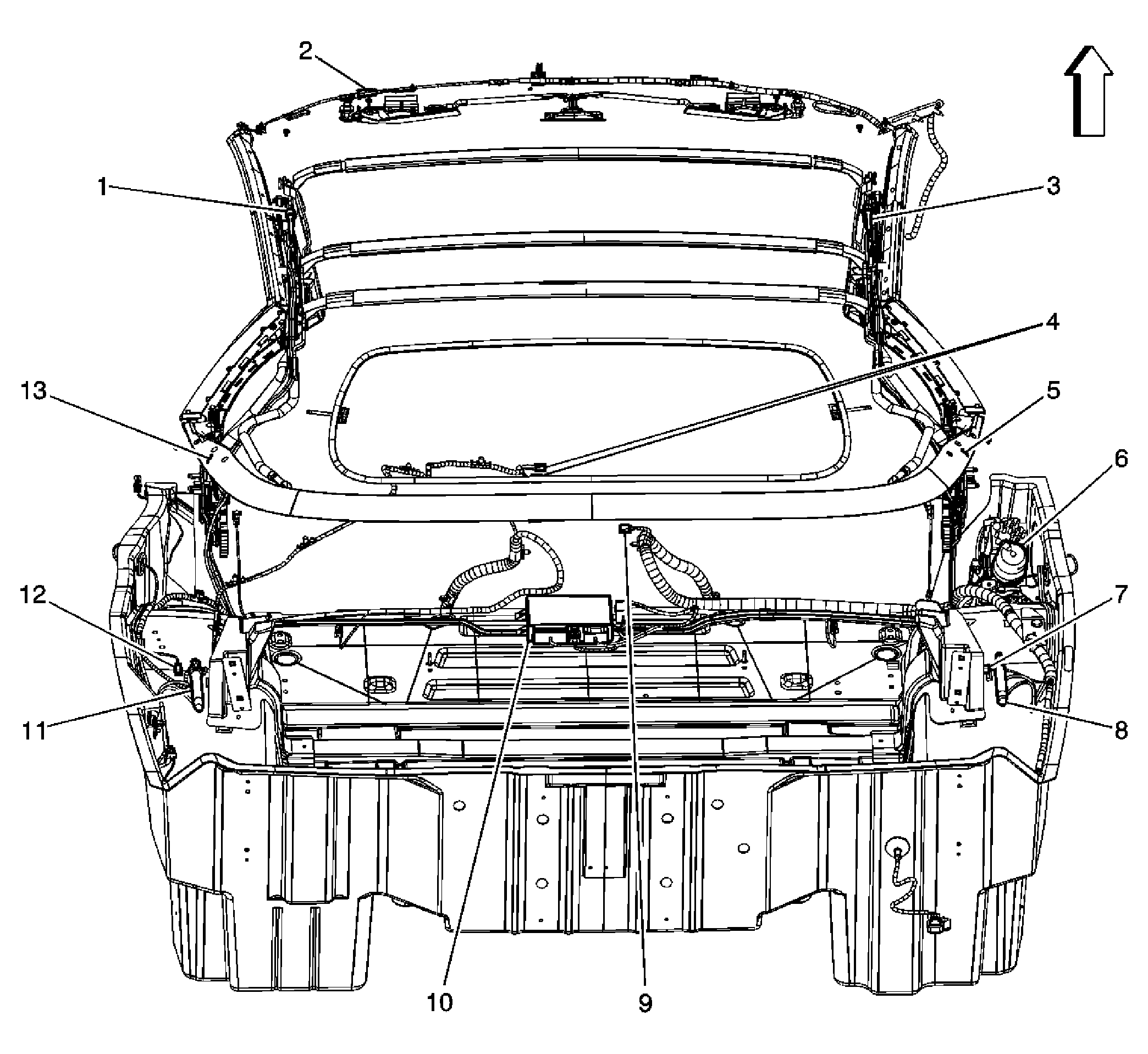

| Callout | Component Name |
|---|---|
| 1 | Actuator - Bow 5 |
| 2 | Header Latched Switch |
| 3 | Actuator - Bow 5 |
| 4 | Tonneau Latch Actuator |
| 5 | Actuator - Bow 1 |
| 6 | Pump and Valve Assembly (CM7) |
| 7 | Luggage Barrier Switch Connector (CM7) |
| 8 | Actuator |
| 9 | Tonneau Pulldown Actuator (CM7) |
| 10 | Folding Top Module (FTM) (CM7) |
| 11 | Actuator |
| 12 | Tonneau Open Switch (CM7) |
| 13 | Actuator |
